Trumpai apie prekę
Prekė: Komutatorius TP-LINK TL-SG1016D, 16 prievadų, montuojamas į stelažą. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: TP-Link
- Modelis: TL-SG1016D

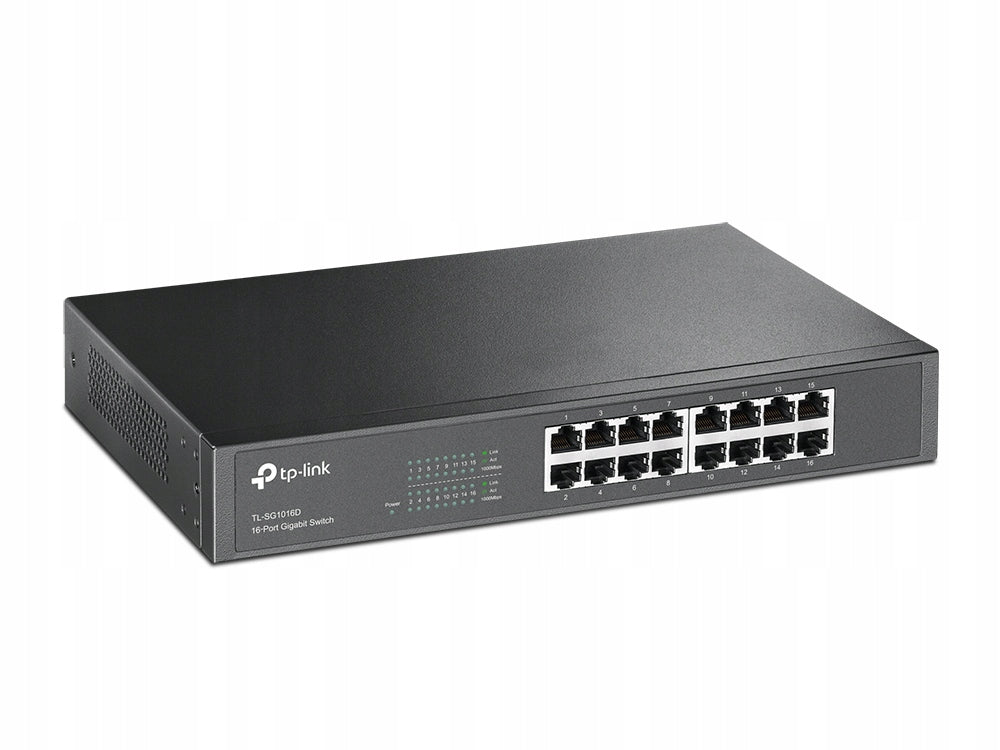

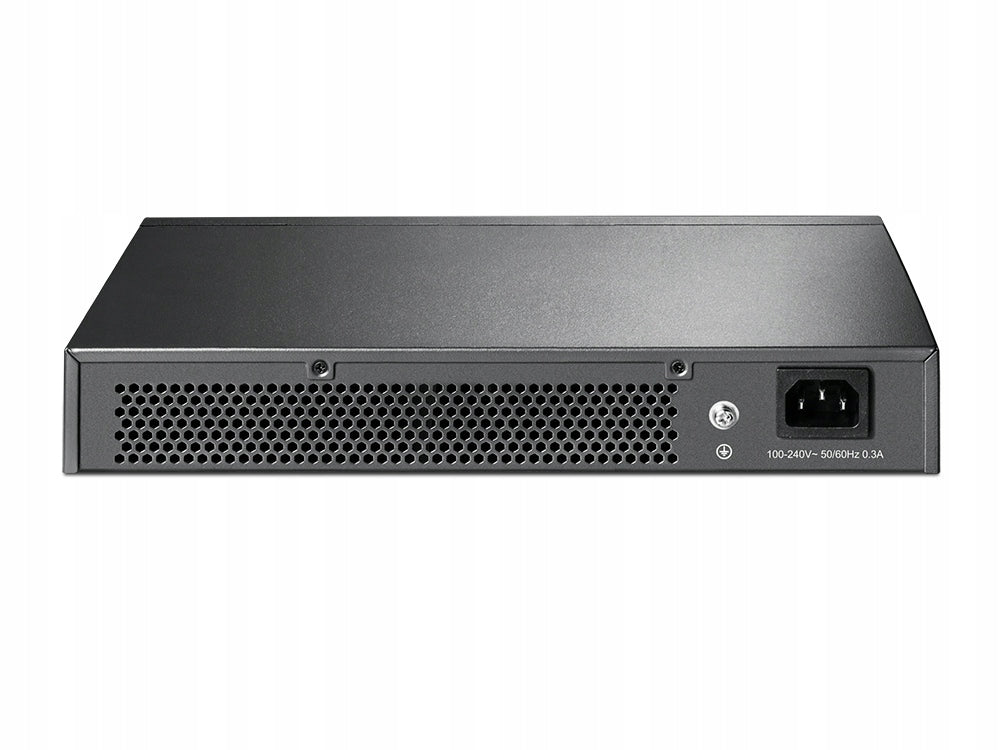

SWITCH TP-LINK TL-SG1016D 16 PORTS
THE MOST IMPORTANT FEATURES
- 16 ports 10/100/1000Mbps
- Innovative technology saves up to 40%* of energy
- MAC address memorization mode, automatic MDI/MDIX patching, automatic call negotiation
- With the possibility of mounting in the rack
- Plug & play standard
USE OF THE PRODUCT
The 16 port TL-SG1016D Gb switch is a device that supports gigabit Ethernet connection. Each of the 16 ports of the device has an automatic patching function MDI/MDIX allowing for its quick installation without having to check the type of cables used. In addition, the TL-SG1016D switch is environmentally friendly, as it uses innovative technology to save up to 15%* of energy consumption and 80% of the materials used in the package are recyclable.
GIGABIT SWITCHES
Equipped with 16 10/100/1000Mbps ports, the TL-SG1016D provides high network bandwidth for instant transmission of large files. Users in homes, offices, workgroups, and production environments can now transfer larger files that require high bandwidth transmission. This allows for immediate exchange of image files, CGI, CAD or multimedia files on the network.
Green TP-LINK technology
The TL-SG1016D uses technology that enables high-bandwidth networks with high energy savings. The device automatically adjusts the required power consumption depending on the connection status and cable length, reducing power consumption. The device is also RoHS compliant, prohibiting the use of specific environmentally hazardous materials.
ENERGY-EFFICIENT ETHERNET NETWORK - ENVIRONMENTALLY FRIENDLY
By creating a gigabit Ethernet network, you can now choose an environmentally friendly solution! The TL-SG1016D uses technology that enables high-bandwidth networks with high energy savings. The device automatically adjusts the required power consumption depending on the connection status and cable length, reducing power consumption. Disabling power to unused ports Traditional network switches consume a significant amount of power for ports, even if the devices connected to them are disabled. The TL-SG1016D automatically detects the connection status of each port, reducing the power consumption of inactive ports. Energy consumption depending on the length of the cable Theoretically, the use of shorter cables should reduce energy consumption, due to lower energy losses at their length. However, most devices use the same amount of energy, regardless of the length of the cables. The TL-SG1016D analyzes the length of cables connected to it and regulates the amount of energy consumed by the ports accordingly.
SIMPLE OPERATION
Automatic switch operation thanks to plug and play function ensures simple and hassle-free installation. The device does not require additional software. Thanks to the MDI/MDIX function, there is no need for patch cables. The automatic connection negotiation function detects the speed of the connected device (10, 100 or 1000Mbps) on each port, ensuring the best transmission performance. * The maximum value of energy saved compared to conventional TP-LINK switches, the actual value depends on the conditions of use.
CHARACTERISTICS
- Innovative technology saves up to 40% of energy
- Support bandwidth control standard for full duplex mode (IEEE802.3x) and backpressure function for half duplex mode
- Seamless network traffic switching architecture enables packet forwarding and filtering at full speed with maximum bandwidth
- 32Gb/s switching capacity
- 10K jumbo frames increase the efficiency of large data transfer
- With MDI/MDIX, there is no need for patch cables
- Support for auto-learning and auto-aging MAC addresses
- Store and forward packet switching program
- Automatic negotiation of connections on ports enables better integration of devices operating at different transmission speeds: 10Mbps, 100Mbps or 1000Mbps
- Simple installation with Plug and Play
POSSIBILITY OF MOUNTING IN THE RACK CABINET
TECHNICAL SPECIFICATION
HARDWARE FEATURESStandards and protocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3xPorts16 RJ45 10/100/1000Mbps ports (automatic connection speed negotiation) Automatic patching (Auto-MDI/MDIX)10Base-T network cabling: UTP cable cat. 3, 4 or 5 (up to 100m) STP cable EIA/TIA-568 100Ω (up to 100m) 100Base-Tx: UTP cable cat. 5, or 5e (up to 100m)FanlessYesPower Supply100-240VAC, 50/60HzPower consumptionMaximum: 13,3W (220V/50Hz)Dimensions (S x G x W)294*180*44 mm (11,6*7,1*1,7 inch)Max. power consumption9.26W(220V/50Hz)Amount of heat generated31.60BTU/hPERFORMANCE Switching efficiency32Gb/package redirection rate23,8Mp/sAddress table MAC8jumbo10KBTechnology GreenSaving up to 15% energyStore-and-ForwardINNE switching architectureFCC certificates,CE, RoHs Package ContentsSwitch, 16 Ports Gb Power Cable Installation Instructions Mounting Hardware Rubber Leg System RequirementsMicrosoft® Windows® XP,Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®,UNIX® or Linux.Working environmentAdmissible operating temperature:0℃~40℃ (32℉~104℉); Permissible storage temperature: -40℃~70℃ (-40℉~158℉); Permissible air humidity:10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | TP-Link |
| Parametry | Product weight with unit packaging | 2.25 kg |
| Parametry | Number of ports | 16 |
| Parametry | EAN (GTIN) | 6935364020613 |
| Parametry | Manufacturer code | TL-SG1016D |
| Parametry | Packaging status | original |
