Komutatorius Planet GS-6311-24P4XV

Trumpai apie prekę

Prekė: Komutatorius Planet GS-6311-24P4XV. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-6311-24P4XV

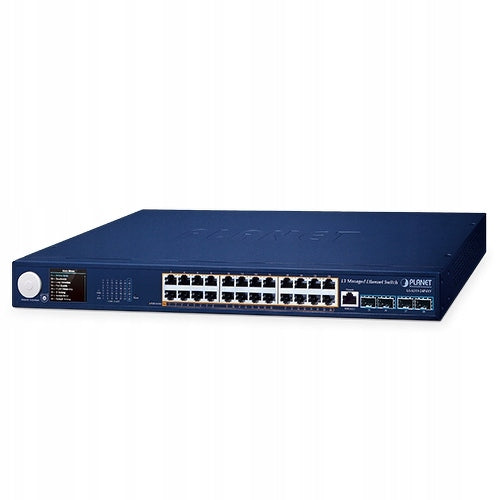

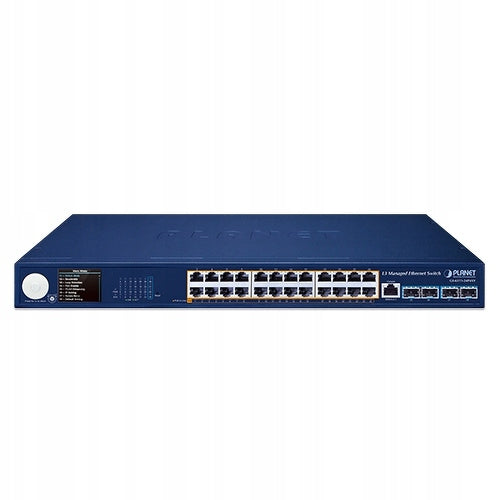

Planet GS-6311-24P4XV Custom made

Planet

Resistant PoE, 10 Gbps and Layer 3 routing solution for enterprise networks

PLANET GS-6311-24P4XV is the ideal Plug and Watch Power over Ethernet solution that provides fast installation, real-time PoE status monitoring and instant troubleshooting with its unique LCD display to improve productivity and quality of work without the need for a computer or software.

The GS-6311-24P4XV is equipped with 24 10/100/1000BASE-T copper ports supporting the 802.3at PoE+ injector function, a total PoE power budget of up to 370 watts, and 4 additional 1G/10GBASE-X SFP+ fiber ports that are flexibly designed to increase connection distance. It provides a fast, secure and cost-effective Power over Ethernet networking solution for IP security surveillance for small businesses and enterprises.

The GS-6311-24P4XV delivers high performance, Layer 3 static routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 10 Gbps interfaces and a 128 Gbps switching structure, the GS-6311-24P4XV can handle very large amounts of data in a secure topology that connects to an enterprise backbone network or high-capacity servers. Powerful network security features make the GS-6311-24P4XV provide effective data traffic control for ISPs and enterprise VoIP applications, video streaming and multicasting.

Intelligent and intuitive LCD control

The GS-6311-24P4XV front panel provides an intuitive color panel for easy Ethernet and PoE PD management. With the knob and LCD screen, users can quickly change the desired setting. Simply select the desired setting by turning the knob, and then press the knob to enter the setting. This easy operation can increase the efficiency of managing large networks such as enterprises, hotels, shopping malls, government buildings and other public areas. The following special management and status functions are available:

• Management and PoE status
• Port management and status
• Switch Mode: Standard, VLAN or Extend
• IP settings and loop detection
• Setting the VLAN property
• Screensaver, factory defaults and saving configurations

Centralized power management for Gigabit Ethernet PoE networks

To meet the needs of PoE network applications with higher power requirements with Gigabit transmission. The GS-6311-24P4XV has 24 ports 10/100/1000BASE-T Gigabit IEEE 802.3at PoE+ with 32W 802.3at PoE+ injector. It perfectly meets the power requirements of VoIP PoE phone and all kinds of PoE IP cameras, such as IR, PTZ, high speed cameras and even box IP cameras with built-in fan and heater.

The PoE capabilities of the GS-6311-24P4XV also help reduce the cost of deploying network devices by freeing yourself from the limitations of the location of power outlets. Power and data switching is integrated into a single device, delivered via a single cable and centrally managed. This eliminates the cost of additional AC cabling and reduces installation time.

Intelligent checking of powered devices

The GS-6311-24P4XV can monitor the status of the connected PD device in real time using the PD life check function. When the PD device stops working and responding, the GS-6311-24P4XV will resume PoE power and restore the PD to operation. This will significantly increase network reliability by resetting the PD power source through the PoE port and reduce the administrator burden associated with management.

PoE Schedule for Energy Savings

In addition to its use in IP monitoring, the GS-6311-24P4XV is certainly suitable for building any PoE network, including VoIP and wireless LAN. In line with the energy saving trend around the world and contributing to the protection of the environment on Earth, the GS-6311 PoE switch series can effectively control the power supply, in addition to the ability to deliver high power. The "PoE Schedule" feature helps you turn PoE power on or off for each PoE port at specific time intervals, and it's a powerful feature that helps small and medium-sized businesses or enterprises save energy and budget.

High performance 10 Gbps Ethernet network

The four SFP+ ports built into the GS-6311-24P4XV boast a high-performance switch architecture that is capable of providing non-blocking switch structure and bandwidth up to 128 Gbps, greatly simplifying LAN upgrade tasks to meet growing bandwidth requirements. Each SFP+ port supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, which means that an administrator can now flexibly select the appropriate SFP/SFP+ transceiver depending on the transmission distance or transmission speed required for efficient network expansion.

Redundant ring, fast recovery for critical network applications

The GS-6311-24P4XV supports redundant ring technology and has a strong, fast self-healing capability to prevent interruptions and external intrusions. It includes advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) in the client network to increase system reliability and runtime in harsh environments. On some simple Ring networks, the recovery time can be less than 15ms to quickly restore the network to normal operation.

Support for Layer 3 routing

The GS-6311-24P4XV enables an administrator to conveniently increase network performance by manually configuring Layer 3 static routing, automatic RIP (Routing Information Protocol) or Open Shortest Path First (OSF) configuration.

• The RIP protocol can use the number of hops as a routing metric and prevent routing loops by implementing a limit on the number of hops allowed in the path from source to destination.
• OSPF is an internal dynamic routing protocol for a standalone system based on the state of the link. The protocol creates a database for the link state by exchanging link states between Layer 3 switches, and then uses the Shortest Path First algorithm to generate a route table based on that database.

Strong multicast

The GS-6311-24P4XV supports multiple multicast functions. In Layer 2 it has IPv4 IGMPv1/v2/v3 snooping and IPv6 MLD v1/v2 snooping functions. With Multicast VLAN Register (MVR), multicast receiver/broadcast control and illegal multicast source detection, the GS-6311-24P4XV is perfect for any robust network.

Full IPv6 support

The GS-6311-24P4XV provides IPv6 management and secure enterprise-level features such as SSH, ACL, WRR and RADIUS authentication. In doing so, it helps enterprises enter the IPv6 era with the lowest investment. In addition, you don't need to replace network devices when you build an IPv6 FTTx edge network.

Solid Layer 2 features

The GS-6311-24P4XV can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Multiple Spanning Tree protocol, bandwidth control and IGMP snooping. The switch provides VLAN functions with 802.1Q, Q-in-Q, voice VLAN and GVRP protocol tags. Supporting port aggregation, the GS-6311-24P4XV enables high-speed connection to multiple ports. Allows up to 64 groups for trunking with up to 8 ports for each group.

Efficient and secure management

For efficient management, the GS-6311-24P4XV is equipped with console, web and SNMP interfaces.

• With its built-in Web-based management interface, the GS-6311-24P4XV offers easy-to-use, platform-agnostic management and configuration features.
• Text management can be accessed through Telnet and the console port. To reduce product learning time, the GS-6311-24P4XV offers Cisco-like commands, and the customer doesn't need to learn new commands from these switches
• For standard monitoring and management software, it offers an SNMPv3 connection that encrypts packet contents during each session for secure remote management.

What’s more, the GS-6311-24P4XV offers secure remote management with support for SSHv2 connection, which encrypts packet contents during each session.

Intelligent SFP diagnostic mechanism

The GS-6311-24P4XV supports SFP-DDM (Digital Diagnostic Monitor) function, which greatly helps the network administrator to easily monitor the parameters of SFP and SFP+ transceivers in real time, such as optical output power, optical input power, temperature, laser polarization current and transceiver supply voltage.

• Quantity in Multipack: 4 pcs
• Height: 4.4 cm
• Width: 44 cm
• Depth: 20.7 cm
• Weight: 3.4 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Person Information: Konsorcjum FEN Sp. z o.o.PolandPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605287531
Parametry	Manufacturer code	GS-6311-24P4XV
