Komutatorius Planet GS-5220-16S8C

Trumpai apie prekę

Prekė: Komutatorius Planet GS-5220-16S8C. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Planet
• Modelis: GS-5220-16S8C

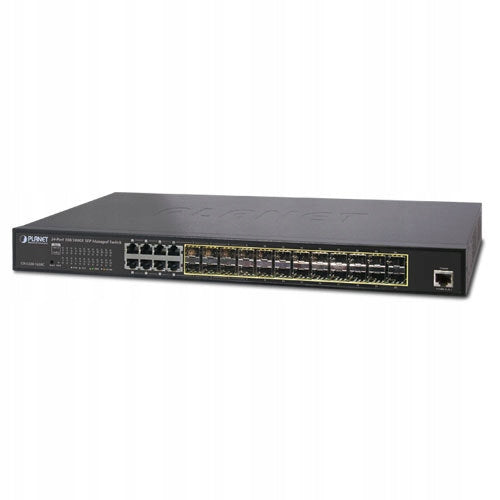

Planet GS-5220-16S8C Custom made

Planet

Solution for long-distance communication

The latest managed Planet Layer 2 switches, the GS-5220-16S8C and GS-5220-16S8CR models provide high performance and hardware static IPv4/IPv6 Layer 3 routing and 24 ports of 100/1000Base-X dual-speed SFP in a 1U chassis. With these features, switches are able to connect to different VLANs and different IP addresses to create a secure network, flexible management and long-range installation. Thanks to fiber optic slots, the switches can flexibly cooperate with appropriate SFP transceivers to provide connectivity over a distance of up to 120 km via a fiber optic link. Switches are ideal for networking in small and medium-sized businesses, campuses, enterprises and large workgroups by providing high performance, affordability, long-distance connectivity and stable connection quality.

Intelligent diagnostic mechanism of SFP

The SFP slots in the GS-5220-16S8C and GS-5220-16S8CR support 1000Base-SX/LX or 100Base-FX fiber optic transceivers, the distance can range from 550m to 2km (multi-mode fiber) or even 10/20/30/40/50/70/120km (single-mode or WDM fiber). The slots also support SFP-DDM (Digital Diagnostic Monitor), which allows you to easily monitor the operating parameters of the SFP device such as optical input/output power, temperature, laser charge and real-time transceiver power supply.

Redundant AC/DC power system for continuous operation

The GS-5220-16S8CR is equipped with one 100~240V AC power supply and one 36~60V DC power supply to provide a reliable power source, especially useful for scalable installations. The continuous power system is designed to meet the requirements of large installations requiring the highest power integrity. With a 36~60V DC power supply, the 36~60V DC can operate as a telecom-level device.

Effective alarms for better protection

The GS-5220-16S8C and GS-5220-16S8CR offer an alarm notification function in the event of a failure, allowing users to be alerted. Thanks to this feature, users do not have to waste time looking for the place where the fault occurred. This helps to save time and human resources.

Solution for IPv6 networks

With an increasing number of IP cameras and wireless access points deployed in different locations, more and more devices support next-generation IPv6 networking. By supporting IPv4 and IPv6, as well as multiple management functions with user-friendly interfaces, the GS-5220-16S8C and GS-5220-16S8CR are the best choice for IPv6 deployment in IP surveillance networks and wireless service providers.

IPv4 and IPv6 Layer 3 VLAN routing for secure and flexible management

The GS-5220-16S8C and GS-5220-16S8CR switches not only provide high transmission performance and excellent Layer 2 and Layer 4 technologies, but also IPv4/IPv6 VLAN Layer 3 routing features, allowing you to connect to different VLANs and different IP addresses to create a secure network, flexible management and long-range installation.

Solid Layer 2 functions

The GS-5220-16S8C and GS-5220-16S8CR support advanced features such as dynamic link port aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree (MSTP) protocol, and Layer 2 to Layer 4 QoS bandwidth control, and IGMP/MLD Snooping. . Port aggregation allows high-speed buses to function by connecting multiple ports. Additionally, Link Layer Discovery Protocol (LLDP) is a Layer 2 protocol that allows you to get information about devices adjacent to your local broadcast domain.

High level of security

The GS-5220-16S8C and GS-5220-16S8CR offer a comprehensive IPv4/IPv6 Layer 2 to Layer 4 access control list (ACL) that provides complete security. This tool can be used to restrict network access by blocking packets based on source and destination IP addresses, TCP/UDP ports or defined applications. Security mechanisms also include port/patient-based 802.1X user and device authorization, which can be implemented together with RADIUS to ensure port-level security and block unauthorized users. In addition, the GS-5220-16S8C and GS-5220-16S8CR provide DHCP Snooping, IP Source Guard and Dynamic ARP Inspection to prevent IP snooping attacks and reject ARP packets with an invalid MAC address. Administrators can easily and quickly build highly secure corporate networks.

Friendly and secure management

To increase operational efficiency, the GS-5220-16S8C and GS-5220-16S8CR switches are equipped with a console with access via network interface and SNMP. With a built-in web-based management interface, the GS-5220-16S8C and GS-5220-16S8CR offer easy-to-use system options configuration features. These switches support SNMP protocol and can be managed by any software based on SNMP v1 and v2 standard. The text management mode can be done via Telnet. In addition, the switches offer secure remote management mode, thanks to the support of SSH, SSL and SNMPv3, which allows you to encrypt the contents of packages during each session.

• Redundant Power Supply: No
• Management: Yes
• Primary Port Type: SFP / SFP+
• Primary Port Bandwidth: Gigabit Ethernet
• PoE Support: No
• Quantity per Master Pack: 3 pcs
• Height: 4.4 cm
• Width: 44 cm
• Depth: 26 cm
• Weight: 3.5 kg
• Manufacturer Information: PLANET TaiwanNew Taipei City2314110F No. 96 Minquan Rd. Xindian Dist. New Taipei City Taiwan sales@planet.com.twwww.planet.com.tw +886222199518
• EU Responsible Party Information: Konsorcjum FEN Sp. z o.o.PolskaPoznań60-415Czarnkowska 13Konsorcjum Fen sp. z o. o.gpsr@fen.plhttps://b2b.fen.pl/+48 616690700

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Planet
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4711605280327
Parametry	Manufacturer code	GS-5220-16S8C
