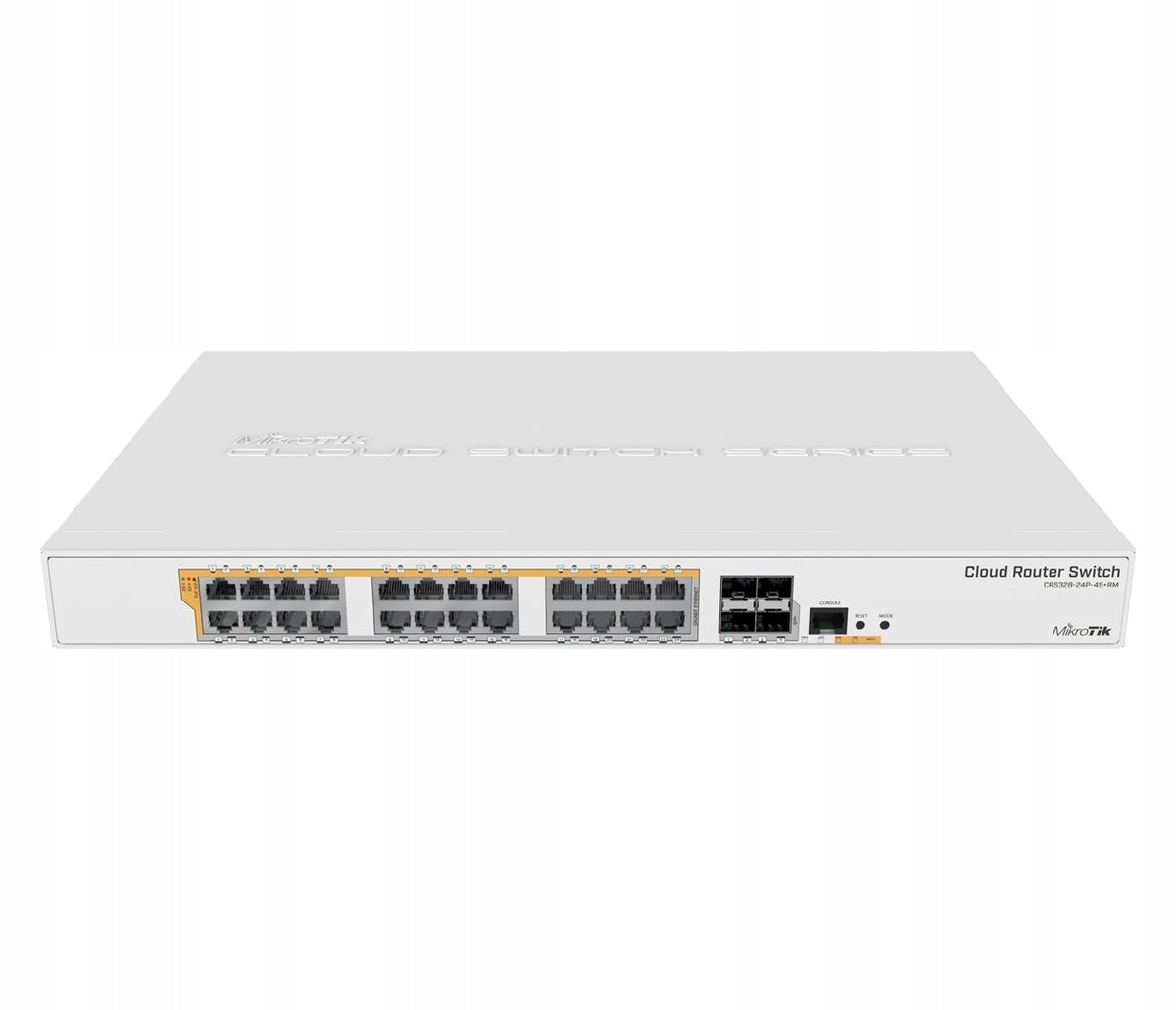

Komutatorius Mikrotik CRS328-24P-4S RM, valdomas, 24 PoE, 4 SFP+, Gigabit/10G

Trumpai apie prekę

Prekė: Komutatorius Mikrotik CRS328-24P-4S RM, valdomas, 24 PoE, 4 SFP+, Gigabit/10G. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: MikroTik
• Modelis: CRS328-24P-4S+RM

Specification

Features of management

• Switch Type: Managed
• Switch: L2/L3
• Operating system installed: RouterOS / SwitchOS
• Temperature monitoring: Yes
• Voltage monitoring: Yes

Ports and interfaces

• Basic RJ-45 switching Number of Ethernet ports: 24
• Basic RJ-45 Ethernet Switching Ports Type: Gigabit Ethernet (10/100/1000)
• Number of SFP+ slots: 4
• Console port: RJ-45

Network

• Communication standards: IEEE 802.1Q, IEEE 802.3ad
• Port mirroring: Yes
• Connection aggregator: Yes
• Movement increase control: Yes
• Automatic detection: Yes
• VLAN support: Yes
• Number of VLANs: 4000

Data transmission

• Routing/switching throughput: 128 Gbit/s
• Capacity: 64 Mpps
• Transfer speed: 95,2 Mpps
• Address table size: 16000 inputs
• Compatible with Jumbo Frames: Yes
• Jumbo Frames extension: 10218

Protection

• Access Control List (ACL): Yes
• IGMP snooping: Yes

Protocols

• Management protocols: SNMP

Design

• Frame mounting options: Yes
• Layout: 1U
• Product color: White
• LEDs: Yes
• Number of built-in fans: 2 pcs.

Efficiency

• Embedded Processor: Yes
• CPU clocking: 800 MHz
• Internal storage capacity: 512 MB
• Flash memory size: 16 MB

Power

• Power source: AC
• Power supply included: Yes
• AC input voltage: 100 - 240 V
• Power consumption (max): 44 W

Power over Ethernet (PoE)

• PoE support: Yes
• PoE+ support: Yes
• Number of 1 Gb Ethernet (PoE) ports: 8
• Total Power over Ethernet (PoE) budget: 450 W

Working conditions

• Temperature range (operation): -20 - 60 °C

Weight and sizes

• Product width: 443 mm
• Product depth: 300 mm
• Product height: 44 mm

Packaging data

• Cables: AC
• Hook mounting kit: Yes
