Komutatorius IP-COM Pro-S24, 24 GE prievadai, 4 SFP lizdai

Trumpai apie prekę

Prekė: Komutatorius IP-COM Pro-S24, 24 GE prievadai, 4 SFP lizdai. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Ip-Com
• Modelis: Pro-S24

• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• 24x Gigabit Ethernet 10/100/1000 Base-T ports
• 4x Base-X SFP 1000 slots
• An array of MAC addresses with a capacity of 16 thousand. and automatic learning of MAC addresses
• Large buffer 12 Mb
• Switching capacity: 56 Gbps
• Support for multiple services such as static routing, VLAN, IGMP, QoS, ACL, DHCP Snooping, ARP and Telnet
• ProFi Software Controller management support

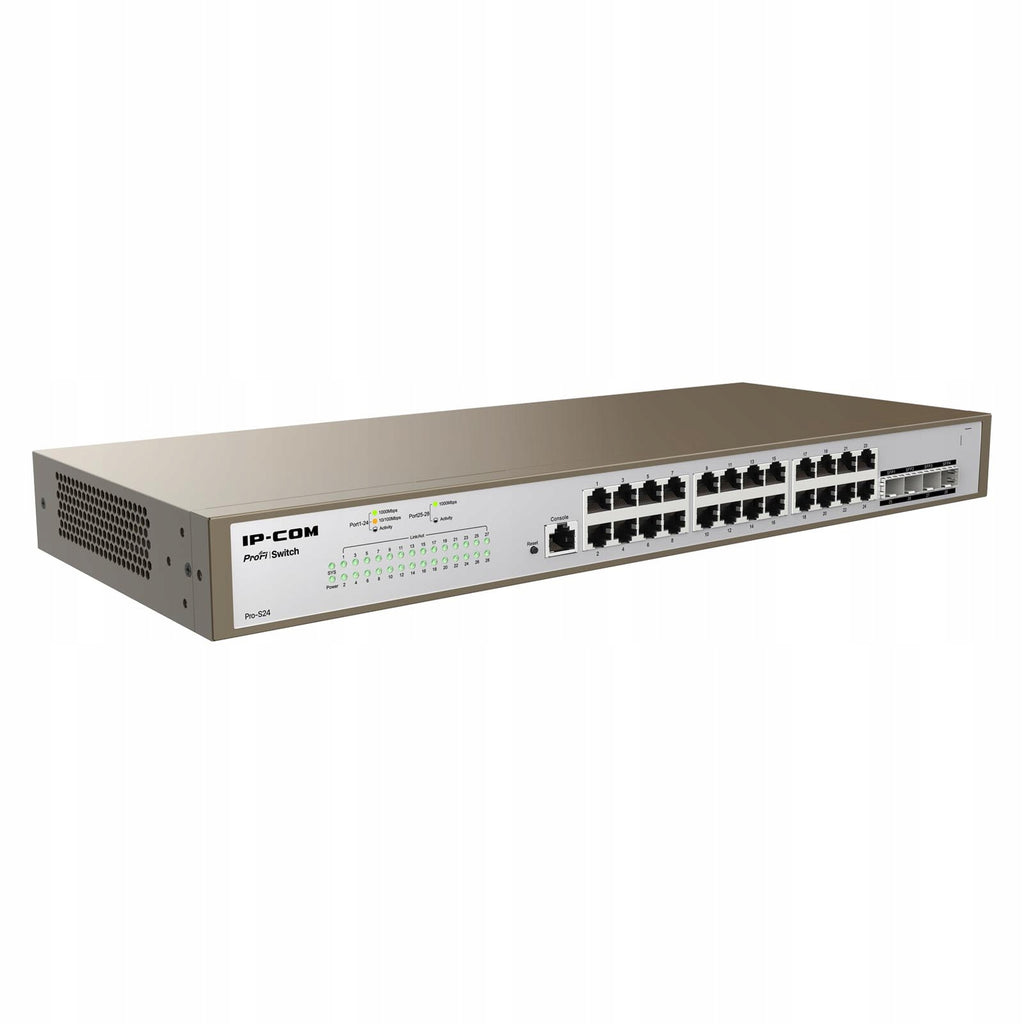

IP-COM Pro-S24 is a 28-port gigabit switch from the IP-COM ProFi Software Controller series, specially designed for scenarios such as small and medium-sized businesses or smart hotels.

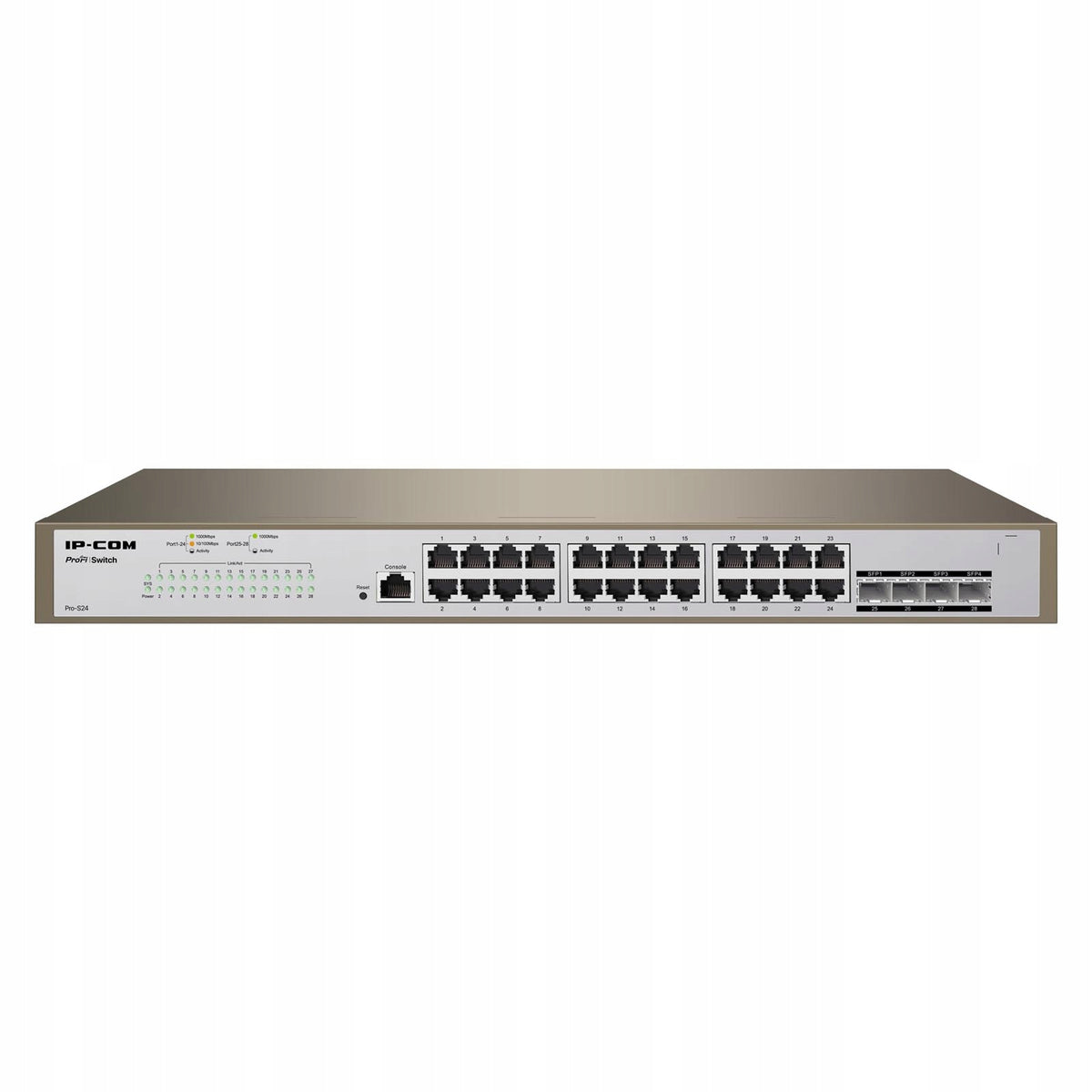

The switch is equipped with 24x Gigabit Ethernet ports 10/100/1000 Mb/s Base-T and 4 separate slots 1000 Mb/s Base-X SFP.

Supports centralized control by the IP-COM ProFi software controller. It allows users to deploy a network without being constrained by geographic location. .

Routing protocol

The switch supports a static routing protocol that supports layer two isolation and layer three communication, thereby achieving efficient and fast layer three forwarding.

Centralized management

It supports centralized management and monitoring of device status by the ProFi software controller, and also allows remote access to cloud services that are not limited by the device installation location.

Large buffer 12 Mb

It provides a large 12 Mb buffer, which can meet the requirements of high-traffic network applications such as engine search, IPTV, P2P download, as well as no packet loss during traffic increases.

Visualization

The system can automatically generate a network topology. It supports ONVIF-based IP camera detection and LLDP-based network device detection, as well as online/offline status detection for all devices on the network. This improves the performance of LAN operation and servicing, as well as reduces maintenance costs.

• Network standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.1d, IEEE802.1s
• LEDs: Link/Act for each port, Power, SYS
• Ports: 24x gigabit Ethernet ports 10/100/1000 Mbps, 4x SFP slots, 1x RJ45 console port
• Overvoltage protection: 6 kV (ports and power supply)
• Forwarding mode: Store-and-forward
• Switching bandwidth: 56 Gbps
• Package forwarding speed: 41,7 Mp/s
• Buffer: 12 Mb
• MAC address array size: 16k
• Input voltage: 100 - 240 V AC 50/60 Hz
• Maximum power consumption: 24 W
• Dimensions: 440 x 179,6 x 44 mm
• Admissible operating temperature: From 0 to 45°C
• Admissible storage temperature: From -40 to 70°C
• Admissible air humidity: 10%-90% RH non-condensing
• Admissible humidity during storage: 5%-90% RH non-condensing
• Properties of the software:
• Security: Limit of ARP received, Rejection of unknown MAC addresses, Protection against DoS attacks, 802.1x authentication, RADIUS authentication
• VLAN: IEEE 802.1q VLAN, VLAN Layer 3 interface, Three VLAN modes: access, trunk, hybrid
• DHCPL: DHCP server, DHCP relay, DHCP snooping, Option 82
• Routing: Inter-VLAN routing, IPv4 static routing, Dynamic and static ARP, ARP aging configuration
• Port aggregation: Static aggregation, Dynamic LACP aggregation, Up to 32 aggregation groups, up to 8 users per group
• STP (Spanning Tree Protocol): IEEE 802.1d STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol), Edge ports, BPDU statistics, BPDU Guard, BPDU Filter, Root Guard, Loop Guard, Loop detection
• Multicasts: IGMP Snooping v1/v2/v3, Fast leave
• Port mirroring: N:1
• QoS: SP (Strict Priority), SWRR (Simple Weighted Round Robin), WRR (Weighted Round Robin), 802.1p port trust mode, DSCP port trust mode, Up to 8 queues, Tail Drop, Storm suppression, Rate limit per port
• ACL: MAC ACL, IPv4 ACL
• Update: Support FTP/TFTP/HTTP update, Import and export configuration
• Management: Centralized ProFi management platform, CLI configuration, Telnet, SNMP v1/v2/v3, Web interface management, System logs, Log classification, NTP, Ping and Traceroute, Memory and CPU utilization monitoring

Specifications
