Komutatorius Hikvision DS-XS10-P

Trumpai apie prekę

Prekė: Komutatorius Hikvision DS-XS10-P. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-XS10-P

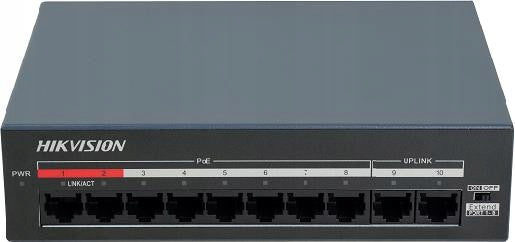

Hikvision DS-XS10-P Switch

Model: DS-XS10-P

Key features

• 8-port unmanaged PoE Fast Ethernet switch
• 8 x RJ45 10/100 Mbps PoE ports and 2 x RJ45 10/100 Mbps ports
• PoE power budget for the entire device: 60 W
• Long-distance transmission support
• High priority port support

Technical specifications

• Model DS-XS10-P
• Housing Material: Metal
• Net weight 0.56 kg (1.23 lbs)
• Gross weight 0.64 kg (1.41 lbs)

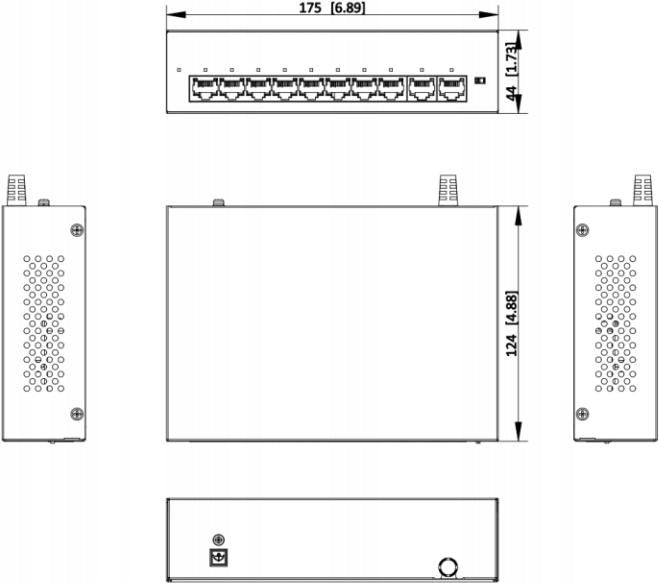

• Dimensions (width × height × depth ) 175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
• Operating temperature 0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
• Operating humidity 5% to 95% (non-condensing)
• Relative humidity 5% to 95% (non-condensing)
• Power supply 220V AC, 50Hz, 1.5A
• Max Power consumption 60 W
• Power consumption in standby mode 3.4 W
• Mounting type: Desk, wall
• 2 kV surge protection
• Network parameters Ports 8 × PoE port 10/100 Mb/s, 2 × RJ45 port 10/100 Mb/s
• 2K MAC Address Table
• 2 Gbps switching capacity
• Packet forwarding speed 1.49 million operations per second
• Internal cache 0.77 Mb
• PoE Power PoE Port PoE: Ports 1 to 8
• Max Port power 30W
• PoE power budget 60 W
• Dialing function Long distance transmission
• Long-distance transmission Ports 1 to 8: up to 300m. Long-range performance may vary depending on camera model or cable condition.
• EMC approval CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Specifications
