Komutatorius Hikvision DS-3T1506HP-EI, 4x Gigabit PoE, 2x SFP

Trumpai apie prekę

Prekė: Komutatorius Hikvision DS-3T1506HP-EI, 4x Gigabit PoE, 2x SFP. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Hikvision
• Modelis: DS-3T1506HP-EI-UPS/NO POWER UNIT

Hikvision DS 3T1506HP EI UPS Switch 4x Gigabit PoE 2x SFP

HIKVISION

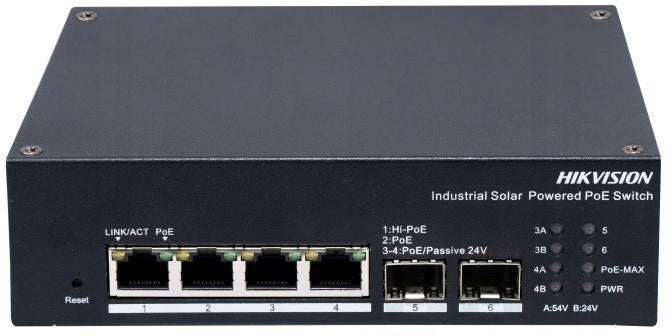

Switch Hikvision DS-3T1506HP-EI-UPS

Switch Hikvision DS-3T1506HP-EI-UPS is a managed network switch equipped with 4 Gigabit PoE ports and 2 Gigabit SFP fiber ports, adapted to work in a wide temperature range.

Main features

• 4 Gigabit PoE RJ45 ports and 2 Gigabit SFP ports
• IEEE 802.3bt Hi-PoE support up to 90W on port 1
• Support for 24V passive PoE on selected ports
• Power supply in the range of 12 to 24 V DC or 54 V DC
• Long Range mode up to 300 m on PoE ports
• PoE Watchdog function automatically restarts non-responsive devices
• Support for 802.1Q VLAN and link aggregation (Link Aggregation)
• 6 kV surge protection
• Metal housing with IP30 protection class
• Desk mount, DIN rail or wall mount

Technical specification

• Model: DS-3T1506HP-EI-UPS
• Ports: 4 × Gigabit PoE RJ45, 2 × Gigabit SFP, 1 × RS485
• PoE Standard: Port 1: IEEE 802.3af/at/bt; Ports 2 to 4: IEEE 802.3af/at; Ports 3 to 4: passive PoE (24 V or 54 V)
• Maximum PoE power per port: Port 1: 90 W, Ports 2 to 4: 30 W
• PoE power budget: 110 W (with 54 V DC power supply), 60 W (with 12 to 24 V DC power supply)
• Switching bandwidth: 14 Gbps
• Package forwarding speed: 10,42 Mpps
• MAC address table: 2000
• Buffer memory: 1 Mb
• Power supply: 12 V DC, 10 A / 24 V DC, 5 A / 54 V DC, 2,22 A
• Maximum power consumption: 120 W
• Power consumption in idle: 2 W
• Protection class: IP30
• Overvoltage protection: 6 kV
• Working temperature: -40°C to 75°C
• Working humidity: 5%–95% (non-condensing)
• Dimensions: 158 × 44 × 130 mm
• Weight: 0,7 kg
