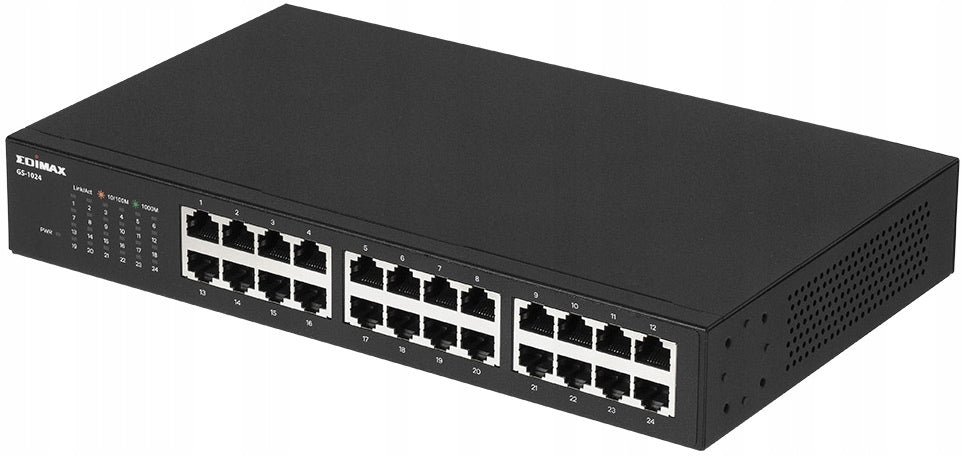

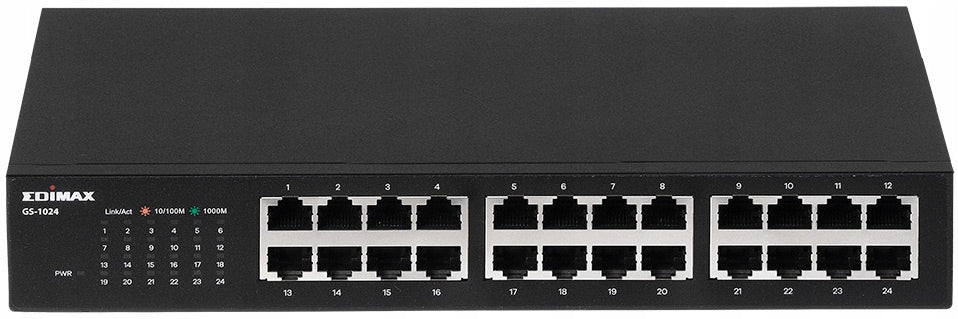

Komutatorius Edimax GS-1024, 24 prievadų, gigabitinis, montuojamas į spintą

Trumpai apie prekę

Prekė: Komutatorius Edimax GS-1024, 24 prievadų, gigabitinis, montuojamas į spintą. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Edimax
• Modelis: GS-1024

Manufacturer and model: Edimax GS-1024

Gigabit connection: equipped with 24 Gigabit Ethernet ports with support for full duplex and 10 KB jumbo frames

QoS: IEEE802.1p QoS support to ensure the highest priority for video and audio movement

High performance and reliable connection: IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction support

Energy saving: IEEE 802.3az Energy Efficient Ethernet compliant, inactive link and cable length detection

Plug-and-Play: no software or configuration required, for mounting on a desk or rack

Efficient network expansion up to gigabit speed For home, small and large office

Gigabit network

In full duplex mode, it provides bandwidth of up to 2000Mbps per port to servers, workstations and other connected devices to save time when transferring large files.

QoS for better traffic

802.1p QoS support provides the highest priority for audio and video transmission to reduce packet loss, lower latency and network interference.

High performance and reliable connection

Maximize network performance with IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture filtering incomplete and incorrect packages.

Energy saving

Compliance with IEEE802.3az Energy Efficient Ethernet standard to reduce power consumption and reduce costs.

Plug-and-Play

No software or configuration required. Can be mounted on a desk, on a wall or in a rack cabinet.

• On the desk
• On the wall
• In the rack cabinet

Specification:

• Ports: 24x RJ-45 10/100/1000Base-T
• Transmission method: Store and forward
• Diodes: Port: Link/Act, Device: Power
• Power supply: 100~240V AC, 50-60Hz, internal seed drill
• Power Consumption: Up to 19W
• Assembly: Desk, Wall, Rack Cabinet (Mounting Kit Included)
• Housing: Metal
• Fan: none
• Dimensions: 268 x 42 x 160mm
• Weight: 1.416kg
• Switching capacity: 48Gb/s
• MAC address: 8 thousand
• Buffer memory: 4.1MB
• Jumbo Frames: 10KB
• Filtering/forwarding rates: Up to 35.7Mpps, 1000Mbps port – 1.488.000pps, 100Mbps port – 148.800pps, 10Mbps port – 14.880pps
• Standards: IEEE 802.3 10BaseT Ethernet, IEEE 802.3u 100BaseTX Fast Ethernet, IEEE 802.3ab 1000BaseT Gigabit Ethernet, IEEE 802.11p QoS (Quality of Service), IEEE 802.3x Full-duplex and Flow Control, IEEE 802.3az Energy Efficient Ethernet
• Operating temperature: 0~40°C: Storage temperature: -40~70°C
• Operating humidity: 10~90% (non-condensing): Storage humidity: 5~90% (non-condensing)
• Certificates: CE, FCC, BSMI

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Edimax
Parametry	Product weight with unit packaging	0.15 kg
Parametry	Number of ports	24
Parametry	EAN (GTIN)	4717964705020
Parametry	Manufacturer code	GS-1024
