Komutacinis lizdas Cat.6A STP, be įrankių, LogiLink

Trumpai apie prekę

Prekė: Komutacinis lizdas Cat.6A STP, be įrankių, LogiLink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Logilink
• Modelis: NP0081

Catalog No.: 32401

The connector is supplied by the renowned German company LogiLink. The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www.stratos.pl/strony/32401.htm

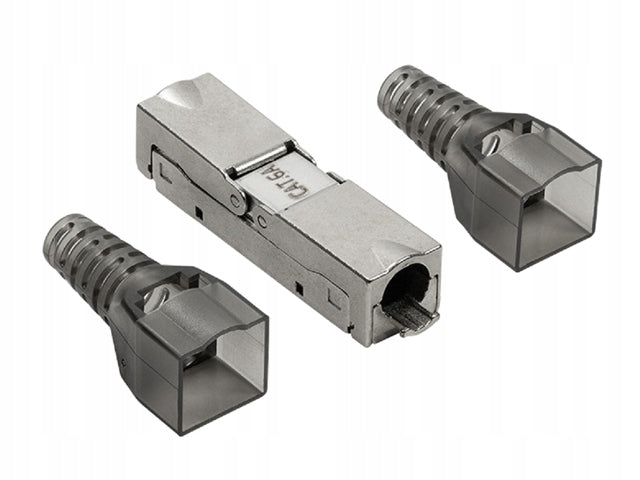

The offered connector is used to connect two shielded or unshielded twisted pair cables (FTP/STP/UTP) with wires such as wire or cable. Thanks to the connector, we can connect the cut cable or extend the existing one while maintaining full shielding and transmission in the cat.6A standard.

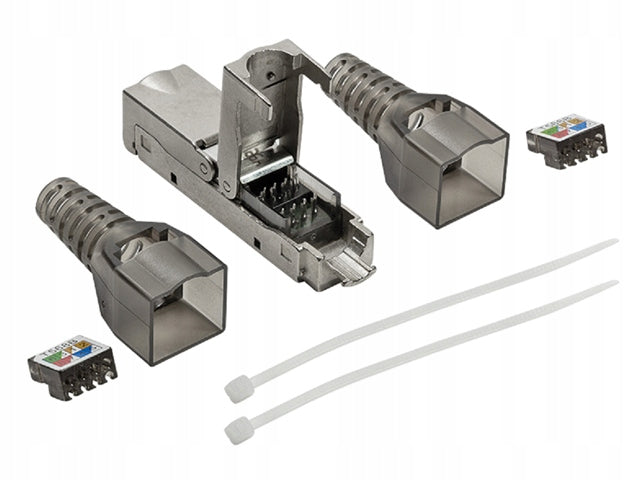

The special design means that the connection of both cables is carried out without specialized tools (it is enough to properly place cable conductors in the remote controls, place the remote controls on the contact strips and close the housing wings - pressing the wires into the contact strips is made automatically when the "wings" are folded and snapped). The design of remote controls, contact strips and housing allows connecting twisted pair cables with an external diameter of 6-9mm, conductor diameter in insulation up to 1.5mm and conductor cross-sections AWG26-22. Color coding placed on the remote controls is carried out according to the EIA/TIA 568B standard, i.e. in the standard commonly used in Poland and Europe.

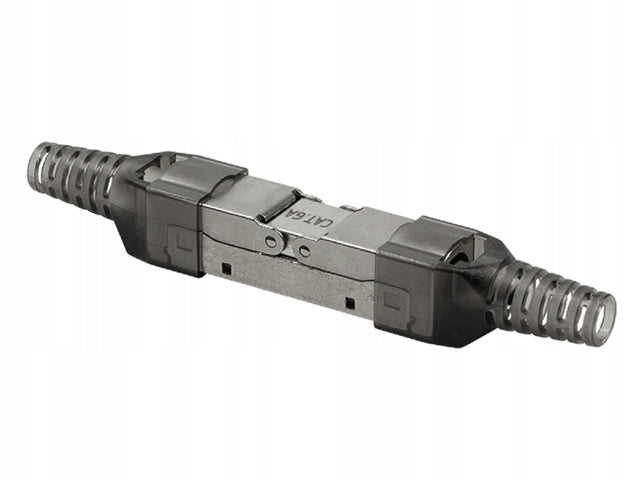

The offered connector has compact dimensions (62/14/13mm without bends), has full shielding, meets the requirements of cat.6A (class EA), complies with EN 50173 and ISO/IEC 11801 standards and allows transmission with frequencies up to 500MHz.

• Category: 6A, EA class, 500MHz band
• Material: housing - zinc alloy, contacts - nickel-plated phosphor bronze, bends - plastic
• Connected Cable Size: Outer Diameter 6-9mm, Wire Diameter 0.9-1.5mm Insulation, Conductor Cross-section AWG22-24 for Wires, AWG24-26 for Wires
• Contact colour coding: EIA/TIA 568B
• Connector dimensions: 62/14/13mm without bends, 70/16/16mm with bends
• Weight: approx. 32g

Instructions for installation are available at www.stratos.pl/specyfikacje/32401A.pdf

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
