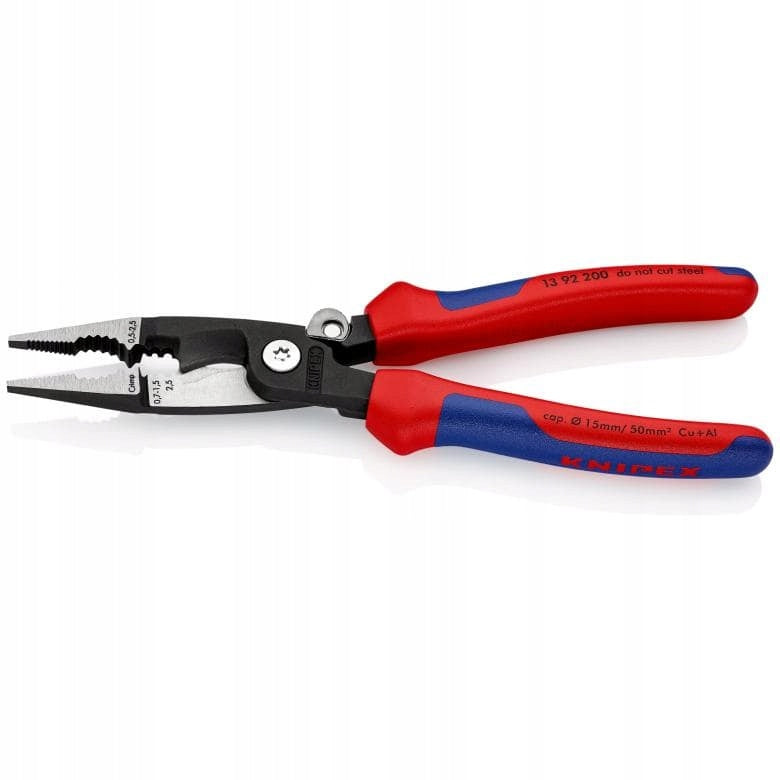

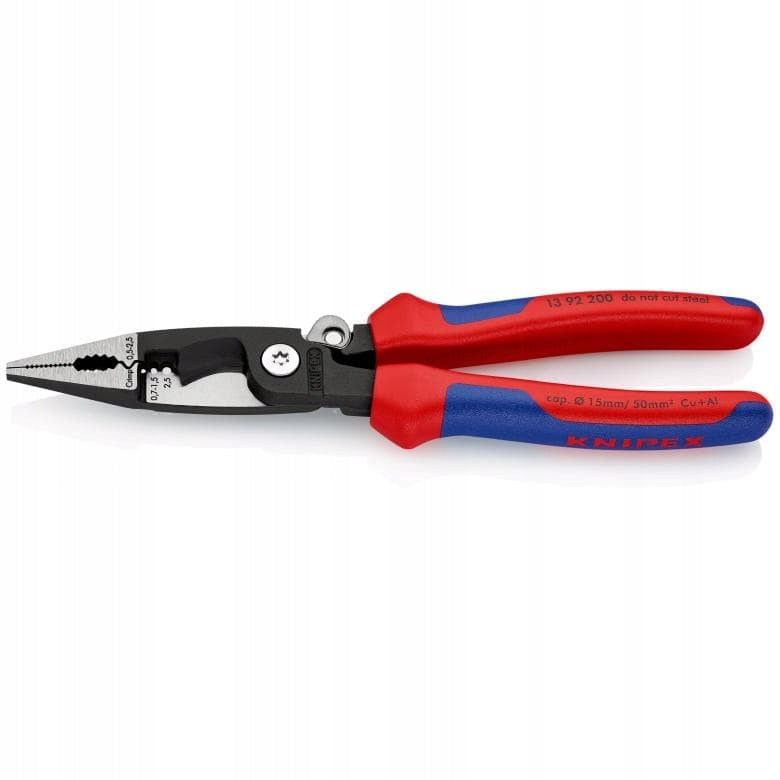

KNIPEX replės elektros instaliacijai

Trumpai apie prekę

Prekė: KNIPEX replės elektros instaliacijai. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 13 92 200
• Ilgis: 200 mm

PRODUCT FEATURES:

• 6 functions in one tool

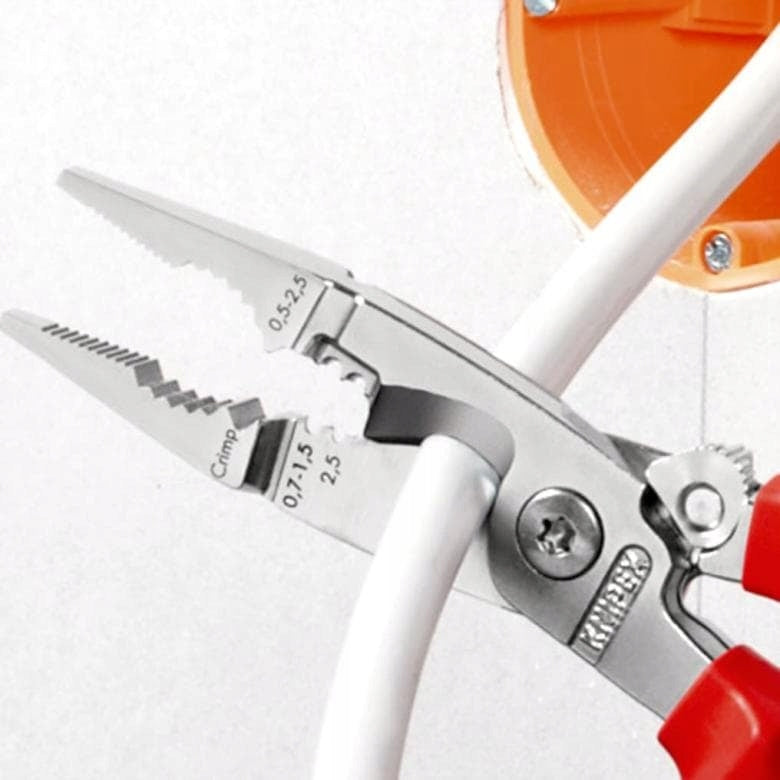

• Multifunction pliers for electrical installation work; allow gripping materials of flat and round cross-section, bending, deburring, cutting and isolating wires and crimping cable sleeves
• In models with an opening spring in the connector, the opening lock holds the blades in a closed position, allowing the use of other functions during this time
• The intelligent holding mechanism allows you to grip without having to completely open the pliers. The blade remains closed and secured.
• Smooth gripping surfaces allow for secure gripping of individual conductors; profiled gripping surfaces and shape gripping surface allow gripping of flat and round cross-section materials
• The outer edge of the jaw allows the treatment of flush-mounted cans and deburring in pass-through holes
• Profiles for stripping insulation from wires with cross section 0,75 - 1,5 mm² and 2,5 mm²

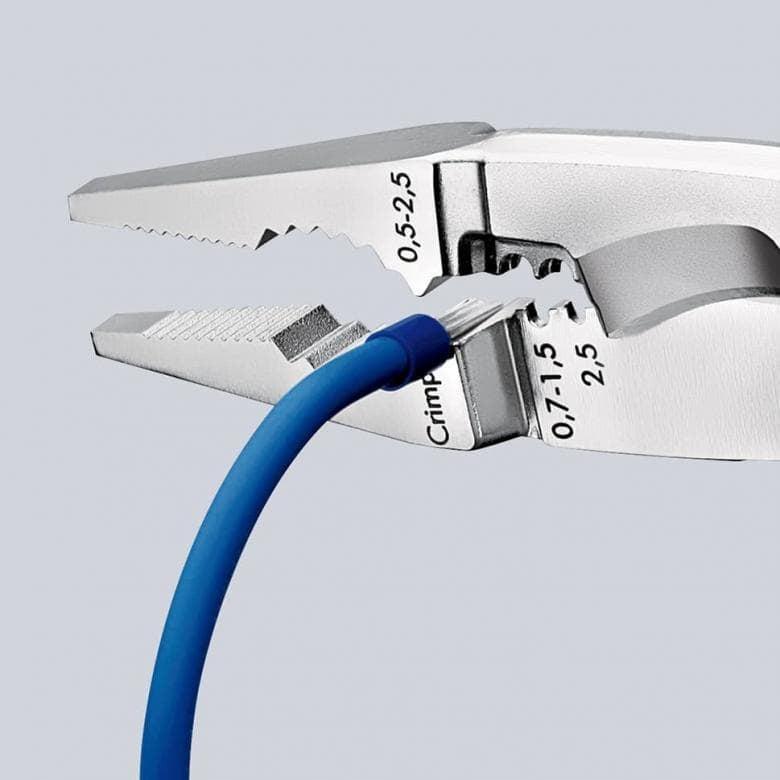

• Crimping socket for cable bushings 0,5 - 2,5 mm²
• Cable shears with precision blades separately inductively hardened for cutting copper and aluminum cables up to 5 x 2,5 mm² / Ø 15 mm in diameter
• Compact design makes it easy to work in hard-to-reach areas
• Twisted connector ensures precise movement of pliers without slack
• Special high quality tool steel, forged, multi-stage oil-hardened

TECHNICAL DATA:

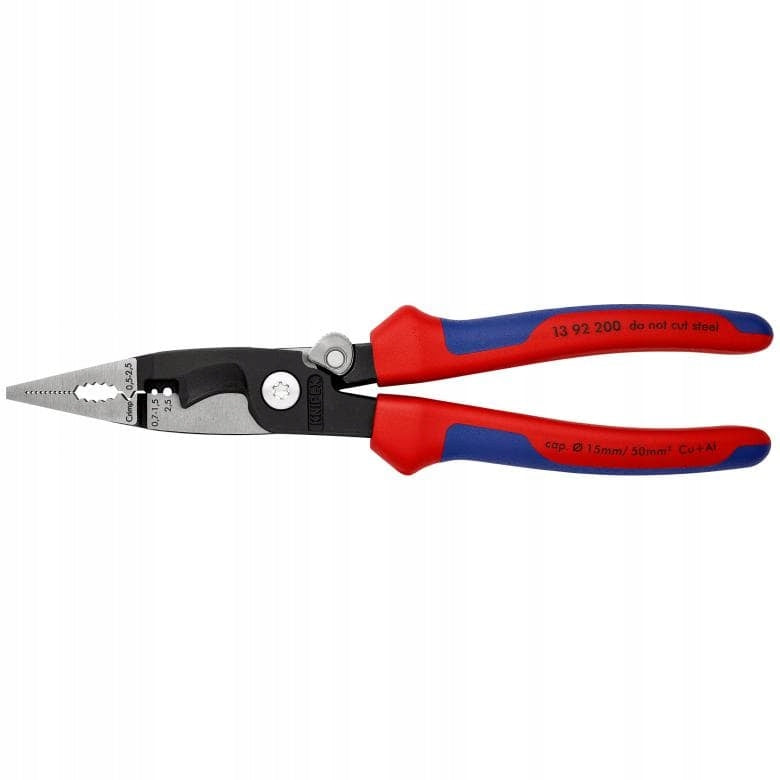

• Article no.: 13 92 200
• EAN: 4003773075103
• Pliers: phosphated, black
• Head: polished
• Handles: with multi-component caps
• Weight: 280 g
• Dimensions: 200 x 85 x 20 mm
• REACH: does not contain SVHC
• RoHS: not applicable
• Copper cable cutting range, multicore: Ø 15 mm
• Copper cable cutting range, multicore: 50 mm²
• Single conductor operating range: 0,75 — 1,5 mm² / 2,5 mm²
• Working range in mm: 20,5 — 2,5 mm²
• AWG: 1 / 0

KNIPEX is a leading manufacturer of pliers for professional users around the world and has been an independent family business for over 135 years. 1.500 employees in Wuppertal develop and manufacture solutions to ensure efficient, easy and safe operation.
