Trumpai apie prekę
Prekė: Keturių kolonų keltuvas GRUBBER LEVER, 5 t, geometrijos darbams. Kategorija: Keltuvai stulpams.
- Gamintojas: Grubber
- Modelis: SDW-50.3DV

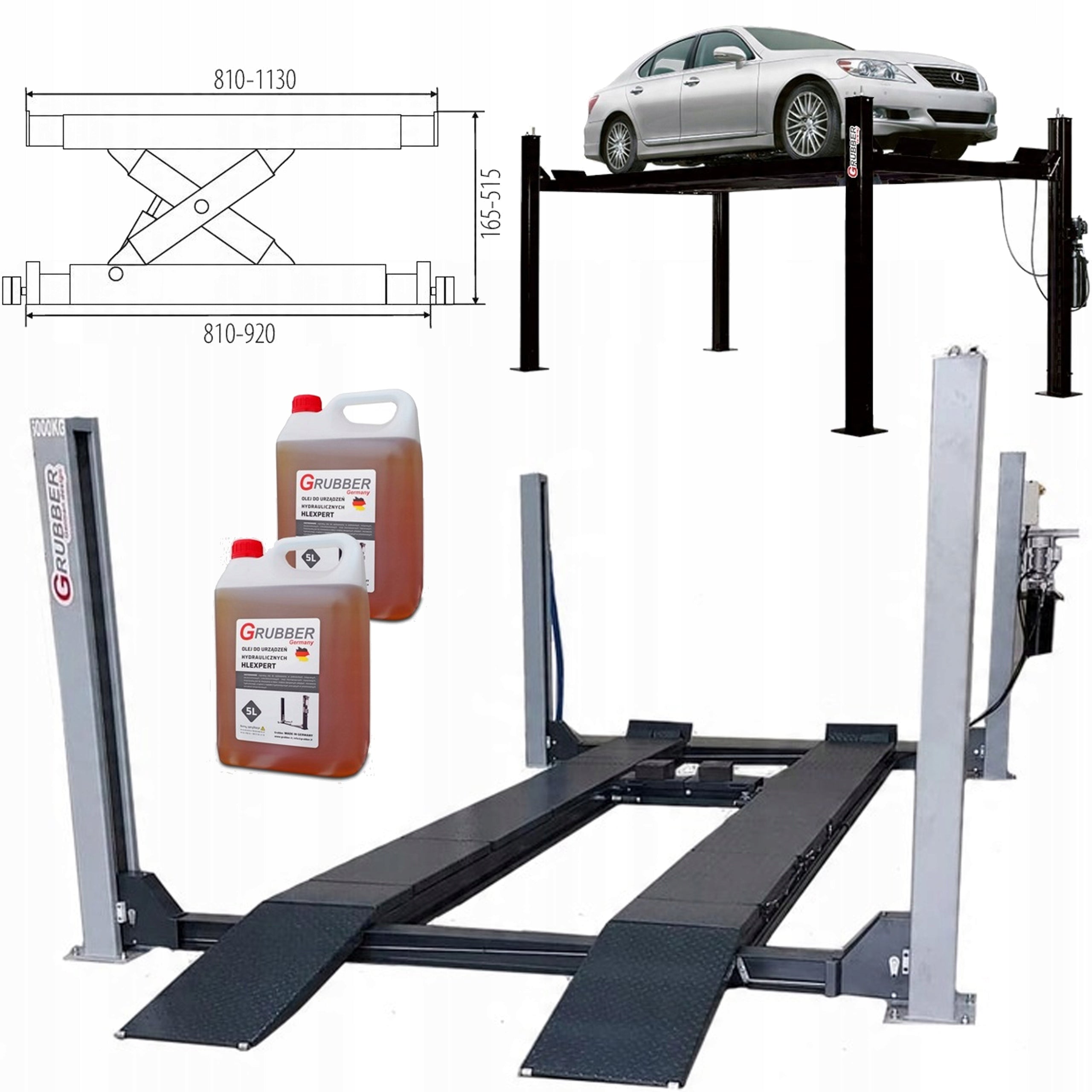

✅ 5T four-column LIFT SPECIALIZED for geometry GRUBBER LEVER
When you decide to buy, you will receive an additional one!
- Dedicated oil for lifts
- For mounting on the floor (with additional ramps), lift 5000 kg, adapted to measure geometry-has selections for turntables and expansion plates with integrated axle lift
- Length of inruns up to 5 meters
- High precision thanks to laser cutting and automated welding
- Leverage: 5000kg
- Power supply network: 400V/50Hz
- Engine power: 2,2kW
- Total height: 2204 mm
- Lifting height: 1800 mm
- Clearance: 3000 mm

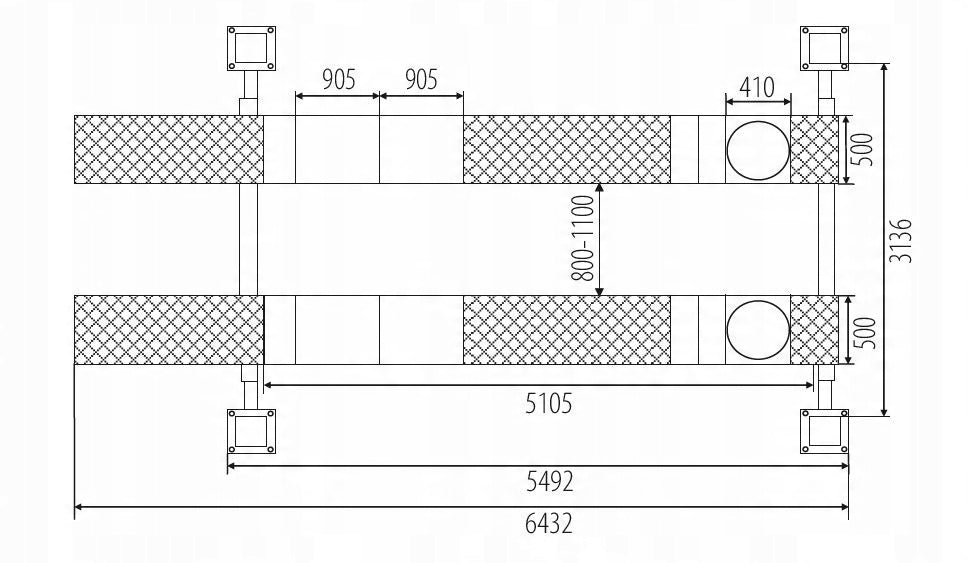

- Platforms: 510 x 5492 mm
- Noise level: < 70 dB (A)
- Weight: 1500 kg
✅ DESCRIPTION OF THE LIFT

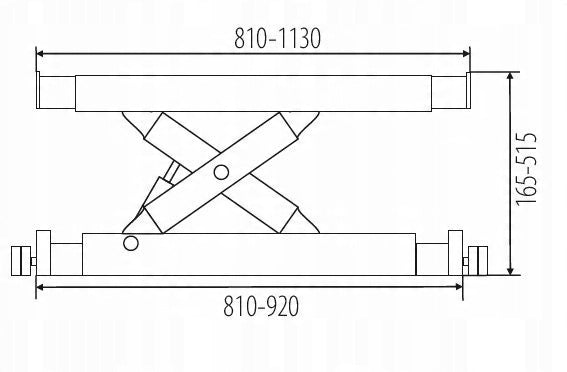

- electrohydraulic reference for platform geometry with selections for turntables and expansion plates
- Mechanical height lock released manually
- Adjustable location of one of the platforms
- Perfectly protected hydraulic cylinder
- Central powered axle crane
- Galvanized pre-stretched rigging
- Large diameter rope wheels
- Lift lock in case of loosening or breaking of rigging
- Control of the lift safe voltage 24V
- Safety devices according to EN1493:2010
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Grubber |
| Parametry | Manufacturer code | SDW-50.3DV |
| Parametry | EAN (GTIN) | 5904954680347 |
| Parametry | Overall height | 2204 mm |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 5000 kg |
| Parametry | Maximum lifting height | 1800 mm |
