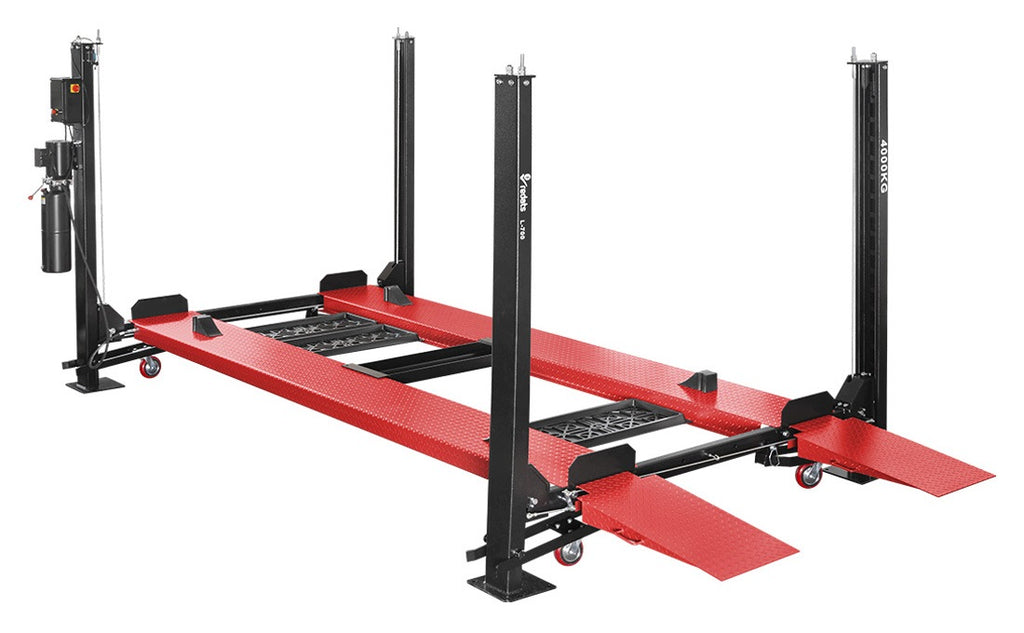

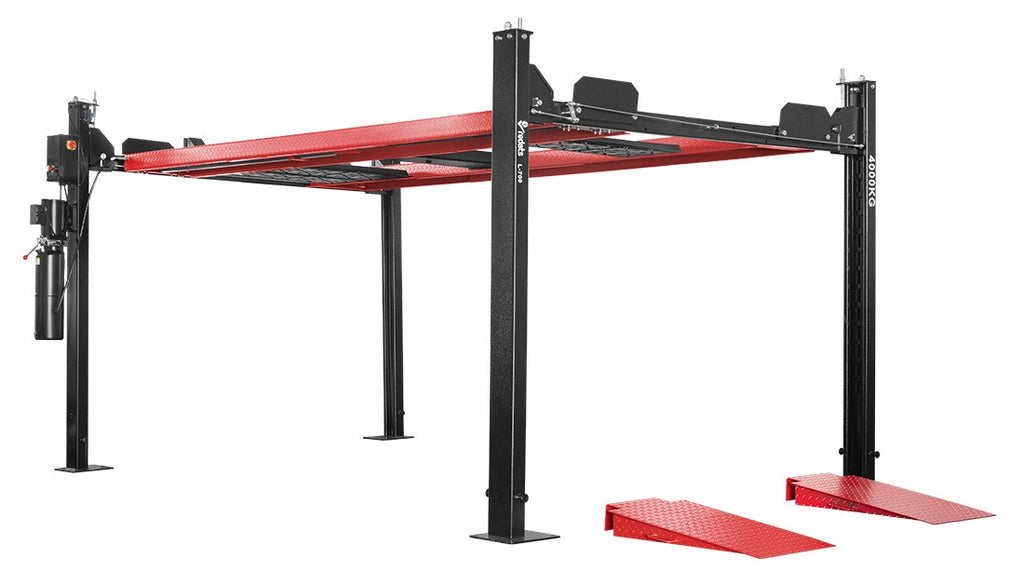

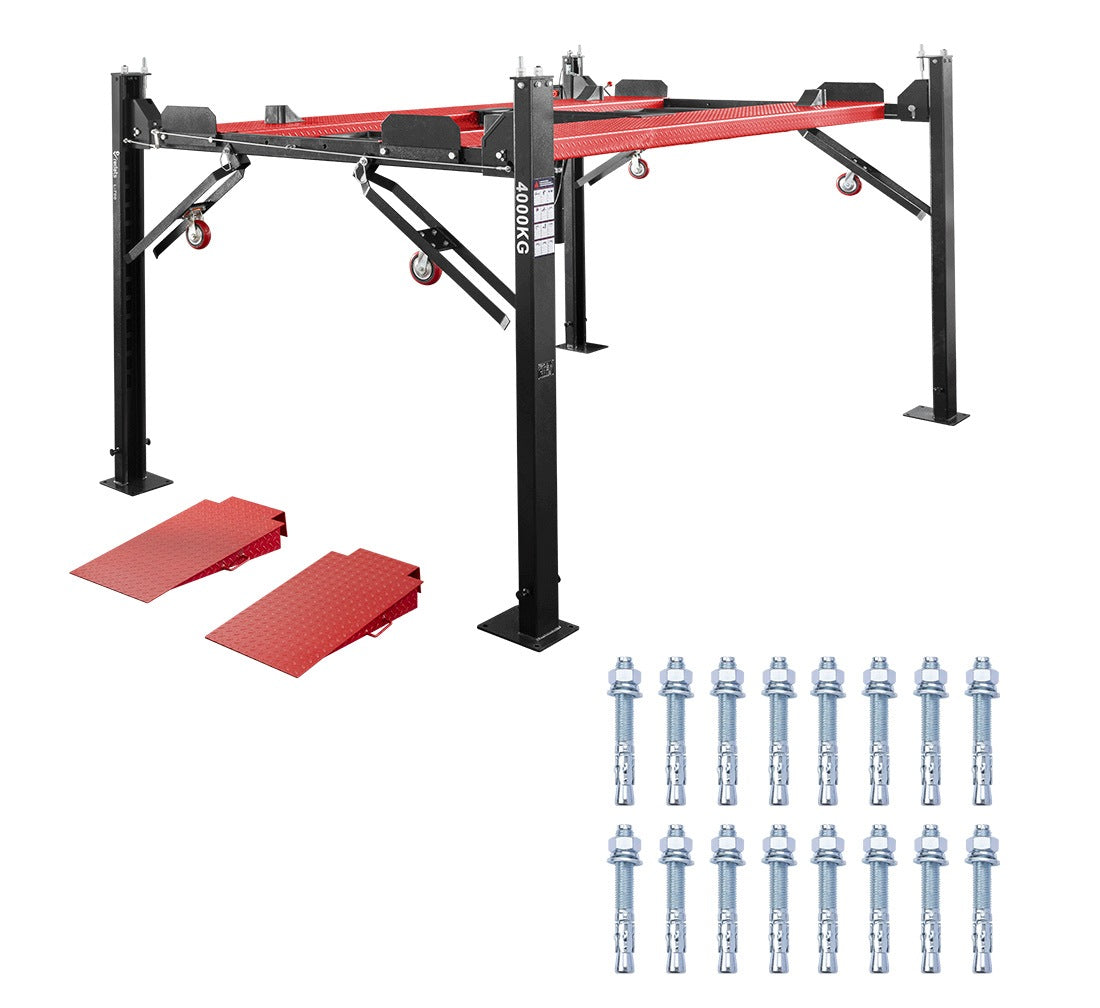

Keturių kolonų dviejų lygių automobilių keltuvas 400V 4t REDATS L-700

Trumpai apie prekę

Prekė: Keturių kolonų dviejų lygių automobilių keltuvas 400V 4t REDATS L-700. Kategorija: Keltuvai stulpams.

• Gamintojas: Redats
• Modelis: 15-02-45

Brand: REDATS

Symbol: 15-02-45

Maximum lifting capacity: 4 tons

Type: four-column parking

Length of overruns: 1000 mm

Engine power: 2,2 kW

Lifting height: 1880 mm

Lifting time: 70 s

Ramp width: 473 mm

Ramp height at rest: 125 mm

Maximum height of the car at the lower level: 1700 mm

Length of ramps (without ramps): 4150 mm

Security:

• protection against breaking the rope
• Vehicle roll-over protection locks
• ratchet-based security system
• hydraulic overload valve
• 24V safe voltage control

Power supply: 400V 50Hz

Oil tank capacity: 10 l

Noise level: < 75 dB

Dimensions (L x W x H): 5400 x 2930 x 2190 mm

Included: tool shelf x1, drip tray x3, front and rear lock x4, tire locking bracket x4, transport handle x4

Meets the requirements for UDT certification: YES

Weight: 815 kg

Working temperature: 5 - 40 ०C

Ambient humidity: 30 - 95 %

Additional features: mobility before attachment to the ground

What you need to know about REDATS L-700

• Maximum lifting capacity: 4 t
• Length of overruns: 1000 mm
• Lifting height: 1880 mm
• Lifting time: 70 s
• Power supply: 400 V 50 Hz
• Ramp width: 473 mm
• Height of ramp at rest: 125 mm
• Length of ramps (without ramps): 4150 mm
• Maximum height of the car at the lower level: 1700 mm

Application

This parking lift is an excellent solution wherever it is crucial to park more vehicles in the existing space. Thanks to ramps with a length (without overruns) of 4150 mm, the device guarantees convenient positioning of both passenger cars and larger vans. The lifting height of 1880 mm provides adequate space for the car parked on the lower level, so you do not worry that the taller cars will not fit under the lift.

Saving time

The lifting time of the platform is only 70 seconds, which allows you to realistically speed up work in the workshop. With a short lifting time, you can serve more customers in less time.

Mobility

The lift is equipped with a practical set of transport wheels that allow it to move efficiently. This solution ensures convenient positioning of the device during the first assembly in the workshop.

Occupational safety

The device is equipped with solid locks to prevent the vehicle from rolling, which eliminates the risk of the car sliding off the ramps. In addition, the rope breaking protection guarantees the stability of the platform. Don't worry about the platform falling off unexpectedly

High quality

The lift is made of durable, high-quality materials. This guarantees reliability and safety of use of the device.

Additional equipment

Along with the lift, you get a tool shelf that makes it easy to organize your work and allows you to have the most necessary tools always at hand. The set also includes 3 drip trays that effectively protect the floor and the vehicle parked below from accidental leaks of operating fluids.
