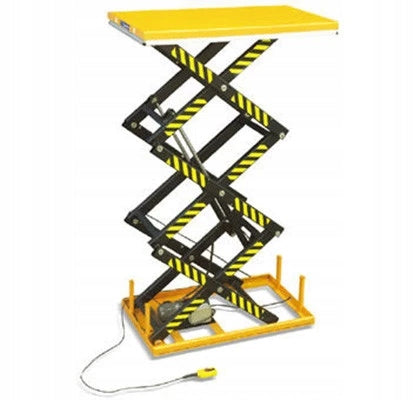

Kėlimo stalas VIBER PHP1000, 1000 kg

Trumpai apie prekę

Prekė: Kėlimo stalas VIBER PHP1000, 1000 kg. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Viber-System
• Modelis: PHP1000

Product description:

• Revolution in your workshop! – Electric Hydraulic Lifting Table Viber-System PHP1000 – Lifting capacity 1000 kg
• Increase comfort, safety and productivity with heavy loads!
• Meet Viber-System PHP1000 – a professional, hydraulic scissor table with a lifting capacity of up to 1000 kg, designed for the most difficult tasks in industrial plants, warehouses, services or assembly lines.

Why choose the PHP1000?

• Load capacity 1000 kg – trouble-free lifting of large loads
• Lifting range up to 3000 mm – full flexibility for a variety of tasks
• Stable and quiet operation – European drive unit with overload valve and speed control
• Large clearance between shears – increased operator safety
• Reinforced construction – actuator with internal liquid flow and maintenance-free pins

The highest level of security:

• Protective frame with limit switches – stops the table in case of contact with an obstacle
• Safety valve – blocks lowering in case of hydraulic hose failure
• 24V control box – with UP/DOWN buttons + emergency stop
• Compliance with EN1570 and ANSI/ASME – European and American safety standards

Technical data:

• Load capacity: 1000 kg
• Table dimensions (Length x Width): 1700 x 1000 mm
• Base dimensions (Length x Width): 1600 x 1000 mm
• Lifting range: from 470 mm to 3000 mm
• Stroke length: 2530 mm
• Drive motor power: 380V/50Hz, 2,2 kW
• External dimensions: 1700 x 1000 x 470-3000 mm
• Unladen weight: 450 kg
• Three-phase connection cable: 380V/16A with 8 m length
• Control unit: 24V with up/down emergency buttons and 3 m cable

Additional advantages:

• Removable transport ears – easy installation and movement
• Self-lubricating articulated bushings – reduction of friction and maintenance
• High durability and service life – designed for intensive use



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Viber-System
Parametry	Manufacturer code	PHP1000
Parametry	EAN (GTIN)	5906168983818
Parametry	Lifting capacity	1000 kg
