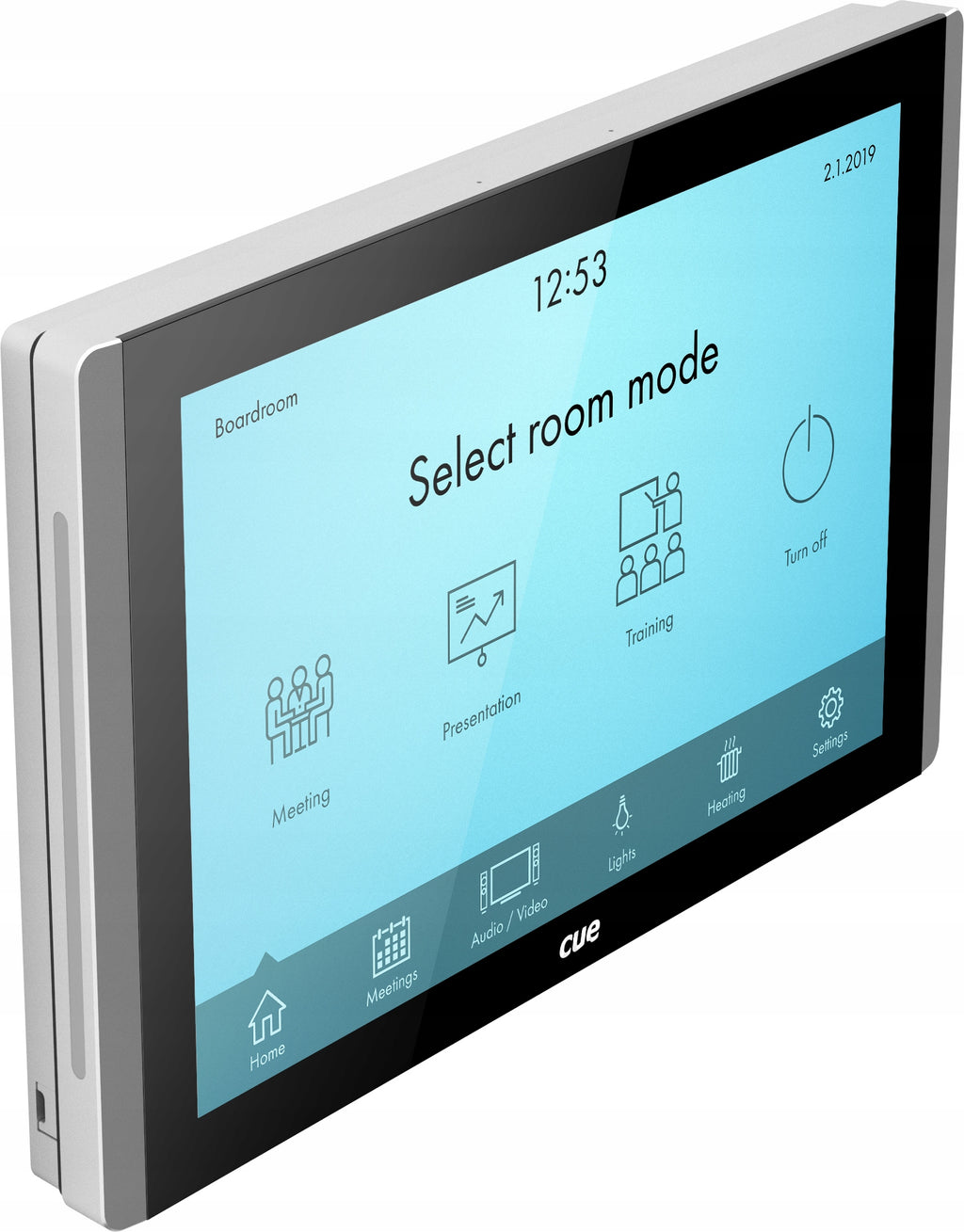

Jutiklinis sieninis CUE touchCUE-10-M CS0561 skydelis kambarių rezervavimo sistemai

Trumpai apie prekę

Prekė: Jutiklinis sieninis CUE touchCUE-10-M CS0561 skydelis kambarių rezervavimo sistemai. Kategorija: Vaizdo konferencijų rinkiniai ir kameros.

• Gamintojas: no brand
• Modelis: CS0561

Product code: CS0561

• IP control port
• Edge-to-edge front glass
• Slim aluminum unibody housing
• 10,1 inch IPS color active TFT LCD display with LED backlight
• 1 280 x 800 pixels resolution
• 32-bit display colors (True Color)
• Expected capacitive touch pad
• LED indicators placed on the side
• Video preview
• Ethernet connection with a single cable
• Power over Ethernet power supply
• Built-in microphone, speakers, light and proximity sensors
• Wall mount, suitable for glass walls
• Compatible with standard electrical boxes

touchCUE-10-M is a wired, wall-mounted touch panel that offers a clean, modern look with edge-to-edge windshield and sleek aluminum housing. It is the perfect front-end for any wall, lectern, or furniture application. Fully compatible with CUE controllers and interfaces, this touch panel provides the best one-touch solution for conference rooms, conference rooms, conference rooms and high-tech homes.

The touch screen with an active 10,1-inch matrix offers a resolution of 1280 x 800 pixels and displays stunning images in true colors. The touch panel is equipped with a designed capacitive touch overlay. Single-cable Ethernet connection provides easy integration into your network. The touch panel is equipped with Power over Ethernet (PoE) technology, which allows data and power to be transmitted via an Ethernet network cable.

The touch panel can be easily mounted on a glass wall or other flat surface, without the need for drilling into a wall or cutting a surface. When mounted, the protrudes only 25 mm from the mounting surface.

Use of touch panel with controller .

In this case, the touch panel only acts as a graphical user interface.

IP control port

This configuration allows you to create an economic, distributed control solution, in which the touch panel acts as a controller and a graphical user interface in one device. In Cue Visual Composer, touch panels and controllers are programmed in the same way, allowing touch panels to be used as fully functional controllers.

Technical data

Control ports

• IP control port

Touch-screen display

• IPS transmissive color active matrix TFT LCD with LED backlight
• Size 10.1” / 256.5 mm diagonal, wide screen
• Resolution 1,280 x 800 pixels
• Display colors 32-bit (True Color)
• Transparency 8-bit Alpha blending
• Pixel pitch 0.1695 × 0.1695 mm
• Brightness min. 300 cd/m2
• Response time 15 ms
• Contrast ratio 800 : 1
• Viewing angle 170° horizontal, 170° vertical
• Projected capacitive touch overlay
• Edge-to-edge glass

Indicators

• Programmable RGB LED
• Located on left and right side

Built-in sensors

• Light sensor for automatic backlight dimming
• Proximity sensor for automatic backlight switching on

Buttons

• System Default

memories

• 2GB RAM
• 16GB NAND Flash (EMMC)

Software

• XPL2 runtime for the application created in Cue Visual Composer
• Admin Web for setup

video

• Streaming video preview
• Codecs: H.263, H.264, H.265, MJPEG, MPEG-2, VP8, VP9

Audio

• Built-in microphone
• Built-in speakers

Network

• 10/100/1000 BaseT LAN, RJ-45 connector
• 802.1X authentication mechanism supported
• Proxy Server support

Power supply

• Power over Ethernet (PoE), 802.3af / Class 0 compatible
• Power consumption

  1.3 W - screen saver mode

  5.2 W - factory default brightness 70%

  6.3 W - brightness 100%

Physical

• Sleek aluminum body, edge-to-edge front glass
• Multisurface, e.g. glass wall installation
• Compatible with VESA standard 75mm x 75mm
• Protection IP30
• Dimensions 268 x 167 x 25 mm / 10.6” x 6.6” x 1.0” when installed
• Weight 1.1 kg / 2.4 lb

Environment conditions

• Operating temperature 10° to 40° C
• Storage temperature 0° to 60° C
• Relative humidity 10% to 90% non-condensing

• Touch panel touchCUE-10-M
• Set of cable bushings
• Adhesive foil
• Adhesive tapes
• Squeegee
• Allenkey
• Ethernet cable
• Cleaning tissue
• QuickStart
