Prekė: Jutiklinis ekranas 4.3" IPS DSI 480x800, skirtas Raspberry Pi, ESP32, Waveshare. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 4.3-DSI-TOUCH-A 34353

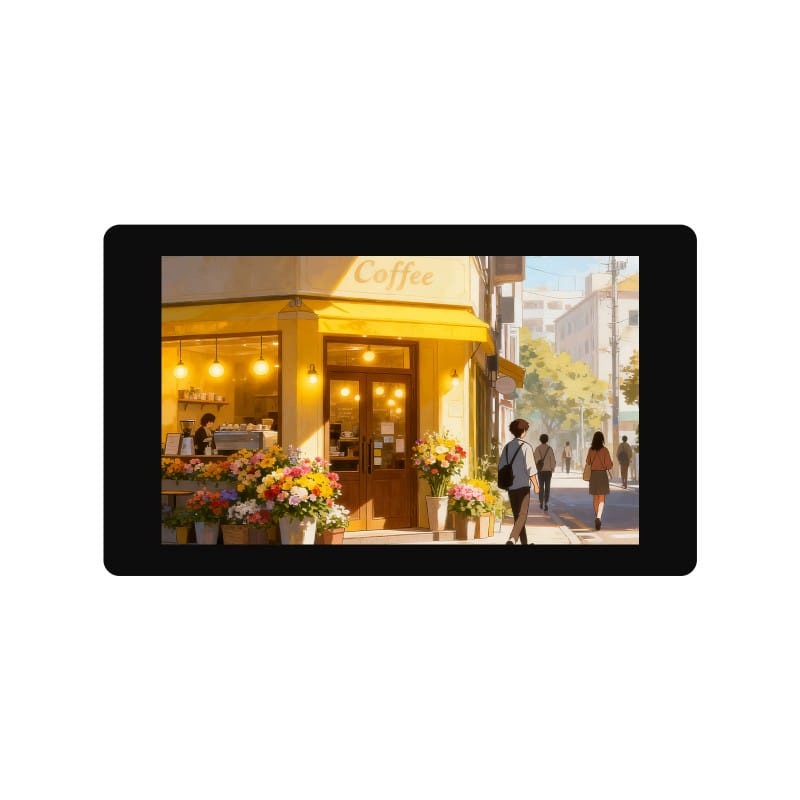

Touchscreen display 4.3" IPS DSI 480x800 for Raspberry Pi and ESP32
Compact, capacitive 4.3-inch touchscreen display, offering bright and clear images on an IPS matrix with a resolution of 480×800 pixels. The module uses a high-speed MIPI DSI interface, ensuring smooth screen refresh (up to 60 Hz) and precise 5-point touch handling. Thanks to the aluminum housing and fully laminated tempered glass panel, the product is a reliable solution for designing HMI panels based on Raspberry Pi, ESP32-P4 or RK series systems.
Key features:
- 4.3" IPS matrix with a resolution of 480×800 pixels with a wide viewing angle of 170°.
- 5-point capacitive touch with tempered glass with 6H hardness.
- Full lamination (Optical Bonding) for improved image clarity.
- High-speed MIPI DSI interface with 60Hz refresh rate.
- Possibility of programmatic adjustment of backlight brightness.

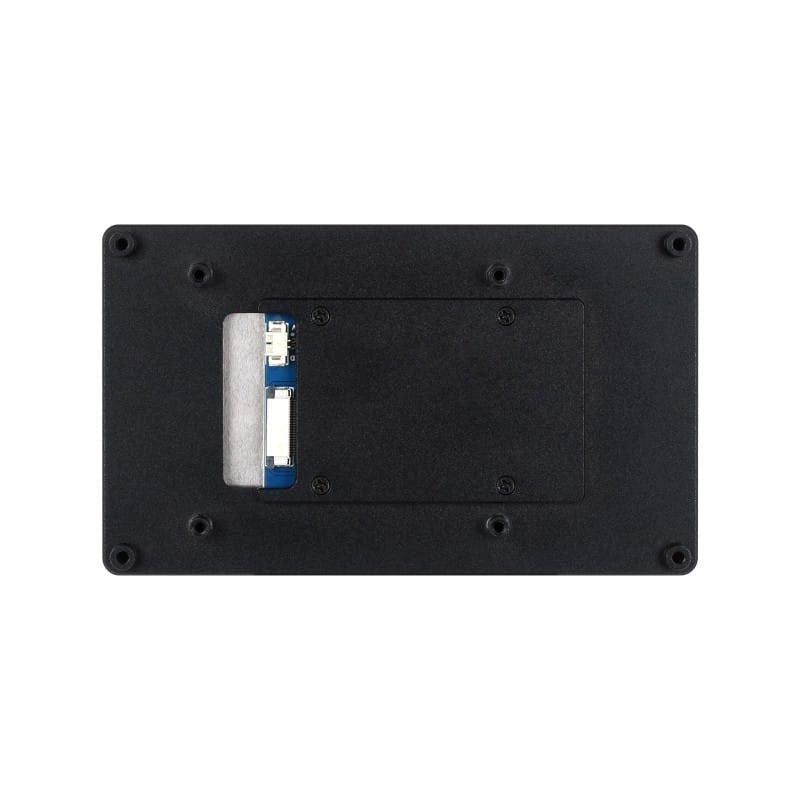

- Robust aluminum housing, fulfilling the function of passive cooling.
System compatibility and operation
- Raspberry Pi: Native support for Raspberry Pi OS with 5-point touch (default vertical orientation with the possibility of programmatic change to horizontal).
- ESP32-P4: Full support for programs with graphical interface (GUI) implemented using the LVGL library.
- RK Series (RK3506 / RK3576): Compatible with systems such as Buildroot, Debian, Ubuntu and Android.
Examples of connections
Visual and tactile communication is carried out using FFC or DSI tapes (depending on the hardware platform). 5V power supply is most convenient to supply via GPIO pins of a microcontroller or a single-board computer.
Dimensions and interfaces
Technical specification
- Power supply voltage: 5.0 V (typical)
- Power consumption: approx. 200 mA
- Working temperature: from 0°C to 60°C
- External dimensions: 116.50 × 68.90 mm
- Screen working area: 93.60 × 56.16 mm
Contents of the set
- Display module 4.3-DSI-TOUCH-A
- MIPI DSI communication tape (12 cm)
- MX 1.25 2PIN to 2.54 3PIN (110 mm) cable
- FFC tape 22PIN (~200 mm, opposite contacts)
- FFC tape 22PIN (~100 mm, opposite contacts)
- MX 1.25 2PIN to MX 1.25 4PIN cable (~150 mm)
- Set of mounting elements (distance sleeves / screws)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 4.3-DSI-TOUCH-A 34353 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5906358322724 |
| Parametry | Packaging status | original |
