Izoliacijos nuėmimo replės KNIPEX 12 40 200

Trumpai apie prekę

Prekė: Izoliacijos nuėmimo replės KNIPEX 12 40 200. Kategorija: Replės, žirklės, žnyplės.

• Gamintojas: Knipex
• Modelis: 12 40 200
• Ilgis: 200 mm

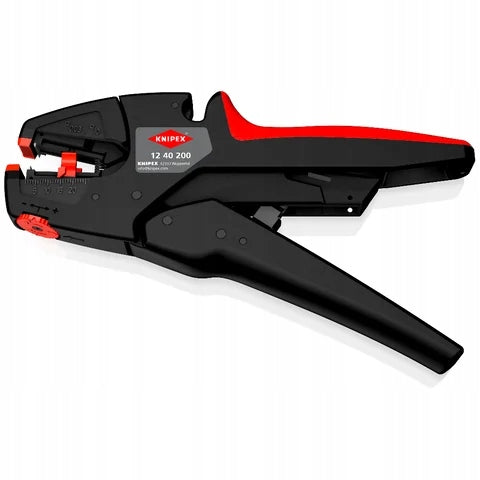

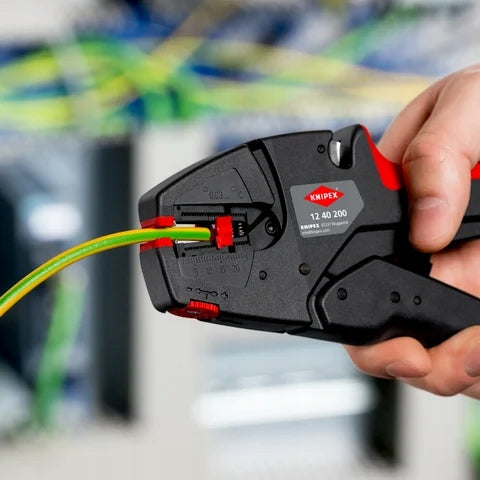

KNIPEX EvoStrip 12 40 200 is a modern, self-aligning pliers for stripping insulation, designed for fast, precise and convenient work with wires of various cross-sections. The tool automatically adjusts to the diameter of the cable, which allows you to effectively remove insulation without the risk of damage to the wires. It is a practical solution for electricians, installers, service technicians and people working with wiring on a daily basis.

The EvoStrip supports a wide range of cables from 0,03 to 10,0 mm² / AWG 32 to 8, making it suitable for use with single-core, multi-core and fine-core cables in plastic or rubber insulation. The tool is also suitable for tape cables up to 10 mm wide. The adjustment knob allows you to precisely set the cutting depth, which increases the efficiency of work even in more demanding insulations and in more difficult conditions.

A big advantage of pliers is the integrated cutter for copper and aluminum wires, located at the top of the tool. It allows for convenient and controlled cutting of wires, while the properly designed blade geometry ensures a clean cut. The comfort of work is increased by the two-component handle, comfortable grip width and arm design reducing the risk of hand injuries during clamping.

The body made of glass fiber reinforced plastic and wear-resistant blades ensure a long service life and high durability during intensive use. In addition, the tool is equipped with an integrated mounting bracket in the handle, compatible with the KNIPEX Tethered Tools system, which increases work safety at height.

ILLUSTRATIVE PHOTO

THE MOST IMPORTANT FEATURES

• self-aligning pliers for stripping insulation
• automatic adjustment to cables with cross section 0,03 – 10,0 mm²
• for single-core, multi-core and fine-core cables
• suitable for plastic and rubber insulation
• possibility of working with tape cables up to 10 mm wide

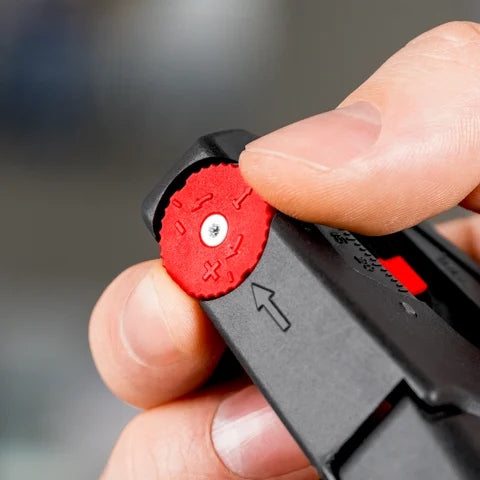

• precise adjustment of cutting depth with a knob
• integrated cutter for copper and aluminium conductors
• comfortable two-component handle
• design to reduce the risk of hand pressure while working
• smoothly operating mechanism for comfort of use
• replaceable blades

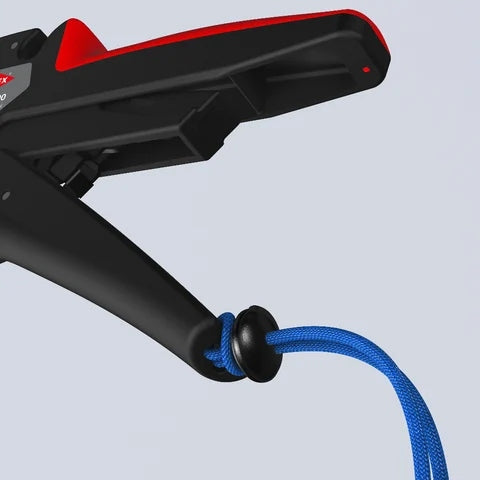

• mounting bracket compatible with KNIPEX Tethered Tools
• durable body made of glass fibre reinforced plastic

TECHNICAL DATA

• Manufacturer / brand: KNIPEX
• Model: EvoStrip
• Catalog No.: 12 40 200
• Tool type: self-aligning insulation stripper pliers
• Scope of operation: 0,03 – 10,0 mm² / AWG 32 – 8
• Insulation stripping length range: 3 to 22 mm, up to 25 mm without length limiter
• For cables: single-core, multi-core and fine-core
• For ribbon cables: yes, up to 10 mm wide
• Cable cutter: yes
• Max. Section of fine-core conductors: 10 mm²
• Max. single-core cable cross-section: 6 mm²
• Body material: glass fiber reinforced plastic
• Weight: 202 g
• Dimensions: 200 x 95 x 21 mm
• EAN: 4003773026662
• REACH: does not contain SVHC
• RoHS: not applicable

KNIPEX is a leading manufacturer of pliers for professional users around the world and has been an independent family business for over 135 years. 1.500 employees in Wuppertal develop and manufacture solutions to ensure efficient, easy and safe operation.
