Įtampos indikatorius BENNING Duspol 12-1000V AC/DC CAT IV BG050262

Trumpai apie prekę

Prekė: Įtampos indikatorius BENNING Duspol 12-1000V AC/DC CAT IV BG050262. Kategorija: Multimetrai.

• Gamintojas: Benning
• Modelis: bg050262

Duspol Two-speed. Voltage Indicator 12-1000V AC/DC CAT IV BG050262 BENNING

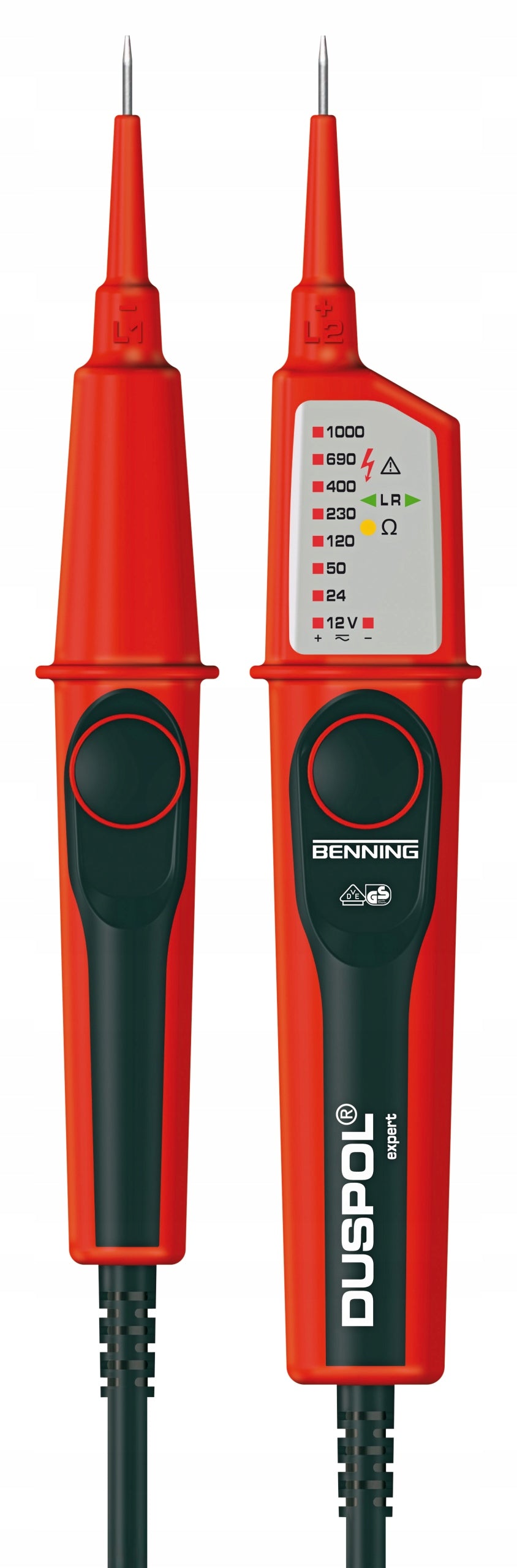

Duspol Expert bipolar LED voltage indicator 12-1000V AC/DC CAT IV 600V Cat III 1000V IP65 product code BG050262 Benning DUSPOL expert – professional circuit voltage and continuity tester

Benning DUSPOL expert is a bipolar voltage and circuit continuity tester designed to measure AC/DC voltage in the range from 12 V to 1000 V. Equipped with LEDs indicating voltage values: 12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V and 1000 V.

Tester enables:

⏩AC and DC voltage measurement: 12 V - 1000 V

⏩Optical signaling of voltage values (LED)

⏩Circuit continuity test with acoustic and optical signaling up to 100 kΩ (buzzer / yellow LED)

⏩Phase order test (green LED)

⏩Phase Presence Test (Red LED)

⏩Polarity test

⏩Non-contact detection of phase voltage and wire interruptions (flashing yellow LED)

⏩Testing with high impedance without the use of a button (high impedance mode)

⏩Testing with load via button (low impedance mode), enabling triggering of residual current circuit breakers (RCD) 30 mA

⏩Vibration signaling in the tester holder in the presence of voltage

⏩LED measuring point illumination

Technical parameters:

⏩Voltage range: 12 V – 1000 V AC/DC

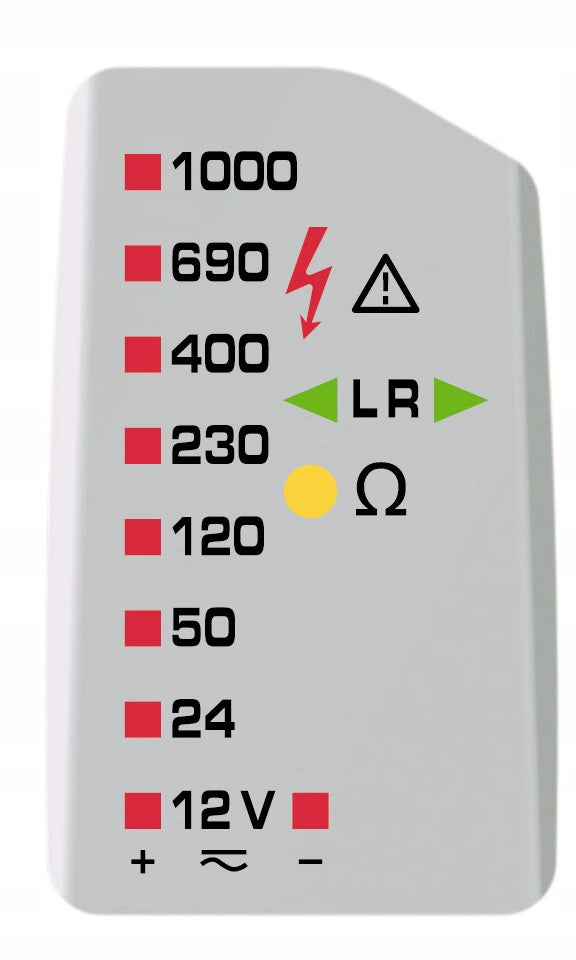

⏩LED indication steps: 12 / 24 / 50 / 120 / 230 / 400 / 690 / 1000 V AC/DC

⏩Circuit continuity test: up to 100 kΩ (buzzer + yellow LED)

⏩Phase order testing function

⏩Residual current circuit breaker trigger function 30 mA

⏩Contactless detection of live wires and cable breaks

⏩Warning vibration in the tester holder

⏩Illumination of the measurement site

⏩Protection class: IP65 (dust and water jet resistance)

⏩Overvoltage category: CAT IV 600 V / CAT III 1000 V

⏩Standard: IEC/EN 61243-3:2015

⏩ Power Supply: 2 x 1,5 V micro batteries (LR03 / AAA)

⏩Voltage detection function from 50 V even with discharged batteries

Contents of the set (catalog no. 050262):

⏩Voltage and continuity test Benning DUSPOL expert

⏩2 x 1,5 V batteries (AAA / LR03)

⏩Instructions for use

Choose Benning DUSPOL expert if you are looking for a professional voltage and continuity tester that will work both on the construction site and during everyday service work.
