Prekė: Išplėtimo plokštė Waveshare HAT Raspberry Pi. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 15667

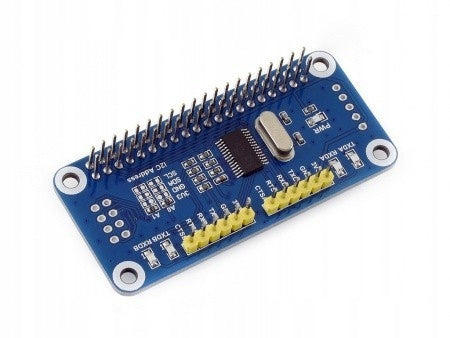

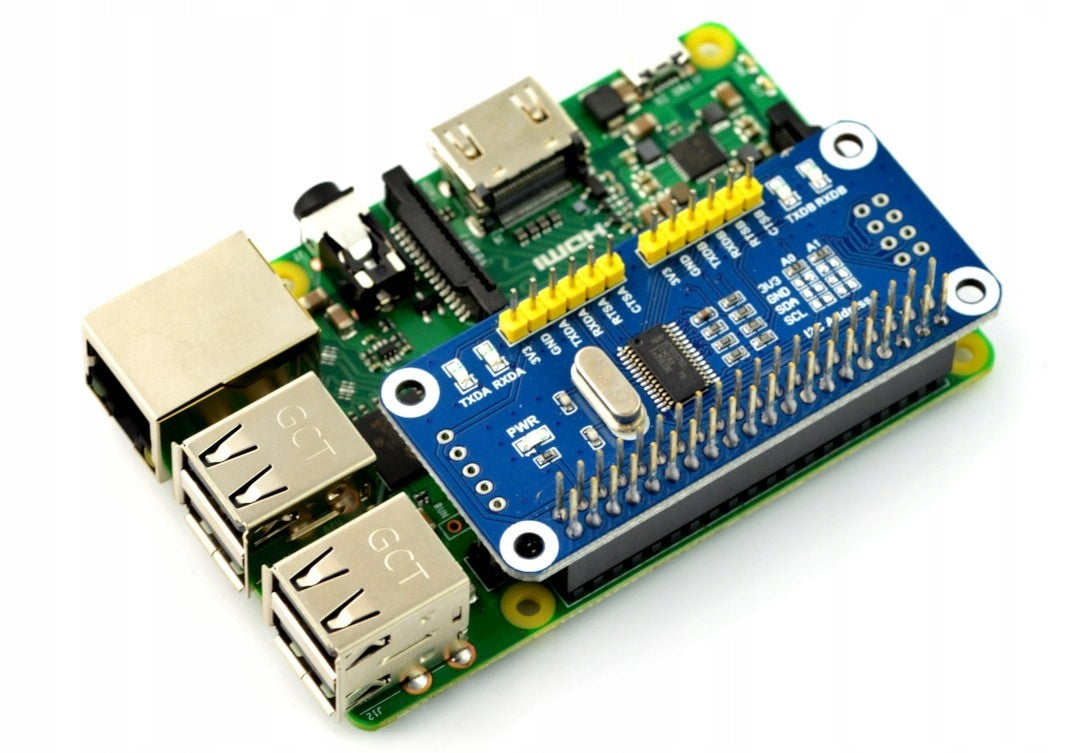

Waveshare Expansion HAT extension for Raspberry Pi
Description
The Expansion HAT module with SC16IS752 chip allows you to extend the functionality and capabilities of the project with Raspberry Pi. This is possible thanks to its content:
- Built-in SC16IS752 chip extends 2-channel UART and 8 programmable GPIO pins via I2C communication protocol, no additional pin required
- modules can be stacked up to 16 pieces by setting the address jumper, this allows you to achieve 32-channel UART
- many LEDs indicate UART operating status
Properties
- Operating Voltage: 3,3 V
- Expansion system: SC16IS752
- Control Interface: I2C

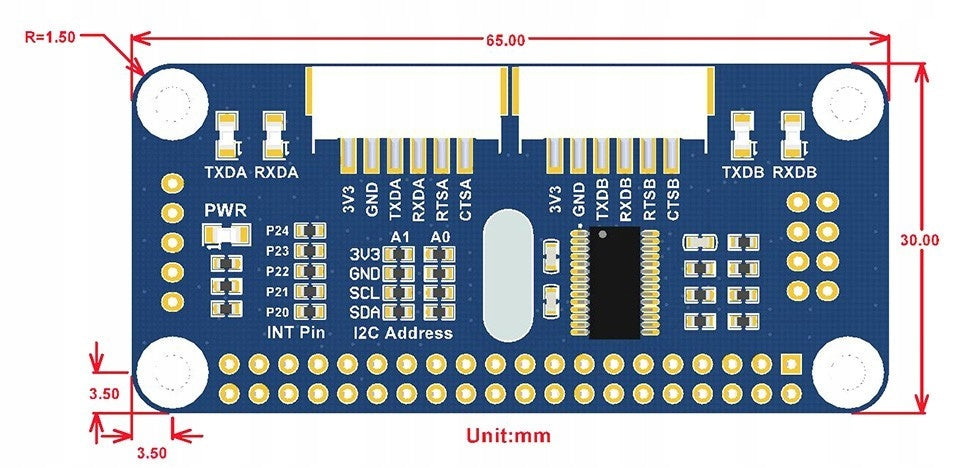

- Mounting hole size: 3,0 mm
- Dimensions: 65 mm x 30 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 15667 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906623424412 |
| Parametry | Batteries included | no |
