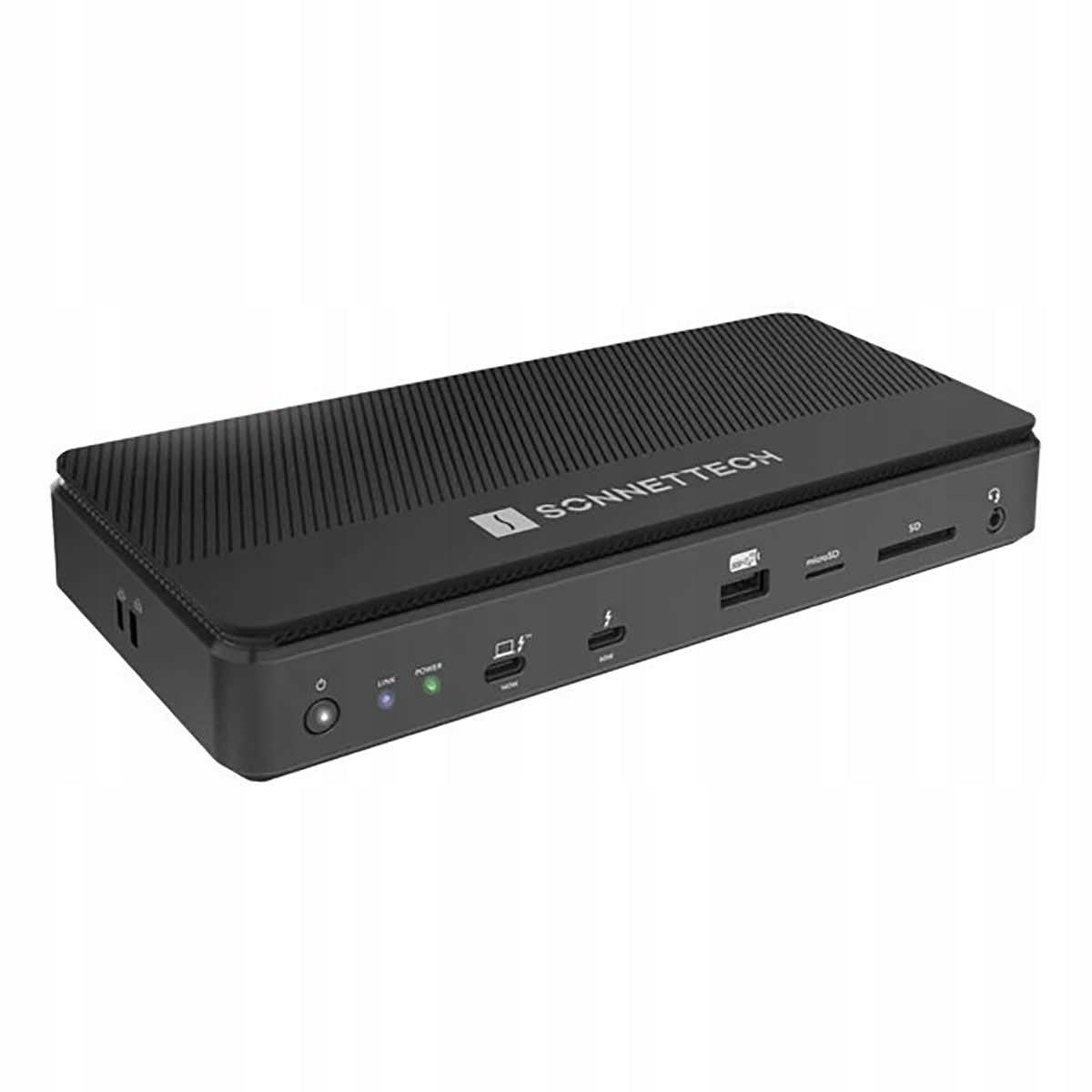

Išorinis SSD dokas Sonnet Echo 13 Thunderbolt 5, 4TB, 80Gb/s, 2.5GbE, SD, 2x8K, PD 140W

Trumpai apie prekę

Prekė: Išorinis SSD dokas Sonnet Echo 13 Thunderbolt 5, 4TB, 80Gb/s, 2.5GbE, SD, 2x8K, PD 140W. Kategorija: Dokavimo stotelės.

• Gamintojas: SonnetTech
• Modelis: ECHO-DK13-4TB5

Welcome to Thunderbolt 5!

Echo 13 Thunderbolt 5 SSD Dock is a versatile Thunderbolt 5 docking station with an incredibly fast high-performance internal SSD

Compatible with Mac®, Windows®, Chromebook™ and iPad Pro®. The Sonnet Echo™ 13 Thunderbolt™ 5 SSD Dock delivers the highest level of storage performance – 6100 MB/s for Thunderbolt 5 computers, 3400 MB/s for Thunderbolt 4 or 3 computers – with Kingston® M.2 NVMe® SSD pre-installed. The Echo 13 features four Thunderbolt 5 ports, four USB-A ports, one 2,5Gb Ethernet port, one headphone jack, SD and microSD card slots, and support for up to two 8K displays.

Sonnet Echo 13 Thunderbolt 5 Docking Station with High-Performance SSD

Universal Thunderbolt 5 Docking Station with Incredibly Fast High Performance Internal SSD Storage

The Sonnet Echo™ 13 Thunderbolt™ 5 SSD Dock delivers top-level storage performance – 6100 MB/s with Thunderbolt 5 computers, 3400 MB/s when used with a Thunderbolt 4 or 3 computer – with 1 TB of pre-installed Kingston® M.2 NVMe® SSD storage. Connections? The Echo 13 features four Thunderbolt 5 ports, four USB-A ports, one 2,5Gb Ethernet port, one headphone jack, SD and microSD card slots, and support for 8K displays.

Connect peripherals and power your computer with one Thunderbolt 5 cable

Connect Thunderbolt devices, monitor(s), USB peripherals, and an Ethernet cable to the docking station, then connect them all to your computer with a single Thunderbolt cable. Do you have a laptop? The Echo 13 Thunderbolt 5 SSD Dock will power up to 140W of charging power. When it’s time to go out, just unplug the Thunderbolt cable, grab your computer, and exit.

Thunderbolt 5: performance of tomorrow. Today.

The Echo 13 Thunderbolt 5 SSD Dock offers the connections you expect from a Thunderbolt dock and the incredibly fast SSD storage you need. Converts a single cable connection from your computer into three Thunderbolt 5 peripheral ports. With bidirectional data transfer speeds of up to 80 Gbps -- twice as fast as Thunderbolt 4 -- and up to 120 Gbps for higher display bandwidth, you'll revolutionize your productivity.

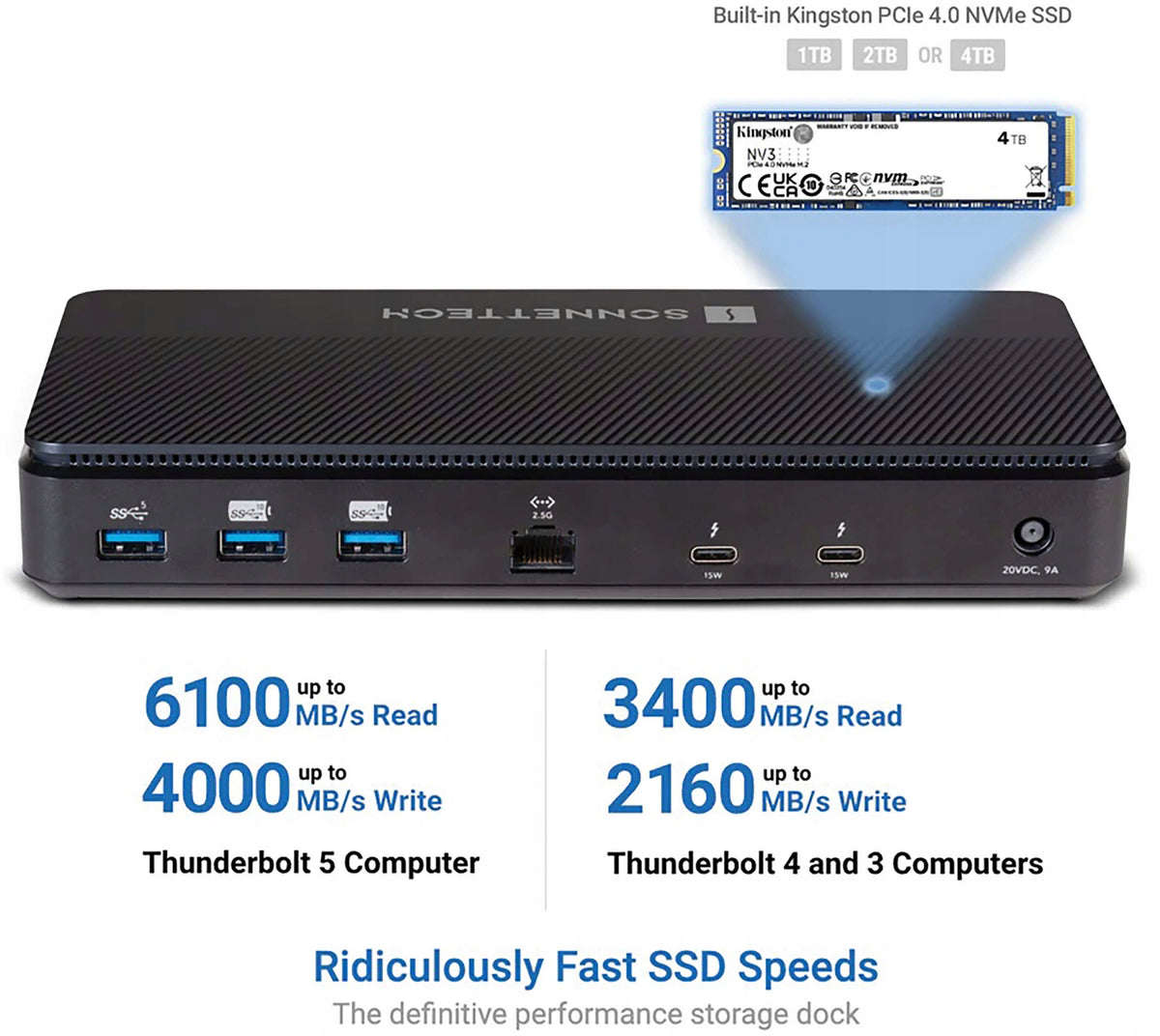

Incredibly fast internal M.2 NVMe SSD storage

The built-in M.2 NVMe SSD increases storage capacity by 1 TB with Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD storage without having to connect another device to an Echo dock or computer. Access data at speeds up to 6100 MB/s – ideal for professional content creation and application storage – and effortlessly store large files, media libraries or Time Machine® backups.

Faster Ethernet transfers over existing cabling

The Echo 13 Thunderbolt 5 SSD Dock, equipped with 2,5-gigabit Ethernet, supports 2,5 Gbps link speeds over regular Cat 5e cabling (or better) when used with a compatible 2,5 Gbps Ethernet-enabled Ethernet or NAS switch, saving you on the cost of another adapter. You can get a big performance boost - 250 percent Gigabit Ethernet speed - without having to change the wiring! When connected to a switch or NAS without Ethernet 2,5 Gbps support, the Sonnet docking station also supports 1 Gbps and 100 Mbps link speeds.

Fast 10 Gbps USB ports for bus-powered devices

The Echo 13 Thunderbolt 5 SSD Dock is equipped with three USB 3.2 Gen 2 (10 Gbps) Type-A ports - one on the front and two on the back that support super-fast USB NVMe SSDs at full speed. Unlike some other docking stations, the Echo 13 also does not skimp on power - each port provides up to 7,5 W, ensuring trouble-free operation of devices powered from the bus.

Thunderbolt Certificate for Mac, Windows and Chromebooks and iPad Pro tablets

The Echo 13 Thunderbolt 5 SSD Dock is certified for use with Apple® Mac M series computers; Thunderbolt 3 Intel® Mac computers; Thunderbolt 5 and most Thunderbolt 4 Windows® computers; Thunderbolt 5 and 4 Chromebook™ computers; and iPad Pro® M series tablets. See tech specifications for the latest computer and operating system compatibility.

Display options: Thunderbolt port connections - connect 8K or three 4K monitors

Depending on your computer’s video capabilities, the Thunderbolt ports of the Echo docking station can support one (always 4K, 5K or 6K) monitor, two 8K monitors or up to three 4K monitors; see technical specifications. You can connect Thunderbolt 3, 4, and 5 or USB-C monitors directly. You can also connect other types of displays (HDMI, DisplayPort, etc. ) using a Thunderbolt compatible adapter (sold separately).

Charging a laptop without a power supply

When connected to a laptop computer using the included Thunderbolt 5 cable, the Echo 13 Thunderbolt 5 SSD Dock provides up to 140W of power (Power Delivery), which means it can power and charge your computer when plugged in, even when not in use, allowing you to leave your computer's power adapter packed.

Power supply for peripherals: handy charging ports

When connected to a laptop computer using the included Thunderbolt 5 cable, the Echo 13 Thunderbolt 5 SSD Dock provides up to 140W of power (Power Delivery), which means it can power and charge your computer when plugged in, even when not in use, allowing you to leave your computer's power adapter packed.

Connect and secure

Thunderbolt 5 cable included. Sonnet attaches a Thunderbolt cable to the Echo 13 Thunderbolt 5 SSD Dock, which supports maximum Thunderbolt 5 bandwidth and charging capability. This cable is compatible with all Thunderbolt 5, 4, 3, and USB4 computers.

Kensington Security Lock. With 1 TB of valuable data inside, you should secure your Echo docking station with Kensington Security Lock (sold separately).

Main features

• Thunderbolt 5 Docking Station with Incredibly Fast Internal SSD Storage
• Connecting peripherals with one cable - instant access - connect peripherals to the Echo docking station and connect your computer to the docking station using the included Thunderbolt 5 cable.
• Twelve external interfaces - four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type A charging ports, one USB 3.2 Gen 1 Type A port, one RJ45 2.5 Gigabit Ethernet port and one 3,5mm audio combo slot; one SD card slot and one microSD card slot.
• Built-in SSD - Includes a 1TB Kingston PCIe 4.0 NVMe SSD with Thunderbolt 5 certification.
• Three Thunderbolt 5 ports for peripherals - The ability to connect three Thunderbolt 5, 4 or 3 peripherals. It also supports USB4 V2, USB4 and USB3 devices.
• Powerful 10Gb/s USB Type-A Ports - Three USB 3.2 Gen 2 ports provide up to 7,5W of power each, supporting super-fast USB NVMe SSDs at full speed.
• Connect up to three 4K @144Hz monitors via Thunderbolt - Connect Thunderbolt or USB-C displays directly. Supports HDMI or DisplayPort displays with Thunderbolt compatible adapters (sold separately).
• Support 1080p, 1440p, 4K, 5K, 6K and 8K displays with refresh rates up to 240Hz - Depending on your computer, it supports up to three 4K displays, two 6K or 8K, or one 4K, 5K, 6K or 8K display.
• Laptop Charging - Provides up to 140W of power via the included Thunderbolt 5 cable to power and charge your laptop.
• SD and microSD card readout - Compatible with all types of SD and microSD cards; supports 320 MB/s read speed with UHS-II SDXC cards.
• Kensington Lock Read - Securely secure your Echo 13 docking station and its valuable data with Kensington® Security Lock (sold separately). Equipped with Kensington Security and Nano Security slots.
• Compatibility - Compatibility with Mac computers (M and Intel series), Windows and Chromebook and iPad Pro M series. Full product specification and details for compatibility with computers, operating systems and technical support can be found on the official product page.
• Package Contents - Echo 13 Thunderbolt 5 SSD Dock (with Kingston M.2 NVMe 1TB SSD pre-installed); power adapter; power cable suitable for region (US, Australia, Europe, Japan, Switzerland or UK); 0,8-meter Thunderbolt 5 cable; and documentation.
• Customer Support - Free lifetime technical support.
• Sonnet Advantage - Designed and constructed in the USA. Since 1986.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	ECHO-DK13-4TB5
Parametry	Manufacturer	SonnetTech
Parametry	Product weight with unit packaging	2 kg
Parametry	EAN (GTIN)	5904917097953
Parametry	Packaging status	original
Parametry	Interface	Thunderbolt,Thunderbolt 3,USB 3.2,USB typ C
Parametry	Certificates of conformity	CE,WEEE
