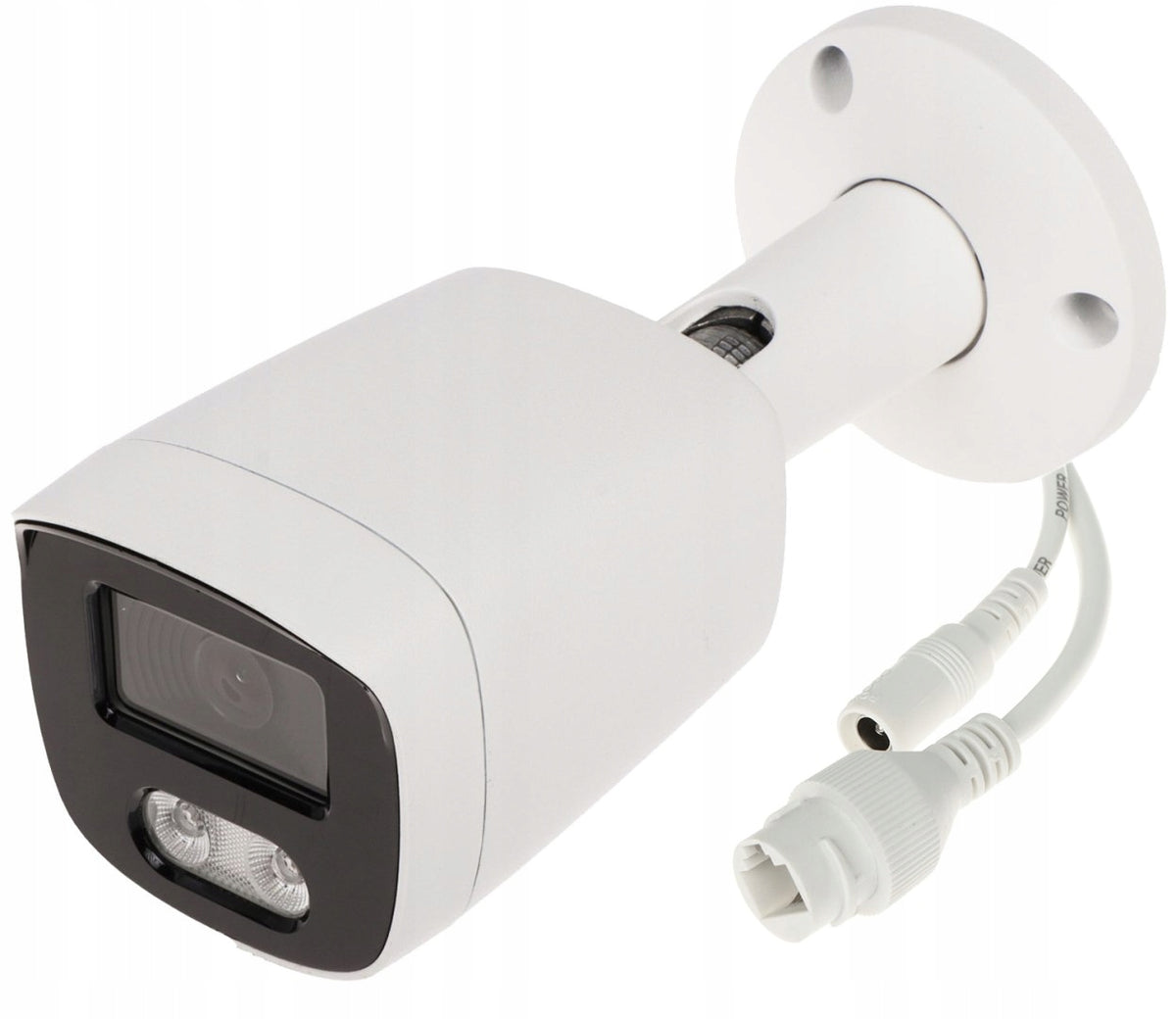

IP vaizdo stebėjimo kamera APTI-AI508CA3-28WP, 5 Mpx, 2.8 mm

Trumpai apie prekę

Prekė: IP vaizdo stebėjimo kamera APTI-AI508CA3-28WP, 5 Mpx, 2.8 mm. Kategorija: IP kameros.

• Gamintojas: APTI
• Modelis: APTI-AI508CA3-28WP

253,81

APTI-AI508CA3-28WP

IP camera with powerful H.264/H.265 image compression algorithm for clearer and smoother image transfer at a maximum resolution of 5 MPx

The camera holder is adjustable in all three planes, and the power cables are hidden inside it

The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient)

PoE power capability, according to 802.3af standard makes the device even more versatile and easier to install

Standard:

TCP/IP

Matrix size:

5 Mpx

Transducer:

1/2.8" SONY Starvis™ Back-illuminated CMOS

Resolution:

2592 x 1944 - 5 Mpx ,

2560 x 1440 - 3.7 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 - 720p

Lens:

2.8 mm

Viewing angle:

106 °

IR illuminator range:

25 m

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Main stream transmission speed:

25 fps @ 5 Mpx

Network interface:

10/100 Base-T (RJ-45)

Memory card slot:

Emergency Inputs/Outputs:

Audio:

• Built-in microphone,
• Audio transmission over the network,
• Compliance with the AAC standard

WEB Server: Built-in Max. Number of users online: 10 ONVIF: RS-485 interface: Mobile phone access:

• Port: 80 or cloud access (P2P)
• Android: Free BitVision App
• iOS (iPhone): Free BitVision App

Default IP address:

192.168.1.168

Default administrator login/password:

admin / 123456 (older versions of FW: admin)

Administrator password should be set at first startup

Access ports via www:

80

Access ports via PC app:

80

Access port via mobile application:

80

Port of ONVIF:

80

RTSP URL:

• rtsp://user:password@ip_address:80/0 - Main stream
• rtsp://user:password@ip_address:80/1 - Auxiliary stream

Selected functions:

• Intelligent image analysis : intrusion, line crossing, motion detection based on human detection, estimation of the size of the accumulated crowd, video sabotage detection
• WDR - Wide range of lighting dynamics
• 3D-DNR - Digital Noise Reduction in Images
• ROI - improving the quality of selected image fragments
• F-DNR (Defog) - Noise reduction associated with precipitation
• Flicker Control - Technology to eliminate eye-tiring flickering effect
• Mirror - Mirror image reflection
• BLC - reverse light compensation (background)
• HLC - Strong light compensation (point)
• ICR - Mechanical Infrared Filter
• Ability to change resolution, quality and bandwidth
• Day/night mode - customizable
• Privacy Zones - max. 3
• Sharpness - Sharpening the contours of the image

Power supply:

• PoE (802.3af),
• 12 V DC / 310 mA

Power Consumption:

? 3.7 IN

Housing:

Compact - Metal

Color:

White

Leak-proof class:

IP67

Operating Temperature:

-20 °C ... 60 °C

Weight:

0.44 kg

Dimensions:

173 x 73 x 73 mm

Supported languages:

Polish, English, Bulgarian Czech, French, Spanish, Dutch, German, Portuguese, Russian, Turkish, Italian

NDAA Certificate:

Manufacturer / Brand:

APTI

2

CE

Quick start instructions PL

Quick start instructions EN

Instruction EN

iVMS320

A program to search for and configure cameras on the network

APTI NDAA

Data act

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.55 kg
Parametry	EAN (GTIN)	5902887088377
Parametry	Manufacturer code	APTI-AI508CA3-28WP
Parametry	Brand	APTI
Parametry	Model	APTI-AI508CA3-28WP
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
