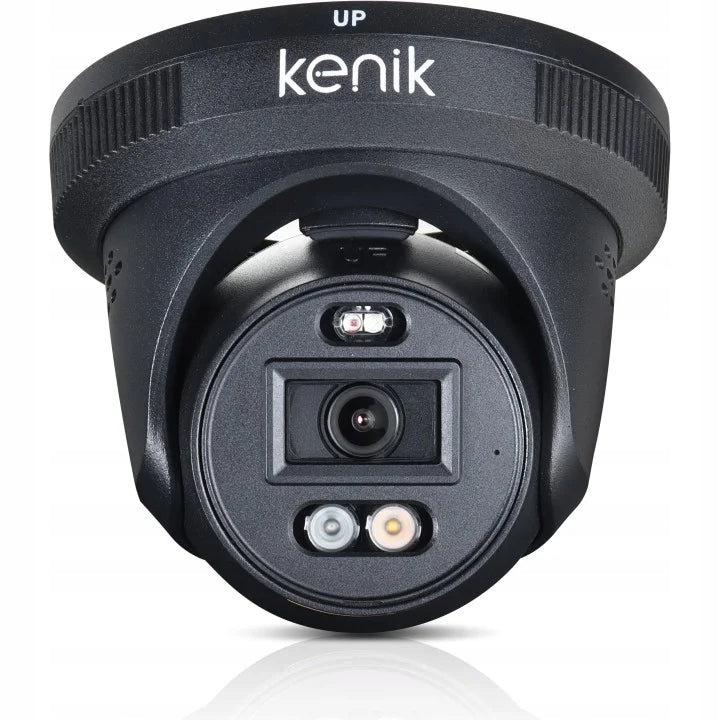

IP vaizdo kamera KENIK KG-8430DAS-ILD-B-V2

Trumpai apie prekę

Prekė: IP vaizdo kamera KENIK KG-8430DAS-ILD-B-V2. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-8430DAS-ILD-B-V2

IP CAMERA KENIK KG-8430DAS-ILD-B-V2 (2.8mm)

IP CAMERA KENIK KG-8430DAS-ILD-B-V2 (2.8mm)

Key features:

• 8MPX (3840x2160) at 20fps
• H.265+/H.264+ compression
• WDR (120dB), ROI, 2/3DNR, HLC, BLC,
• 2.8mm lens
• Built-in microphone and speaker
• Dual Light (IR + Warm Light)
• Red/blue LEDs
• MicroSD card reader up to 128GB
• motion detection SMD + P.P. (human/vehicle), image obscuration
• Intelligent IVS image analysis: detecting an intruder, crossing a line, entering an area, leaving the area (human/vehicle filter)
• Defog function, ROI
• 3 streams
• Reset button
• Corridor mode

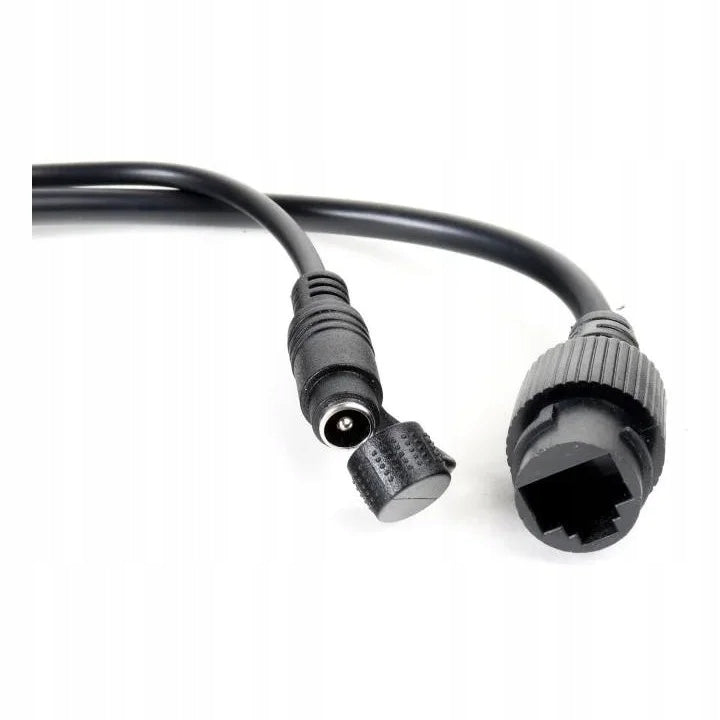

• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with protection class IP67
• Supports ONVIF 2.6 standard
• Mobile preview on smartphone (Android, iPhone)
• Free in Polish for registration on your computer

Purpose

The camera is designed for outdoor applications. The housing allows you to mount the camera both on the ceiling and on the wall. The camera will be used in monitoring: parking lot, playground, hall, square, state institutions, schools, etc.

Description

The Kenik IP camera is ideal for surveillance systems that require the highest image quality. The 8MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. Modern infrared reflector with SMD LEDs ensures that the area is fully illuminated in the prevailing total darkness of the environment. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, hardware WDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power supply, so we do not have to lay two wires, because we only need a twisted pair to connect the cameras with other devices in the network.

​

Active deterrence

Active deterrence is a new technology that has been used in Kenik cameras. The built-in siren and flashing blue and red light LEDs indicate the detection of an object in the zone observed by the camera. The technology also enables two-way audio communication.

STARLIGHT technology

The camera uses a high-sensitivity SONY Starvis sensor for good visibility even with minimal lighting. The STARLIGHT technology allows you to get a color image even in night conditions.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis with object classification (human/vehicle). Event detection was used in the case of: detection of an intruder, line crossing, disappearance / appearance of an object, entry into the area, leaving the area, fast movement, wandering detection, image blur detection, scene change detection, sound detection, line pre-stepping statistics, face detection (with SMD + P.P. off). This increases the effectiveness of the monitoring system and the safety of the controlled facility.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

​

Kenik Mobile preview

Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

Working in the cloud Kenik

Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. The service is free.

​

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

SD card reader

The camera allows you to record video on a memory card based on a set schedule or motion detection. The reader supports cards up to 128GB. This allows the camera to operate autonomously without the use of a recorder or create an emergency backup.

​

Technical specification:

KG-8430DAS-ILD-B-V2 (2.8mm) Camera Sensor 1/2.7" PS CMOS Sensitivity 0.006lux (color) Shutter Speed Auto/Manual, 1/3~1/100000s Slow Shutter Supported Lens 2.8 mm F1.6, horizontal: 110°, vertical: 58° Lens Mount M12 Wide Dynamic Range WDR 120dB Noise Reduction 2D/3D DNR Illuminator Dual Light (IR + Warm Light) Illuminator Range 30m (for IR and warm light) Smart Light Yes Compression Video Compression H.264/H.264+/H.265/H.265+ Codec Profile H.264 Baseline/Main/High Profile H.265 codec main Video bitrate11 Kbps~13MbpsAudio compressionG.711A, G.711UBaudio bitrate64 KbpsImage Max. Resolution 8MP(3840×2160) Frame Rate Main Stream 50Hz: 20fps 8MP(3840×2160) 25fps 4MP(2592×1944) 25fps 4MP(2560×1440) 60Hz: 20fps 8MP(3840×2160) 30fps 4MP(2592×1944) 30fps 4MP(2560×1440) Sub Stream 50Hz: 20fps 720P(1280×720) 25fps D1(704×576),25fps CIF(352×1944) 288) 60Hz: 20fps 720P(1280 × 720) 30fps D1(704 × 480), 30fps CIF(352 × 240) Mobile stream 50Hz: 20fps CIF(352×288) 60Hz: 20fps CIF(352×240) Image settings Brightness / Contrast / Saturation / Hue / Sharpness BLCTAKHLCTAKROITAKCorridor mode YESNetwork Events Motion detection SMD + PP (human/vehicle), image occlusion Intelligent image analysis Intrusion detection, line crossing, entering the area, leaving the area (human/vehicle filter) Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P Supported StandardsOnvif (Profiles T, Profiles S, Profiles G), CGI SecurityUser authentication, IP address filtering, video mask Mobile viewingiPhone, iPad, Android Active deterrence Red/blue LEDs Yes Alarm buzzer Yes Interfaces Communication interface 1x RJ45 10M/100M Ethernet port MicroSD card reader Yes, up to 256GB Microphone Yes, built-in Speaker Yes Reset button Yes General Operating Conditions -40°C ~ 60°C Humidity 95% or less (non-condensing) Power supply DC12V ± 25% Power supply POE PoE (802.3af) Power consumption Max. 9W Leak-proof classIP67DimensionsΦ128 × 105.1 mmWeight690g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5908231258533
Parametry	Manufacturer code	KG-8430DAS-ILD-B-V2
Parametry	Brand	KENIK
Parametry	Model	KG-8430DAS-ILD-B-V2
Parametry	Packaging status	original
Parametry	Batteries included	no
