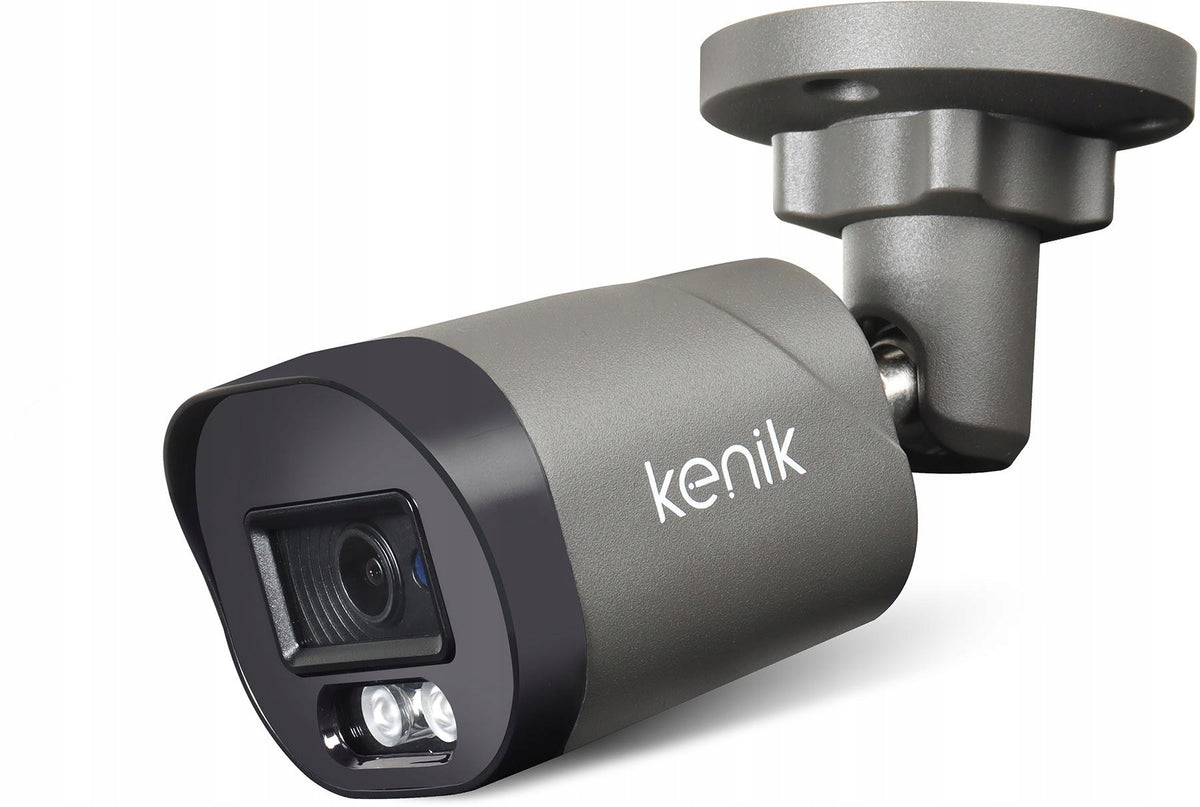

IP vaizdo kamera KENIK KG-230TPA-DL-G

Trumpai apie prekę

Prekė: IP vaizdo kamera KENIK KG-230TPA-DL-G. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-230TPA-DL-G

CAMERA IP KENIK KG-230TPA-DL-G

IP CAMERA KENIK KG-230TPA-DL-G

KENIK KG-230TPA-DL-G 2MPx SMART IR IP67 outdoor IP surveillance camera - key features:

• Resolution: 2MPX (1920x1080) at 25fps
• Compression: H.265+/H.264+
• DWDR, 3DNR, AWB, AGC, BLC
• Lens: 2.8mm
• SMART Dual Light IR+LED reflector up to 30m
• Intelligent image analysis IVS (human/vehicle detection)
• Defog, ROI features
• built-in microphone
• 2 streams
• Power supply 12V DC, PoE (802.3af)
• IP67 rated housing
• Supports ONVIF 2.6 standard
• Mobile preview in the smartphone app (Android, iPhone)
• Free software in Polish for registration on your computer

KENIK KG-230TPA-DL-G 2MPx IP67 outdoor surveillance camera - purpose and application:

KENIK KG-230TPA-DL 2MPx IP67 outdoor IP camera can be successfully used for effective monitoring:

1. Residential home: monitoring and securing the property, access control at entrances, monitoring the parking lot and garden, recording events around the house.
2. Offices or companies: supervision of office areas, monitoring of warehouses and production spaces, securing entrances and exits to buildings, recording activities on company premises.
3. Shops and retail outlets: monitoring cash registers and store entrances, preventing theft and vandalism.
4. Public places: supervision of parks, playgrounds and recreational areas, control of parking spaces at airports, railway stations and other public facilities, securing public buildings, e.g. schools, hospitals, museums.
5. Sports halls and facilities
6. Industrial and commercial zones

KENIK KG-230TPA-DL-G 2MPx - the perfect choice for a monitoring system requiring the highest image quality!

The KENIK KG-230TPA-DL 2MPx IP camera is an advanced surveillance device that offers many functions and features that make it ideal for applications requiring the highest image quality and monitoring effectiveness .

Discover all its features and advantages:

• High image quality: KENIK KG-230TP-L 2MPx IP camera is equipped with a 2MPx sensor and H.265 compression, which allows for good image quality with clear details both during the day and at night.
• Smart IR Illuminator with SMD LEDs: The modern infrared illuminator allows the KENIK KG-230TP-L 2MPx IP camera to fully illuminate the area in complete darkness, which is essential for effective monitoring at night.
• Intelligent image analysis: The KENIK KG-230TP-L 2MPx IP camera enables the use of intelligent image analysis, which increases the level of security in the facility it protects. It is possible to detect motion, intruders and other events.
• Advanced image functions: functions such as DEFOG, ROI (Region of Interest) and DWDR (Digital Wide Dynamic Range) ensure clear images from the KENIK KG-230TP-L 2MPx IP camera, eliminating distortions and making it easier to identify people and objects.
• Cloud operation: KENIK KG-230TP-L 2MPx IP camera can operate in the cloud, which allows its user to monitor the facility from anywhere in the world via smartphone.
• Easy installation: KENIK KG-230TP-L 2MPx IP camera's easy setup and cloud connection make it easy to install and use.
• 2.8mm focal length lens: The 2MPx lens used in the KENIK KG-230TP-L IP camera provides a wide viewing angle of the camera, which allows it to monitor a larger area.
• Cost-effective: The KENIK KG-230TP-L 2MPx IP camera offers good image quality at an affordable price, which may be attractive to users looking for effective monitoring solutions without high costs.
• Multifunctionality: KENIK KG-230TP-L 2MPx IP camera is equipped with many features that increase its versatility and allow it to be adapted to various monitoring needs.
• Remote monitoring capability: the user of the KENIK KG-230TP-L 2MPx IP camera can monitor the object from anywhere in the world using his smartphone, which provides flexibility and convenience in using the camera.

Choose the KENIK KG-230TPA-DL-G 2MPx IP camera and choose intelligent image analysis (IVS) - advanced technology used in KENIK video monitoring systems

Intelligent Image Analysis (IVS) is an advanced technology used in video surveillance systems that allows for automatic analysis and recognition of images and events based on video streams .

The great advantage of IVS systems is their ability to detect various events or objects in real time , which increases the effectiveness of monitoring systems and the level of security of controlled facilities.

KENIK KG-230TP-L 2MPx IP camera using intelligent video analysis can therefore be configured to detect a specific situation or object, such as detecting a human .

KENIK KG-230TPA-DL-G 2MPx - IP surveillance camera with motion detection function

• Motion detection is one of the functions of the KENIK KG-230TPA-DL 2MPx IP camera, which is responsible for image recording.
• Motion detection in the KENIK KG-230TPA-DL 2MPx IP camera is based on the principle of capturing changes in the image , and then switching on the recording of the selected channel.
• This function has a number of additional options, including defining the detection field and adjusting the appropriate sensitivity of the changes taking place , which are responsible for the recording.

KENIK KG-230TPA-DL-G 2MPx - IP camera with Smart IR illuminator

• Kenik KG-230TPA-DL 2MPx IP camera uses a modern infrared illuminator based on SMD diodes - ensuring visibility in complete darkness.
• It is characterized by lower energy consumption as well as stronger and more uniform illumination compared to standard diodes.
• In addition, the Smart IR illuminator does not cause overexposure of the image in places where the object is close to the KENIK KG-230TP-L IP camera.

Onvif (Open Network Video Interface Forum) - discover the advantages of the standard enabling the integration of CCTV devices

• Onvif (Open Network Video Interface Forum) is an organization of CCTV industry manufacturers focused on the issue of unifying a common protocol standard for these devices.
• This group was created to standardize the protocol, i.e. the method of communication between devices from different vendors. Currently, the entire organization brings together approximately 450 companies and institutions from around the world. The Onvif standard itself, since its introduction, has gone through successive phases of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited.
• Today, the standard is offered in version 2.6 and higher, and in the vast majority of cases it allows for seamless integration of any devices!

Check what you gain by choosing the KENIK KG-230TPA-DL-G 2MPx IP camera compliant with the ONVIF standard:

Thanks to the ONVIF standard, users of the KENIK KG-230TPA-DL 2MPx IP camera have greater flexibility and the ability to choose various compatible video devices, regardless of the manufacturer, which makes it easier to create comprehensive monitoring and surveillance systems based on the functions of KENIK IP KG-230TPA-DL 2MPx cameras .

Moreover, the use of ONVIF can reduce the costs of integrating and maintaining such systems because it eliminates the need to use closed protocols and solutions dedicated to only one manufacturer.

• Interoperability: ONVIF provides communication standards that allow devices from different brands to work together. Thanks to this , customers can connect IP cameras from different manufacturers with an NVR or VMS without the need to use dedicated solutions for each manufacturer.
• Common Interfaces: The ONVIF standard defines common application programming interfaces (APIs) that allow access to IP camera features and parameters, such as video streams, camera management, PTZ (pan-tilt-zoom) control, etc.
• Profiling: The ONVIF standard introduces profiles that define the specific features and specifications that devices must meet to be ONVIF certified. Profiles allow users to easily identify which features are supported by specific devices.
• Security: The ONVIF standard also takes into account security issues such as authorization and authentication, which is important in the case of video surveillance systems.

KENIK KG-230TPA-DL-G 2MPx IP camera - choose an IP camera with the ability to connect it to the KENIK cloud!

• Each Kenik IP camera has the ability to connect via the cloud .
• Thanks to this useful and very functional solution, without complicated configuration, each user can easily connect to the camera and view the image it records .
• There is no need for port forwarding or a public IP address , just connect to the Internet (also LTE) and create an account on KENIKP2P . The service is free!

Choose the KENIK KG-230TPA-DL-G 2MPx IP camera and enjoy the option of remote image viewing in the Kenik Mobile application!

• Thanks to the free Kenik Mobile application, we can remotely view the image from the KENIK KG-230TPA-DL 2MPx IP camera on our mobile phone .
• Just download it from the app store. The application works on devices with Android and iOS operating systems.
• This gives us the ability to control what is happening in the facility monitored by our KENIK KG-230TP-L 2MPx IP camera from anywhere in the world.
• When connected to the cloud , simply enter the ID number of our KENIK KG-230TP-L 2MPx IP camera and enjoy remote access to the device.

KENIK KG-230TPA-DL-G 2MPx - a modern IP camera based on intelligent VMS Pro software

• VMS Pro is software that allows you to view images and manage the recorder connected to the camera on your computer .
• So if you intend to make your camera the heart of your monitoring system, its compatibility with VMS Pro is an undoubted advantage of the model you choose!
• VMS Pro allows you to connect several recorders located in different locations and view images from up to 128 cameras. In addition, creating an e-map makes browsing easier and allows the system to be divided into zones. Support for up to 4 monitors simultaneously will certainly be helpful in this regard.

Accessories:

Specifications and technical data KENIK KG-230TPA-DL 2MPx outdoor IP surveillance camera:

KG-230TPA-DL-G (2.8mm)

Camera

Converter

1/2.9" Progressive scan CMOS Sensor

Sensitivity

0.01 lux(color), 0 lux(IR on) )

Shutter speed

Auto/Manual, 1/3~1/10000s

Lens

2.8 mm: horizontal viewing angle: 104°

Lens mount

M12

Day Night

automatic IR filter

Wide dynamic range

DWDR

Noise reduction

2/3D DNR

IR+LED illuminator range

30M

Smart IR

Yes

Dual light

Yes

LED diodes

Yes

Image rotation

Yes

Microphone

Yes

Compression

Video compression

H.264/H.264+/H.265/H.265+

H.264 Codec Profile

basic/main/high

H.265 Codec Profile

main

Audio compression

G.711A/G.711U

Video bitrate

11 Kbps~8Mbps

Audio bitrate

64 Kbps


Max. resolution

2MP (1920 x 1080)

Number of frames

Main stream

50Hz: 25 fps 1080P (1920 x 1080), 25 fps 960P (1280 x 960), 25 fps 720P (1280 x 720), 60Hz: 30 fps 1080P (1920 x 1080), 30 fps 960P (1280 x 960), 30 fps 720P (1280 x 720),

Additional stream

50Hz: 25 fps D1 (704 × 576), 25 fps CIF (352 x 288) 60Hz: 30 fps D1 (704 × 480), 30 fps CIF (352 x 240)

Image settings

Brightness/Contrast/Saturation/Hue/Sharpness

BLC

YES

HLC

YES

ROI

YES

Network

Events

motion detection (vehicle/human filter), image occlusion,

Intelligent image analysis

line crossing, human detection, intrusion, entering the area, leaving the area, fast movement

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP, RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour

Supported standards

Onvif (Profile S), CGI

Security

User authentication, IP filtering, video mask

Mobile preview

iPhone, iPad, Android

Web

IE, Chrome, Firefox

Interfaces

Communication interface

1x RJ45 10M/100M Ethernet Port

General

Working conditions

-30°C ~ 60°C (-22°F ~ 140°F) Humidity 95% or less (non-condensing)

Supply voltage

DC12V ±10%

POE power supply

PoE (802.3af)

Power consumption

Max. 7W

Tightness class

IP67

Dimensions

Φ 68 × 153 mm

Libra

420g
