IP vaizdo kamera Hikvision DS-2CD2T43G2P-LISU/SL, 180°

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD2T43G2P-LISU/SL, 180°. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2T43G2P-LISU/SL

IP camera Hikvision DS-2CD2T43G2P-LISU/SL(180°)(O-STD)

Model: DS-2CD2T43G2P-LISU/SL(180°)(O-STD)

Key features:

• Bullet 4 MP AcuSense Panoramic Network Camera
• Wide viewing angle 180°
• High image quality in 4 MP resolution
• Detection of persons and vehicles
• Smart Hybrid Light - advanced long-range lighting
• Efficient H.265+ compression
• Memory support up to 512 GB (SD card slot)
• Built-in two-way audio for real-time communication
• Water and dust resistance (IP67)
• Active strobe light and audible alarm to deter intruders

Technical specification

Model

DS-2CD2T43G2P-LISU/SL(180°)

Image transducer

1/2.5" Progressive Scan CMOS

Max. resolution

3008 × 1328

Shutter speed

1 s to 1/100,000 s

Min. lighting

Colour: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with lighting

Day and night

IR cut-off filter

Angle adjustment

Rotation: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Lens

Lens type

Fixed focal length lens, 2.8 mm

Focal length and field of view

2.8 mm, horizontal field of view 180°, vertical 77°

Type of shutter

Fixed

Lens mount

M12

Aperture

F1.6

DORI

DORI

2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m

Illuminator

Illuminator range

Up to 30 m

Smart Supplement Light

Yes

Type of illuminator

IR, white light

IR wavelength

850 nm

Video

Main stream

50 Hz: 20 fps (3008 × 1328)

60 Hz: 20 fps (3008 × 1328)

Substream

50 Hz: 20 fps (1200 × 536, 960 × 432)

60 Hz: 20 fps (1200 × 536, 960 × 432)

Type H.265

Main profile

Video compression

Main stream: H.265+/H.265/H.264+/H.264, Substream: H.265/H.264/MJPEG

Bitrate video

32 Kbps to 16 Mbps

Type H.264

Basic profile, main profile, high profile

Bitrate control

CBR, VBR

ROI

1 fixed area for main stream

SVC

H.264 and H.265 encoding

Audio

Audio compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

Bitrate audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Audio type

Mono sound

Noise filtering

Yes

Sampling rate

8 kHz/16 kHz

Network

Browser

Plug-in required: IE 11, locally: Chrome 80+, Firefox 80+, Edge 89+

API

ONVIF (Profile S, T, G), ISAPI, SDK

Client

iVMS-4200, Hik-Connect

Safeguards

Password protection, complex password, watermark, basic authentication and digest for HTTP, WSSE and digest for ONVIF, audit log, host authentication (MAC)

Live preview

Up to 6 channels

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP

Users

Up to 32 users

User levels

Administrator, operator, user


Day/night mode

Day, night, car, schedule

Image improvement

BC, HLC, 3D DNR

WDR

120 dB

SNR

≥ 52 dB

Image Settings

Rotation, saturation, brightness, contrast, sharpness, gain, white balance

Masks of privacy

4 programmable polygonal masks

Interface

Memory

microSD/microSDHC/microSDXC slot up to 512 GB

Microphone

Yes, 1 built-in

Speaker

Yes, 1 built-in, max. 2 W, 97 dB (10 cm)

Ethernet interface

1 × RJ45 10/100 Mbps

Audio I/O

1 line input, 1 line output

Alarm

1 input, 1 output (max. 12 VDC, 30 mA)

Reset

Yes

Events

Basic events

Motion detection (human/vehicle), video sabotage, exception

Smart Event

Crossing the line, intrusion (man/vehicle)

Relationships

FTP/memory card, center notification, email, recording, snapshot, audible alarm, strobe light

General

Power supply

12 VDC ±25%, 0.83 A, max. 10 W, PoE IEEE 802.3af, class 3, max. 11.5 W

Material

Front cover: metal, body: metal, handle: metal

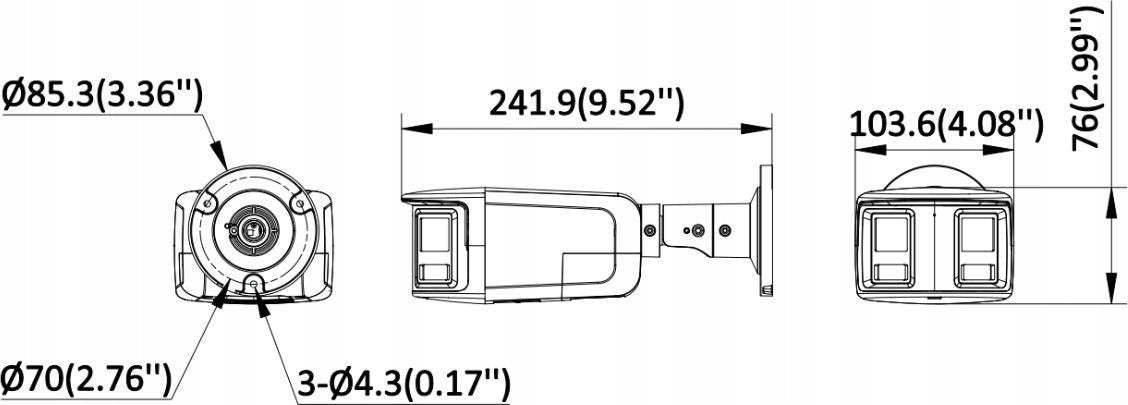

Dimensions

103.6 mm × 76 mm × 241.9 mm

Package Dimensions

260 mm × 140 mm × 115 mm

Weight

OK. 940 g

Weight with packaging

OK. 1260 g

Storage conditions

-30 °C to 60 °C, humidity ≤95%

Working conditions

-30 °C d

• EAN: 6936422196677
• Symbol: 73434
