IP vaizdo kamera Hikvision DS-2CD2086G2-I, 4 Mpx, PoE, AcuSense, DarkFighter

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD2086G2-I, 4 Mpx, PoE, AcuSense, DarkFighter. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD2086G2-I(2.8MM)(C)

✅ Hikvision brand products are modern solutions designed for monitoring systems and broadly understood professional and business applications. They are characterized by high quality, reliability of operation and the use of advanced technologies. Thanks to its robust construction and extensive offer, Hikvision products can be easily adapted to the individual needs of the user – both in the home environment, commercial or industrial.

✅ Main advantages:

➡ High-quality imaging with 8 MP resolution

➡ Excellent low-light performance thanks to DarkFighter technology

➡ Efficient H.265+ compression technology

➡ Clear images in strong rear light thanks to 120 dB WDR technology

➡ Focus on classifying human and vehicle goals based on deep learning

➡ Water and dust resistance (IP67)

✅ High resolution 8 MPx (4K)

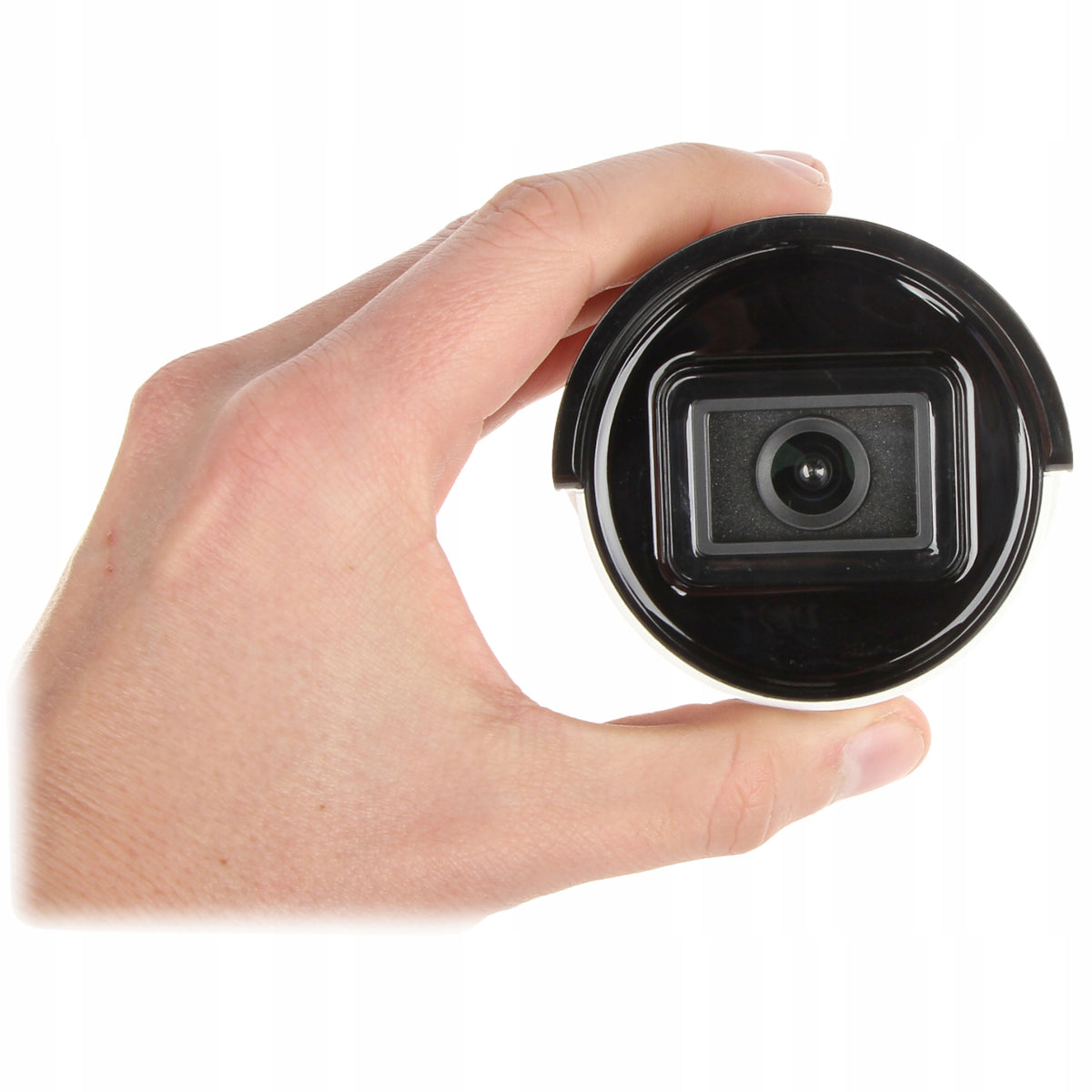

The IP camera in the DS-2CD2086G2-I tube housing uses AcuSense technology, which thanks to Deep Learning algorithms can recognize and classify objects. This allows you to limit the number of false positives generated by VCA image analysis functions. This model is equipped with a modern 1/1.8" 8 Mpx Progressive Scan CMOS sensor, enabling image recording in 4K (3840 × 2160) resolution at speeds up to 20 frames per second.

✅ Functionality

The robust construction of the device provides high resistance to harsh weather conditions, which is confirmed by the tightness class IP67. The use of H.265 compression allows you to reduce the amount of space needed to save video material on media such as HDD or microSD card, thanks to which it is possible to store recordings longer.

The camera has a fixed-focal lens and a SMART infrared radiator, which provide a clear image both during the day and at night and in low light. In addition, PoE technology and 3D handle make the installation of the device quick and convenient.

✅ AI Features

• Perimeter functions / Perimeter protection – Monitoring of areas requiring protection and information in the event of intrusion. When entering the designated area or after crossing the designated line, the classification of the object begins, if the system detects that it is a human or a vehicle triggers an alarm, otherwise it is ignored.
• Face recognitiony – Each face model is compared with images collected in the database to identify what can be used when authorizing entry into rooms with limited access. Authorization is successful if the face is recognized.
• Motion detection based on object recognition – This technology has an algorithm,which first classifies objects (human/vehicle) and detection takes place in the second stage,which allows for proper alarming regardless of the type of platform,which will receive the already prepared information about alarms,be it IVMS 4200, HikCentral or other Hikvision software. Thanks to the motion detection function 2.0, we can count on high accuracy and effectiveness of alarming based not only on line intersection, intrusion into the zone, but also when detecting standard motion detection, which allows for easier configuration of alarms. It is not necessary to draw lines, determine the minimum and maximum size of objects, etc. It is enough to draw a standard motion detection grid (activity mask) and determine what type of objects are to be analyzed by the device (vehicle, human or both).

✅ AcuSense

AcuSense is a technology used in surveillance cameras and recorders that utilizes artificial intelligence algorithms (deep learning) for real-time image analysis. The system can automatically recognize people and vehicles, and then send immediate notifications to the user.

Thanks to intelligent video analysis, the technology significantly reduces the number of false alarms that can be triggered by animals, rain, moving leaves, or other accidental movements in the frame.

As a result, AcuSense allows you to focus on real threats, increasing monitoring effectiveness and simplifying security management for both businesses and homes.

➡ Technical specification:

• Manufacturer: Hikvision
• Model: DS-2CD2086G2-I
• Converter: 1/1.8" 8MP Progressive Scan CMOS
• Sensitivity: 0.003 lx (colour, F1.6, AGC ON), 0 lx with IR
• Snapshot: 1/3 s – 1/100000 s (Slow Shutter Support)
• WDR: 120 dB
• Day/night mode: IR filter, day/night/auto/schedule modes
• Position adjustment: pan 0–360°, tilt 0–90°, rotation 0–360°
• Restoring settings after power outage: yes
• Focal length: 2.8 mm
• Angle of view: 102° horizontally / 55° vertically / 120° diagonal
• Aperture: F1.6
• Lens mount: M16
• Lighting: IR 850 nm, intelligent, 40 m range
• Maximum video resolution: 3840×2160 (8 Mpx)
• Main stream 50 Hz: 20 fps (3840×2160, 3072×1728), 25 fps (2688×1520, 1920×1080, 1280×720)
• Main stream 60 Hz: 20 fps (3840×2160, 3072×1728), 30 fps (2688×1520, 1920×1080, 1280×720)
• Auxiliary stream 50 Hz: 25 fps (640×480, 640×360, 320×240)
• Auxiliary stream 60 Hz: 30 fps (640×480, 640×360, 320×240)
• Additional stream 50 Hz: 25 fps (1280×720, 640×480, 640×360, 320×240)
• Additional stream 60 Hz: 30 fps (1280×720, 640×480, 640×360, 320×240)
• FPS limitation: at 3840×2160 max. 20 fps for all streams
• Video compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG (depending on stream)
• Compression profiles: H.264 Baseline/Main/High, H.265 Main
• Bitrate: 32 Kbps – 16 Mbps
• bitrate control: CBR / VBR
• SVC: yes
• ROI: 1 region per stream
• Image enhancement features: BLC, HLC, 3D DNR
• Image adjustments: rotation, saturation, brightness, contrast, sharpness, gain, white balance
• Live view: up to 6 channels simultaneously
• Standards: ONVIF (S, G), ISAPI, SDK
• Smooth Streaming: yes
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Users: to 32, access levels administrator / operator / user
• Security: complex password, HTTPS, 802.1X (EAP-MD5), watermark, IP filtering, HTTP/HTTPS basic and digest, ONVIF WSSE/digest, TLS 1.2
• Archiving: microSD/SDHC/SDXC up to 256 GB, NAS (NFS, SMB/CIFS), ANR
• Remote support: iVMS-4200, Hik-Connect, Hik-Central
• Browser support: IE 10+ (plugin), Chrome 57+ and Firefox 52+ (without plugin)
• Basic functions: motion detection, video sabotage, scene change, exceptions (network loss, IP conflict, illegal login, full/erroneous drive)
• AI functions: face detection, motion detection with classification of people and vehicles
• Perimeter protection: line crossing, intrusion, entry into the region, exit from the region (classification of people/vehicles)
• Filtering false alarms: classification of human/vehicle objects
• AI limitations: only one AI function at a time; no ROI support, H.265+/H.264+ or motion detection enabled
• Network interface: 1× RJ-45 10/100 Base-T/Base-TX
• Slot memory: microSD / microSDHC / microSDXC up to 256 GB
• Power connector: socket 5.5/2.1 mm
• Reset button: yes
• Languages: 32
• Notification methods: NAS/card recording, monitoring center notification, recording trigger, image recording
• Protection class: IP67 (IEC 60529-2013)
• Power supply: 12 V DC ±25% or PoE 802.3af class 3
• Power consumption: max. 6 W (DC), max. 7.2 W (POE)
• Working temperature: −30°C to +60°C
• Working humidity: < 95% (non-condensing)
• Housing material: metal
• Weight: 500 g
• Dimensions: Ø70 × 161.7 mm

Gallery:

FAQ - Frequently Asked Questions and Answers:

1. What is the difference between a horn camera and a dome camera?

✔ The horn camera (or bullet) has an elongated cylindrical shape and is often mounted outside – it works well when observing specific areas, e.g. entrance gates. The dome camera has a rounded dome-shaped housing and is more discreet. It is often used indoors or under a roof, e.g. in vestibules, staircases or terraces.

2. Is the camera external?

✔ If the camera has an appropriate tightness class, e.g. IP66 or IP67, this means that it is weather resistant (rain, dust, snow) and suitable for outdoor use. It is also worth paying attention to the resistance to vandalism – cameras with the IK10 designation have a reinforced housing.

3. Can I put the camera in front of the house?

✔ Yes, you can mount a camera that monitors the space around your own property, but you must comply with data protection regulations. In accordance with Article 2 para. 1 and 2 GDPR, private monitoring (conducted by a natural person for personal or domestic purposes) is not subject to full application of the provisions of the GDPR.

✔ However:

• The camera should not over-record public space, e.g. the whole sidewalk, street or neighboring property.

• If you register e.g. entrance gate or part of the sidewalk, it is worth posting information about monitoring.

• In the event of a conflict with a neighbor or a breach of privacy, the office or court may consider the installation unauthorized.

Why choose Hikvision products?

✔ 100% originality – you buy from the official distributor of the Hikvision brand, a global leader in the field of security systems and modern technologies.

✔ Reliability and durability – Hikvision products are designed for long-term and stable operation, even in demanding conditions and intensive use.

✔ Advanced technology – Hikvision uses modern technological solutions, offering innovative functions that increase efficiency, safety and convenience of use in security and automation systems.

✔ High comfort of use – thoughtful design, intuitive operation and refined technical parameters make Hikvision products perfect for both professional and everyday applications.

✔ Energy efficiency – the solutions used allow you to optimize energy consumption, which translates into lower operating costs without compromising on efficiency.

✔ Confirmed quality and compliance with standards – Hikvision products meet strict European standards and have the required certificates (m.in. CE), ensuring safety and full compliance with applicable standards.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.5 kg
Parametry	EAN (GTIN)	6941249087145
Parametry	Manufacturer code	DS-2CD2086G2-I
Parametry	Brand	Hikvision
Parametry	Model	DS-2CD2086G2-I(2.8MM)(C)
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Kind	internal,external
