IP vaizdo kamera Hikvision DS-2CD2067G3-LIY, 6MP, 4mm, ColorVu3, Smart Light

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD2067G3-LIY, 6MP, 4mm, ColorVu3, Smart Light. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: Kamera IP Hikvision DS-2CD2067G3-LIY 4mm PL

Smart Network Camera, 6MPx, 2,8mm Lens, ColorVu3, AcuSense3, Smart Hybrid Light, NEMA 4X Anti-corrosion Housing

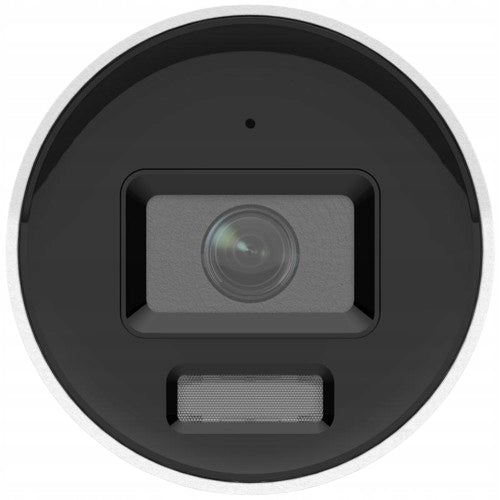

DS-2CD2067G3-LIY is a bullet IP camera by Hikvision with a fixed lens and two illuminators working in white or infrared light technology. The device comes from the Hikvision Smart Hybrid Light series and is equipped with ColorVu 3.0 and AcuSense 3.0 technologies. The camera can work in three different night modes offering black and white image using IR diode, color when using visible light LED or SMART mode, which automatically changes IR mode to LED when human or vehicle is detected.

• Transducer: 1/1.8" 6MP Progressive Scan CMOS
• resolution: 3200 × 1800(6Mpx) @ 25/30 fps
• Interface: 1x RJ45 Ethernet 10/100Mbps PoE 802.3af
• compression: H.265+/ H.265/ H.264+/ H.264/ MJPEG
• Sensitivity: 0.0001lux @ F1.0 (AGC ON), 0lux (IR/LED ON)
• lens: 4mm @ F1.0
• 93.3° viewing angle
• Dual illuminator: 2x smart IR LEDs (range 40m), 2x smart LEDs white light (range 40m)
• AWB, AGC, BLC, EIS, HLC, 3D DNR, WDR 130dB, ROI, Defog
• AI functions: perimeter protection, face detection, motion detection, object classification (human/vehicle)
• Smart Hybrid Light - the use of a double illuminator
• ColorVu 3.0 - color image around the clock supported by AI algorithms
• AcuSense 3.0 - object classification (human/vehicle) with alarm filtering and fast event search
• HikAI-ISP - improving image/video quality through AI algorithms
• Supports microSD/SDHC/SDXC cards up to 512GB
• Compliance with standards: ONVIF, ISAPI, SDK, ISUP
• Power supply: 12V DC or PoE 802.3af
• housing: anti-corrosion (NEMA 4X), metal, tightness class (IP67)

Hikvision is committed to technological innovation for a safer and smarter future. This year, Hikvision is proud to introduce network cameras with ColorVu 3.0 technology that offer exceptional image quality thanks to ColorVu 3.0 technology. In terms of intelligence, AcuSense 3.0 provides AcuSearch features and improved algorithms, enhancing the user experience. Additionally, Audio 2.0 guarantees crystal clear sound quality and provides more efficient communication. Professional solutions, even more professional

• HikAI-ISP
• • AI noise reduction increases static image brightness

  • Powerful parameter adjustment support and a professional effect testing process ensure the stability of the algorithm

  • Reduction of dynamic motion traces allows for crystal clear image quality even in low light conditions

Allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and IPC cameras Hikvision. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.

2. Playback of recorded films.

3. Instant Alerts

Power over Ethernet (PoE) is a solution designed to carry out quick and uncomplicated installation of network devices and comfortable operation of equipment and easy modernization of installation. The PoE solution allows you to place the camera away from traditional power sources, which translates into saving the total number of wires necessary to start the device.

• Image converter: 1/1.8" Progressive Scan CMOS
• Maximum resolution: 3200 × 1800
• Minimum lighting: Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with lighting
• Illumination time: 1 s to 1/100 000 s
• Day/Night Mode: Mechanical Infrared Filter (IR cut)
• Angle adjustment: Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°
• Lens type: Fixed focal length, optional 2.8mm or 4mm
• Focal and field of view (FOV): 4 mm: horizontal 93.3°, vertical 47.2°, diagonal 114.2°
• Lens mount: M16
• Aperture type: Fixed
• Aperture: F1.0
• Depth of field: 4 mm: 3.8 m to ∞
• DORI (Detection, Observation, Recognition, Identification): 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
• Type of illuminator: White light, IR
• Range of illuminator: Up to 40 m
• Smart lighting: Yes
• IR wavelength: 850 nm
• Main video stream: 50 Hz: 25 fps. /s (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps. /s (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Second stream: 50 Hz: 25 fps. /s (1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 30 fps. /s (1280 × 720, 640 × 480, 640 × 360)
• Third stream: 50 Hz: 10 fps. /s (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• 60 Hz: 10 fps. /s (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Supported in specific settings
• Video compression: Main stream: H.265/H.264/H.264+/H.265+
• Second stream: H.265/H.264/MJPEG
• Third stream: H.265/H.264
• Video throughput: 32 Kbps – 16 Mbps
• H.264 profiles supported: Baseline Profile, Main Profile, High Profile
• Headed profiles H.265: Main Profiles
• Flow control: CBR, VBR
• SVC coding: H.264 and H.265
• Region of interest (ROI): 1 fixed area for the main stream
• Sound: Sound type: Mono
• Bitrate: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 16-64 Kbps (AAC-LC), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3)
• Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Sampling rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Ambient Noise Filtering: Yes
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSocket
• Live view: Up to 6 channels
• API: ONVIF (Profile S, G, T), ISAPI, SDK, ISUP
• Users/Hosts: Up to 32 users
• 3 levels: administrator, operator, user
• Security: Password protection, complicated passwords, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP filter, HTTP/HTTPS authentication, RTP/RTSP over HTTPS, security audit, TLS 1.1/1.2/1.3, MACre authentication
• Network storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Customer applications: iVMS-4200, Hik-Connect, Hik-Central
• Web browsers: Without plugins: Chrome 80+, Firefox 80+, Edge 89+
• Local Services: Chrome 80+, Firefox 80+, Edge 89+
• Switching image parameters: Yes
• Image settings: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable in the application or browser)
• Day/Night Mode: Day, Night, Auto, Schedule
• Image improvement: BLC, HLC, 3D DNR, Distortion correction, Defog
• Signal/Noise Ratio (SNR): ≥ 52 dB
• Wide Dynamic Range (WDR): 130 dB
• Image stabilization: EIS
• Privacy mask: 4 programmable polygonal masks
• Network interface: 1 x RJ45 10M/100M Ethernet
• Data storage: Built-in memory card slot, support microSD/microSDHC/microSDXC up to 512 GB
• Sound: Built-in microphone:
• -2U: dual directional microphone
• Reset button: Yes
• Events: Basic events:
• - Motion detection (support for alarms for specific types of objects: people and vehicles)
• - Tamper alarm
• - Exception detection
• Emergency connections: Sending to FTP/NAS/memory card, notifying the surveillance center, starting recording, taking a photo, sending an email
• Advanced Events: Scene Change Detection
• AI-based features: Face recognition: Yes
• Perimeter protection:
• - Crossing the line
• - Intrusion
• - Entrance to the zone
• - Exit the zone
• - Support alarms for specific types of objects (people and vehicles)
• Power supply: 12 VDC ± 25%, 0.45 A, max. 5.4 W, coaxial plug Ø5.5 mm, reverse polarity protection
• PoE: IEEE 802.3af, Class 3, max. 7 W
• Material: Front cover: metal
• Body: metal
• Handle: metal
• Dimensions: Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
• Package dimensions: 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
• Weight: Approx. 530 g (1.2 lb.)
• Weight with packaging: Approx. 810 g (1.8 lb.)
• Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
• Starting and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤ 95% (non-condensing)
• General features: Heartbeat, mirror, instant log, password reset by email, pixel counter, anti-banding
• Supported languages (33): English, Russian,Estonian, Bulgarian, Hungarian, Greek, German, Italian,Czech, Slovak, French, Polish,Dutch, Portuguese, Spanish, Romanian, Danish,Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian,Turkish, Korean, Chinese (traditional), Thai, Vietnamese,Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Certificates: EMC:
• - CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• - RCM: AS/NZS CISPR 32:2015
• IC: ICES-003: Issue 7
• - KC: KN32: 2015, KN35: 2015
• Safety: UL: UL 62368-1
• CB: IEC 62368-1: 2014+A11
• CE-LVD: EN 62368-1: 2014/A11: 2017
• Environmental protection: CE-RoHS: 2011/65/EU
• Resistance: IP67: IEC 60529-2013
• Protection against corrosion: NEMA 4X: NEMA 250-2018
