IP vaizdo kamera Hikvision DS-2CD20166G3-IUY/SL 16MP, 2.8mm

Trumpai apie prekę

Prekė: IP vaizdo kamera Hikvision DS-2CD20166G3-IUY/SL 16MP, 2.8mm. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: DS-2CD20166G3-IUY/SL(2.8mm)(eF)

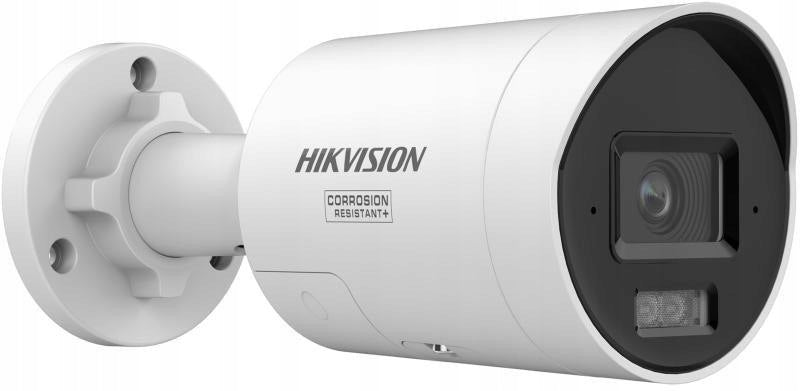

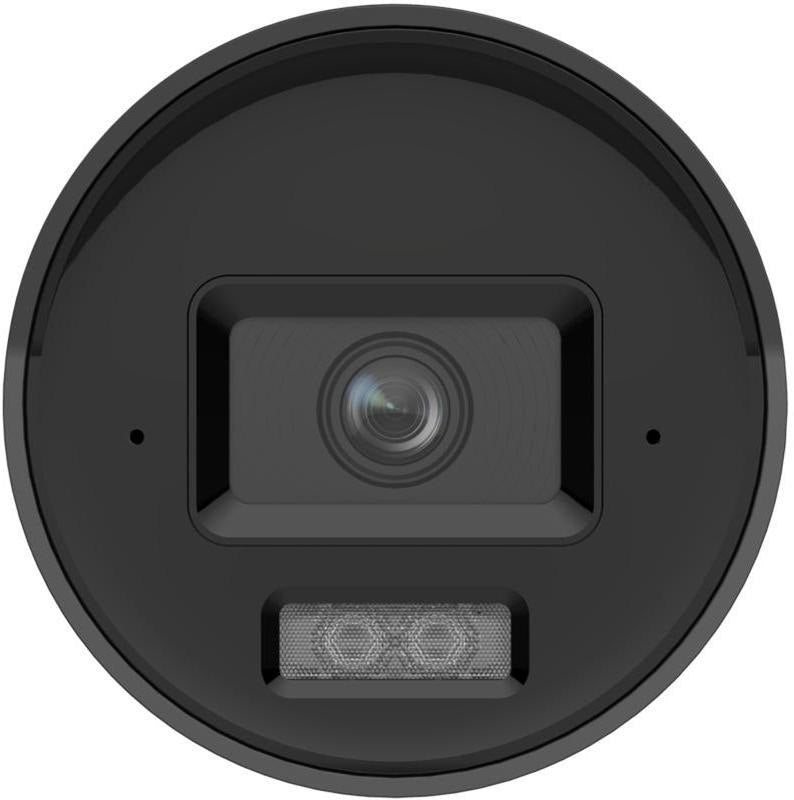

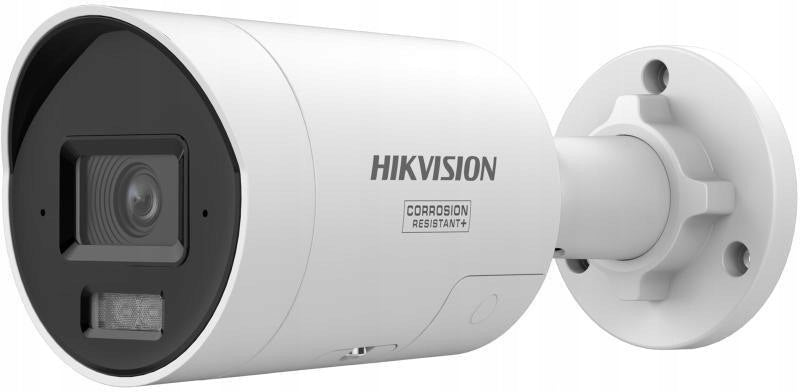

Hikvision 16MP IP camera DS-2CD20166G3-IUY/SL(2.8mm)(eF)

Model: DS-2CD20166G3-IUY/SL(2.8mm)(eF)

Key features

• AcuSense 16MP Fixed Network Bullet Camera with Strobe and Sound Indicator
• UHD: Ultra High Definition for realistic and detailed images
• Active deterrence with strobe light and audio alarm (/SL: white light)
• Excellent low-light performance thanks to technology Powered by DarkFighter
• Classification of people and vehicles based on deep learning algorithms
• Clear image even in strong backlight thanks to true WDR 130 dB technology
• Water and dust resistance according to class IP67
• Corrosion-resistant design for greater reliability and durability compared to standard solutions (NEMA 4X)
• Tamper-proof and environmentally friendly packaging

Technical Specifications Model DS-2CD20166G3-IUY/SL(2.8mm)(eF) Image Sensor 1/1.8" Progressive Scan CMOS Max. Resolution 4608 × 3456 Minimum Illumination Color: 0.0008 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR on Shutter Speed ​​1 s to 1/100,000 s Day / Night IR Cut Filter Position Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° Lens Type Fixed lens, 2.8 mm Focal Length and Field of View - 2.8 mm Horizontal: 94.5°, vertical: 69.9°, diagonal: 123.2° Lens Mount M16 Aperture Type Fixed Aperture F1.6 Depth of Field - 2.8 mm 2.9 m to ∞ DORI - 2.8 mm D: 117 m, O: 46 m, R: 23 m, I: 11 m Illuminator type Infrared (IR) Illuminator range Up to 40 m Smart Supplement Light Yes IR wavelength 850 nm Main stream 50 Hz 12.5 fps (4608 × 3456), 20 fps (4608 × 2592), 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Main stream 60 Hz 15 fps (4608 × 3456), 20 fps (4608 × 2592), 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-stream 50 Hz 25 fps (1280 × 720, 640 × 480, 640 × 360) Sub-stream 60 Hz 30 fps (1280 × 720, 640 × 480, 640 × 360) Third stream 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) Video Compression Main: H.265+/H.265/H.264+/H.264; Substream: H.265/H.264/MJPEG; Third: H.265/H.264 Video Bitrate 32 Kbps to 24 Mbps Type H.264 Baseline Profile, Main Profile, High Profile Type H.265 Main Profile Bitrate Control CBR, VBR SVC H.264 and H.265 Encoding ROI 1 fixed region for main stream Audio Type Mono Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/8-320 Kbps (MP3)/16-64 Kbps (AAC-LC) Audio Sampling Rate 8 kHz / 16 kHz / 32 kHz / 48 kHz Filtering Noise Reduction Yes Network Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP Simultaneous Live View Up to 6 channels API ONVIF (Profiles S, Profile G, Profile T), ISAPI, SDK, ISUP Users Up to 32 users (administrator, operator, user) Security Password protection, HTTPS, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, host authentication (MAC) Network Storage NAS (NFS, SMB/CIFS), ANR Client Software iVMS-4200, Hik-Connect, Hik-Central WDR 130 dB SNR ≥ 52 dB Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog Privacy Masks 4 programmable polygon masks Ethernet Interface 1 × RJ45 10/100 M Memory Card Slot microSD/microSDHC/microSDXC, up to 512 GB Built-in Microphone Yes, single Built-in Speaker Max. 2 W, 110 dB Reset button Yes Basic events Motion detection (human/vehicle), video tampering, exceptions Smart events Scene change detection AI features Face capture, perimeter protection Power supply 12 VDC ±25%, 1.3 A, max. 15.6 W; PoE IEEE 802.3at, Class 4, max. 19 W Housing material Front: metal, body: metal, handle: metal Dimensions Ø74.4 mm × 176.3 mm Weight Approx. 530 g Weight with packaging Approx. 815 g Operating Conditions -30 °C to 60 °C Languages ​​33 languages ​​General Functions Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding Warning Light Model /SL: white light Standards EMC EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014 Safety IEC 62368-1, EN 62368-1 Protection IP67 Corrosion resistance NEMA 4X

• EAN: 6936422188375
• Code: 69509
