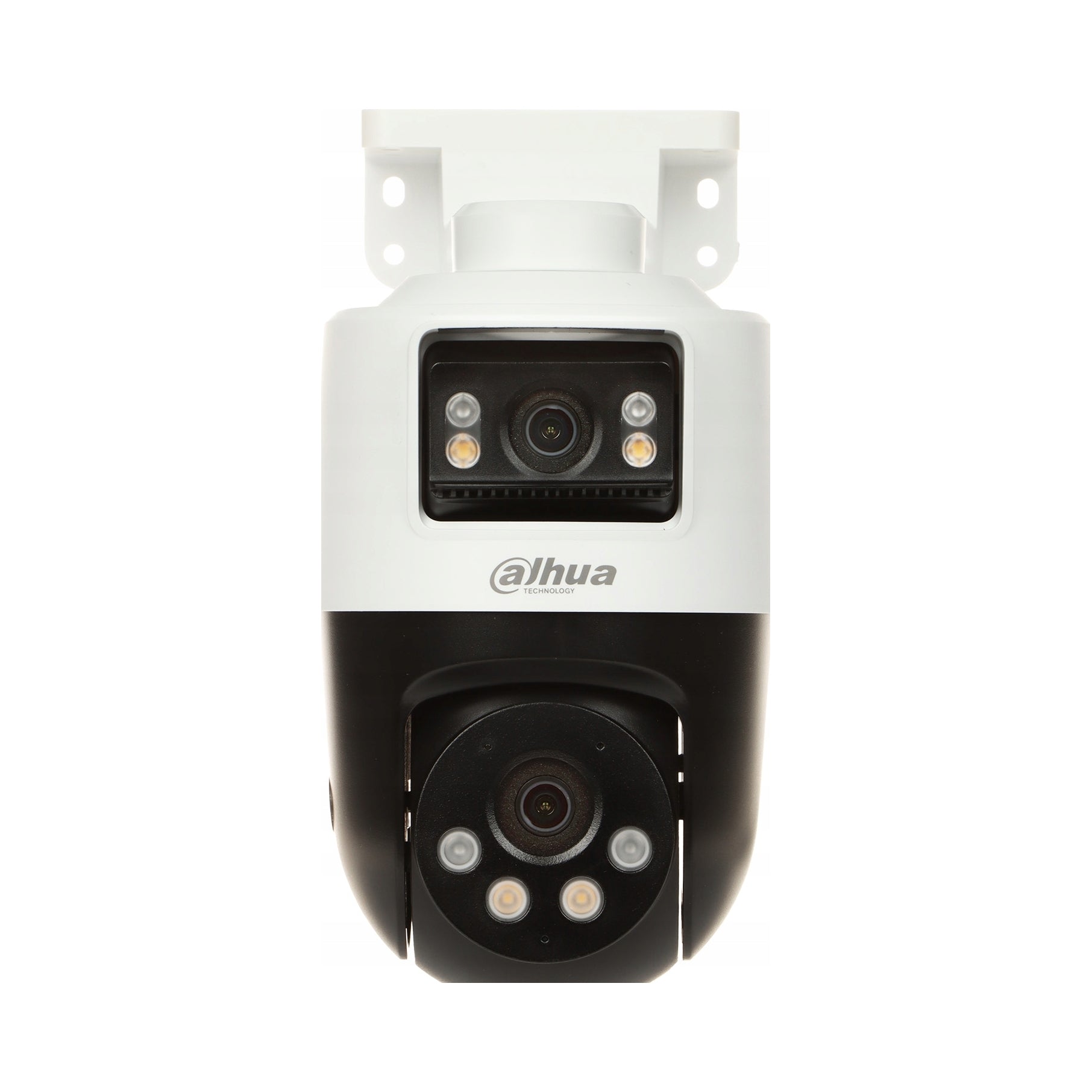

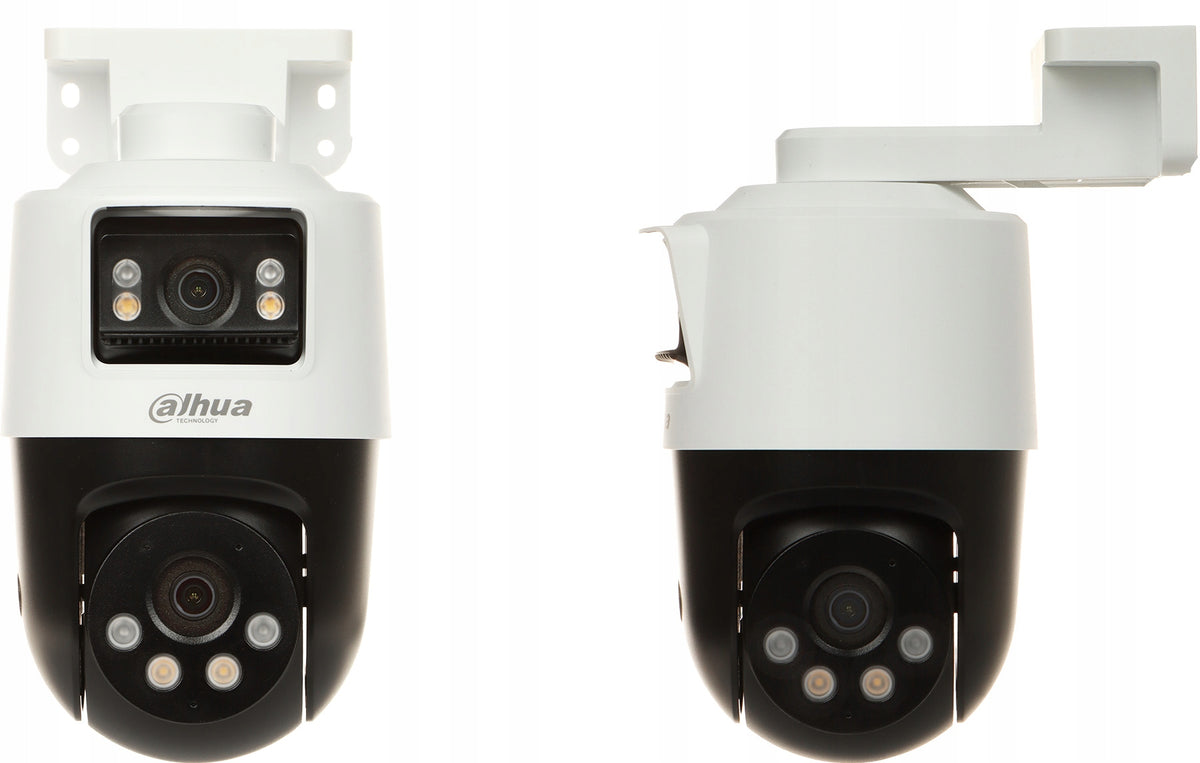

IP vaizdo kamera Dahua SDT2A200-2F-NB-A-PV, skirta vidaus ir lauko naudojimui

Trumpai apie prekę

Prekė: IP vaizdo kamera Dahua SDT2A200-2F-NB-A-PV, skirta vidaus ir lauko naudojimui. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: SDT2A200-2F-NB-A-PV

External IP camera equipped with two independent camera modules, fixed and rotating PT (Pan-Tilt) with fixed focal length lenses. Both camera modules allow you to observe the monitored scene on two channels at the same time. The camera is equipped with Smart Dual Light technology, which allows you to get a clear color image even at night and has an active audio-visual deterrence function in combination with artificial intelligence AI functions. The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient). PoE power capability, according to the 802.3af standard, makes the device even more versatile and easier to install.

• Standard: IP
• Resolution: 1920 x 1080 -1080p, 1280 x 720 -720p
• Transducer: PT Camera, 2 Camera : 1/2.8" Progressive Scan CMOS
• Lens: PT Camera, 2 Camera : 4 mm
• Viewing angle: PT camera, 2 camera : 87.5°
• Optical Zoom: None
• Digital Zoom: None
• IR illuminator range: 30 m @ PT camera, Camera 2
• White light illuminator range (LED): 30 m @ PT camera, Camera 2
• Rotation speed at presets: 36 °/s (horizontal), 25 °/s (vertical)
• Rotation speed (manual control): 0.1 °/s ... 36 °/s (horizontal), 0.1 °/s ... 25 °/s (vertical)
• Horizontal rotation range: PT camera : 0° ... 350°, Camera 2 : 0° ... 290° (manual adjustment)
• Vertical rotation range: PT camera : 0° ... 90°, Camera 2 : -10° ... 15° (manual adjustment)
• RS-485 interface: None
• Number of presets: 50
• Horizontal scanning: None
• Traffic routes set: None
• Image compression method: Smart H.265+ /H.265/ Smart H.264+ /H.264B/ H.264M /H.264H
• Emergency Inputs/Outputs: None
• Audio: Audio Input, Audio Output, Built-in Speaker - Alarm Siren, Sound Detection, Two-Way Audio Support
• Main stream transmission speed: PT camera, Camera 2 : 25kl/s@1080p
• Network interface: 10/100 Base-T(RJ-45)
• Memory card slot: Support Micro SD cards up to 256GB
• WEB Server: Built-in
• Max. Number of users online: 20
• ONVIF: Yes
• Default IP address: 192.168.1.108
• Default administrator login / password: admin / -Administrator password should be set at first startup
• Access ports via PC app: 37777
• Mobile application access port: 37777
• ONVIF port: 80
• RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream
• Intelligent image analysis: Recognition of the type of observed object (human, vehicle) - Deep Learning technology, SMD 3.0 - search for an object classified as: human, motor vehicle
• Housing: Mini Speed Dome, Plastic
• Color: White + Black
• Protection class: IP66
• Mechanical resistance class: None
• Power consumption: ≤ 4 W (typical), 12 W (max)
• Operating temperature: -20 °C ... 50 °C
• Weight: 0.62 kg (with handle)
• Dimensions: 110 x 159 x 210 mm (with handle)
• Supported languages: Polish, English
• Manufacturer / Brand: DAHUA

Selected functions:

• Smart Dual Illumination Technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality
• Active deterrence function - Light and sound alarm - Active deterrence of intruders works on the principle of flashing white light and sound alarm
• D-WDR - Wide range of lighting dynamics
• 2D-DNR, 3D-DNR - Digital noise reduction in the image
• Image rotation and mirroring
• BLC/HLC - compensation of background light / strong light
• ICR - Mechanical Infrared Filter
• Day/night mode
• Automatic white balance
• AGC - Automatic image gain adjustment
• Sharpness - Sharpening the contours of the image
• Customizable: brightness, contrast, saturation
• Motion detection
• Filtering false alarms based on recognition of persons and vehicles
• Surge protection
• Protection against atmospheric discharges: 2 kV

Full name: PT IP CAMERA ROTATING EXTERNAL SDT2A200-2F-NB-A-PV WizSense Smart Dual Light - 1080p 4 mm DAHUA
