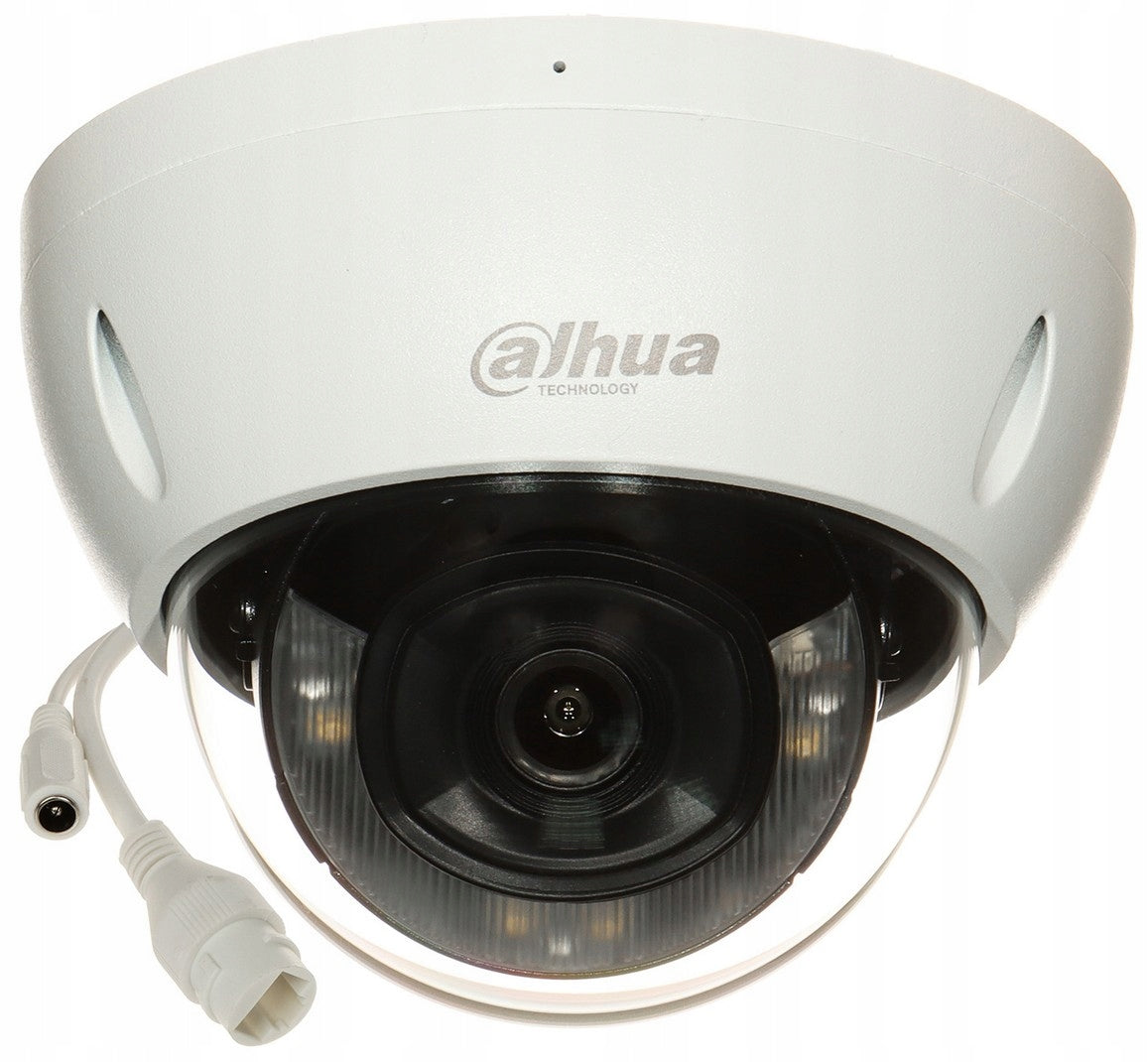

IP vaizdo kamera DAHUA 6Mpx IPC-HDBW2649E-S-IL-0280B, SMD Plus, dviguba apšvietimo sistema

Trumpai apie prekę

Prekė: IP vaizdo kamera DAHUA 6Mpx IPC-HDBW2649E-S-IL-0280B, SMD Plus, dviguba apšvietimo sistema. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: IPC-HDBW2649E-S-IL-0280B

Dahua IPC-HDBW2649E-S-IL-0280B

IP camera with powerful H.264+/H.265+ image compression algorithm for clearer and smoother image transfer at a maximum resolution of 6 MPx.

The device is equipped with Smart Dual Illumination technology, thanks to which the user can choose between white light mode and IR (infrared) mode. When Smart Dual Illumination is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality.

DAHUA IPC-HDBW2649E-S-IL-0280B

The most important features;

• sensor: 1/2,7" 6MP image sensor, low illuminance, HD CMOS
• resolution: 3288x1850 (6Mpx) @ 20kl/s
• Interface: 1x RJ45 Ethernet 10/100Mbps PoE 802.3af
• compression: H.265+/ H.265/ H.264+/ MJPEG
• Sensitivity: 0,007lux/F1,6, 0lux (IR/LED on )
• lens: 2,8mm
• Smart Dual illuminator:

  3 IR LEDs (30m range)

  4 white light LEDs (30m range)

• 4 illuminator modes (IR only, LED only, Smart - IR + LED, schedule)
• AWB, AGC, BLC, HLC, 3D NR, WDR 120dB, RoI
• Smart Dual Light - the use of a double illuminator
• Full-Color - color image technology around the clock
• Built-in microphones
• Support: ONVIF, CGI, RTSP, RTMP, P2P
• AI functions: perimeter protection - IVS , object classification (human / vehicle)
• SMD+ - object classification with false alarm filtering
• Supports microSD/microSDHC/microSDXC cards up to 256GB
• Processing speed and resolution:

  20 fps for 3288x1850 (6Mpx)

  25/30 fps for 2688x1520 (4Mpx)

• bitrate: 32Kbps ~ 8192Kbps (H.264), 12Kbps ~ 8192Kbps (H.265)
• image preview:

  Smart PSS Lite, DSS Express, DSS PRO, DMSS

  web browsers: IE, Firefox, Chrome

  mobile devices with systems: iOS, Android

• housing: metal, tightness class (IP67), vandal-proof (IK10)
• Power supply: 12V DC or PoE 48V (802.3af)

Smart PSS software

Comprehensive management and supervision of the security system and the network of cameras for observation determines the effectiveness of each video surveillance installation. Dahua has created Smart PSS software for the user of personal PCs and MACs to create and personalize their own observation system. Smart PSS can cooperate with up to 256 devices and in addition to displaying live images or playing recordings, it allows for multi-monitor work, support for e-map and e-PTZ, support for video analytics and face detection options or advanced search for individual events. Thanks to the versatility of the program, it is possible to manage both high-resolution analogue CCTV cameras and megapixel IP cameras on an ongoing basis.

DMSS

DMSS is an application designed to view images from cameras and to manage Dahua recorders on smartphones and tablets. The program allows you to remotely operate devices (recorders, IP cameras), image preview, remote PTZ control, audio support, taking photos (snapshot - image dumps) or recording videos.

Expand the memory with a SD card up to 512GB. Such a large capacity is enough for many hours of recording.

This allows us to record the image on the card in the event of a problem with the camera-recorder connection. After fixing the problem, the camera will automatically transfer the recording from the card to the DVR disk.

Camera with PoE technology

Power over Ethernet is a solution designed to carry out quick and uncomplicated installation of network devices and comfortable operation of equipment and easy modernization of installation. Thanks to PoE support in the 802.3af standard, it will be possible to connect an IP camera with only UTP twisted pair. Saving the total amount of wires necessary to start the device improves the monitoring system and allows the camera to be located away from traditional mains power sources.

Specifications
