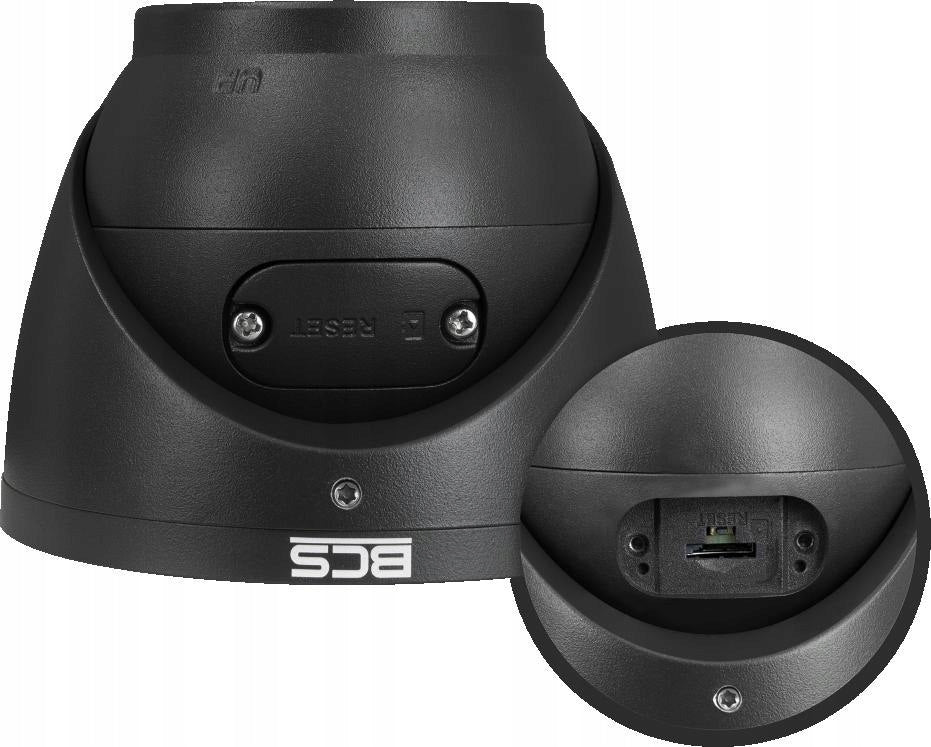

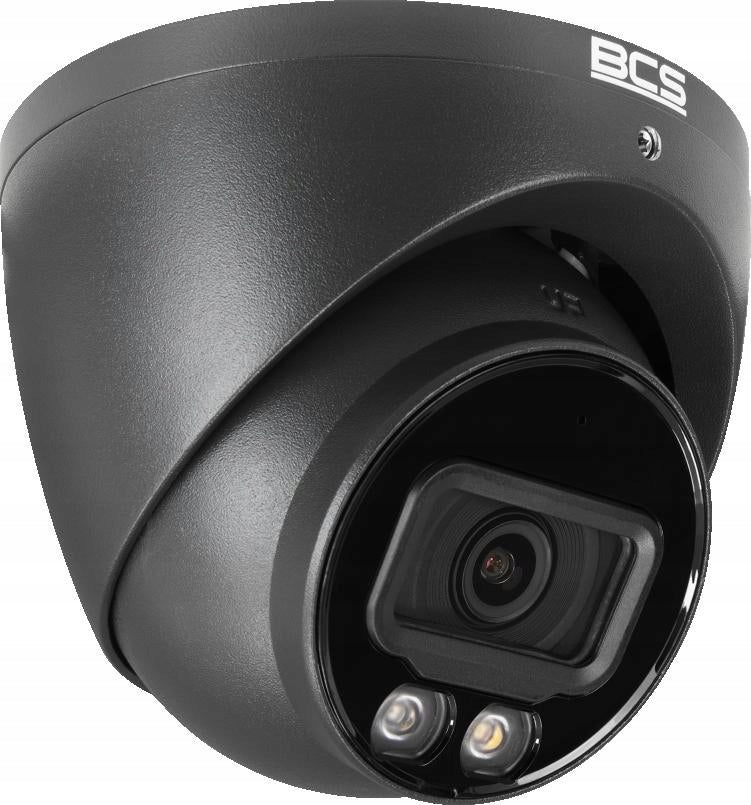

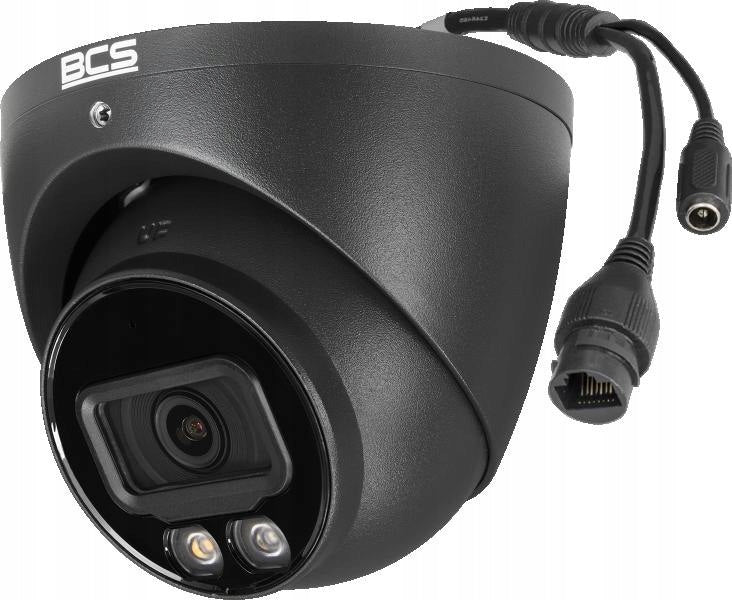

IP vaizdo kamera BCS LINE BCS-L-EIP16FCR3L3-AI1-G 6 Mpx

Trumpai apie prekę

Prekė: IP vaizdo kamera BCS LINE BCS-L-EIP16FCR3L3-AI1-G 6 Mpx. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-EIP16FCR3L3-AI1-G

IP camera BCS LINE BCS-L-EIP16FCR3L3-Ai1-G

The most important features

• 6Mpx Dome IP Camera
• 1/2.7" PS CMOS sensor
• NightColor technology
• Fixed lens 2.8 mm
• WDR120dB
• Microphone
• IR radiator 30m
• Whitelight 30m
• IP67 enclosure
• Built-in smart functions

Mobile application BCS Manager

BCS Manager is a free version of the application for IP CCTV systems for Android and iOS mobile phones. Allows you to view NVR/XVR devices by BCS.

BCS Manager works both on the local Wifi network and on the GSM network. It allows connection to devices displayed on the Internet at a fixed IP address or using the P2P BCS cloud service (P2P BCS cloud requires proper preparation of the device).

Technical specification

• Device Name: BCS-L-EIP16FCR3L3-Ai1-G
• Product line: BCS LINE
• Camera type: Dome
• Resolution: 6 Mpx
• Converter: 1/2.7'' CMOS
• Scanning system: Progressive Scan
• Pixels: 3288(H)×1850(V)
• RAM: 256MB
• ROM: 128MB
• Lens: Fixed
• Focal length: 2.8 mm
• Aperture: F1.6
• Focus: Fixed
• Iris: Permanent
• Digital Zoo: 16×
• Angle of view: H :112° V: 61° D: 132°
• DORI: Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m
• Camera sensitivity: 0.007Lux(Color,F1.6,30IRE) 0.0007Lux(F1.6,B/W,30IRE) 0Lux(IR)
• S/N ratio: 56dB
• White Balance: (AWB) Auto / Manual
• WDR: 120dB
• Background compensation: BLC / HLC / WDR(120dB)
• Snapshot: Auto / manual 1/3~1/100000s
• Gain control: (AGC) Auto / manual
• Noise reduction: 3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 2
• Resolutions: 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Main stream: 3288×1850@(1–20 fps) / 2688×1520@(1–25/30 fps)
• Second stream: 704×576@(1–25 fps) / 704×480@(1–30 fps)
• Bitrate: H.264: 32 Kbps8192 Kbps H.265: 12 Kbps8192 Kbps
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Day/night: ICR mechanical infrared filter
• Type of illuminator: IR LED+ White Light
• Illuminator: 30m
• NightColor: Yes
• Microphone: Yes
• Audio compression: G.711A / G.711Mu / G.726 / PCM
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD 256GB
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4
• Privacy masks: 4
• Network: RJ-45 10/100 Mbps
• Compatibility: ONVIF(S/G/T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration
• Security: Video / Firmware / Configuration encryption, Digest, WSEZ, Account lockout, Security logs, IP/MAC filtering, Generation and importing of X.509 certification, syslog, HTTPS, 802.1x, Trusted boot / execution / upgrade
• Power type: 12VDC / PoE(802.3af)
• Power consumption: max 5.7W
• Housing color: Graphite
• IP protection class: IP67
• Working conditions: -40°C~+55°C max 95% RH
• Dimensions: Ø106×94mm
• Weight: 0.39 kg
• Housing: Metal
• Ai - Built-in intelligent functions: Built-in intelligent image recognition and analysis algorithms
• Ai - Perimeter protection: Invasion of the area, crossing the line
• Ai - Object Recognition: Recognition of a person/mechanical vehicle for intrusion into an area, line crossing reduces false alarm call
• Ai - SMD - intelligent motion detection: SMD Plus
