IP vaizdo kamera BCS BCS-B-SIP154SR5L1

Trumpai apie prekę

Prekė: IP vaizdo kamera BCS BCS-B-SIP154SR5L1. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-B-SIP154SR5L1

5Mpx | 2,8-12mm Motozoom| IR50m and White Light 10m | ONVIF | Motion Detection & Light & Sound Alarm | TrueWDR | microSD Slot

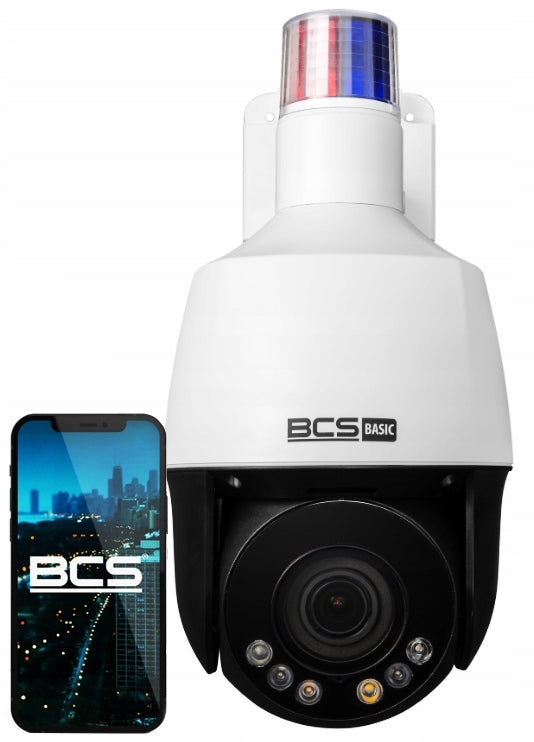

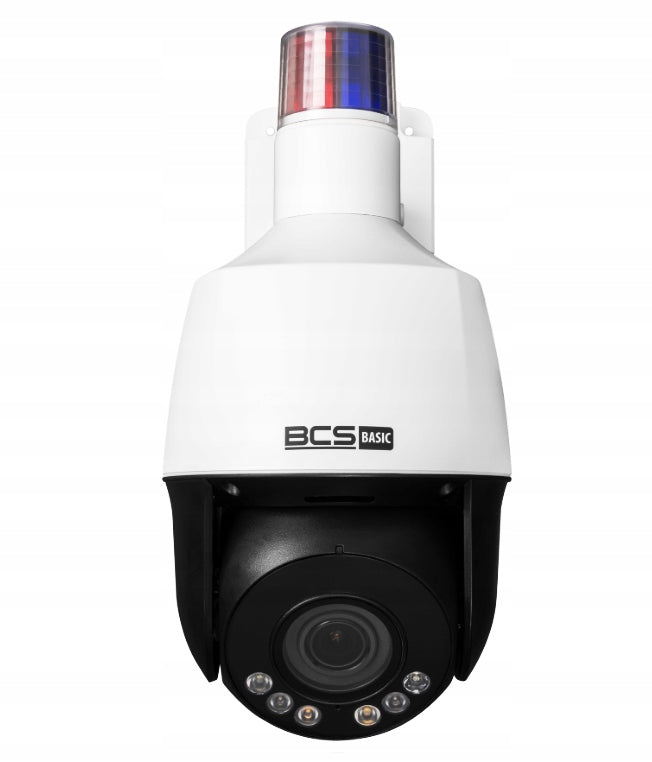

The BCS-B-SIP154SR5L1 rotary camera is a modern rotary model for outdoor and indoor use. A feature that distinguishes the camera is the integrated system of active deterrence of the intruder through a light and sound alarm.

The camera has a powerful 1/2.7'' 5Mpx sensor and an integrated Motozoom lens with an adjustable focal length of 2.8-12mm, allowing you to remotely adjust the recording angle using an application or program on a PC.

A big advantage of the camera are built-in microphone and speaker, allowing you to listen and broadcast voice messages directly through the camera.

• Converter: 1/2.7” 5Mpx PS CMOS
• Resolution: 2880(H)×1620(V)
• Lens: 2.8 -12 mm, 4x optical zoom
• Selected image functions: AWB, BLC, HLC, AGC, 3D DNR
• IR illuminator: Yes, range up to 50m
• White light illuminator: Yes, range up to 10m
• Extended Dynamics Function: Yes, WDR 120dB
• MicroSD card slot: Yes, card up to 256GB
• Built-in microphone: Yes
• Built-in speaker: Yes
• Built-in intelligent functions: motion detection, line crossing, area intrusion
• Active deterrence: light and sound alarm
• Video compression: H.265 / H.265+ / H.264 / H.264+ / MJPEG
• Remote operation: PC program, WEB browser, mobile application BCS
• Power Supply: 12 VDC & PoE
• Dimensions: Ø133×269mm
• Weight: 0.87 kg

BCS Basic monitoring systems can be controlled, configured and operated using an intuitive mobile application for smartphones and tablets and the BCS Manager program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network.

The camera is equipped with automatic night mode - this means that when the ambient lighting drops, the camera goes into black and white mode, supported by an infrared illuminator with a range of 50m.

This function allows you to record images via 24/7 in any lighting conditions.

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, the camera allows you to create dedicated motion detection rules that allow precise detection of events; crossing the line and entering the area.

The camera supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• Device name: BCS-B-SIP154SR5L1
• Resolution: 5Mpx
• Converter: 1/2.7'' Progressive Scan
• Pixels: 2880(H)×1620(V)
• Lens: adjustable 2.8 - 12 mm
• Motozoom: Yes
• Digital Zoo: 16×
• Angle of view: H:104.1°~30.6° V:54.9°~17.4° D:108.3°~34.4°
• DORI: Detect 63~270m / Observe 25~108m / Recognize 13~54m / Identify 6~27m
• Camera sensitivity: 0.003Lux(F1.6,AGC) 0Lux(B/W,IR)
• White Balance: (AWB) Auto / Manual
• WDR: TrueWDR 120dB
• Background compensation: BLC/HLC
• Snapshot: Auto / manual 1~1/100000s
• Gain control: (AGC) Auto / manual
• Noise reduction: 2D/3D DNR
• Image rotation: Mirror, Flip 0°/90°/180°/270°
• Number of streams: 3
• Resolutions: 5M(2880×1620) / 4M(2560×1440) / 3M(2304×1296) / 2M(1920×1080) / 720P(1280×720) / D1(720×576) / 2CIF(704×288) / (640×360) / CIF(352×288)
• Mainstream: 2880×1620 / 2560×1440 / 2304×1296 / 1920×1080 / 1280×720(25 / 30fps)
• Video compression: H.265 / H.265+ / H.264 / H.264+
• Day/night: ICR
• Type of illuminator: IR and white light
• Lighting: 50m for IR, 10m for white
• Microphone: Yes
• Speaker: Yes
• Audio compression: G.711
• Support: Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)
• Motion detection: 4 zones / Perimeter protection
• Privacy masks: 4
• Network: RJ-45 10/100 Mbps , WiFi IEEE802.11b/g/n(2.4GHz
• Compatibility: ONVIF(S/G/T)
• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, SSL
• Slot microSD: Yes, up to 256Gb
• Power type: 12VDC
• Power consumption: max 12W
• Housing color: White
• IP seal class: IP67
• Working conditions: -30°C~+60°C max 95% RH
• Dimensions: Ø133×248mm
• Weight: 0.89kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.9 kg
Parametry	EAN (GTIN)	5904890708952
Parametry	Manufacturer code	BCS-B-SIP154SR5L1
Parametry	Brand	BCS
Parametry	Model	BCS-B-SIP154SR5L1
