IP kupolinė kamera BCS Line BCS-L-EIP25FSR5-AI2, 5 Mpx

Trumpai apie prekę

Prekė: IP kupolinė kamera BCS Line BCS-L-EIP25FSR5-AI2, 5 Mpx. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-EIP25FSR5-Ai2

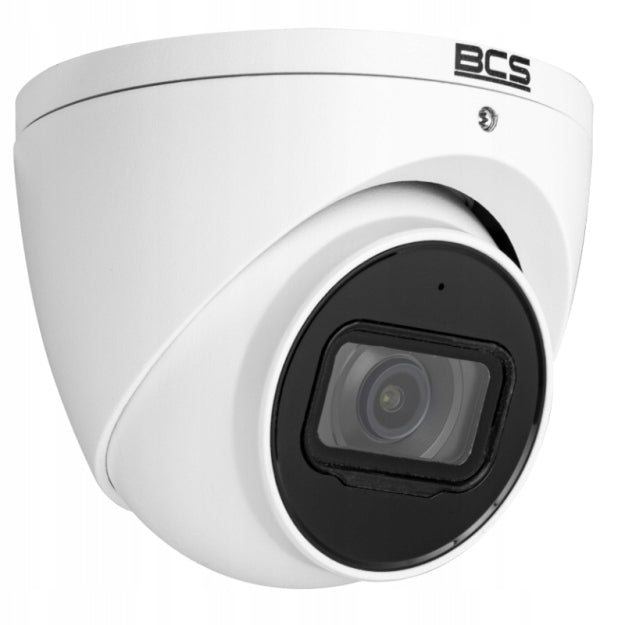

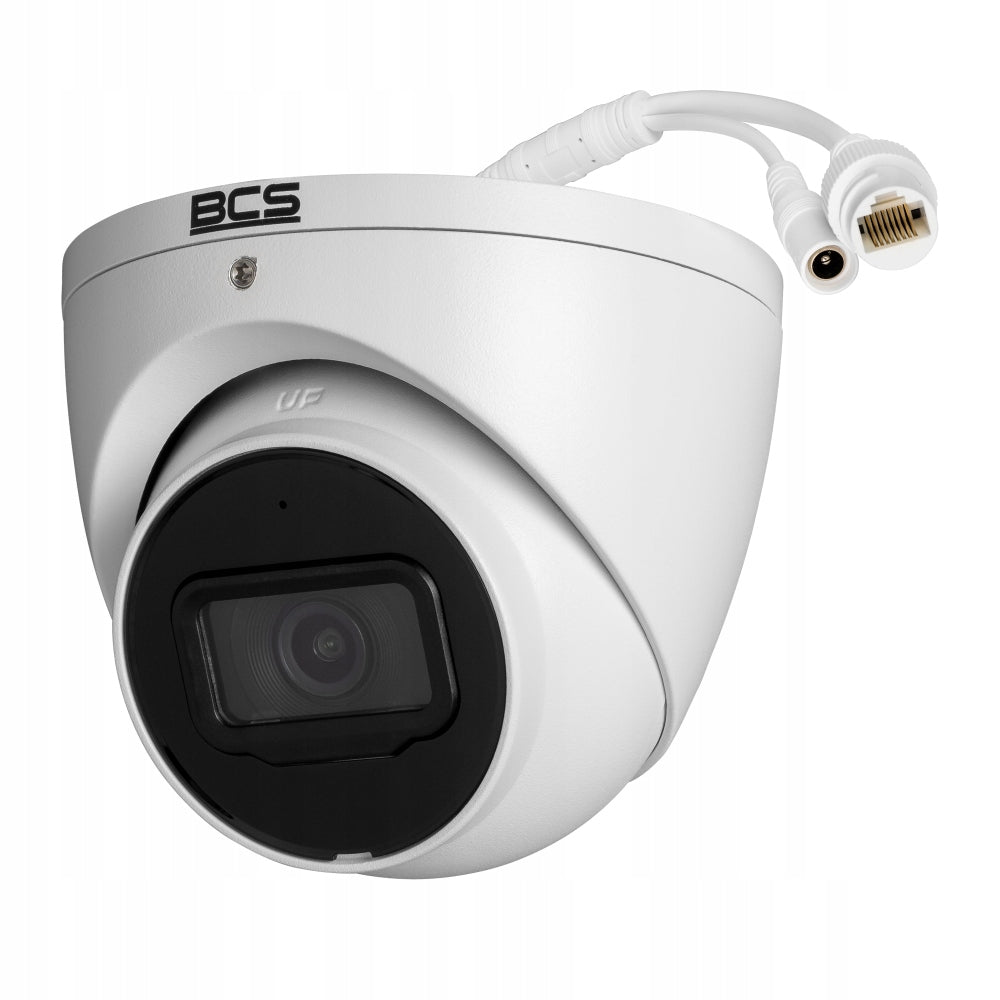

White dome camera 5 megapixel IP model BCS-L-EIP25FSR5-AI2 by BCS Line.

The device has a 1/2.7” 5Mpx CMOS sensor that guarantees good quality images with realistically rendered colors and low noise in low light. It is equipped with a fixed 2.8mm lens.

Thanks to the use of WDR technology, this camera allows you to automatically capture both dark and light areas of the image (improving visibility and increased image readability). The device also uses 3D Noise Reduction technology to reduce noise in negligible lighting. BLC, HLC functions that provide better light balance, and AWB white.

It is equipped with an infrared heater with a range of up to 50 meters, which provides night monitoring.

It has an IP67 rating.

Audio Input/Output: 1/1.

It also has a built-in microphone, allowing you to record audio.

The device has a slot for a MicroSD memory card with a capacity of up to 256GB.

The camera, thanks to its intelligent functions, is suitable for monitoring objects such as: shop, office, own property, etc.

It has functions such as: perimeter protection, object recognition.

Camera support is provided via a built-in Web server, CMS (BCS Manager), BCS mobile application (iOS, android) or P2P.

Color: White.

Characteristics

• Transducer Type: 1/2.7",
• Number of pixels: 5Mpx,
• Resolution: 2960×1688,
• Lens focal length: 2.8mm/F1.5,
• Field of view: H: 97° V: 71° D: 129°,
• IR range: up to 50 meters,
• Functions: AWB, AGC, BLC, HLC, WDR, 3D DNR,
• Intelligent functions: Perimeter protection, object recognition,
• Support two video streams,
• Protection class: IP67,
• Memory card support: MicroSD up to 256GB,
• Colour: White,
• Power supply: DC12V, PoE(802.3af).

Product Details

Device Name

BCS-L-EIP25FSR5-Ai2

Product Line

BCS LINE

Camera Type

Dome

Resolution

5 Mpx

Image Sensor

1/2.7'' CMOS

Scanning System

Progressive Scan

Pixels

2960(H)×1688(V)

RAM

1GB

ROM

4GB

Lens

Fixed

Focal Length

2.8 mm

Aperture

F1.6

Focus

Fixed

Iris

Fixed

Digital Zoom

16×

Field of View

H :111° V: 58° D: 132°

DORI

Detect 64m/ Observe 25m/ Recognize 13m/ Identify 6m

Camera Sensitivity

0.0009Lux(Color,F1.6,30IRE) 0.0005Lux(B/W,F1.6,30IRE) 0Lux(IR)

S/N Ratio

56dB

White Balance

(AWB) Auto / manual

WDR

120dB

Backlight Compensation

BLC / HLC / WDR(120dB)

Shutter

Auto / manual 1/3~1/100000s

Gain Control

(AGC) Auto / manual

Noise Reduction

3D DNR

Defog

Electronic

Image Rotation

Mirror, Flip 0°/90°(corridor mode)/180°/270°

Number of Streams

4

Resolutions

5M(2960×1668)(2880×1620) /4M(2688×1520)(2560×1440) /3M(2048×1536)(2304×1296) /2M(1920×1080) /1.3M(1280×960) /720P(1280×720) /D1(704×576/704×480) /VGA(640×480) /CIF(352×288/352×240)

Main Stream

2960×1668(1~25/30fps)

Second Stream

704×576/704×480(1~25/30fps)

Third Stream

1920×1080(1~25/30fps)

Fourth Stream

1280×720(1~25/30fps)

Bitrate

H264: 32Kbps~16384Kbps H265: 12Kbps~11776Kbps

Video Compression

H.265+ / H.265 / H.264+ / H.264 / MJPEG / Ai Coding

Day/Night

ICR mechanical infrared filter

Illuminator Type

IR LED

IR Range

50m

Microphone

Yes

Audio Input

1

Audio Output

1

Audio Compression

G.711A / G.711Mu / G.723 / G.726 / PCM

Alarm Input

1

Alarm Output

1

Memory Card Slot

microSD 512GB

Support

Web Service, CMS BCS Manager (Windows/Linux/MAC), Mobile App(iOS, android)

Motion Detection

4

Privacy Masks

8

Network

RJ-45 10/100 Mbps

Compatibility

ONVIF(S/G/T)

Protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P

Security

HTTPS, SSL, RTSP/TLS, A/V Encryption, IEEE802.1X, Login Auth, CA cert, Firewall, IP/MAC filter, Account Lockout, Anti-DoS Attack, SYN/ICMP Flood Attack Defense, Security Warning, Trusted boot/execute, Secure Shell, Conf files encryption, Session Security

Power Supply Type

12V DC / 24V AC / PoE(802.3af) / ePoE

Power Consumption

max 8.3W

Housing Color

White

IP Protection Class

IP67

Operating Conditions

-40°C~+60°C max 95% RH

Dimensions

Ø106×94mm

Weight

0.5 kg

AI - Built-in Smart Functions

Built-in intelligent image recognition and analysis algorithms

AI - Perimeter Protection

Intrusion detection, line crossing, rapid movement, loitering, crowd detection, parking detection

AI - Object Recognition

Person/vehicle recognition for intrusion, line crossing, and rapid movement reduces false alarms.

AI - Smart Object Detection

Intelligent detection of lost/abandoned objects

AI - Face Detection

Face detection and tracking, face snapshot, recognition of face attributes and expressions

AI - People Counting

People counting for line crossing/intrusion, counting entries, exits, and occupancy, monitoring and managing queues, generating and exporting reports over time.

AI - Metadata

Person attributes (gender, clothing, color, bag, headwear, umbrella), face attributes (gender, age, expression, glasses, mask, beard), vehicle attributes (type, color, logo, seatbelt, smoking, phone)

AI - Heat Map

Records object movement over time, with statistics on movement density presented graphically in color gradients (red/blue)

AI - SMD - Smart Motion Detection

SMD 3.0
