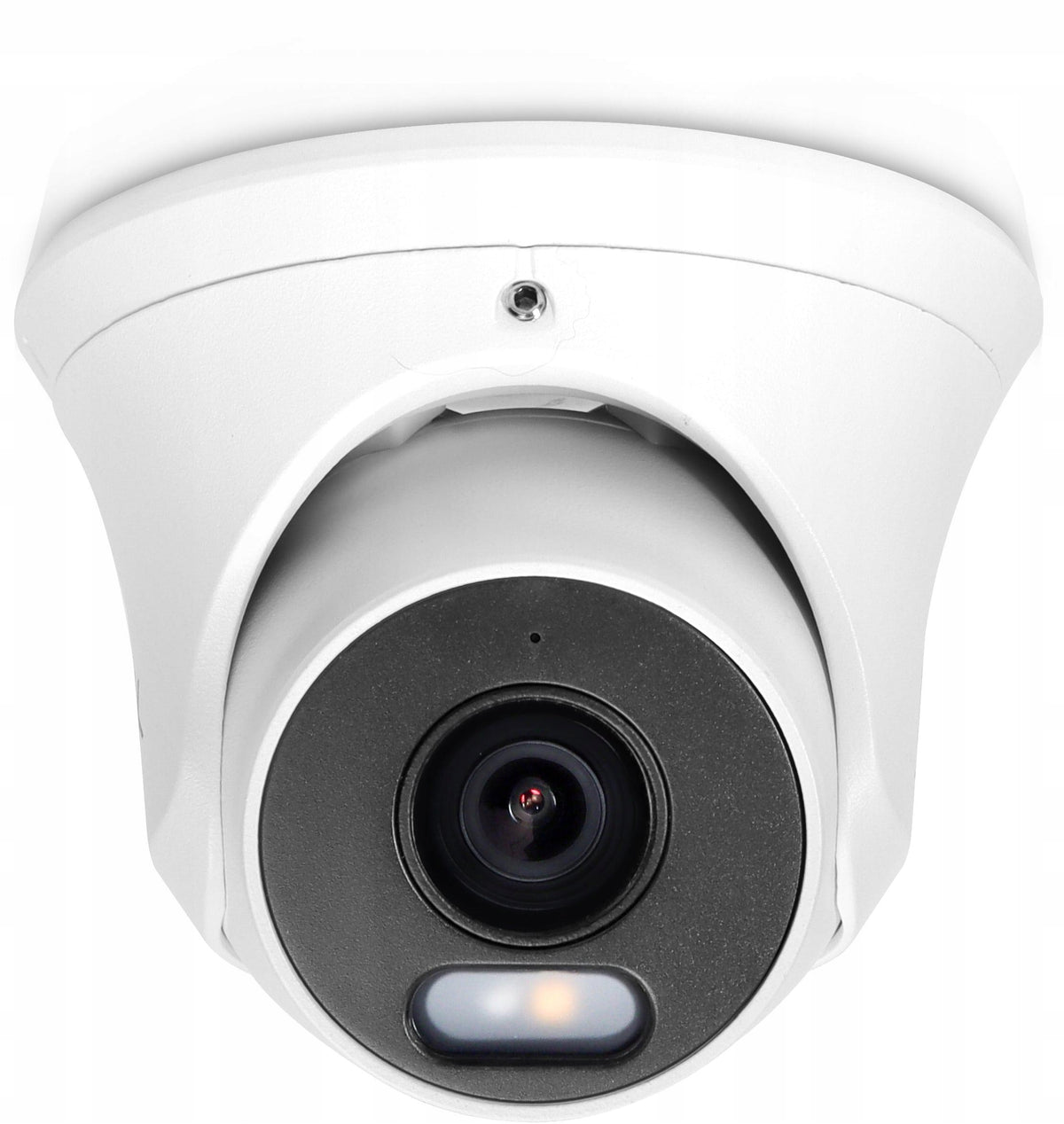

IP kamera KENIK KG-4430DAS-IL, 4 Mpx

Trumpai apie prekę

Prekė: IP kamera KENIK KG-4430DAS-IL, 4 Mpx. Kategorija: IP kameros.

• Gamintojas: KENIK
• Modelis: KG-4430DAS-IL4 (2.8mm)

IP CAMERA KENIK KG-4430DAS-IL (2.8mm)

The most important features

• 4MPX resolution (2688x1520) at 25fps
• H.265+/H.264+ compression
• WDR (120dB), day/night (ICR), 3DNR, AWB, AGC, BLC
• Lens 2,8mm (F1.6)
• Built-in microphone
• Dual Light (IR + Warm Light)
• MicroSD card reader up to 256GB
• Intelligent IVS image analysis (human/vehicle detection, line crossing, intruder detection, area entry, area exit, fast movement)
• Function Defog,ROI
• RTMP (Live Streaming)
• 3 streams
• Reset button
• Corridor mode
• Dual power supply 12V DC/PoE (802.3af)
• Enclosure with IP67 protection class
• Supports ONVIF 2.6 standard
• Mobile preview on smartphone (Android, iPhone)
• Free in Polish for registration on your computer

Destination

The camera is designed for outdoor applications. The housing allows you to mount the camera both on the ceiling and on the wall. The camera will be used in monitoring: parking lot, playground, hall, square, state institutions, schools, etc.

Description

The Kenik IP camera is ideal for surveillance systems that require the highest image quality. The 4MPX transducer and advanced H.265+ compression ensure that many details are recognized both day and night. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, hardware WDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. In addition, the Kenik camera uses Power over Ethernet (POE) power supply, so we do not have to lay two wires, because we only need a twisted pair to connect the cameras with other devices in the network.

Intelligent IR+LED illuminator

The white light reflector and IR reflector are advanced elements of modern Smart Illumination technology used in Kenik cameras. When motion is detected, the white light reflector activates, allowing the camera to record images in full color, which makes it much easier to identify details. When the monitored area is abandoned by the object, the IR reflector takes over the lighting function, and the camera automatically goes into black and white mode, which allows for energy saving while maintaining high-quality recordings at night.

Intelligent Image Analysis (IVS)

A big advantage of the camera is the support for intelligent video analysis. Event detection was used in the case of: human/vehicle detection, line crossing, intruder detection, entry into the area, exit from the area, fast movement. This increases the effectiveness of the monitoring system and the safety of the controlled facility.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

WDR

The WDR function allows you to get an image with even brightness in each part of the frame. It is necessary in places with very large differences in lighting levels in different areas. Cameras with WDR will be particularly used in entrances to buildings, glazed walls, etc.

SD card reader

The camera allows you to record video on a memory card based on a set schedule or motion detection. The reader supports cards up to 256GB. This allows the camera to operate autonomously without the use of a recorder or create an emergency backup.

Motion detection

Motion detection is one of the functions of the camera that is responsible for recording the image. Detection is carried out on the principle of capturing changes in the image, and the recording of the selected channel is enabled. This function has a number of additional possibilities, including defining the detection field, adjusting the appropriate sensitivity of changes that are responsible for recording.

Specifications:

• KG-4430DAS-IL
• Camera
• Sensor: 1/2.7" Progressive Scan CMOS
• Sensitivity: 0.006 lux (color), 0 lux (IR on)
• Shutter Speed: Auto/Manual, 1/3s - 1/10000s
• Slow Shutter: Supported
• Lens: 2.8mm (F1.6), Horizontal Field of View: 110°, Vertical Field of View: 60°
• Lens Mount: M12
• Day/Night: Automatic IR Cut Filter
• Wide Dynamic Range: WDR
• Noise Reduction: 2D/3D DNR
• LED Range: 30M
• IR Illuminator Range: 30M
• Starlight: Yes
• LEDs: 2x White Lights
• Smart IR: Yes
• Compression
• Video Compression: H.264/H.264+/H.265/H.265+
• Codec Profile: H.264 Baseline/Main/High
• Codec Profile: H.265 Main
• Video Bitrate: 11 Kbps - 8 Mbps
• Audio Compression: G.711A, G.711U, AAC
• Audio Bitrate: 64 Kbps
• Image
• Max. Resolution: 4 MP (2688 × 1520)
• Frame Rate: Main Stream (50Hz: 25fps 4MP, 25fps 3MP, 25fps 1080P; 60Hz: 30fps 4MP, 30fps 3MP, 30fps 1080P)
• Frame Rate: Extra Stream (50Hz: 25fps 720P, 25fps D1, 25fps CIF; 60Hz: 30fps 720P, 30fps D1, 30fps CIF)
• Frame Rate: Second Extra Stream (50Hz: 25fps CIF; 60Hz: 30fps CIF)
• Image Settings: Brightness/Contrast/Saturation/Hue/Sharpness
• BLC: Yes
• HLC: Yes
• ROI: Yes
• Defog: Yes
• Network
• Events: Motion Detection (SMD + P.P. - Human/Vehicle), Image Masking
• Smart Image Analysis: Line Crossing Detection, Area Intrusion, Region Entry, Region Exit (Human & Vehicle), Fast Movement
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM, P2P, Bonjour, IPv6
• Supported Standards: Onvif 2.6, Profile S, CGI
• Security: User Authentication, IP Address Filtering, Video Masking
• Mobile View: iPhone, iPad, Android
• Interfaces
• Communication Interface: 1x RJ45 10M/100M Ethernet Port
• MicroSD Card Reader: Yes, up to 256GB
• White Light: Yes
• Microphone: Yes, built-in
• Reset Button: Yes
• General
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), Humidity 95% or less (non-condensing)
• Power Supply Voltage: DC12V ± 10%
• Power Supply: PoE (802.3af)
• Power Consumption: Max. 6W
• Housing: Metal
• IP Rating: IP67
• Dimensions: Φ103.5 x 82.4 mm
• Weight: 450 g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.6 kg
Parametry	EAN (GTIN)	5908231256737
Parametry	Manufacturer code	43942
Parametry	Brand	KENIK
Parametry	Model	KG-4430DAS-IL4 (2.8mm)
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
