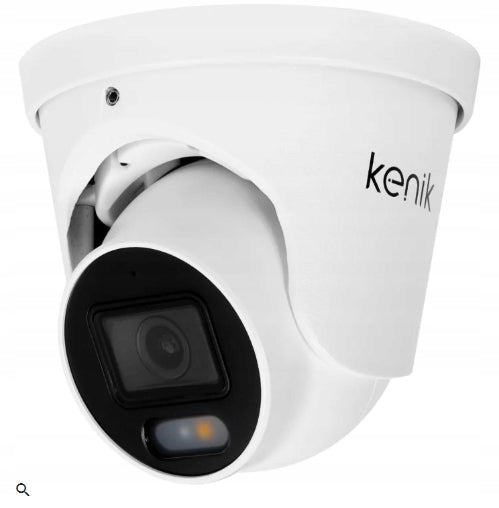

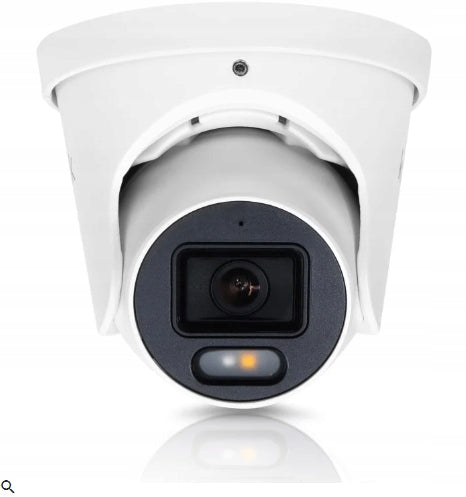

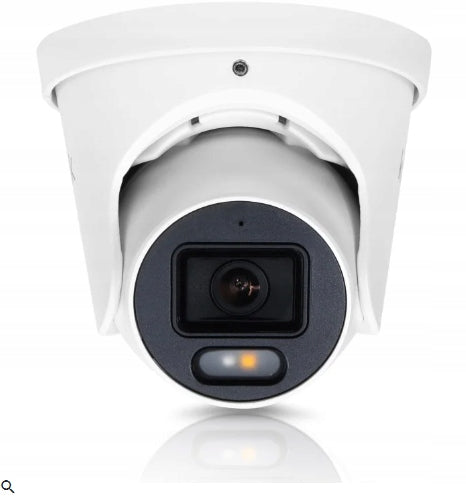

IP kamera KENIK KG-230DPA-DL

Trumpai apie prekę

Prekė: IP kamera KENIK KG-230DPA-DL. Kategorija: Fotoaparatai.

• Gamintojas: KENIK
• Modelis: KG-230DPA-DL

CAMERA IP KENIK KG-230DPA-DL

Key features:

• 2MPX resolution (1920x1080) at 25fps
• H.265+/H.264+ compression
• DWDR, 3DNR, AWB, AGC, BLC
• 2.8mm lens
• SMART IR headlamp up to 30m
• Smart Dual Light (IR + LED)
• built-in microphone
• intelligent IVS image analysis (human/vehicle detection)
• function Defog, ROI
• 2 streams
• 12V DC power supply, PoE (802.3af)
• housing with IP67 protection class
• supports ONVIF 2.6 standard
• mobile preview on smartphone (Android, iPhone)
• free software in Polish for registration on a computer

Description

The Kenik IP camera is ideal for surveillance systems that require good image quality at a low price. The 2MPX transducer and H.265 compression ensure that many details are recognized both day and night. The modern Smart IR infrared reflector with SMD LEDs ensures that the area is fully illuminated in the prevailing total darkness of the environment. What’s more, the user can use intelligent image analysis to increase the security of the protected object. Many other functionalities i.e. DEFOG, ROI, DWDR ensures that the image is as clear as possible, without distortion and allows you to identify people or objects. In addition, the camera can work in the cloud, and the connection is extremely simple. The user from anywhere in the world using his smartphone can check what is happening in the monitored facility. The lens used with a focal length of 2.8mm, which allows you to get a wide viewing angle of the camera.

Onvif

Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. Currently, the entire organization brings together about 450 companies and institutions from around the world.

Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.

Working in the cloud Kenik

Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. The service is free.

Kenik Mobile preview

Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.

VMS Pro software

VMS Pro is software that allows you to preview the image and manage the recorder on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.

Technical data

• Brand: KENIK
• Index: 46740
• Type of sensor: CMOS
• Transducer size: 1/2.9''
• Model: KG-230DPA-DL
• Visibility at night: 30.00 m
• Camera type: External/Internal
• Resolution: 1920x1080
• Focal lens: 2.8mm
• Built-in lens: Yes
• Mechanical infrared filter: Yes
• Built-in infrared reflector: Yes
• Multi-streaming (number of streams): 2.00 pcs.
• White Balance: Yes
• Privacy Zones: Yes
• Motion detection: Yes
• WiFi support: No
• Onvif: Yes
• Support for memory cards: No
• Video output: No
• Max. Number of users: 32
• Interface language WEB: Polish
• Network interface: RJ45(10/100Mbps)
• Protection class: IP67
• Immunity class: Not applicable
• Power consumption: 6.00 W
• Item dimensions: ￠102 x82.4 mm
• Working temperature: -30°C ~ +60°C
• Transducer sensitivity: 0.01lux (colour), 0lux (IR on. )
• Supported network protocols: TCP/IP,ICMP,HTTP,HTTPS,,,DHCP,DNS,DDNS,RTP,RTSP, RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour,IPV6
• Audio: Yes
• Built-in microphone: Yes
• Housing type: Dome
• Image quality: 2 Mpx / Full HD
• IVS (Intelligent Image Analysis): Yes
• Transducer model2: b.d.
• Angle of view: 108°
• Power supply included: NO
• Series: Lite
• Camera resolution: 2MPX (FULLHD)
• Lens: Fixed
• Vandal resistance: No
• Housing material: Metal
• Main stream transmission speed: 25 fps @ 1080P
• Built-in white light reflector: No
• S/N ratio: b.d.
• Emergency inputs/outputs: none
• Weight: 1 kg

Specifications
