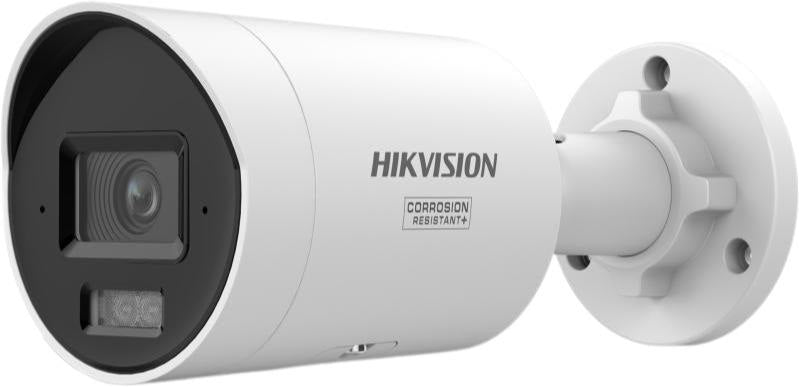

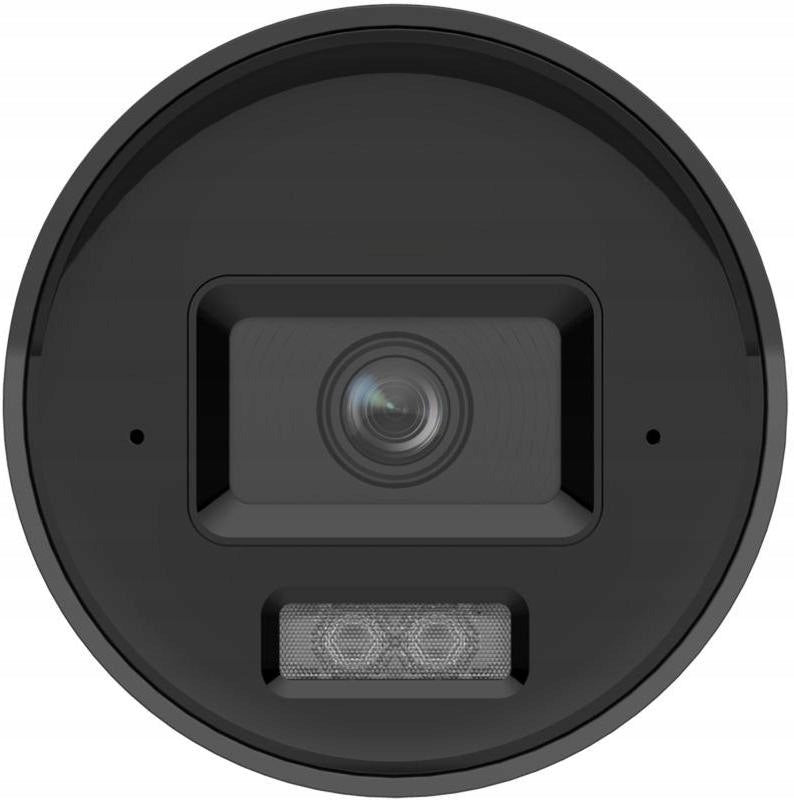

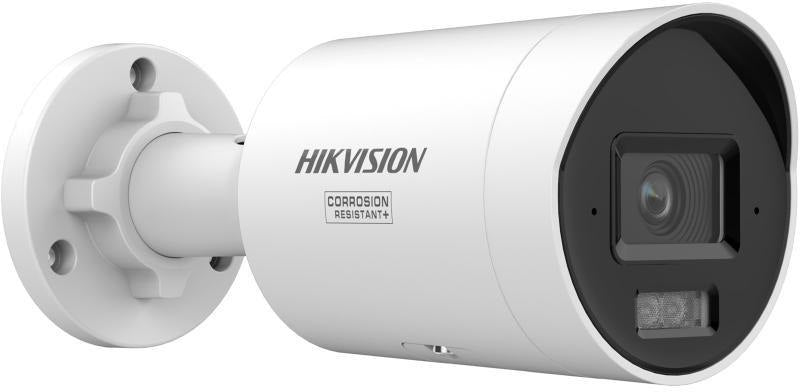

IP kamera Hikvision DS-2CD2047G3-LI2UY/SL, 4MP, ColorVu, AcuSense, su garsu

Trumpai apie prekę

Prekė: IP kamera Hikvision DS-2CD2047G3-LI2UY/SL, 4MP, ColorVu, AcuSense, su garsu. Kategorija: IP kameros.

• Gamintojas: Hikvision
• Modelis: 55984

⭐4 Megapixel IP⭐ Camera

✔ High resolution 4 Mpix (2688×1520) and recording angle 111°

✔ Infrared LED and LED used in the camera allow visibility in total darkness up to 40 meters

✔ LiveGuard Effective deterrence of intruders with sound signal and flashing white light

✔ ColorVu means high sensitivity to light, so you get a great image even in complete darkness

✔ Anti-corrosion design, ensuring reliability and durability compared to standard (NEMA4X)

✔ Built-in speaker and 2 microphones

✔ A range of intelligent functions, which improve image quality and motion detection

✔ Camera with the highest IP67 rating, making it weather resistant

✔ Slot for Micro SD card enabling image recording on a card with a capacity of max. 512 GB

✔ Phone app allows you to view and play back the image

⭐Quality improvement technologies

In addition, the DS-2CD2047G3-LI2UY/SL camera has a number of functions to improve image quality such as:

• ColorVu- High sensitivity to light allows you to get a better picture at night
• 3D DNR- Digital Noise Cancellation
• WDR 130dB- Algorithmic image analysis and improvement
• AGC- Automatic gain adjustment
• BLC- Reverse light compensation
• HLC- Headlamp light compensation

The above-mentioned functions guarantee a great adjustment of the camera settings to the current lighting conditions.

⭐IP camera with memory card slot

The camera also has a slot for microSD cards up to 512 GB, so the camera does not require an additional recorder to record the image.

When the memory limit is exceeded, the camera automatically overwrites the oldest recordings. The capacity of 256 GB is enough for approx. 7 days of continuous recording at 25 fps.

IP cameras with a memory card slot allow autonomous operation as a single-channel recorder, which means that it is possible to create a complete monitoring system based on only one device.

⭐Remote viewing on mobile devices and computers.

Hikvision offers access to its products to free client software. The software is used to preview the image and manage the configuration of cameras.

For users of smartphone there is a Hik-Connect mobile application, and computer owners can use a web browser or the program iVMS-4200

Additionally, it has a function:

• Sharing your device with other users
• playback of video recordings
• Real-time image capture
• remote control of security systems
• handling of e-map
• display of alarm messages
• advanced event search

Technical data:

Camera

• Model: DS-2CD2047G3-LI2UY/SL
• Image sensor: 1/1.8" CMOS software scanning
• Max. resolution: 2688 × 1520
• Minimum lighting: Colour: 0,0001 Lux @ (F1.0, AGC ON), 0 Lux with lighting
• Shutter speed: 1 s to 1/100 000 s
• Day and night: IR cut-off filter
• Camera position setting: Rotation: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°

Lens

• Focal length and field of view:

  2,8 mm: level 111,1°, vertical 57,6°, diagonal 138,5°

  4 mm: level 95,2°, vertical 48,3°, diagonal 117,4°

• Lens type: Fixed focal length, 2.8 or 4 mm optional
• Mount: M16
• Shutter Type: Fixed
• Aperture: F1.0
• Depth of field:

  2,8 mm: 2,5 m to ∞

  4 mm: 3,1 m to ∞

• DORI:

  2,8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

  4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Type: White and IR light
• Range: Up to 40 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm

Video

• Main stream:

  50 Hz: 25 fps. /s (2688×1520, 1920×1080, 1280×720)

  60 Hz: 30 fps. /s (2688×1520, 1920×1080, 1280×720)

• Substream:

  50 Hz: 25 fps. /s (1280×720, 640×480, 640×360)

  60 Hz: 30 fps. /s (1280×720, 640×480, 640×360)

• Third stream*:

  50 Hz: 10 fps. /s (1920×1080, 1280×720, 640×480, 640×360)

  60 Hz: 10 fps. /s (1920×1080, 1280×720, 640×480, 640×360)

  *Supported in some settings

• Compression: H.265/H.264/H.265+/H.264+, MJPEG for substream
• Video bitrate: 32 Kbps – 8 Mbps
• Bitrate control: CBR/VBR
• ROI: 1 fixed area for the main stream

Audio

• Type: Mono
• Built-in Microphone: Dual Matrix Microphone
• Built-in speaker: Max. 2 W, 10 cm: 110 dB
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Bitrate: 16 to 320 Kbps
• Environmental Noise Filtering: Yes

Network and protocols

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP,
• Simultaneous preview: Up to 6 channels
• API: ONVIF (S/G/T Profile), ISAPI, SDK, ISUP
• Users: Up to 32, 3 roles: administrator, operator, user
• Security: HTTPS, 802.1X, watermark, IP filtering, TLS 1.1–1.3, host authentication

Memory and client

• Memory: microSD/microSDHC/microSDXC up to 512 GB, NAS (NFS, SMB/CIFS), ANR
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Browser: Chrome 80+, Firefox 80+, Edge 89+

Video image and functions

• Image Parameter Switching: Yes
• Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance
• Day/night switch: Automatic, day, night, schedule
• WDR: 130 dB
• SNR: ≥ 52 dB
• Image quality improvement: BLC, HLC, 3D DNR, distortion correction, fog reduction
• Image Stabilization: EIS
• Privacy mask: 4 programmable polygonal zones

Interfaces

• Ethernet: 1 RJ-45 10/100M, self-adaptive
• Reset: Yes

Intelligent events and functions

• Motion Detection: Human/Vehicle, Image Tamper
• Smart Event: Detection of sudden scene change
• Deep Learning: Facial Recognition, Perimeter Security
• Event binding: FTP/NAS/memory card, email, audible and light warnings

Power supply and housing

• Power supply: 12 VDC ±25%, 1 A (max 12 W), PoE IEEE 802.3at kl. 4 (max 16 W)
• Material: Metal (cover, body, bracket)
• Weight: 530 g, with packaging 815 g
• Dimensions: Ø74,4 × 176,3 mm
• Protection: IP67, NEMA 4X

Working conditions and languages

• Operating and storage temperature: -30 °C to 60 °C, humidity ≤95% (non-condensing)
• Interface languages: 33 languages, including Polish

Certificates and standards

• UL 62368-1, IEC 62368-1, CE-LVD, CE-RoHS, CE-EMC, RCM, IC, KC
