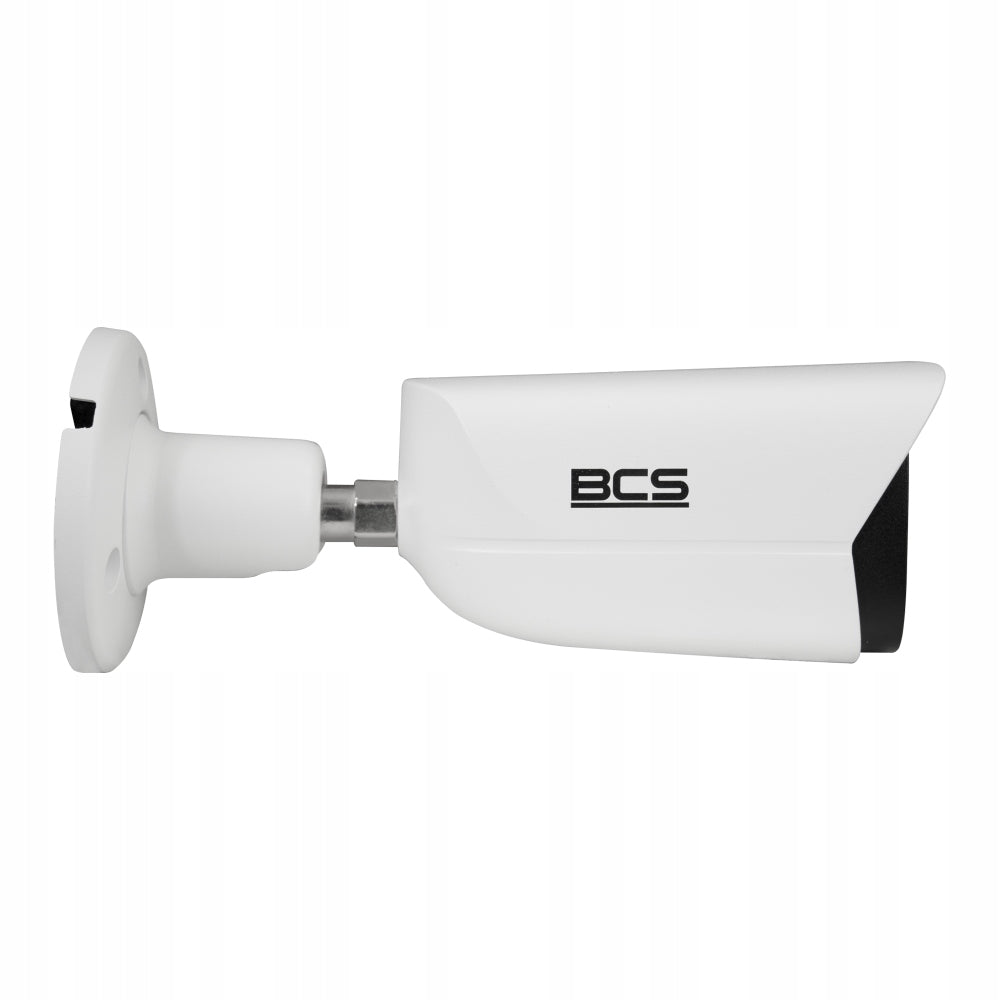

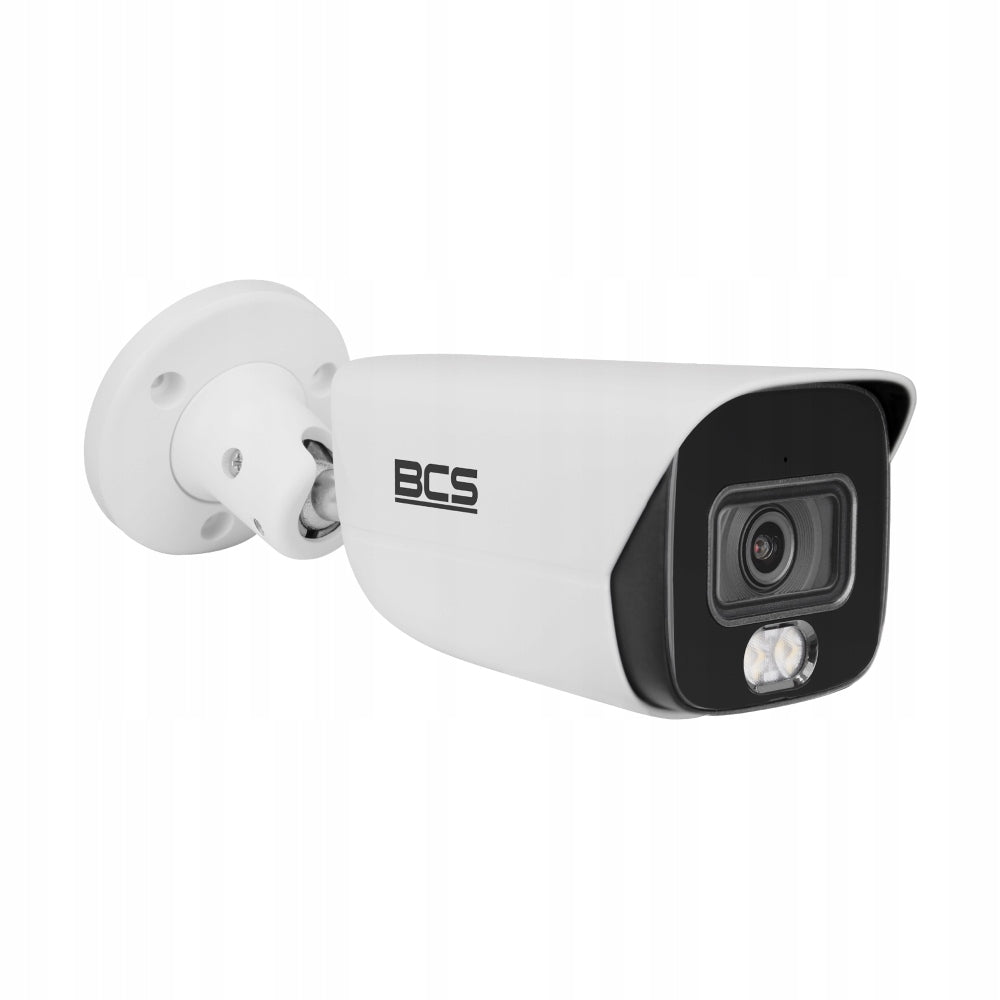

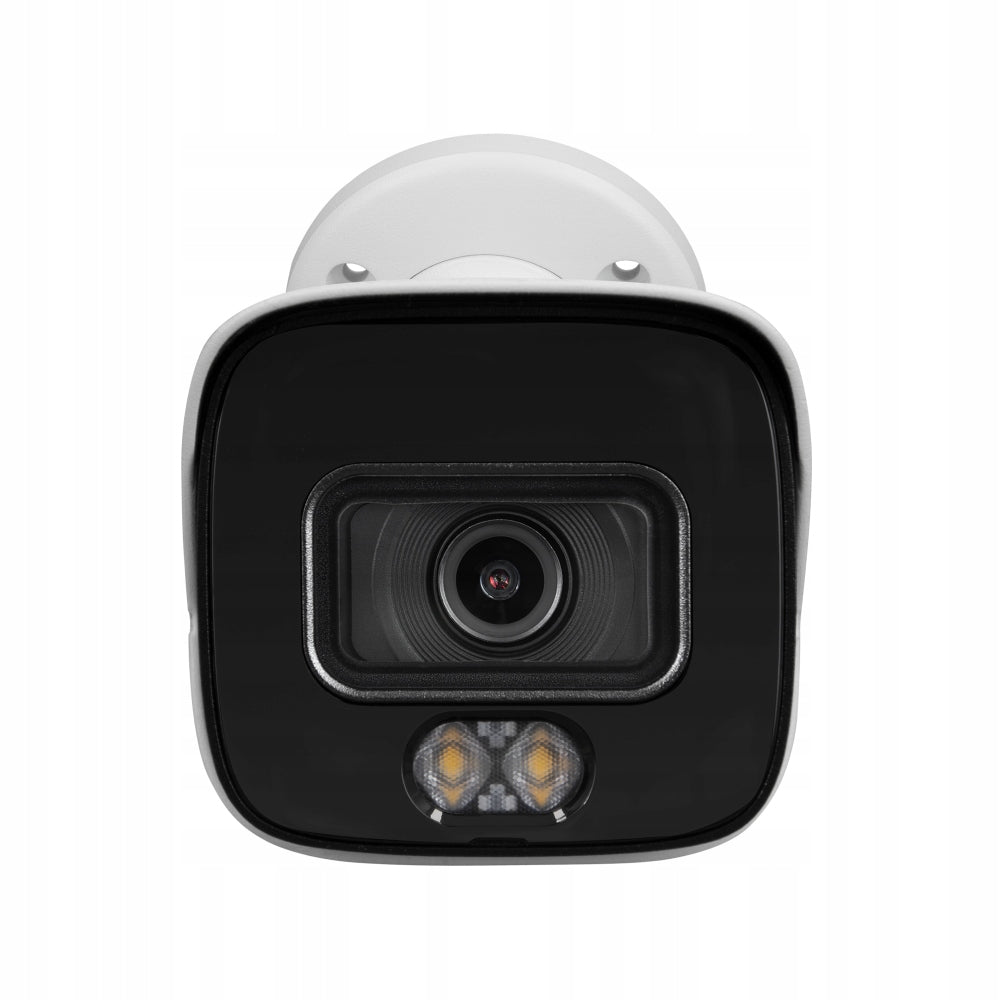

IP kamera BCS-L-TIP26FCR5L5-Ai1, 6 MP, IR pašvietimas 50 m, SD kortelės lizdas, judesio aptikimas

Trumpai apie prekę

Prekė: IP kamera BCS-L-TIP26FCR5L5-Ai1, 6 MP, IR pašvietimas 50 m, SD kortelės lizdas, judesio aptikimas. Kategorija: IP kameros.

• Gamintojas: BCS
• Modelis: BCS-L-TIP26FCR5L5-AI1

✔ High resolution 8 Mpix (3288x1850)

✔ Wide recording angle 110°

✔ The infrared illuminator and LED used in the camera allow visibility in complete darkness up to 30 meters

✔ Built-in microphone will allow you to record ambient sounds of the camera

✔ Embedded intelligent functions AI SMD 4.0

✔ A range of intelligent functions, which improve image quality and motion detection

✔ Slot for Micro SD card enabling image recording on a card with a capacity of max. 512 GB

✔ H265+ compression which will save up to 80% of hard disk space

✔ Camera with the highest IP67 rating, making it weather resistant

✔ Phone app allows you to view and play back the image

✔ PoE power supply allows for convenient connection of the camera with Ethernet cable

Technologies for quality improvement

In addition, the BCS-L-TIP26FCR5L5-Ai1 camera has a number of functions to improve image quality such as:

• SMD 4.0 - Built-in AI functions, perimeter protection, object recognition
• ICR- Automatic day/night mode
• 3D DNR- Digital Noise Cancellation
• DWDR- Algorithmic image analysis and enhancement
• AWB- Automatic white balance
• AGC- Automatic gain adjustment
• BLC- Reverse light compensation
• HLC- Headlamp light compensation

The above-mentioned functions guarantee great adjustment of camera settings to the current lighting conditions.

⭐IP camera with memory card slot

The camera has a slot for microSD cards up to 512GB, so the camera does not require a recorder to record the image.

The camera automatically overwrites the oldest recordings, resulting in autonomous operation and low installation costs

⭐Mobile application BCS

The BCS Basic Manager application is a program designed to preview the image from cameras via mobile devices. The program allows remote operation of devices, image preview up to 4 channels at the same time, remote PTZ control (cameras with high-speed heads), audio support, taking photos (snapshot - image dumps).

In addition, the application allows you to add lists of devices and favorite channels, has the ability to remotely play recordings and the function of notifications about alarm events "PushAlarm" and eMAP

AKOM official distributor of the BCS brand

BCS is a polish brand created in 2008, which is currently one of the most recognizable brand in the CCTV industry. We know what a high-quality product should be, while maintaining a competitive price and providing technical support at the highest level. We choose the best solutions from the market, we suggest improvements, thus making BCS a unique product.

Technical data:

• Model: BCS-L-TIP26FCR5L5-Ai1
• Product line: BCS LINE
• Type: IP Tube Camera
• Resolution: 6 Mpx (3288 × 1850)
• 1/2.7" CMOS Progressive Scan
• RAM: 1 GB
• ROM: 256 MB
• Lens: fixed 2.8 mm
• Lens Brightness: F1.4
• Focus: fixed
• Iris: permanent
• Digital Zoom: 16×
• Viewing angle: H 110° / V 58° / D 132°
• DORI: Detection 85 m / Observation 34 m / Recognition 17 m / Identification 8 m
• Sensitivity: 0.007 lx (colour) / 0.0007 lx (B/W) / 0 lx with IR
• Signal-to-noise ratio: 56 dB
• White Balance: Auto/Manual
• WDR: 120 dB
• Image Compensation: BLC / HLC / WDR / SSA
• Shutter: 1/3 s – 1/100000 s
• AGC: Auto / Manual
• Noise Reduction: 3D DNR
• LDC: lens distortion correction
• RoI: Region of Interest
• Defog: electronic
• Image Rotation: Mirror, Flip, 0° / 90° / 180° / 270°
• Number of Streams: 3
• Main stream: 3288 × 1850 to 25/30 fps. /s
• Additional flux: 1920 × 1080 to 25/30 fps. /s
• Third stream: 1920 × 1080 to 25/30 fps. /s
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG, AI Coding
• Bitrate: 3 kbps – 16384 kbps
• Day/night mode: mechanical ICR filter
• Illuminator: IR LED + White Light
• IR range: up to 50 m
• White Light range: up to 50 m
• Night Color: yes
• Microphone: built-in
• Audio Input: 1
• Audio Output: 1
• Audio Compression: G.711A, G.711Mu, G.723, G.726, PCM
• Emergency Input: 1
• Emergency Output: 1
• Storage: FTP, SFTP, NAS
• Memory card slot: microSD up to 512 GB
• Motion Detection: 4 zones
• Privacy Masks: 8
• Network interface: RJ-45 10/100 Mbps
• Compatibility: ONVIF S/G/T
• Support: Web, BCS Manager (Windows/Linux/macOS), iOS/Android mobile app
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P
• Security: video encryption, firmware and configuration, Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1X, Trusted Boot/Execution/Upgrade, Session Security, Security Warning
• Power supply: 12 V DC or PoE 802.3af
• Power Redundancy: Dual Power Backup
• Power consumption: max. 10 IN
• Protection class: IP67
• Operating temperature: -40°C to +60°C
• Operating humidity: up to 95% RH
• Housing Color: White
• Dimensions: 192.7 × 70.5 × 66.4 mm
• Weight: 0.61 kg
• AI: Intelligent image analysis and recognition
• Perimeter AI protection: line crossing, area intrusion
• Classification of AI objects: human/vehicle
• Intelligent Motion Detection: SMD 4.0
• Smart search: AcuPick (search for people and vehicles in recordings in cooperation with the AcuPick recorder)
• Large Scale Models AI: Increased detection range and reduced false positives
• Reduction of false positives: filtering people and vehicles with AI analysis
