IP kamera APTI-AI401CA3-36W, 4 Mpx, 3.6 mm

Trumpai apie prekę

Prekė: IP kamera APTI-AI401CA3-36W, 4 Mpx, 3.6 mm. Kategorija: IP kameros.

• Gamintojas: APTI
• Modelis: APTI-AI401CA3-36W

231,46

APTI-AI401CA3-36W

IP camera with powerful H.264/H.265 image compression algorithm for clearer and smoother image transfer at a maximum resolution of 4 MPx

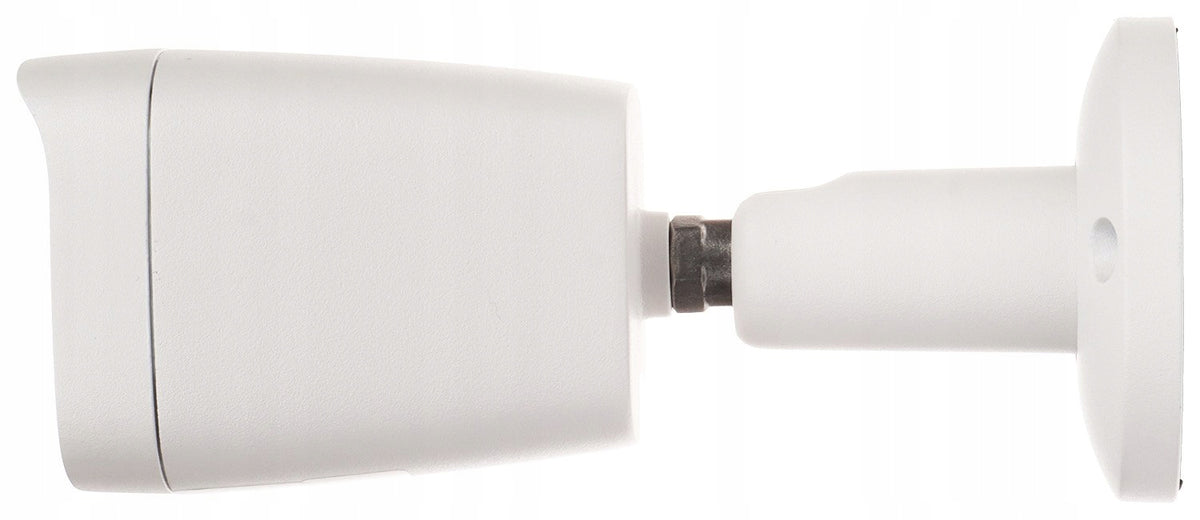

The camera holder is adjustable in all three planes, and the power cables are hidden inside it

The range of the illuminator given by the manufacturer depends on environmental conditions (air transparency, environment, wall color, i.e. scene reflection coefficient)

PoE power capability, according to 802.3af standard makes the device even more versatile and easier to install

Standard:

TCP/IP

Matrix size:

4 Mpx

Transducer:

1/3" Progressive Scan CMOS

Resolution:

2688 x 1512 - 4 Mpx ,

2560 x 1440 - 3.7 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 - 720p

Lens:

3.6 mm

Viewing angle:

81 °

IR illuminator range:

25 m

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Main stream transmission speed:

25 fps @ 4 Mpx

Network interface:

10/100 Base-T (RJ-45)

Memory card slot:

Emergency Inputs/Outputs:

Audio:

• Entry to the external microphone,
• Compliance with the AAC standard

WEB Server:

Built-in

Max. Number of users online:

10

ONVIF:

RS-485 interface:

Access from mobile phone:

• Port: 80 or cloud access (P2P)
• Android: Free BitVision App
• iOS (iPhone): Free BitVision App

Default IP address: 192.168.1.168 Default administrator login / password: admin / 123456 (older versions of FW: admin) The administrator password should be set when first launching Access ports via www: 80 Access ports via PC application: 80 Access port via mobile application: 80 ONVIF port: 80 RTSP URL:

• rtsp://user:password@ip_address:80/0 - Main stream
• rtsp://user:password@ip_address:80/1 - Auxiliary stream

Selected functions:

• Intelligent image analysis : intrusion, motion detection based on human detection, video sabotage detection
• D-WDR - Wide range of lighting dynamics
• 3D-DNR - Digital Noise Reduction in Images
• ROI - improving the quality of selected image fragments
• F-DNR (Defog) - Noise reduction associated with precipitation
• Flicker Control - Technology to eliminate eye-tiring flickering effect
• Mirror - Mirror image reflection
• BLC - reverse light compensation (background)
• HLC - Strong light compensation (point)
• ICR - Mechanical Infrared Filter
• Ability to change resolution, quality and bandwidth
• Day/night mode - customizable
• RESET button - on the cable
• Privacy Zones - max. 3
• Sharpness - Sharpening the contours of the image

Power supply:

• PoE (802.3af),
• 12 V DC / 290 mA

Power Consumption:

? 3.5 IN

Housing:

Compact - Metal

Color:

White

Leak-proof class:

IP67

Operating Temperature:

-20 °C ... 60 °C

Weight:

0.44 kg

Dimensions:

173 x 73 x 73 mm

Supported languages:

Polish, English, Bulgarian Czech, French, Spanish, Dutch, German, Portuguese, Russian, Turkish, Italian

NDAA Certificate:

Manufacturer / Brand:

APTI

2

CE

Quick start instructions PL

Quick start instructions EN

Instruction EN

iVMS320

A program to search for and configure cameras on the network

APTI NDAA

Data act

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.542 kg
Parametry	EAN (GTIN)	5902887088186
Parametry	Manufacturer code	APTI-AI401CA3-36W
Parametry	Brand	APTI
Parametry	Model	APTI-AI401CA3-36W
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
