Trumpai apie prekę
Prekė: Inverterinis suvirinimo aparatas Sherman 5-200 A 230 4,6 kVA. Kategorija: Inverteriniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: MIG 200 SMART
Manufacturer:Sherman ║ Welding methods: MIG/MAG, MMA, TIG Lift ║ Power supply: 230 V ║ Welding current: 200 A ║ Efficiency: 60 %
Weld like a pro for less than PLN 1,000! Discover the Sherman MIG 200 Smart:
- Maximum welding current of 200 A in all welding methods!
- Designed for welding low carbon, low alloy, high alloy stainless and acid resistant steels, aluminum alloys, copper, etc.
- Synergy automatically selects wire feed based on wire diameter and welding current. Especially useful for novice welders.
- Less power consumption, higher efficiency and stable operation even at higher overloads, thanks to modern IGBT transistors
- Possibility to connect the Spool Gun handle
- Possibility to connect the Spool Gun handle
- Solid 2-roll wire feeder with die-cast aluminium
- EURO socket allows you to connect any MIG/MAG welding torch, compliant with this standard
- Gas-free welding with powder/self-shielded wire, thanks to the FLUX method
- Possible correction of welding voltage [V] in MIG/MAG method in the range -2V - +2V
- Simple i intuitive control panel with LED display
- Easy and smooth adjustment of welding parameters
- Compact housing with handy transport handle
Sherman MIG 200 Smart is one of the most popular welding machines up to approx. PLN 1,000.
It combines ease of use with versatility of applications. MIG 200 Smart is designed for welding steel by methods i.e. MMA (wrapped electrode), TIG Lift, and MIG/MAG with synergic selection of parameters. This makes the welding machine ideal for both beginners and more experienced welders.
An additional advantage is the possibility of connecting the Spool Gun holder.
This solution will definitely be useful when welding aluminum and other materials that require precise wire feeding. The built-in synergic system makes it easier for beginners to choose welding parameters by automatically adjusting the wire feed to the selected wire diameter and welding current.
Spool body suitable for two wire spools, smaller D100 0,45 - 1kg and larger D200 2 - 5kg
The DIGIMIG 200 SMART welder is suitable for mounting spools with an external diameter of 100 mm (D100) and 200 mm (D200).
Spools type D100 are often used for aluminum wires due to the higher price, they weigh approx. 0,45-1kg. D200 spools weigh approx. 2-5kg and are most commonly used for welding black steel.
The device is based on modern IGBT technology, which translates into a reduction in the weight of the welding machine.
In addition, IGBT provides higher efficiency while lowering electricity consumption. The entire structure is packaged in a sturdy, compact housing with a handy transport handle for easy carrying of the welding machine.
Metal springs at the end of the euro plug and burner pipe.
They provide smooth wire feed and reduce wire operation at critical points, minimizing the risk of kinks. In addition, the MIG MB15 handle is equipped with a plastic joint that increases the comfort of use and reduces wrist strain, reducing fatigue during work.
Technical specification
POWER SUPPLY PARAMETERS
- Power supply: 230 V
- Number of phases: 1 ph
- Frequency: 50 Hz
- Power protection: 20 A type C
TECHNICAL PARAMETERS
- Maximum welding current: 200 A
- MIG/MAG welding voltage: 16,5 ÷ 22 V
- Idle voltage: 78 V
- Efficiency: 60 %
- Feeder: 2R
- Spool diameters with wire: D100 / D200
- Max. spool size: 5 kg
- Wire diameter: 0,8 - 1,2 mm*
* Programs synergistically support only wire diameter 0,8 - 1,0 mm
PHYSICAL PARAMETERS
- Housing protection: IP23S
- Cooling: Fan
- Weight: 12,5 kg

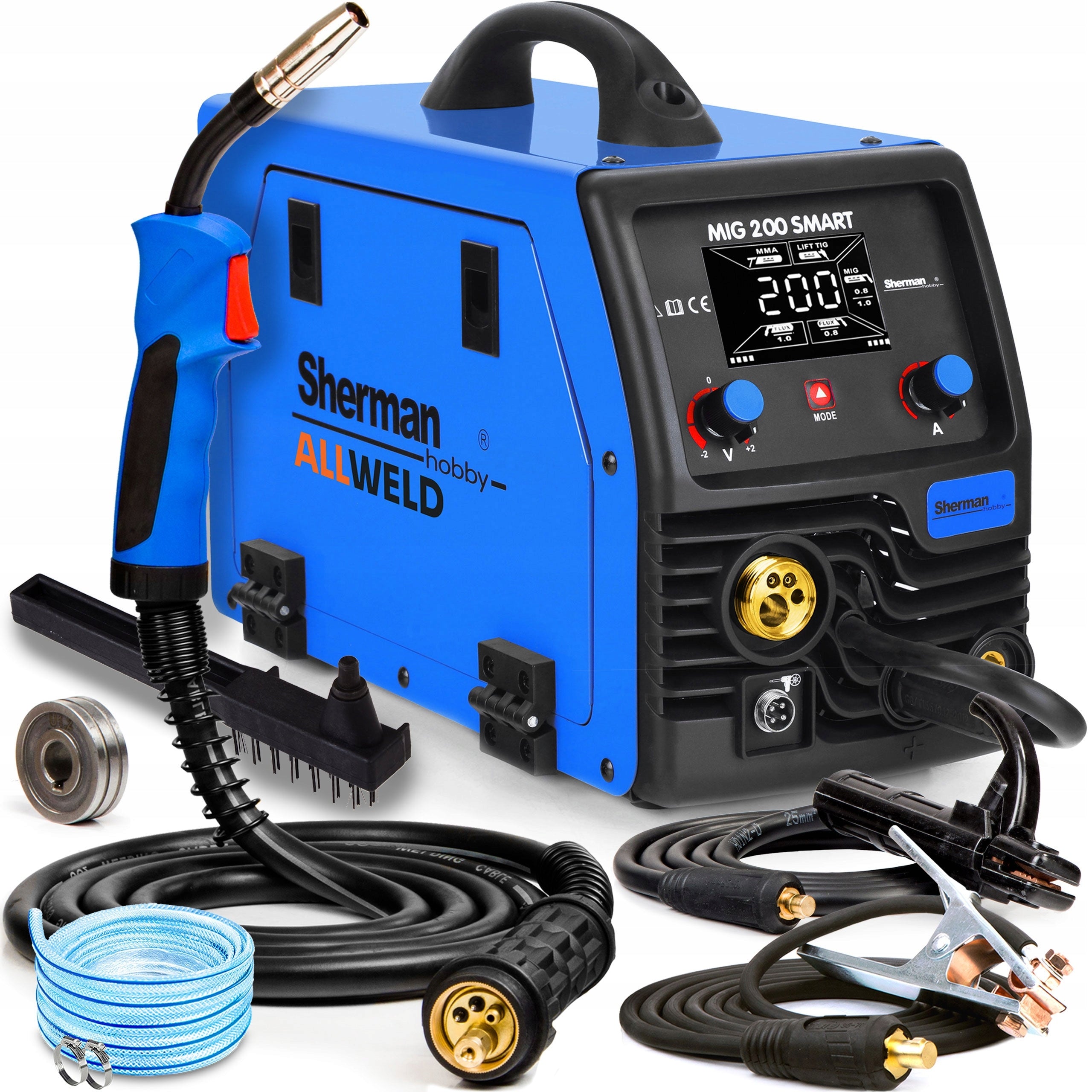

The set includes:
- Welding machine Sherman MIG 200 Smart
- Welding torch MIG/MAG type MB 15 - 3 m
- Electrode holder
- Bulk Holder
- Wire feeder roller for steel 0.8 - 1.0 V (30 x 10 x 10 mm) (mounted in feeder)
- Clamp ties - 2 pcs
- Hose for gas connection
- Brush-hammer
- User manual in Polish
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 4.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 12.6 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | 7812762 MAPL-15 |
| Parametry | EAN (GTIN) | 5907195565220 |
| Parametry | Packaging status | original |
| Parametry | Model | MIG 200 SMART |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
