Hidraulinis pavarų dėžės keltuvas VEVOR, 600 kg, su pedalu

Trumpai apie prekę

Prekė: Hidraulinis pavarų dėžės keltuvas VEVOR, 600 kg, su pedalu. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Vevor
• Modelis: JTSTGS1322LB

Hydraulic lift for gearbox

This lift is ideal for replacing and mounting gearboxes, and its efficient hydraulic system and large support area allow it to handle heavy gearboxes. The high lifting height makes it easy to adjust. Large cast iron rollers provide professionals with smooth movement and stable operation.

High load capacity

High lifting range

Adjustable tray

Hydraulic leg operated

Mobility 360°

Specifications

Article model number: GW-0.6

Type: Leg operated sleeve cylinder

Lifting capacity: 1322 lbs / 600 kg

Transport load capacity: 1100 lbs / 500 kg

Single or double piston: Double piston

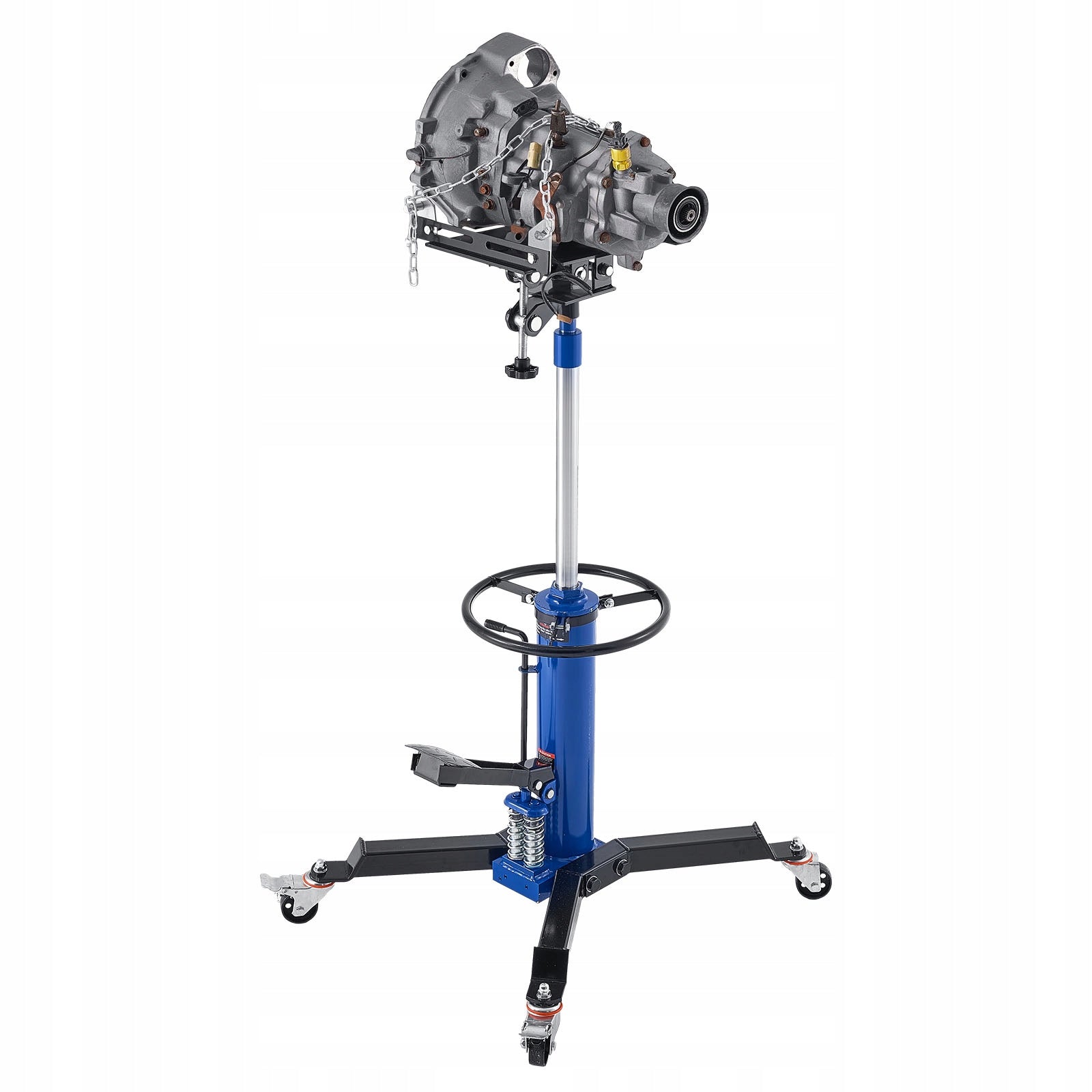

Minimum support height (from surface to floor): 34,6 inch / 880 mm

Maximum support height (from surface to floor): 69,3 inch / 1760 mm

Stroke: 34,6 inch / 880 mm

Main Material: Frame: Q235B steel, Piston rod: 45# steel

Net weight: 100,3 lbs / 45,5 kg

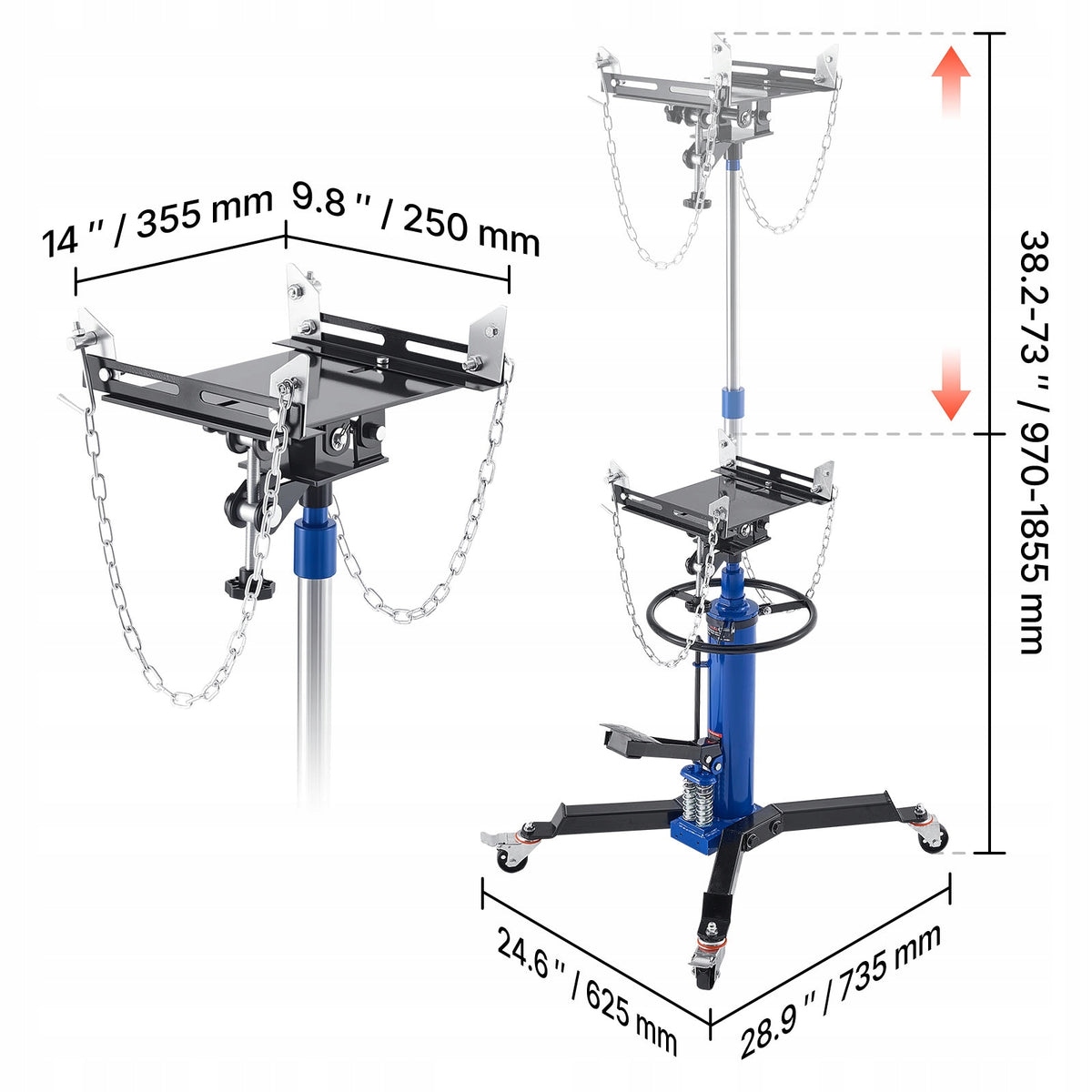

Product Dimensions: 28,9 x 24,6 x 38,2 to 73 inches / 735 x 625 x 970 to 1855 mm

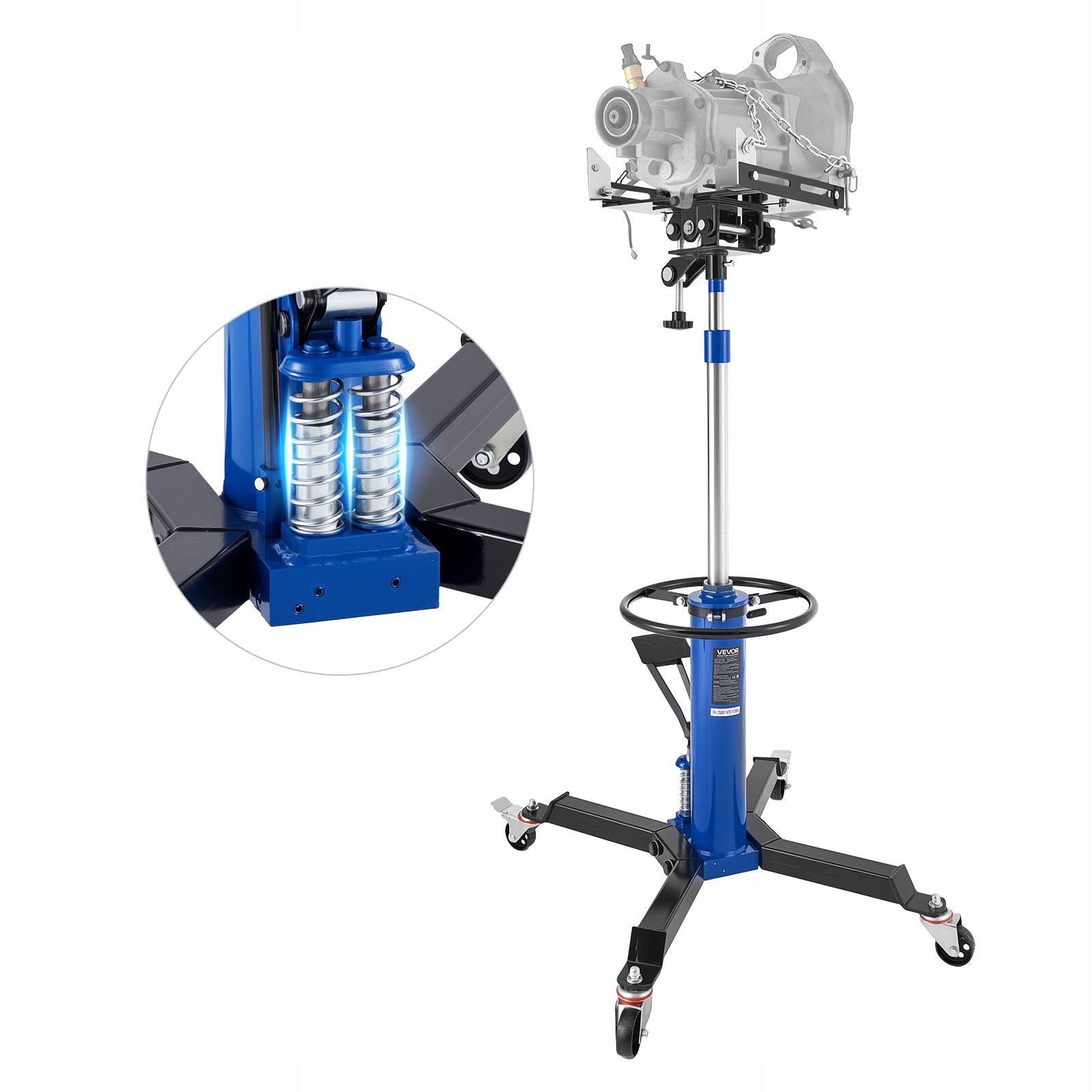

hydraulic pump

The robust seal minimizes oil leaks and guarantees safe lifting.

Stable X-shaped tripod

Solid X-shaped steel structure, stable support, not easy to move when raised to maximum height.

cast iron wheel

Large cast iron wheels withstand heavy loads, do not break easily and are durable.

Simple mobility

Featuring four sturdy wheels, this lift allows you to easily move around your garage. It reduces the effort and time needed to carry heavy gearboxes and streamlines disassembly, repair and assembly.

Hydraulic drive

The efficient hydraulic system provides a large and stable lifting force, eliminating the need for strenuous operation. To prevent damage and wear, regular lubrication of moving parts is required before and after use.

Proper use and maintenance

The lift should only be used on hard, even surfaces. When not in use, it should be lowered to its lowest position and stored in a dry place to extend its service life.

Package Contents

1 x Main Unit

1 x Cylinder

1 x Tablet Mounting Bracket

2 x Claw Assembly

1 x wheel

2 x Support Legs

1 x Foot Pedal

4 wheels

4 x Screws

4 x Washers

1 x Repair Kit (7 x Seals)

1 x User Manual

2 x Leg struts

Key features

High lifting capacity: The hydraulic gearbox lifter features a heavy-duty steel structure with a lifting capacity of 600 kg (1322 lbs) and a transport capacity of 500 kg (1100 lbs). It lifts gearboxes, drive shafts, and axles with ease, while providing reliable performance.

High lifting range: Our high lifting capacity box lifter offers a lifting range from 880 to 1760 mm. This makes it easy to adjust the height and provides ample workspace. Note: Vehicles must be equipped with a lift.

Adjustable support platform: The support platform of this hydraulic telescopic lift rotates 360° and tilts up to 30° for precise gearbox positioning. The width of the mounting plate can be adjusted to fit different gearboxes, which increases the accuracy of repair. Note: Secure parts with chains to prevent them from falling.

Plumbing: The garage lift is operated with a pedal, which eliminates the need for manual lifting and allows for smooth, effortless lifting and lowering. To unlock it, turn the check valve lever to the right. This allows for slow lowering and prevents sudden movements.

360° mobility: The gearbox lift is equipped with four large swivel casters (two with brakes) and an X-shaped base, which allows flexible movement in the garage while maintaining stability and safety during operation. The brakes lock the position quickly, preventing slipping or wobbling.

Specifications
