Hidraulinis pavarų dėžės keltuvas, reguliuojamas, 3T 3000 kg

Trumpai apie prekę

Prekė: Hidraulinis pavarų dėžės keltuvas, reguliuojamas, 3T 3000 kg. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Vorfal
• Modelis: V08392

HYDRAULIC FLOOR GEAR LIFTER ADJUSTABLE 3T 3000KG

V08392

PRODUCT DESCRIPTION:

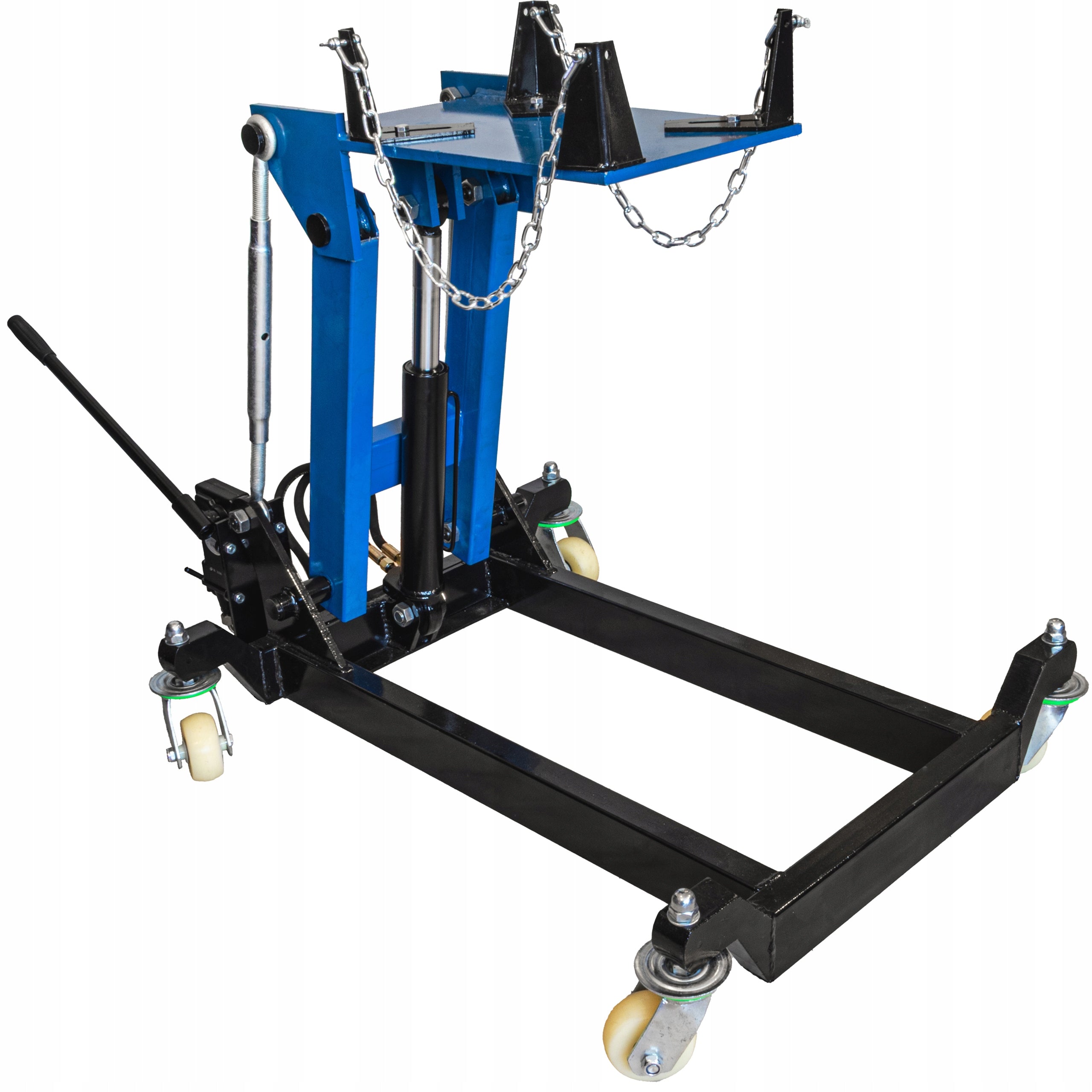

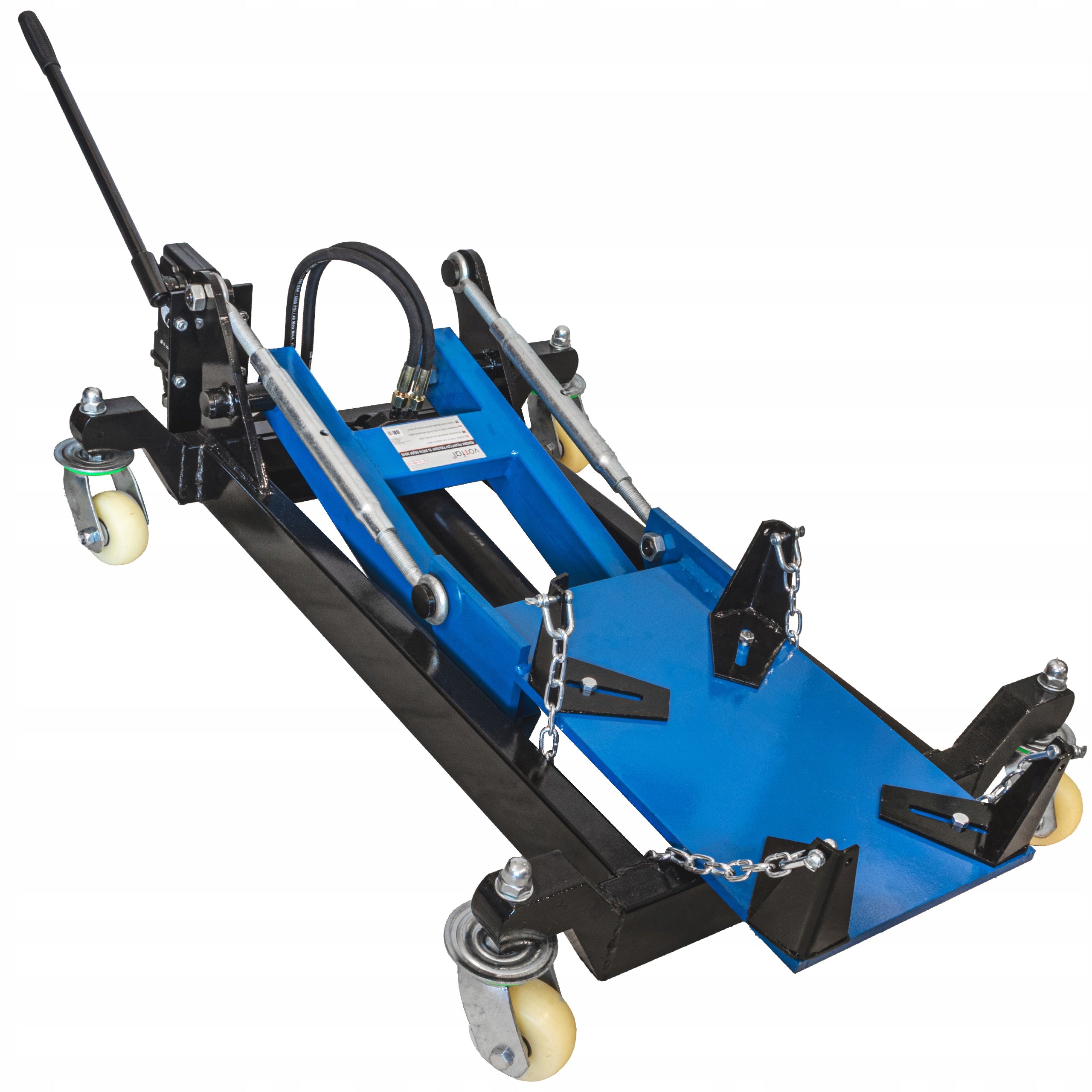

Hydraulic lift for gearboxes V08392 with a lifting capacity of 3 tons is a robust and professional device designed to handle heavy drive components in mechanical workshops. The construction made of thick, durable steel guarantees stable operation even under maximum load. The two-way hydraulic pump enables smooth lifting and fully controlled lowering of the load, which significantly increases work safety. The large saddle with dimensions of 500 × 305 mm is equipped with four handles and two safety chains that guarantee a secure and stable attachment of the gearbox. Precise adjustment of the angle of inclination is carried out with the help of Roman screws, facilitating the perfect positioning of the component during assembly and disassembly. The wide 12 mm thick mounting base ensures stability, while the wheels made of durable polyamide, mounted on bearings, allow light and smooth maneuvering of the lift in workshop spaces.

TECHNICAL DATA:

• Maximum lifting capacity: 3 tons (3000 kg)
• Saddle dimensions: 50 × 30,5 cm
• Lifting height: 14 to 80 cm
• Saddle Tilt Angle Adjustment:
• Yes (up-down)
• Oil Type: HL-46
• Net weight: 88 kg
• Gross weight: 90 kg

APPLICATION:

• The lift is designed for lifting and manoeuvring: Manual and automatic transmission
• Transmissions, reducers and drive system components
• Components mounted on the underside of the vehicle
• Heavy components requiring precise positioning

IDEALLY SUITED FOR:

• Car workshops
• Services of automatic transmissions
• Truck service stations
• Mobile repair services Industrial plants

PRODUCT FEATURES:

• Maximum lifting capacity of 3 tons – design adapted to work under heavy loads
• Thick, durable steel for stability and safety Two-way hydraulic pump for smooth lifting and controlled lowering

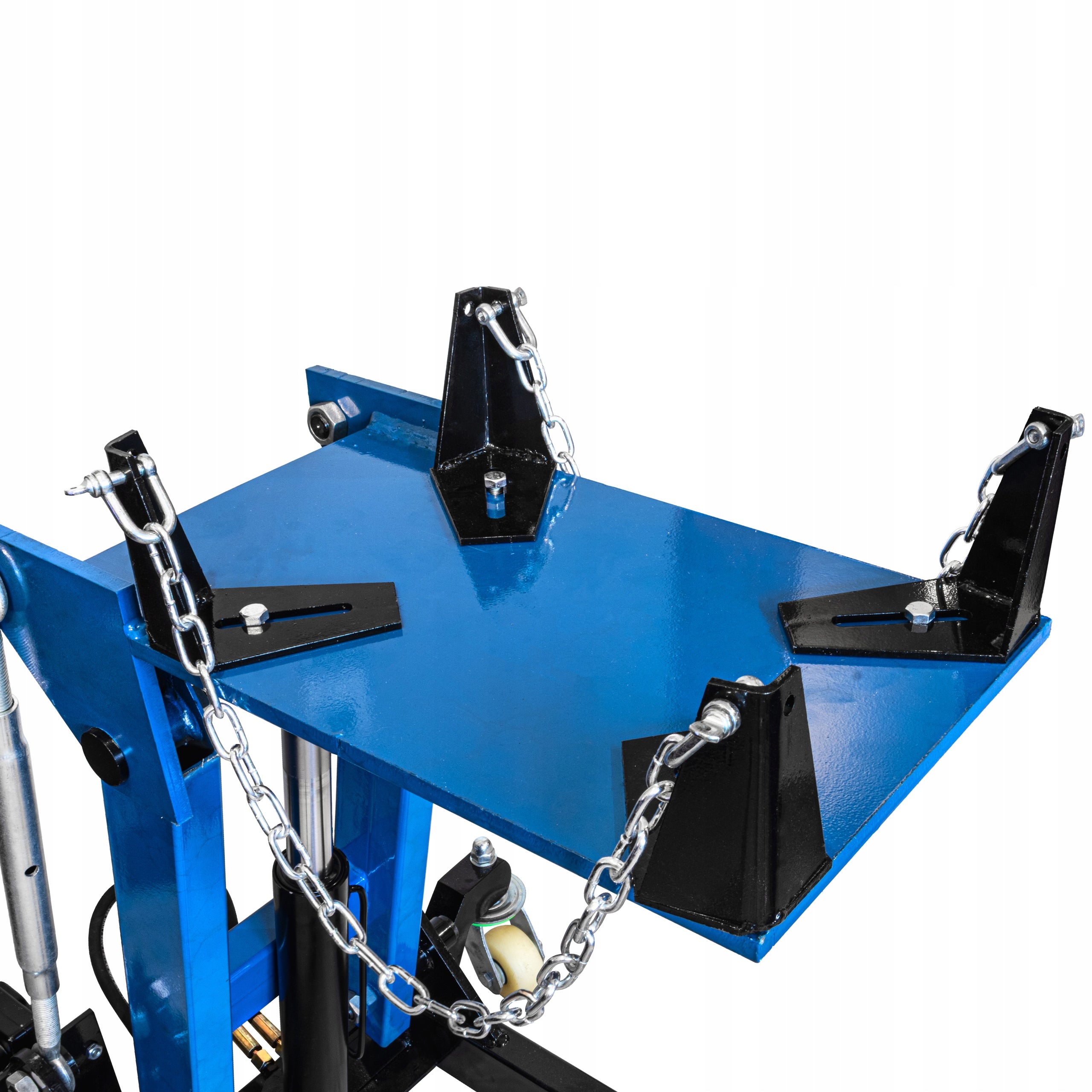

• Large saddle 500 × 305 mm with four handles and two safety chains
• Roman screws for precise adjustment of saddle angle
• Bearing wheels made of polyamide for high mobility in the workshop
• Wide and stable mounting base with a thickness of 12 mm Construction resistant to intensive and continuous operation
• HL-46 recommended hydraulic oil for long system life

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Vorfal
Parametry	Manufacturer code	V08392
Parametry	EAN (GTIN)	5905475668043
Parametry	Lifting capacity	3000 kg
Parametry	Minimum lifting height	140 mm
Parametry	Maximum lifting height	800 mm
