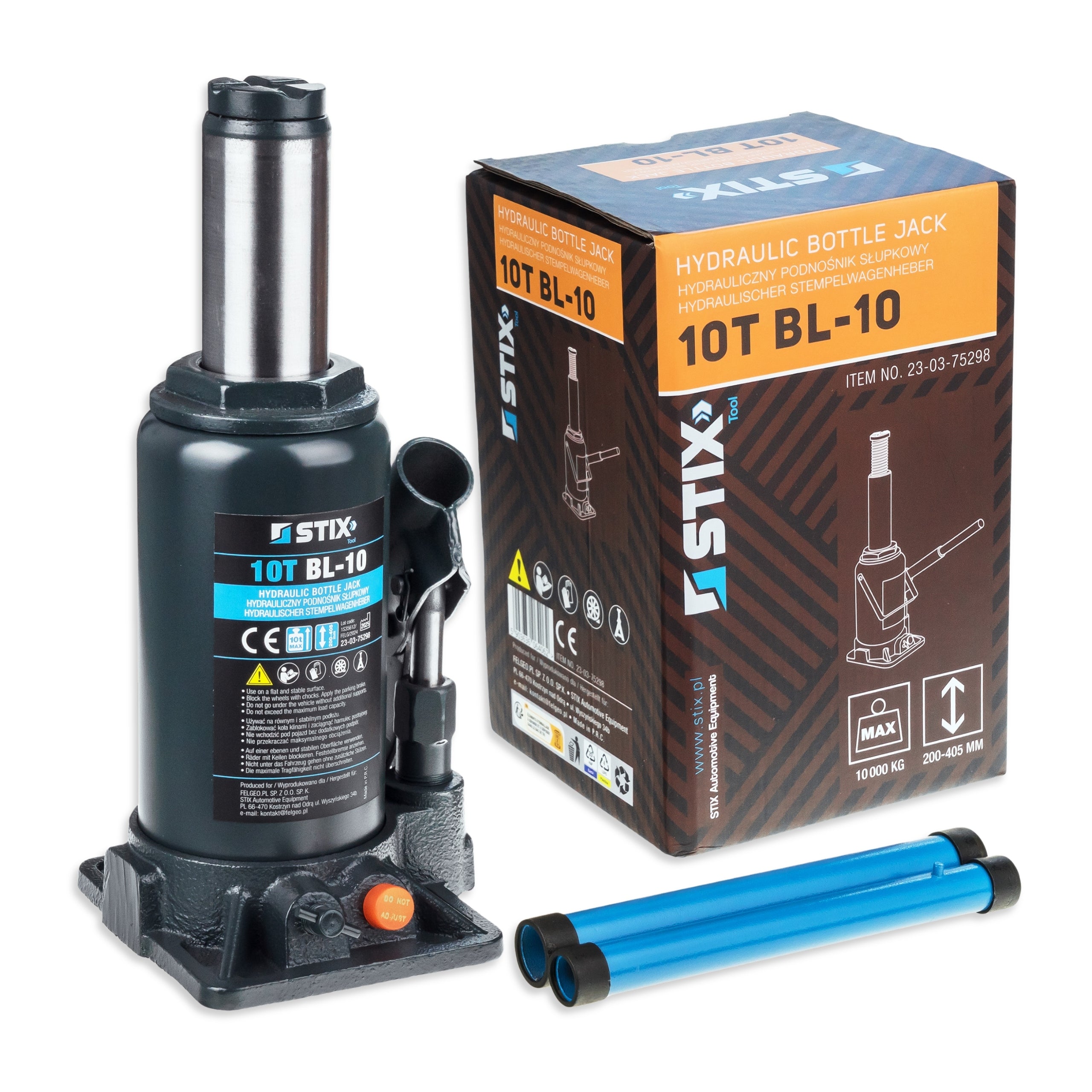

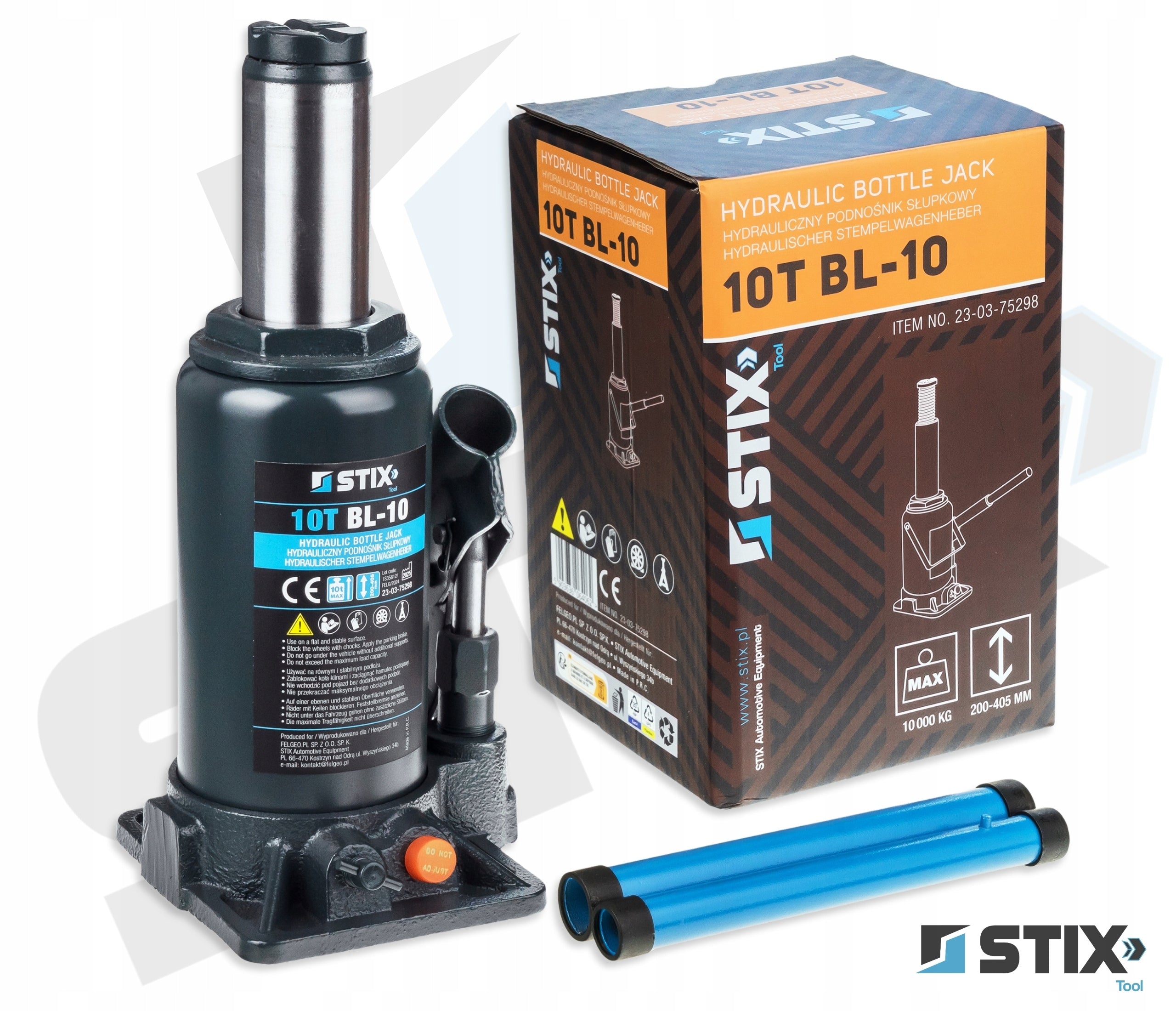

Hidraulinis keltuvas 10T 200-405mm BL-10 STIX

Trumpai apie prekę

Prekė: Hidraulinis keltuvas 10T 200-405mm BL-10 STIX. Kategorija: Butelių kėlimo įtaisai.

• Gamintojas: Stix
• Modelis: 23-03-75298

Compact, robust and robust bollard lift for use with vehicles with weight up to 10 tons. The BL-10 combines high lifting power with mobility and simple operation, making it a practical choice for both workshop and mobile applications.

Catalog number: 23-03-75298

Model: BL-10

Manufacturer: Stix Tool

Quantity: 1 pcs.

⚙ Technical specification

• Lift type: hydraulic post
• Maximum lifting capacity: 10000 kg
• Maximum lifting height: 405 mm
• Minimum lifting height: 200 mm
• Lifting range: 200-405 mm
• Lever length: 325 mm
• Package dimensions: 130 x 135 x 210 mm
• Net weight: 5,4 kg

⚙ Technical drawing

➡ Small size – high strength

The BL-10 is a classic bottle lift with a compact design that will fit in your trunk or toolbox. Despite its small size, it offers up to 10 tons of lifting capacity – enough to lift SUVs, vans and light trucks.

➡ Lifting range: from 200 mm to 405 mm

The BL-10 lift is equipped with a screw saddle adjustment, which allows you to smoothly increase the maximum working height to 405 mm:

• Minimum height: 200 mm,
• Maximum height (with the saddle extended): 405 mm.

This lifting range enables safe and comfortable work with mare or spare wheels – both in the garage and in the field.

➡ Two-piece lever – convenient lifting and transport

The set includes a steel lever with a length of 325 mm, built of two segments.

The segmented design makes it easy to transport and store, while also providing a secure grip when lifting heavy vehicles.

➡ Smooth lowering – drain valve with knob

The BL-10 lift is equipped with a drain valve controlled by a classic knob, which can be conveniently turned with the lever tip.

This solution provides full control over the descent force and enables smooth, precise lowering of the vehicle without , which increases work safety.

➡ Resistant construction – ready for intensive work

The body made of thick steel castings has been protected with varnish resistant to corrosion, oils and weather conditions.

This guarantees reliability during everyday work in the workshop as well as in the field – even at maximum load.

🌟 What distinguishes the BL-10 10T lift?

✅ Leverage up to 10 tons – for SUVs, vans and heavy vehicles

✅ Lifting range 200 – 405 mm – with adjustable saddle

✅ Split lever – 325 mm long, easy to store

✅ Trigger knob – smooth and controlled operation

✅ Solid construction – resistant to corrosion and oils

✅ Compact dimensions – ideal for the trunk or toolbox

✅ The STIX Tool brand – proven workshop quality

🤔 Why is it worth it?

The BL-10 lift combines high lifting power with ease of use and compact form. It will work in the workshop, in mobile work and in commercial vehicles. It is a proven choice for professionals looking for a reliable lift for heavier jobs.

💡 FAQ – Frequently Asked Questions

Is the BL-10 suitable for trucks and off-road vehicles?

• Yes – its lifting capacity of 10 tons and range of 200 – 405 mm are ideal for this type of vehicle.

Will the lift fit in the trunk or toolbox?

• Yes – its minimum working height is only 200 mm, and the package dimensions are 130 x 135 x 210 mm, so it can easily fit in the trunk or service kit.

Is the lever unfolded?

• Yes – it consists of two parts, which makes it easy to store.

How does the lowering valve work?

• The valve is operated by a classic knob, rotating lever tip.

📷 Gallery

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	5.6 kg
Parametry	Brand	Stix
Parametry	Manufacturer code	23-03-75298
Parametry	EAN (GTIN)	5903636064062
Parametry	Lifting capacity	10000 kg
Parametry	Minimum lifting height	405 mm
Parametry	Maximum lifting height	200 mm
