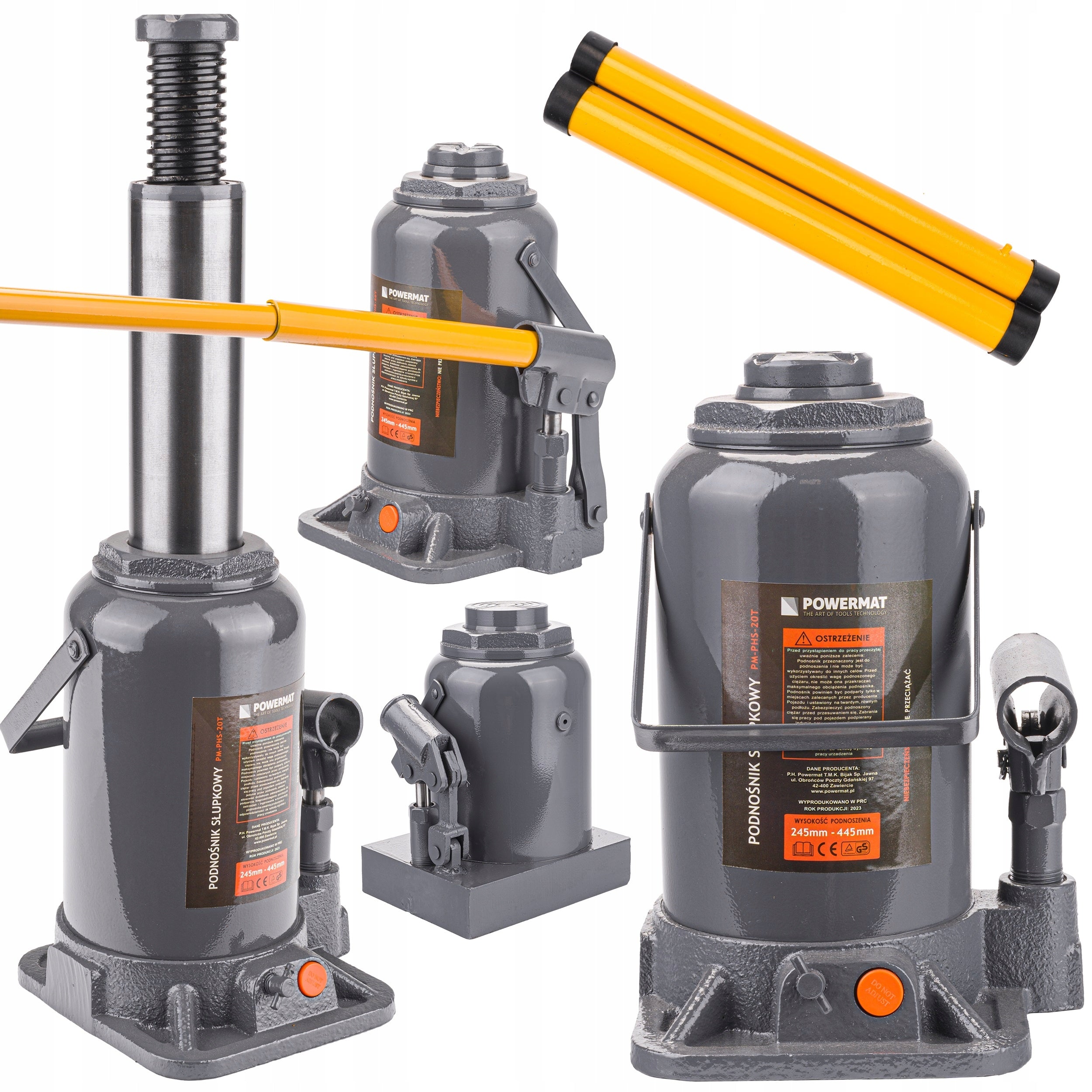

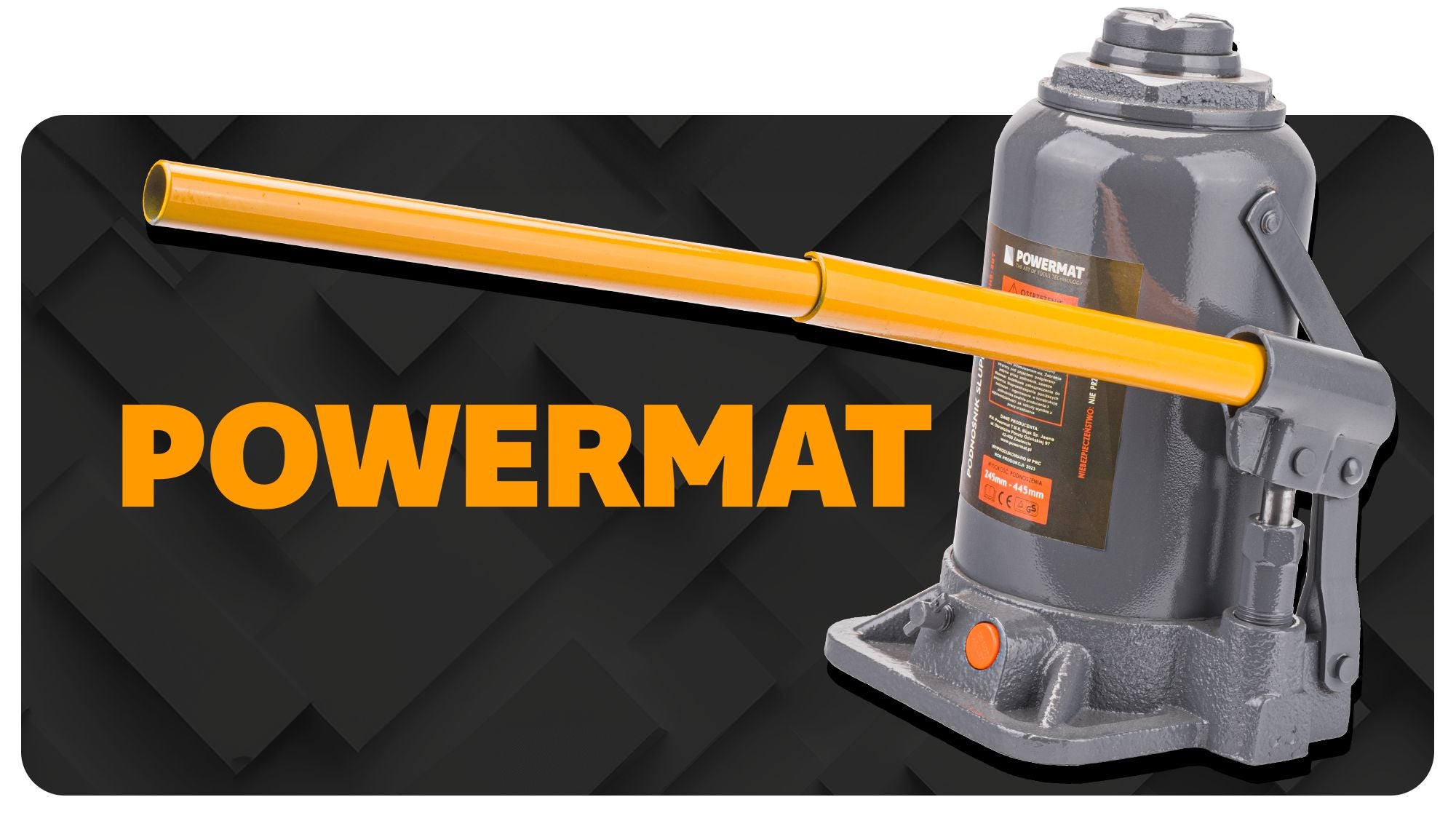

Hidraulinis automobilio domkratas, 20 t

Trumpai apie prekę

Prekė: Hidraulinis automobilio domkratas, 20 t. Kategorija: Butelių kėlimo įrankiai.

• Gamintojas: Powermat
• Modelis: PM-PHS-20T

LIFTING CAPACITY 20 000 KG | HEIGHT 235 – 435 MM | SADDLE ADJUSTMENT 60 MM

Model: PM-PHS-20T

The hydraulic bollard lift allows you to lift vehicles weighing up to 20 000 kg at designated support points. The range from 235 to 435 mm and the adjustment of the 60 mm saddle make it easy to adjust the height to the support area, and the hydraulic mechanism allows lifting by pumping with the arm.

⚫ WHEN YOU NEED TO LIFT A HEAVY VEHICLE

▪ With heavy loads, properly selected lifting capacity counts – here you have 20 000 kg at your disposal.

▪ Hydraulic lifting and adjustable saddle 60 mm help to set the required height.

🟠 WHY CHOOSE OUR PRODUCT?

🔸 LIFTING CAPACITY OF 20 000 KG FOR HEAVIER VEHICLES

When you’re working with a heavier vehicle, you need a lift that fits its weight. The PM-PHS-20T provides a maximum lifting capacity of 20 000 kg, so you can use it to lift vehicles within this range. You set the device at the support point indicated by the car manufacturer and lift the vehicle hydraulically.

🔸 HEIGHT RANGE FROM 235 TO 435 MM

The minimum height of 235 mm determines the level from which you can start working with the lift. After starting the hydraulic mechanism, you get a maximum height of 435 mm. Thanks to this, you immediately know the actual working range and can assess its fit to the vehicle support point.

🔸 ADJUSTABLE SADDLE 60 MM

The PM-PHS-20T has a saddle adjustment in the range of 60 mm. You can use it to further adjust the height of the element that comes into contact with the vehicle support point. In combination with hydraulic lifting, you get the ability to adjust the position of the lift before proper work.

🟠 WHY DOES THIS MODEL STAND OUT FROM THE REST?

🔸 140 MM LIFTING HEIGHT

Some models differ in the scope of work. This variant provides 140 mm of hydraulic lifting of the vehicle.

🔸 CONTROLLED LOWERING

The lift has a release valve. Slowly turning the valve allows you to gradually lower the raised vehicle.

🔸 HYDRAULIC LIFTING MECHANISM

Simpler solutions may require a different way of working. Here, pumping with the arm activates the hydraulic lifting mechanism.

⚫ 20 TONS OF LIFTING CAPACITY THAT YOU HAVE CLEARLY DEFINED

When working with a heavy vehicle, specifics count: here you get a lift up to 20 000 kg and a height range of 235 – 435 mm. You know exactly to what extent you can use the lift.

🟠 LIFTING CAPACITY UP TO 20 000 KG

The maximum lifting capacity of 20 000 kg allows you to lift vehicles whose total weight is within the range provided for this model.

Hydraulic mechanism allows lifting by pumping the arm until the required height is achieved. The device should only be set at support points designated by the vehicle manufacturer.

🟠 HEIGHT RANGE 235 – 435 MM

The minimum height of 235 mm determines the height of the lift before starting the proper lift. The maximum height of 435 mm determines the upper operating range for the PM-PHS-20T.

The mechanism itself provides 140 mm of lifting height, so you can lift the vehicle to the level you need in terms of the device. Knowledge of specific working dimensions allows you to assess before use whether the lift will be suitable for a given support point.

🟠 SADDLE ADJUSTMENT 60 MM

The lifter seat is the upper element of the device intended to come into contact with the correct vehicle support point. The PM-PHS-20T model is equipped with a 60 mm saddle adjustable, providing an additional range of height settings.

Thanks to the adjustment, you can adjust the position of the saddle before starting the hydraulic lifting of the vehicle. The solution works with the 140 mm lifting range of the hydraulic mechanism.

⚫ ADJUST THE HEIGHT TO THE SUPPORT POINT

You have at your disposal 140 mm lifting height and an additional adjustment of the saddle 60 mm. Specific ranges make it easy for you to assess whether the lift meets the requirements of your vehicle.

🟠 TECHNICAL DATA

• Maximum load capacity: 20 000 kg
• Minimum profile: 235 mm
• Maximum profile: 435 mm
• Head diameter: 53 mm
• Base dimensions: 153 x 139 [mm]
• Lifting height: 140 mm
• Saddle adjustment: 60 mm
• Lifting pole diameter: 53 mm
• Whole pole diameter: 113 mm

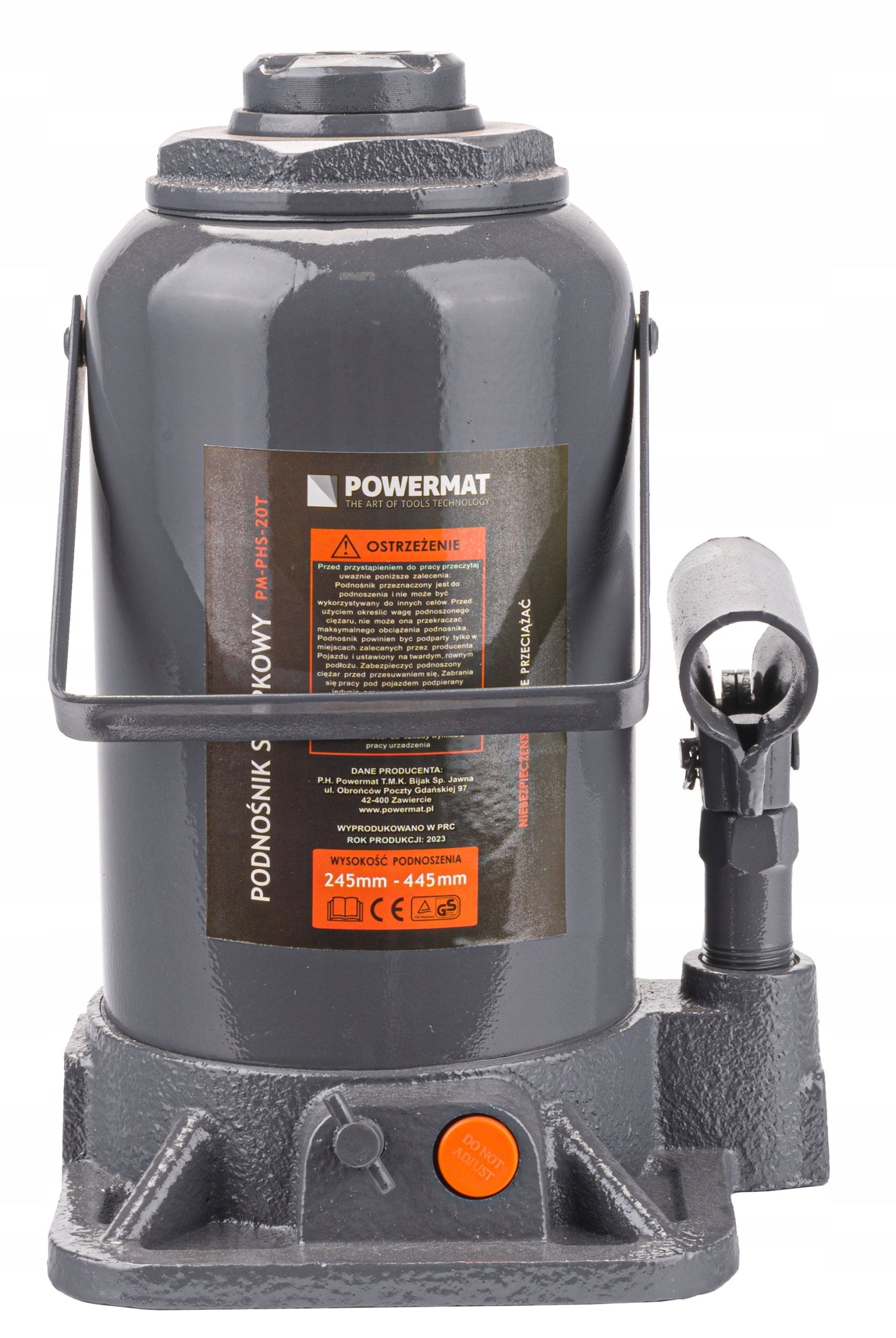

• Gross weight: 10,45 kg

🟠 CONTENTS OF THE SET

• Hydraulic Bollard Lift
• Lift arm
• User manual
• Original packaging

⚫ ADJUST THE HEIGHT TO THE SUPPORT POINT

You have at your disposal 140 mm lifting height and an additional adjustment of the saddle 60 mm. Specific ranges make it easy for you to assess whether the lift meets the requirements of your vehicle.

🟠 SAFE AND PROVEN DESIGN

Simple construction and rigid base, as well as, steel construction made in accordance with safety certificates makes the device used both in professional services of cars and trucks as well as in home workshops.

🟠 HYDRAULIC SAFETY VALVE

A special hydraulic valve guarantees controlled and safe lowering of the lift. Thanks to this, you will avoid sudden falling of the load, which increases work safety.

⚫ YOU KNOW WHAT SCOPE OF WORK YOU HAVE AT YOUR DISPOSAL

▪ If you need a lift with a lifting capacity of up to 20 tons, the PM-PHS-20T gives you clearly defined possibilities.

▪ 140 mm lifting and 60 mm saddle adjustment allow you to adjust the setting to the provided support point.

⚫ FAQ

▪ WHAT IS THE MAXIMUM LIFTING CAPACITY OF THE PM-PHS-20T LIFT?

The maximum lifting capacity of the PM-PHS-20T is 20 000 kg. Do not exceed the maximum permissible lifting capacity of the device.

▪ WHAT IS THE LIFT HEIGHT RANGE?

The minimum height is 235 mm and the maximum height is 435 mm. Lifting height is 140 mm.

▪ DOES THE LIFT HAVE AN ADJUSTABLE SADDLE?

Yes. The PM-PHS-20T has a saddle adjustment in the range of 60 mm.

▪ HOW DOES THE VEHICLE LIFT WITH THIS LIFT?

After the vehicle and lift are properly positioned, the handle should be mounted and then pumped until the appropriate height is reached.

▪ ON WHAT GROUND SHOULD THE LIFT BE USED?

The vehicle must stand on flat and hard ground. The lift shall be placed at a support point designated by the vehicle manufacturer and the car shall be protected against displacement.
