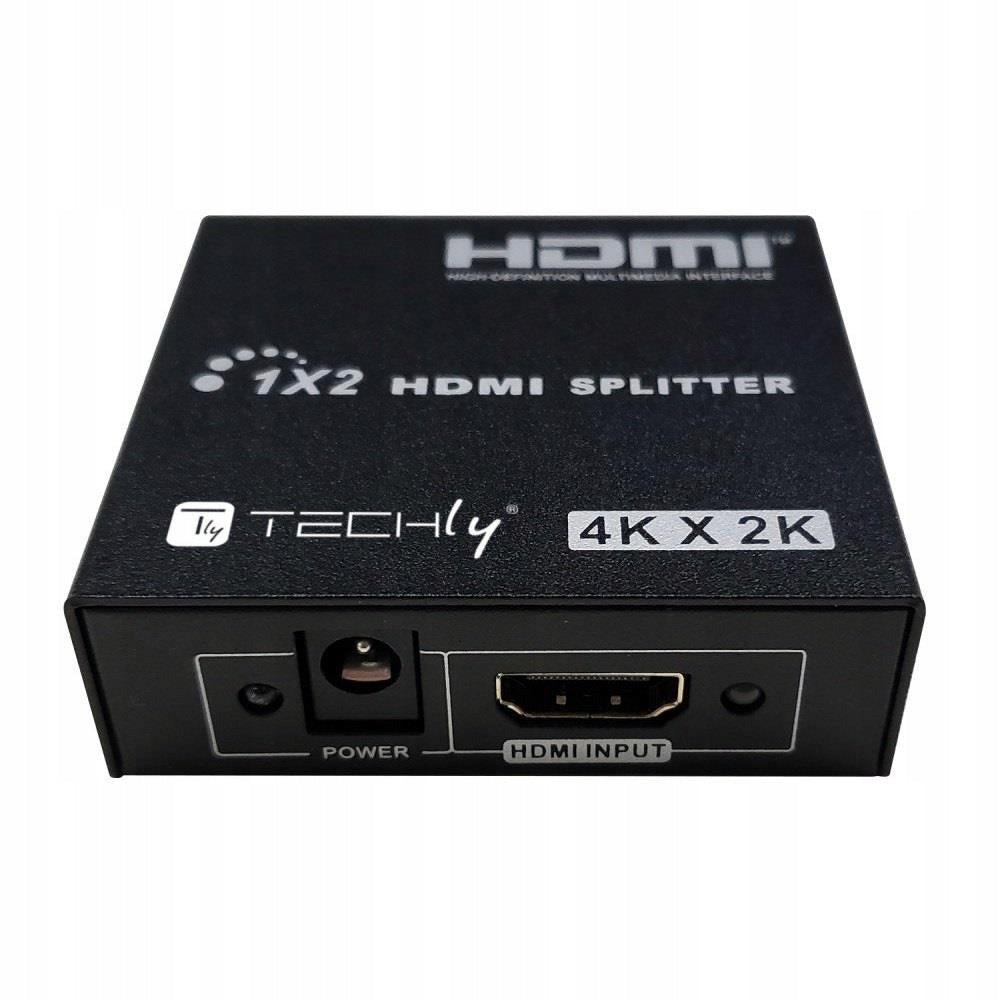

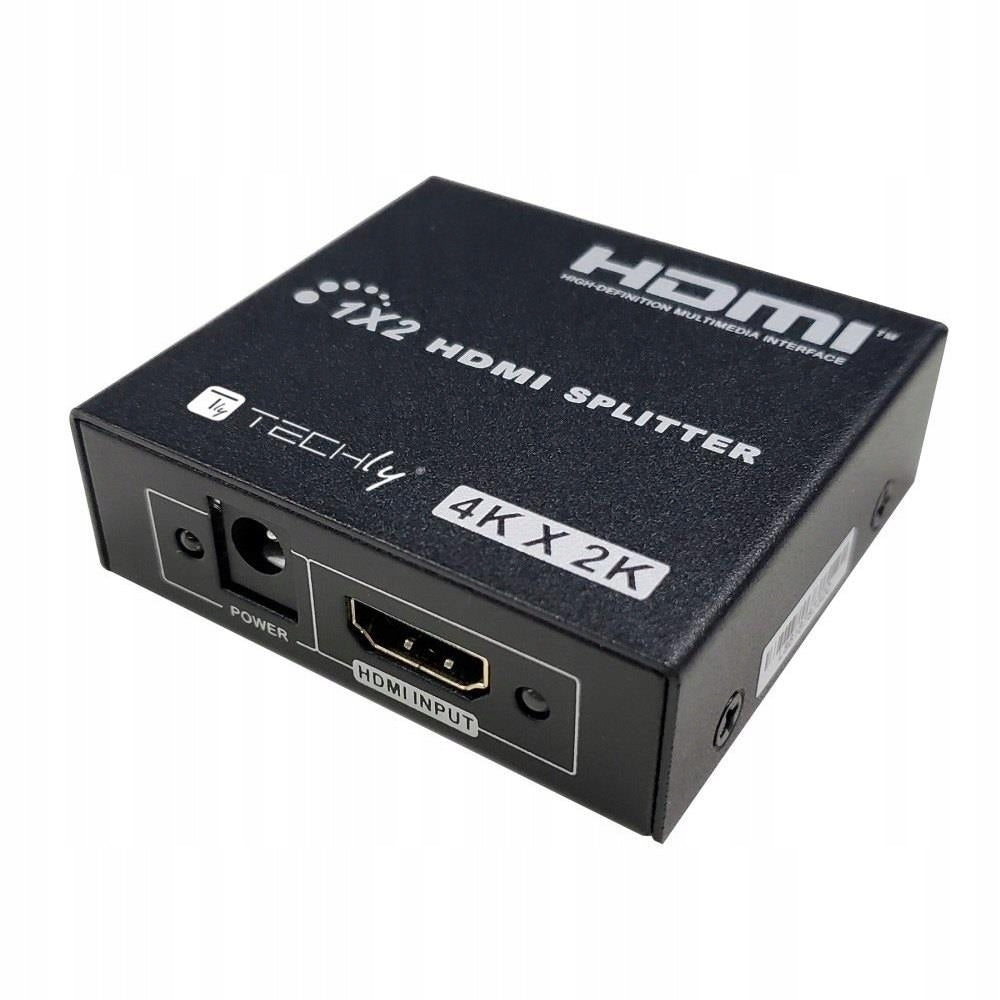

HDMI skirstytuvas Techly 1x2, 4K 30Hz, aktyvus

Trumpai apie prekę

Prekė: HDMI skirstytuvas Techly 1x2, 4K 30Hz, aktyvus. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Techly
• Modelis: IDATA HDMI-4K230

Product Description:

• Provides simple connection of two HDMI monitors to one computer, TV set-top box or game console with HDMI
• The image on both connected monitors is displayed in exactly the same quality
• Support UHD 3840x2160 resolution at 30Hz, Full HD 1080p at 60Hz and lower resolutions like 720p or 480p
• Support Full HD 1080p 3D video
• Support for high-quality digital audio in Dolby-AC3, Dolby TrueHD, DTS, DSD, DTS-HD formats
• Active device with external power supply that provides HDMI signal amplification
• Possibility to use long HDMI cables, up to 15m in Fll HD resolution and up to 8m in 4K resolution
• Metal housing guarantees durability and excellent protection against electromagnetic interference
• Made from the highest quality materials
• Plug and Play installation, does not require any drivers and configuration, works immediately after connecting

Technical parameters:

• Device Type: Splitter, HDMI Splitter
• Active, with power supply
• Standard: High Speed HDMI 1.4
• Number of HDMI Input Ports: 1
• Number of HDMI Output Ports: 2
• Connectors: 1x HDMI 19-pin female (IN signal) 2x HDMI 19-pin female (OUT signal) 1x 5V DC power socket
• Supports 4K resolution (3840x2160) at 30Hz
• Supports 1080p (1920x1080) resolution at 60Hz
• Supports 3D video in 1080p quality
• Support for CEC signal
• Transmission range in 1080p (HDMI 26 AWG cable) From signal source to splitter: up to 15m From splitter to display: up to 15m
• Transmission range in 4K (HDMI 26 AWG cable) From signal source to splitter: up to 8m From splitter to display: up to 8m
• Supports 8-bit, 10-bit and 12-bit color depth
• Input video signal: 0.5 - 1.0V p-p
• Input DDC signal: 5V p-p (TTL)
• Power Supply: 5V DC, 1A
• Power consumption: 5W max.
• Dimensions: 64 x 61 x 20 mm
• Weight: 239g
• Housing Material: Metal
• Color: Black

Contents of the pack:

• Splitter Techly HDMI 1x2 4K30Hz
• 5V DC power supply
• User manual

P/N: IDATA HDMI-4K230, 365818
