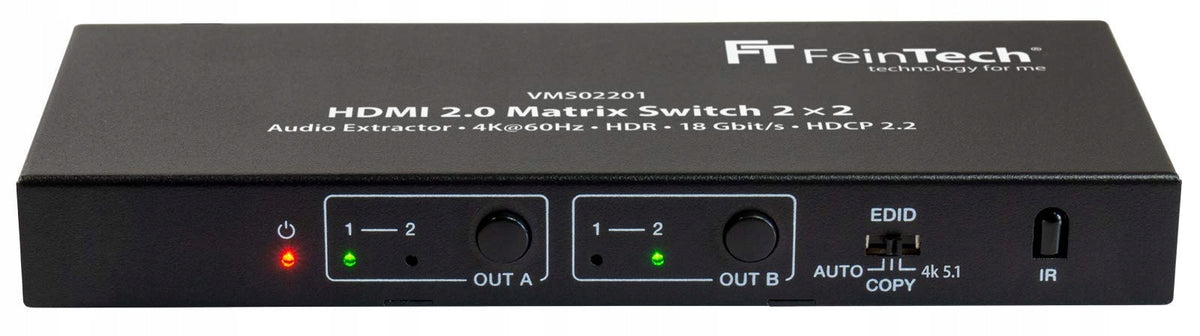

HDMI matrica FeinTech VMS02201 2x2 su 4K HDR ir SPDIF garso ekstraktoriumi

Trumpai apie prekę

Prekė: HDMI matrica FeinTech VMS02201 2x2 su 4K HDR ir SPDIF garso ekstraktoriumi. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: FeinTech
• Modelis: VMS02201

Product Description

FeinTech VMS02201 is an advanced matrix (2x2) HDMI switch that allows you to connect two HDMI signal sources (e.g. media player and gaming console) and image separation into two displays, such as TVs or projectors. The switch allows you to independently redirect each source to the selected display, providing full flexibility in the configuration of your home media center.

The most important features of the product

• HDMI Matrix 2x2 switch - two inputs and two HDMI outputs allow you to freely control the image between devices.
• Supports Ultra HD resolutions up to 4K at 60 Hz and a wide color gamut (HDR10, HDR-HLG and Dolby Vision).
• Compatible with HDCP 2.2 and HDMI-CEC on input 1.
• Built-in HDMI audio extractor – allows you to output digital audio (SPDIF/Toslink 5.1 Dolby Digital/DTS) or analog audio (stereo via jack) regardless of the image.
• EDID management with Copy-EDID and the option to set a fixed 4K HDR 5.1 or automatic mode, adjusting the output to hardware requirements.

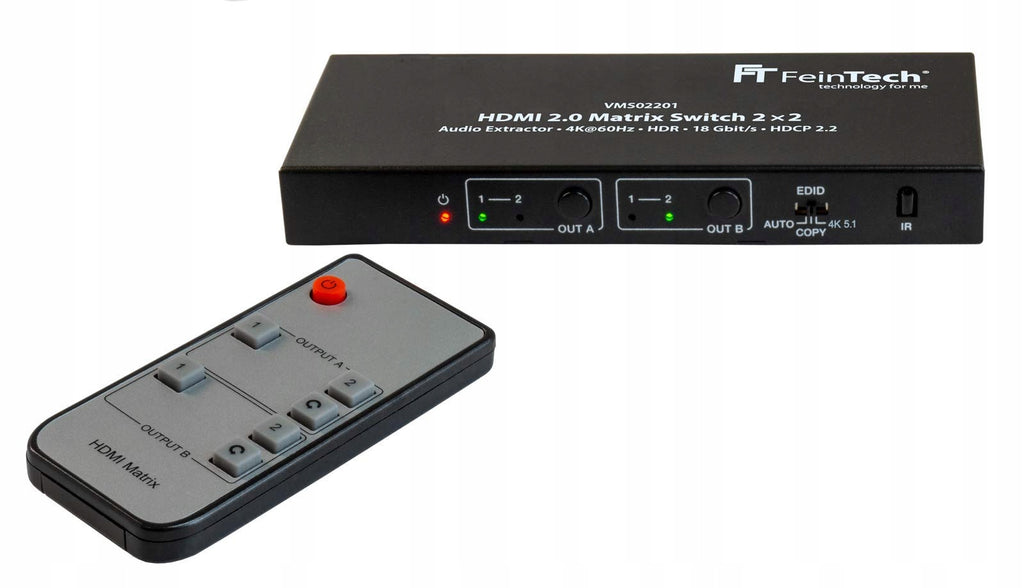

• Control the functions of the device using the buttons on the case or the included IR remote control.
• The sturdy metal housing ensures durability and efficient heat dissipation.
• Color: black.

Application

The switch works well in home AV installations, conference rooms, multimedia rooms and wherever flexible separation of image and sound between different devices is required.

Technical parameters

• Model: VMS02201
• Device Type: Matrix HDMI 2x2 with Audio Extractor
• Maximum Resolution: 4K Ultra HD 60Hz with HDR10, HDR-HLG and Dolby Vision
• HDCP Support: 2.2

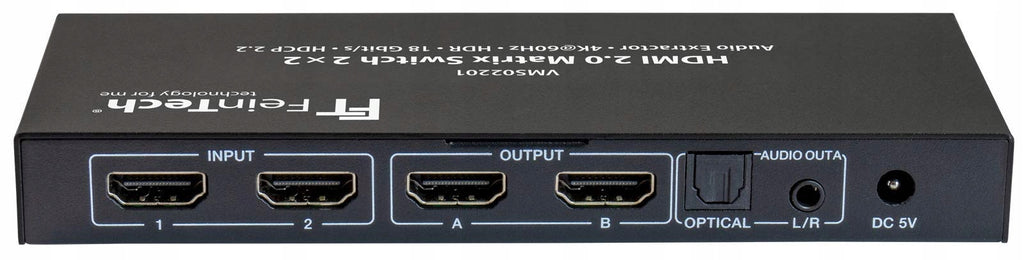

• HDMI Inputs: 2
• HDMI Outputs: 2
• Audio Outputs: SPDIF (Toslink) 5.1 Dolby Digital / DTS, Analog Stereo (Jack)
• EDID management functions: yes, Copy-EDID function, automatic mode, 4K HDR 5.1 fix
• Controls: buttons on the device, IR remote control (included)
• Housing: metal
• Dimensions: 150 x 62 x 18 mm
• Package weight: 0,47 kg
• Color: Black

Contents of the pack

• Switch FeinTech VMS02201 HDMI 2.0 Matrix 2x2
• Remote control
• User manual

Additional information

The product is intended only for applications consistent with its intended purpose. Please refer to the instruction manual before installation and use.
