Trumpai apie prekę
Prekė: HDMI ARC audio ekstraktorius ir keitiklis į koaksialinį bei optinį signalą. Kategorija: Garso DAC keitikliai.
- Gamintojas: no brand
- Modelis: 6902945804221

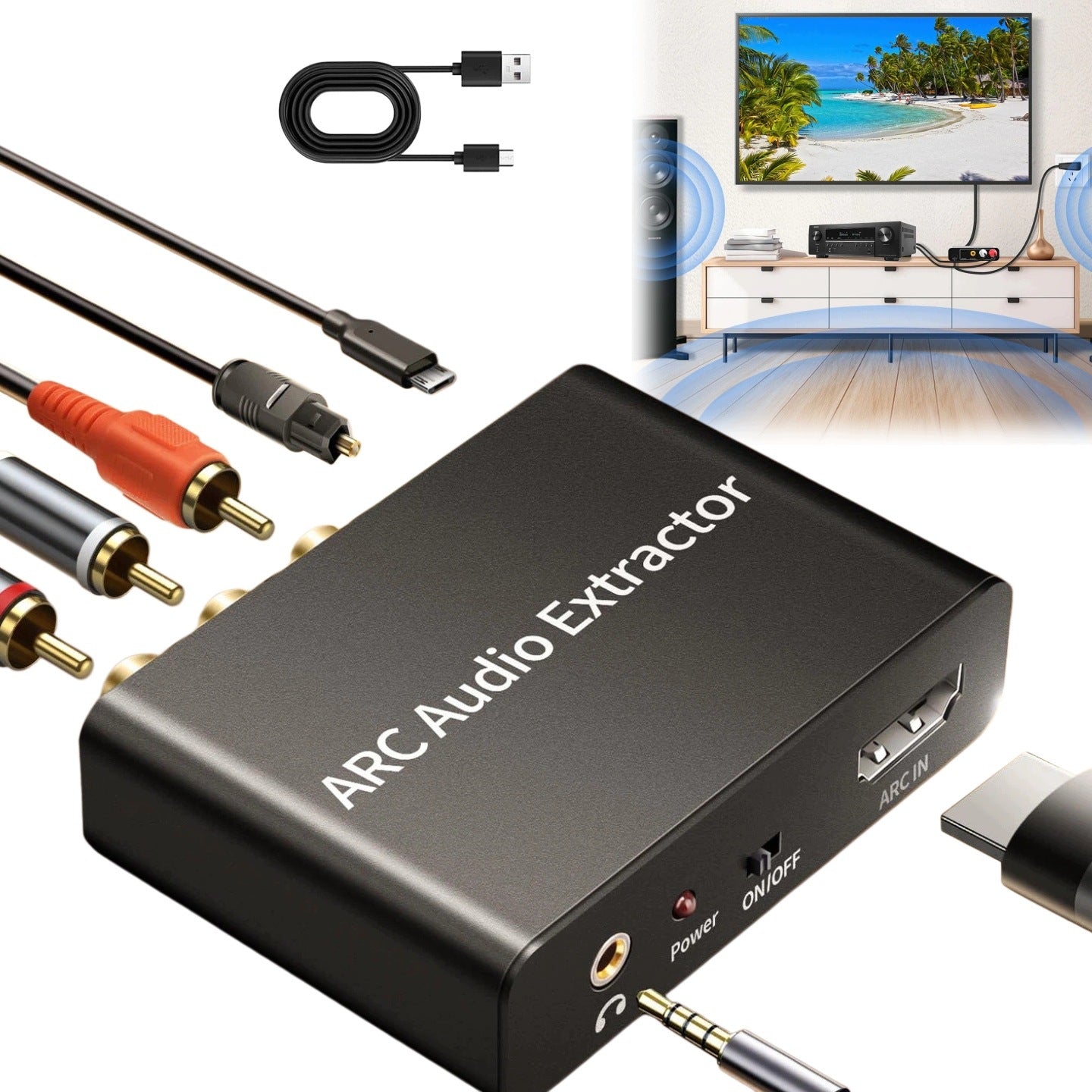

1. ARC Audio Extractor --- This audio extractor with coaxial input and SPDIF L/R RCA 3,5mm (0,14 inch) output is suitable for TVs. (NOTE: Only TVs with ARC functionality are supported.)
2. DAC CONVERTER --- This converter can convert PCM/LPCM 2.0CH digital audio signal to analog stereo L/R RCA and 3,5mm (0,14inch) audio signal.
3. 4 INTERFACE AUDIO SEPARATOR --- Coaxial/SPDIF interface supports 5.1-channel audio output, RCA and 3,5 mm (0,14 inch) interfaces support 2.0-channel audio output, and 4 interface synchronization outputs.
4. 192 kHz 24 bits --- Supports 32 kHz, 44,1 kHz, 48 kHz, 96 kHz and even 192 kHz 24 bits sampling rates, ensuring high quality audio transmission.
5. CONVENIENT DESIGN --- Aluminum alloy housing with gold-plated interface provides good interference protection, allowing lossless switching of sound quality.
Supports SPDIF output
Supports coaxial output
Supports RCA stereo output
Supports 3,5mm (0,14 inch) stereo headphone output
3,5 mm (0,14 inch) stereo headphone jack with powerful audio amplifier.
Supports noise reduction on the switch
Supports automatic signal silencing
Supports audio transmission with 192 kHz sampling rate
Fiber optic coaxial interface supports 5.1-channel transmission
Maximum operating current: 65 mA
Power Interface: Micro USB
Package Contents: 1 x ARC Audio Adapter, 1 x USB Cable, 1 x User Manual
Power adapter specification: AC 100 V-240 V 50/60 Hz, DC 5 V/1 A
Operating temperature: -10 ~ +55°C
Material: Aluminum Alloy
Storage temperature: -20 ~ +60°C
Color: Black
1. Q: Right channel output
2. L: Left channel output
3. Concentric: Concentric digital audio output, for connecting audio amplification devices
4. SPDIF: Optical digital audio output, for connecting audio amplification devices
5. DC 5V: 5V power interface
6. Stereo Output 3,5 mm (0,14 inch)
7. Power Supply: Power Indicator, Lights Up
8. ON. /OFF: ARC function switch (not power switch)
9. ARC IN: ARC input port, for connecting TV ARC interface
1 x HDMI ARC Sound Extractor
1 x Micro USB Cable
1 x User Manual
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Model | 6902945804221 |
| Parametry | EAN (GTIN) | 6902945804221 |
| Parametry | Manufacturer code | 6902945804221 |
