GPIO išplėtimo modulis ir LED valdiklis STEMMA QT AW9523

Trumpai apie prekę

Prekė: GPIO išplėtimo modulis ir LED valdiklis STEMMA QT AW9523. Kategorija: Priedai.

• Gamintojas: Adafruit
• Modelis: 4886

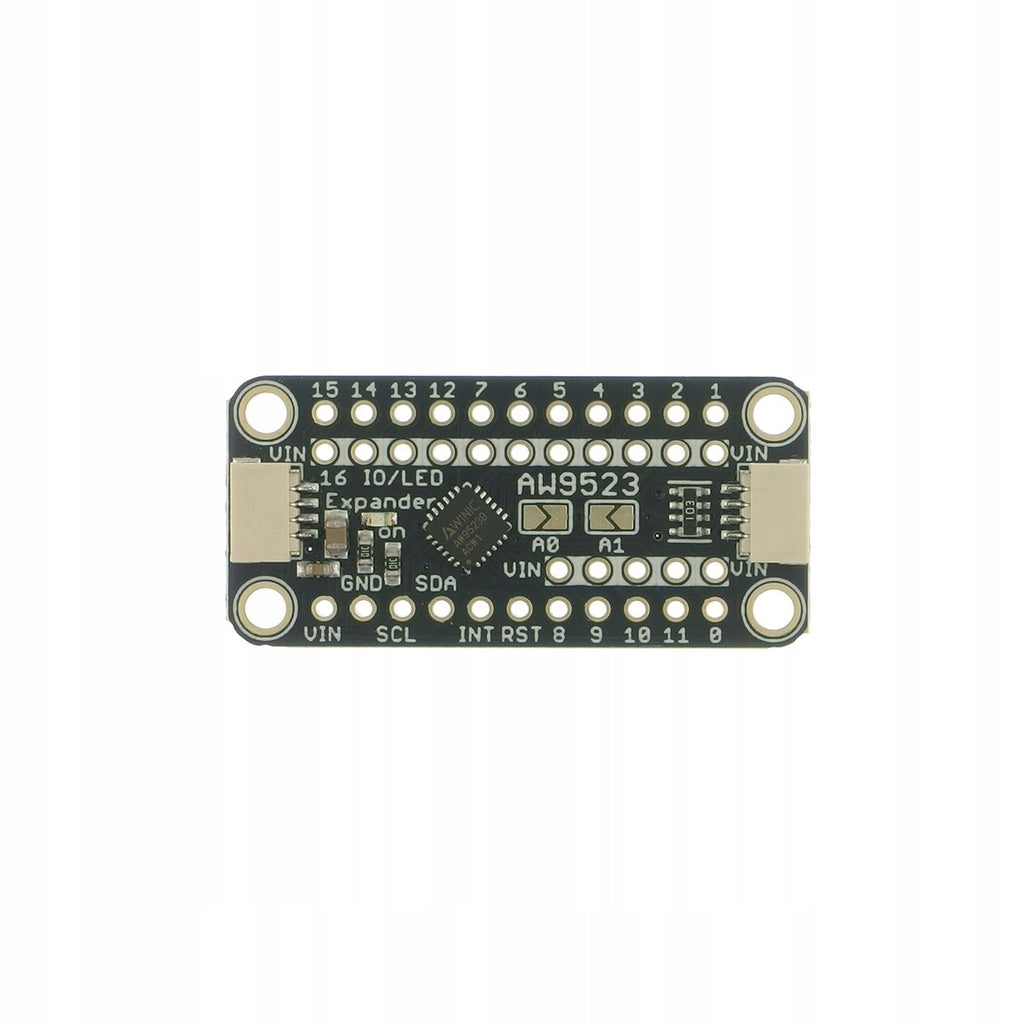

STEMMA QT AW9523 GPIO Expander and LED Driver - module with GPIO expander and LED driver

Description

Module with 16-channel GPIO expander based on AW9523 chip. It allows you to expand the number of inputs and outputs of the microcontroller, as well as directly control LEDs (with 256 brightness levels) without the need to add a resistor. The expander is perfect for connecting buttons, as it has the ability to generate an interrupt in the event of a change in the state on the input. The module is powered by voltage from 2,5 V to 5,5 V, and communication is via the I2C interface (STEMMA QT connector). Full documentation is available on the product page. The manufacturer also provides an easy-to-use library for Arduino and CircuitPython.

Properties

• 16 multifunctional inputs/outputs
• Ability to control LED with 256 brightness levels
• Each GPIO can be independently configured as input or output
• Interrupt handling
• Standard I2C interface
• Selecting the address of the device using jumpers AD1 and AD0
• SDA, SCL, SHDN and all GPIO can support 1.8V logic voltage
• ESD protection: ±4000V HBM (MIL-STD-883H Method 3015.8 standard)
• Latch: ± 450mA (JEDEC STANDARD NO.78C SEPTEMBER 2010 standard)
• Power off function
• Default I2C address: 0x58
• Supply Voltage: 2,5 V to 5,5 V
• Dimensions: 38 x 17,8 x 4,5 mm

Comes with

• STEMMA QT AW9523 GPIO Expander and LED Driver
• 2 x 16-pin goldpin male connector

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	4886
Parametry	Manufacturer	Adafruit
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5904422354787
Parametry	Batteries included	no
