Prekė: Garso modulis su garsiakalbiais Raspberry Pi Pico. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 20167

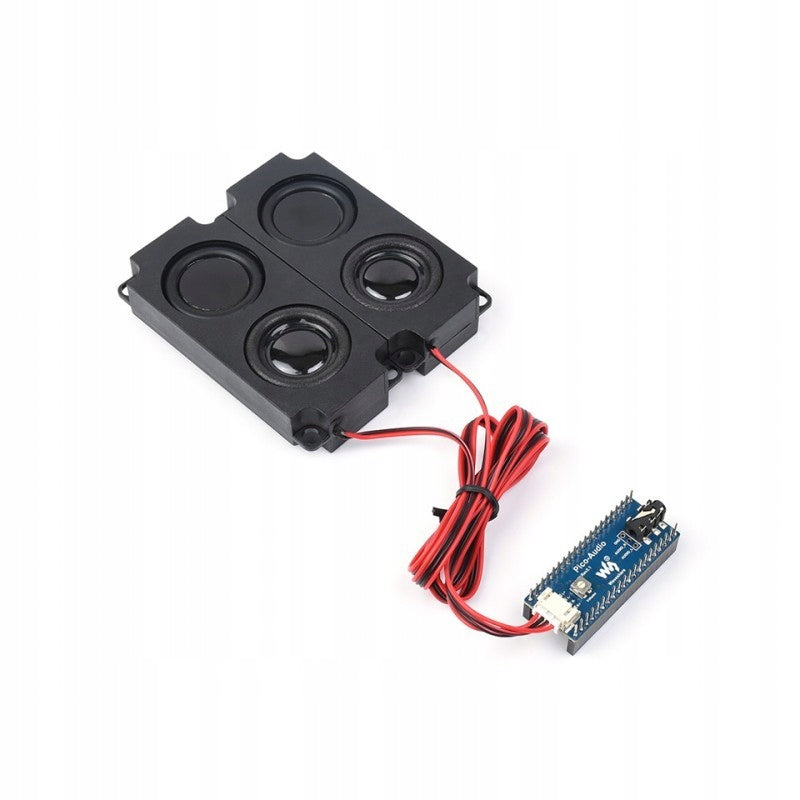

Pico-Audio - audio module with speakers for Raspberry Pi Pico
Description

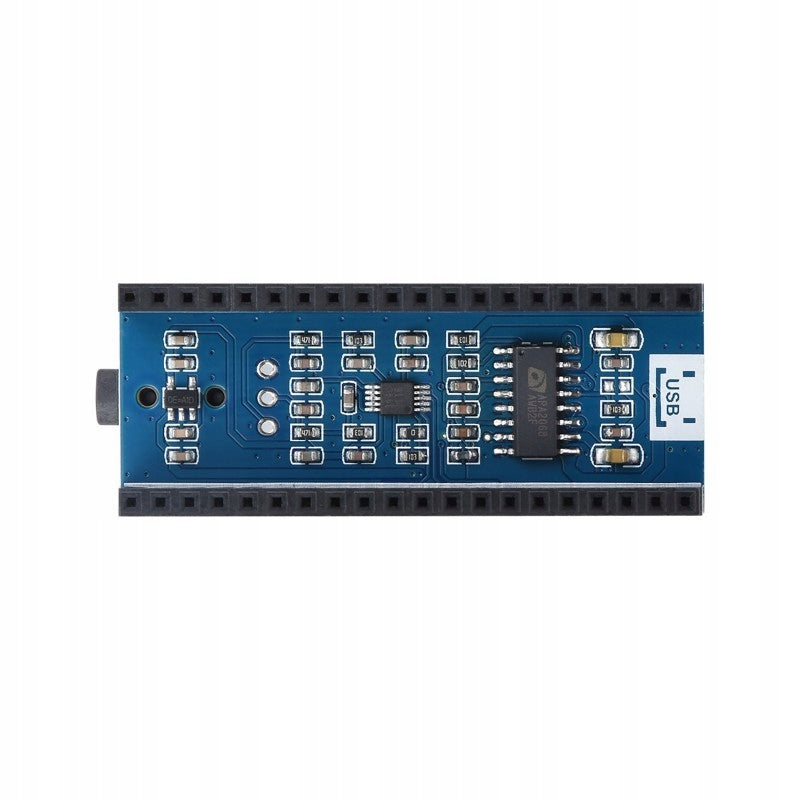

Audio module with speakers designed to work with Raspberry Pi Pico. It has a built-in PCM5101A low power stereo DAC converter and uses an I2S bus to transmit audio signal. It supports a wide range of audio sampling rates, allows you to transmit signal to headphone and speaker output simultaneously. The board is equipped with a 3,5 mm audio jack connector and a 4-pin connector for connecting speakers. The module is powered by 5 V. Full documentation with examples is available on the product wiki page.
Attention!

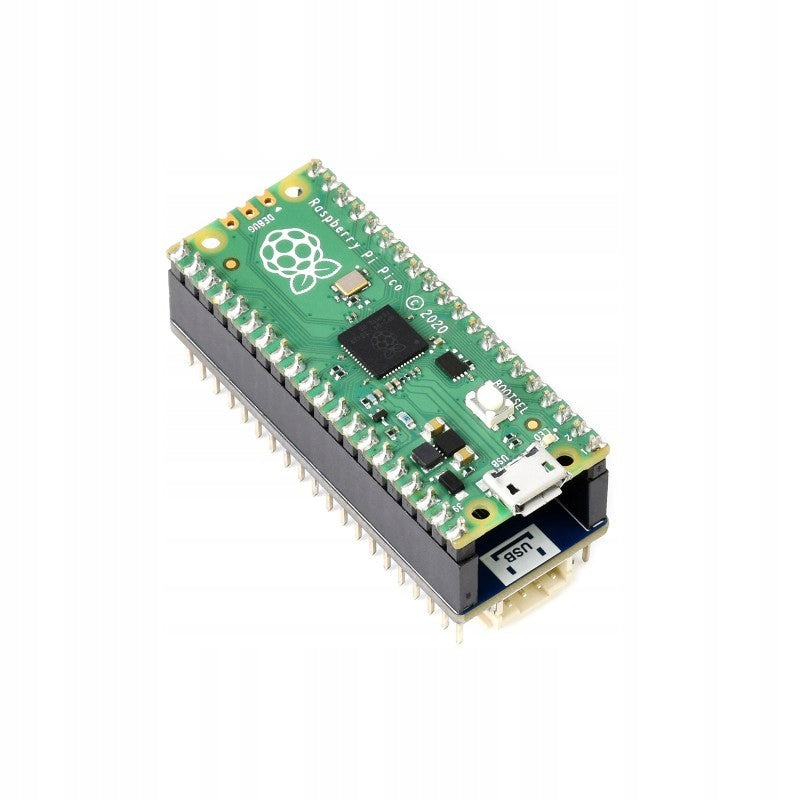

The kit does not include a Raspberry Pi Pico. They must be purchased separately.
Properties
- I2S interface
- Audio Jack connector 3,5 mm
- 4-pin connector for connecting speakers
- Converter DAC stereo CS4344
- Audio Amplifier APA2068
- 8Ω 5W speakers
- Sampling rate: 8 to 384000 Hz
- Voltage: 5 V
- PCB Dimensions: 52 x 21 mm
Comes with
- Pico-Audio module
- 8Ω 5W stereo speakers
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 20167 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5706871823360 |
| Parametry | Batteries included | no |
