Trumpai apie prekę

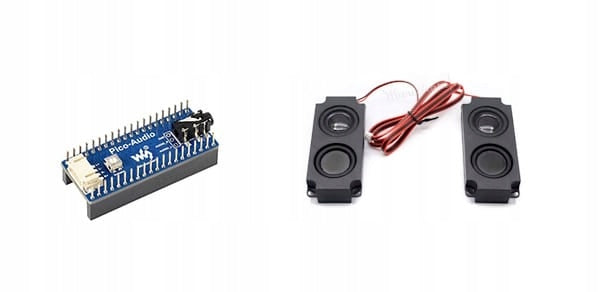

Prekė: Garso modulis I2S Raspberry Pi Pico – stereo dekoderis PCM5101A su garsiakalbiais. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Pico-Audio Waveshare 20167
Pico-Audio is an advanced audio expansion module designed specifically for the Raspberry Pi Pico. Equipped with an energy-efficient PCM5101A stereo decoder, it uses an I2S bus to transmit a digital signal, which ensures high sound quality with minimal interference.
The most important features
- Standard connector compatible with Raspberry Pi Pico series
- Built-in 3.5mm jack for headphones
- Dual Channel Speaker Output
- Support sampling rate: 8~384000Hz
- High-quality stereo sound
- 3-wire I2S bus to reduce EMI interference
- Programming support and sample codes

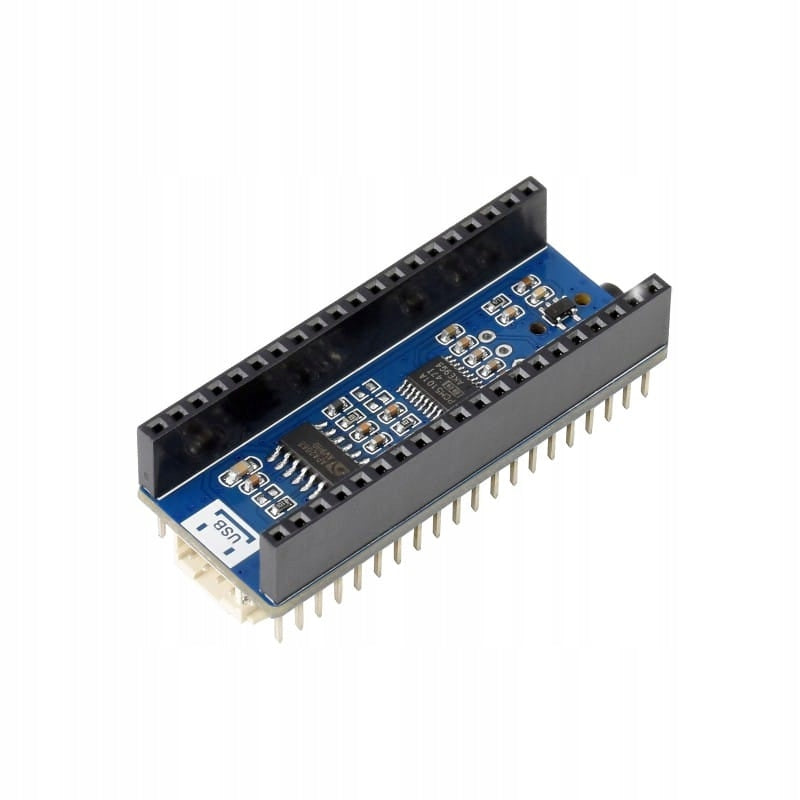

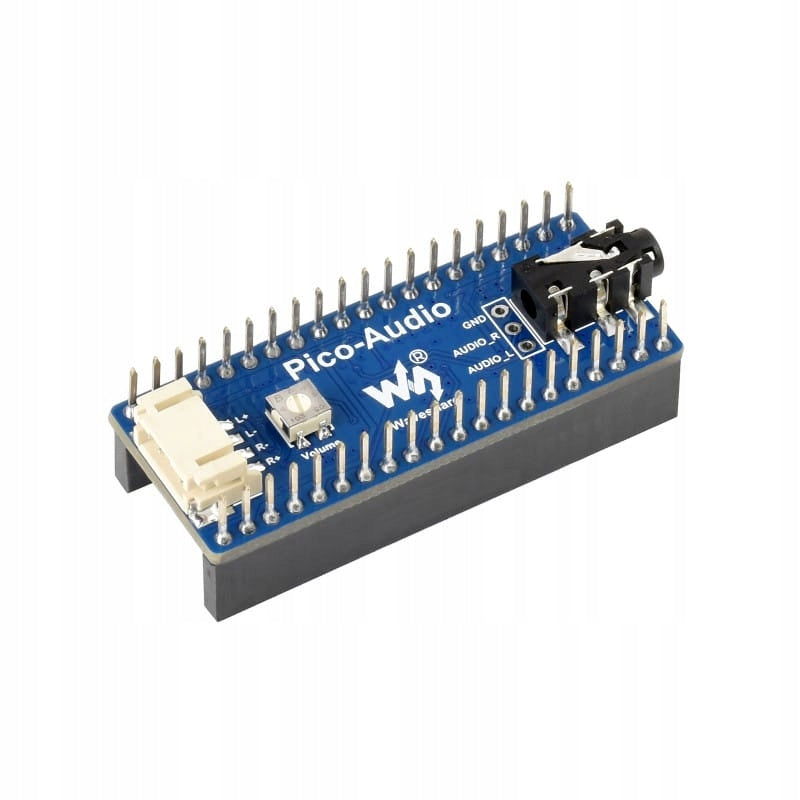

Description of tile elements
- Speaker Connector: 2 Channels, 4-Wire
- SMD Potentiometer: Speaker Output Volume Control
- Test points: Audio decoder outputs
- Jack 3.5mm: Headphone Output
- RT9193-33: 3.3V linear stabilizer
- PCM5101A: Audio decoder, I2S bus (3-wire)
- APA2068: Audio Power Amplifier
- Raspberry Pi Pico Connector: Through-the-hole design
Technical specification
- Operating Voltage: 5V
- Logical Level: 3.3V
- Audio decoder: PCM5101A
- Audio bus: I2S
- DAC SNR: 106 dB
- Speaker output power: 2.6W per channel (4Ω BTL)
- Sampling support: 8~384000 Hz
Dimensions and layout
Contents of the set
- Pico-Audio x1
- 8Ω 5W x1 speaker
Note: The kit does not include the Raspberry Pi Pico module.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Pico-Audio Waveshare 20167 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5906358322069 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
