Prekė: Garso DAC modulis KAmodRPi5 su PCM5102, skirtas Raspberry Pi. Kategorija: Priedai.
- Gamintojas: no brand
- Modelis: 1196895

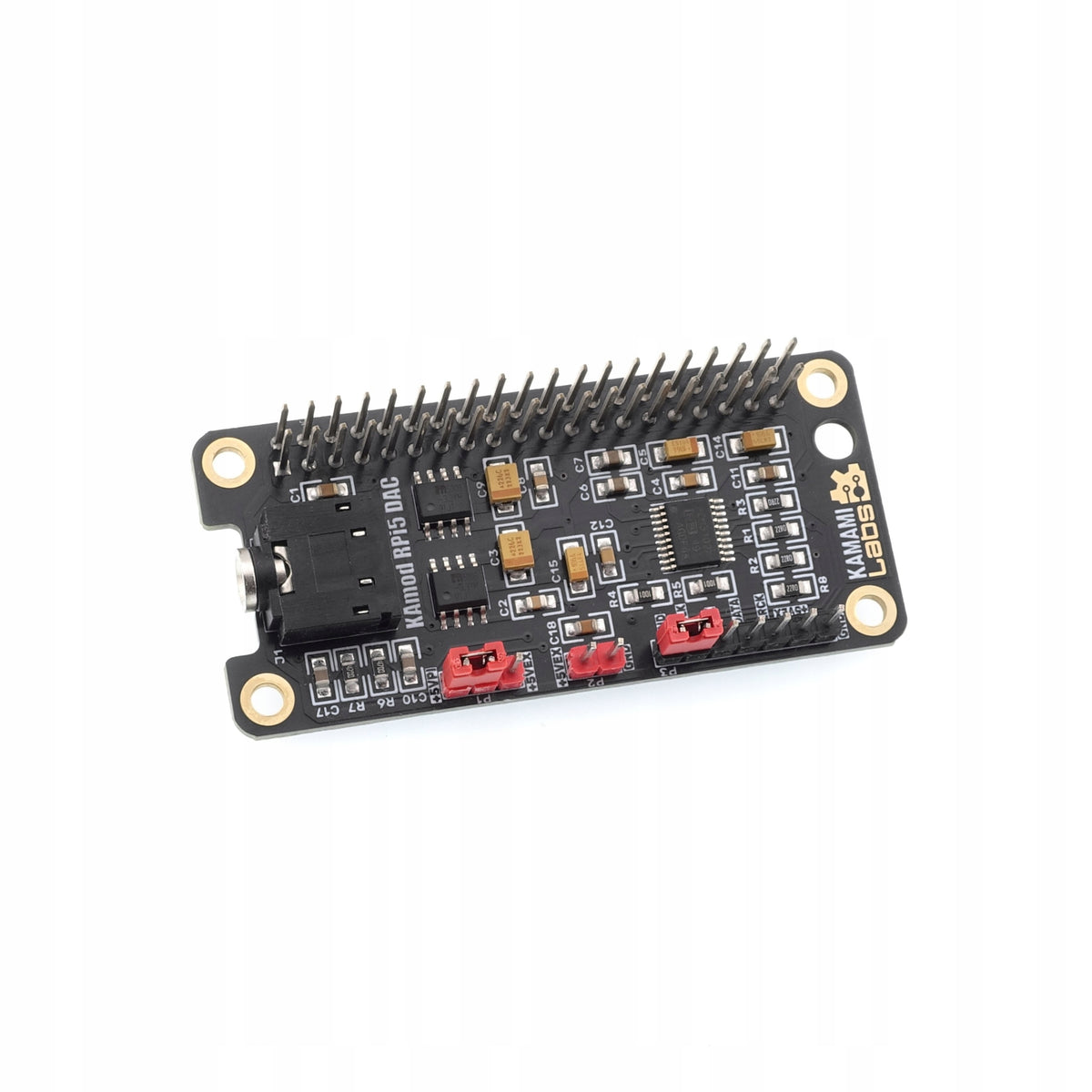

KAmodRPi5 DAC - Audio DAC I2S for Raspberry Pi with PCM5102 chip
Description
Audio digital-to-analog converter module with PCM5102 chip designed to work with single-board computers Raspberry Pi 5, 4 and 3. It communicates via the I2S interface via a 40-pin GPIO connector, which also provides +5 V power supply. The stereo audio output is available on the 3,5 mm Jack socket. The chip allows you to play PCM signal in I2S or Left-Justified formats with a resolution of 16, 20, 24 or 32 bits and sampling rate from 8 kHz to 384 kHz. The built-in audio PLL allows you to generate a SCK signal from the BCK signal without the need for an external oscillator. The audio output is characterized by a voltage of 2,1 V RMS without a capacitor cutting off the constant component. The module can be powered directly from the Raspberry Pi or independently as an external DAC working with another I2S source, e.g. S/PDIF receiver. The analog and digital sections have separate voltage stabilizers MIC5209 3.3 V, which improves interference separation.
Properties
- Works with Raspberry Pi 5/4/3 via 40-pin GPIO
- Stereo audio output on Jack 3,5 mm
- +5V power supply from Raspberry Pi or external source
- Support for I2S and Left-Justified formats
- PCM signal support: 16/20/24/32 bits
- Sampling range: 8 kHz – 384 kHz
- Audio PLL generating SCK signal from BCK
- Audio output 2,1 V RMS without coupling capacitor
- Power supply: analog +3,3 V, digital +1,8 V to 3,3 V
- Separate MIC5209 3.3 stabilizers for digital and analogue sections

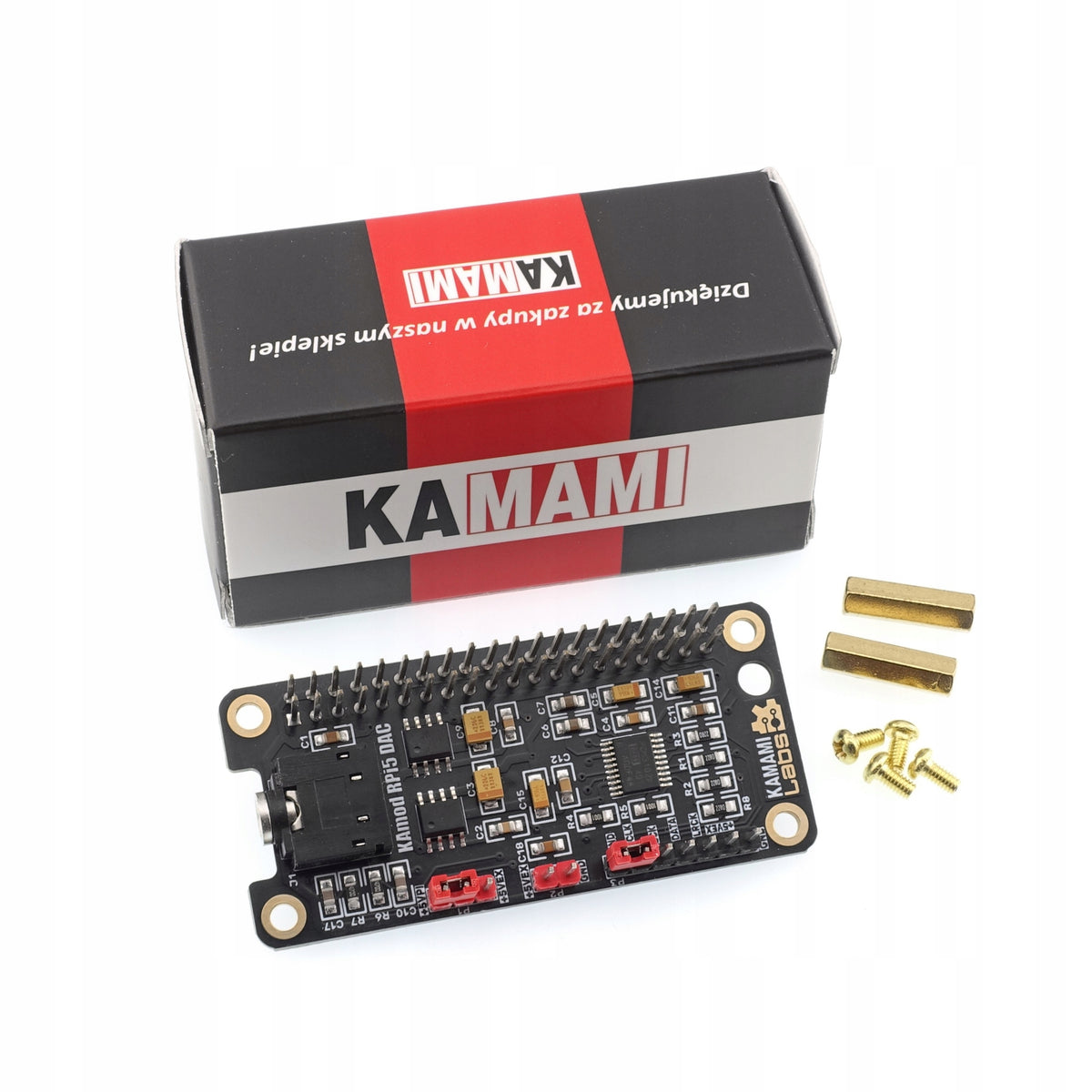

Comes with
- Assembled and running module
- Set of screws and spacers for mounting on a Raspberry Pi board
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 1196895 |
| Parametry | Manufacturer | no brand |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 5902186309852 |
