Garsiakalbių rinkinys TONSIL ALTUS 110 2x SERVICE ORIGINAL

Trumpai apie prekę

Prekė: Garsiakalbių rinkinys TONSIL ALTUS 110 2x SERVICE ORIGINAL. Kategorija: Atsarginės dalys.

• Gamintojas: Tonsil
• Modelis: 2 X Komplet Serwisowy do Kolumny Altus 110

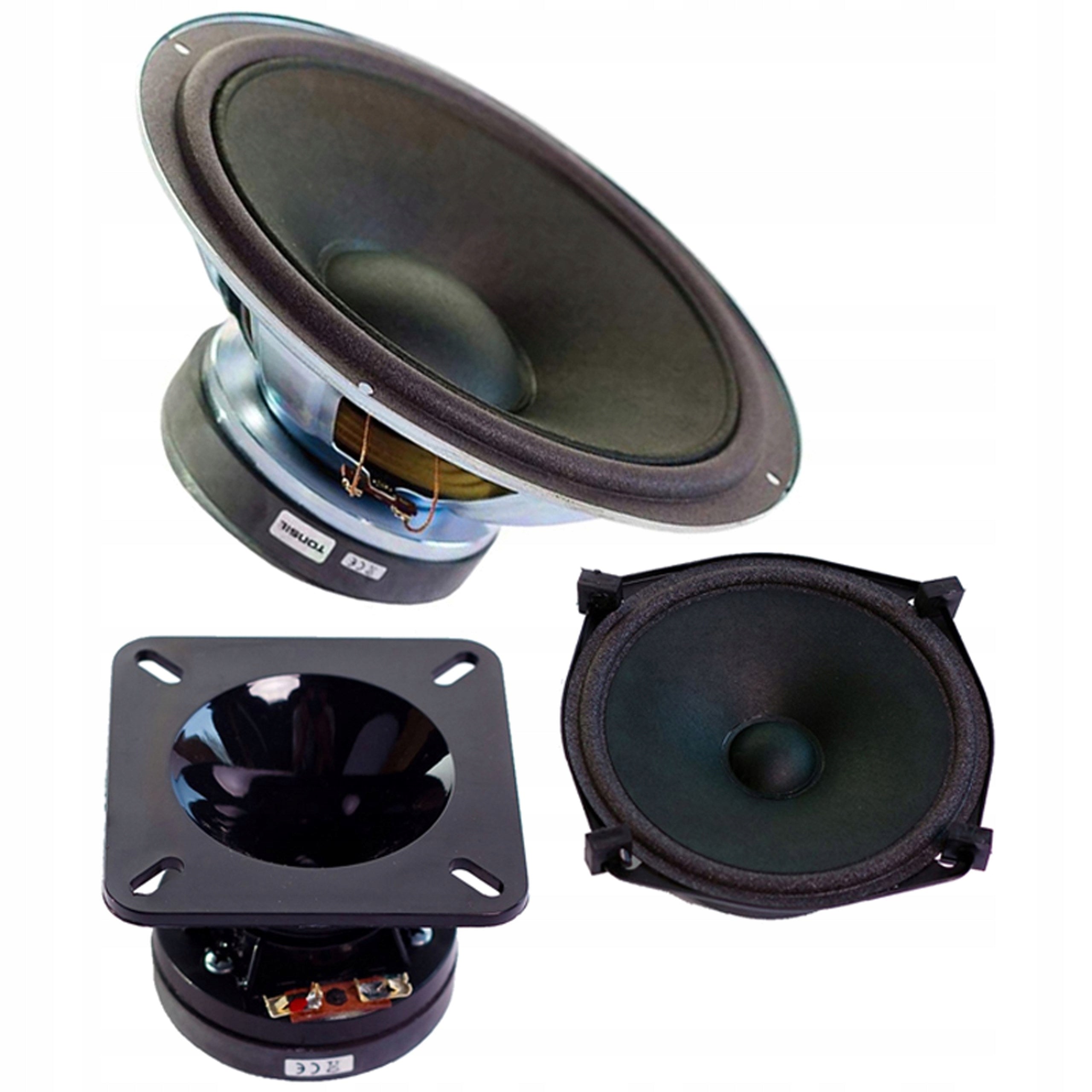

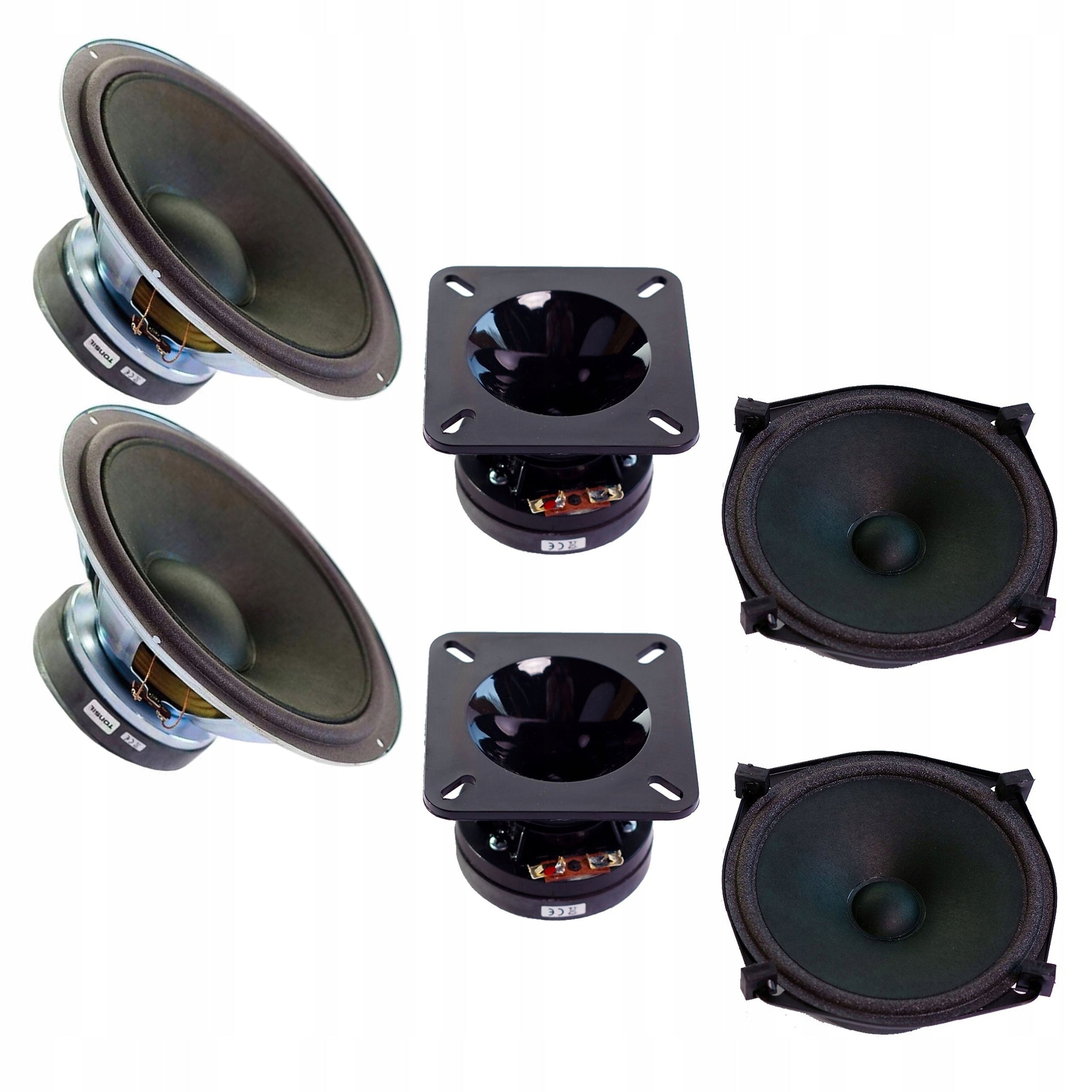

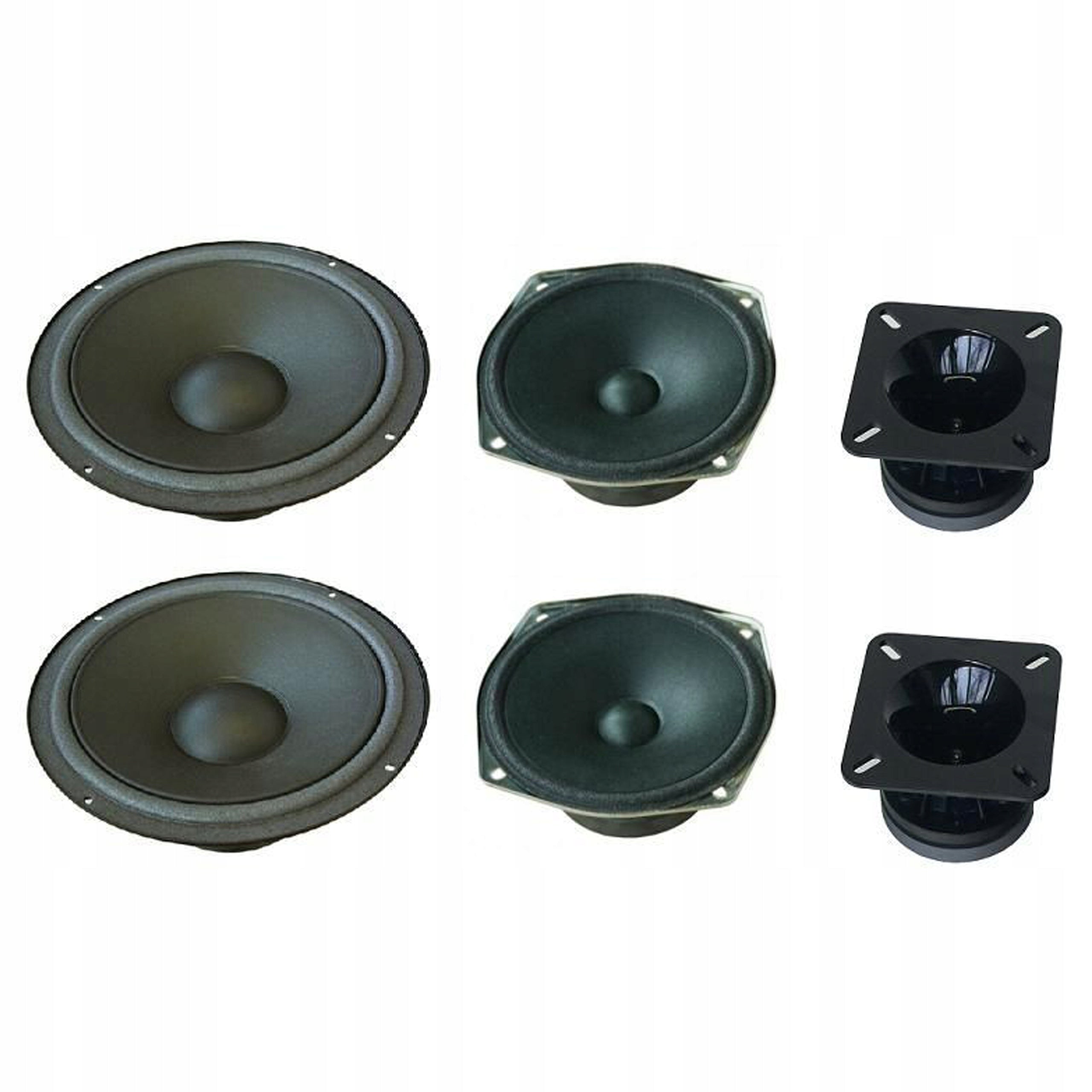

ORIGINAL set of service speakers for two loudspeakers TONSIL Altus 110:

• GDN 25/40/3 - 2 pcs.
• GDM 12/60 - 2 pcs.
• GDWT 9/80 - 2 pcs.

The speakers were completely produced in Poland at the Tonsil plant in Września.

✅ Original service kit (replacement speaker set) for two Tonsil Altus 110 speakers:

• 2 x GDN 25/40/3 8 Ohm woofer,
• 2 x GDM 12/60 8 Ohm midrange speaker,
• 2 x GDWT 9/80 8 Ohm tweeter.

The space of years has allowed the Tonsil brand to become a legend - cultivating the prestige of the brand, Tonsil has become a fully professional, modern company. It creates one of the few brands that entirely independently manufactures its devices, modernizes them and introduces new solutions. In recent years, Tonsil has been honored with a number of awards and distinctions m.in. The gold emblem of CONSUMER QUALITY LEADER 2013, or the first places in the popularity rankings, which proves that it has become a top brand, sought after and appreciated by customers.

Used for the production of membrane of the speaker GDN 25/40/3 cellulose allows you to achieve high quality natural sound.

Thanks to this, the speaker works great in Altus 140 columns by Tonsil, guaranteeing legendary sound.

All speakers included in the set use traditional ferrite magnets, which are the recognition mark of the Tonsil brand.

Ferrite magnet is a ceramic material made of iron and barium oxide or strontium.

Although it is heavier than other magnets, improves power compression without losing its magnetic properties at high temperature.

GDWT 9/80 is one of the most famous models of tweeter by Tonsil, cooled with liquid ferrofluid.

The tweeter uses a magnetic liquid called ferrociecz, which in addition to facilitating heat dissipation, which allows increase in power speaker, also improves reverberation attenuation (prevents interference of acoustic waves reflected from the rear wall of the speaker), as well as increases the life of the speaker.

• Transmission bandwidth: 60 - 5.000 Hz
• Maximum power: 60 W
• Impedance: 8 Ohms
• Nominal power: 40 W
• Efficiency: 90 dB
• Weight: 2.6 kg
• Resonant frequency FS: 37 Hz
• Coil resistance: 7 Ohm
• Coil core diameter: 48 mm
• Magnet height: 18 mm
• Height of gap: 8 mm
• Slot width: 1.5 mm
• Magnet material: ferrite
• Membrane material: cellulose
• 2 pieces included

• Transmission bandwidth: 1.000 - 9.000 Hz
• Maximum power: 90/25 W
• Nominal power (power before filter/power after filter): 60/18 W
• Impedance: 8 Ohms
• Efficiency: 91 dB
• Weight: 0.5 kg
• Recommended frequency of division: 1.000 Hz
• Coil resistance: 7 Ohm
• Coil core diameter: 20 mm
• Height of slot: 4.6 mm
• Slot width: 0.95 mm
• External diameter of the magnet: 70 mm
• Internal diameter of the magnet: 32 mm
• Magnet material: ferrite
• Membrane material: cellulose
• 2 pieces included

• Transmission bandwidth: 4.000 - 14.000 Hz
• Maximum power: 160/5 W
• Nominal power (power before filter/power after filter): 80/2.5 W
• Impedance: 8 Ohms
• Efficiency: 100 dB
• Weight: 0.5 kg
• Recommended frequency of division: 4.500 Hz
• Coil resistance: 6.3 Ohm
• Coil core diameter: 25 mm
• Height of gap: 3 mm
• Slot width: 0.815 mm
• External diameter of the magnet: 70 mm
• Internal diameter of the magnet: 32 mm
• Magnet material: ferrite
• Membrane material: impregnated fabric
• 2 pieces included

SKU: TN-ZEST-ALTUS-110-2
