Frezavimo staklės Dnipro-M ER-210LX 2500W 6/8/12 mm 70 mm

Trumpai apie prekę

Prekė: Frezavimo staklės Dnipro-M ER-210LX 2500W 6/8/12 mm 70 mm. Kategorija: Frezavimo staklės.

• Gamintojas: Dnipro-M
• Modelis: 08635000
• Įtampa: 230 V

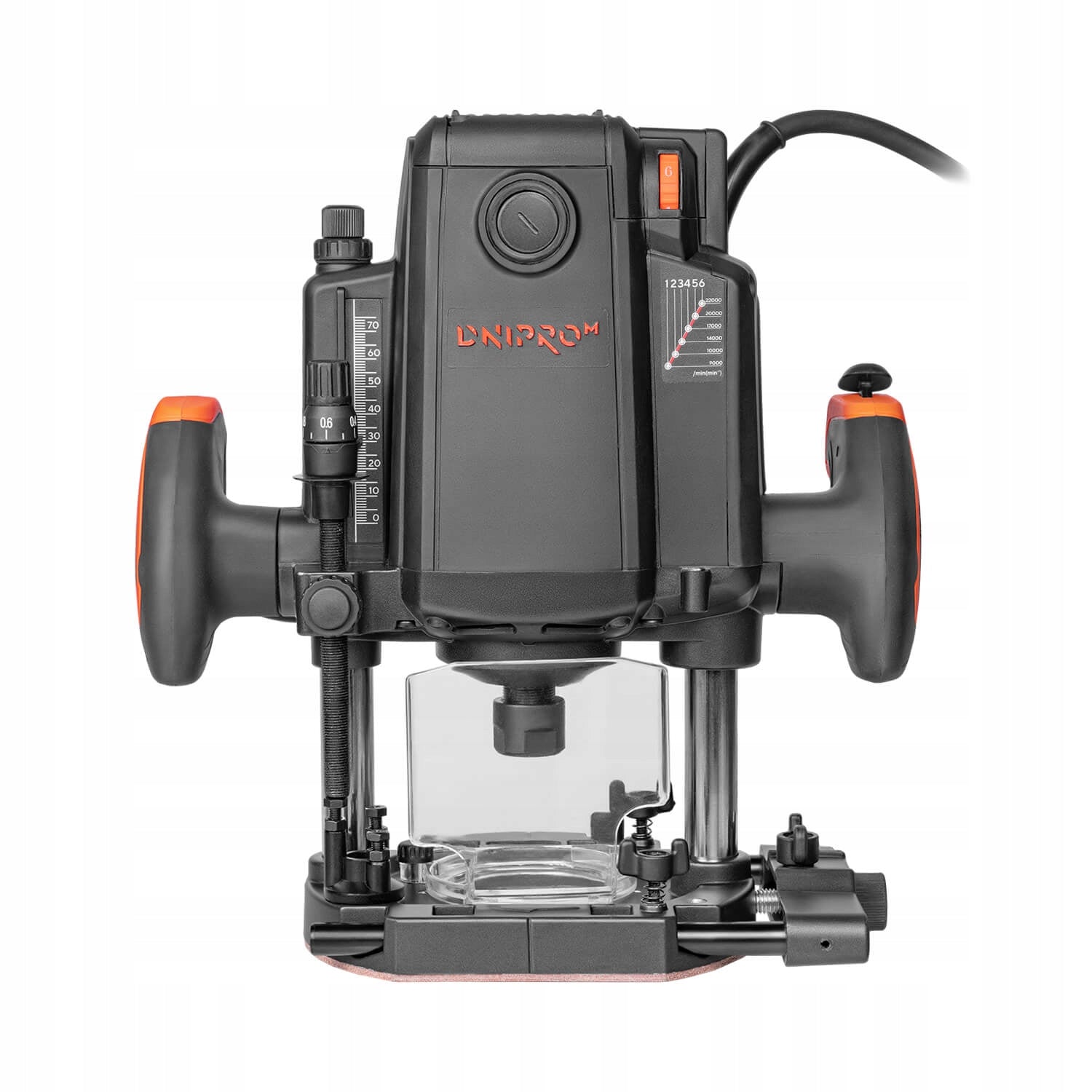

Dnipro-M ER-210LX is a powerful spindle milling machine designed for treatment of wood and wood-based materials. It will work well when milling grooves, grooves, edges, phases, decorative profiles and elements made according to the template.

The tool offers nominal power of 2100 W, working power of 2300 W and maximum power of 2500 W, making it suitable for demanding carpentry and workshop work. Rotation range 9000 – 22000 rpm /min allows you to adjust the speed to the type of cutter and the material being processed.

The milling machine supports clamp sleeves 6 mm, 8 mm and 12 mm, which increases the freedom of selection of accessories. The maximum diameter of the cutter is 60 mm, and the height of the cutter stroke is 70 mm, which is why the ER-210LX model will also work well for deeper milling and working with larger cutters.

The set includes practical accessories: parallel limiter, guide, copy roller, copy sleeve, protective cover, vacuum cleaner adapter, set of collets and spare graphite brushes. The product is ready to work with the right cutter selected for the task.

• Maximum power 2500 W — for demanding woodworking and wood-based materials.
• Scope 9000 to 22000 rpm /min — easier adjustment of rotations to the cutter and material.
• The 6 / 8 / 12 mm bushings – greater freedom of choice of cutters.
• Milling depth up to 70 mm – comfortable work with thicker elements.
• Maximum cutter diameter 60 mm — the possibility of using larger accessories.
• Smooth start – more comfort and control at startup.
• Workplace illumination — better visibility of the milling line.
• Spindle lock — easier replacement of attachments.
• Adapter for vacuum cleaner included — dust and sawdust reduction during operation.
• Extended accessory set — driving, copying and dust extraction immediately included.

• Type: high-spindle milling machine, mains
• Power supply: 230 V / 50 Hz
• Power: 2100 W rated, 2300 W working, 2500 W maximum
• Rotary speed: 9000 to 22000 rpm. /min
• Speed control: yes
• Rotation stabilization: no
• Dynamic brake: no
• Clamping sleeves: 6 mm, 8 mm, 12 mm
• Maximum cutter diameter: 60 mm
• Maximum depth / stroke of the cutter: 70 mm
• Functions: smooth start, rotation adjustment, spindle lock, workplace backlight, depth limiter with scale, parallel stop, vacuum cleaner adapter
• Cable length: 3 m
• Protection rating / protection class: IP20 / II
• Certificate of conformity: CE
• Includes batteries: no
• Battery included: not applicable — network product
• Charger included: not applicable — network product
• Creams included: no
• Weight of the working device: 6,4 kg
• Net / gross weight: 7,0 kg / 7,7 kg
• Weight with packaging: 7,7 kg
• Contents of the set: milling machine, parallel stop, limiter guide, copy roller, copying sleeve, protective cover with mounting screw, 24 mm wrench, set of spare graphite brushes, 8 mm sleeve, 6 mm sleeve, adapter for vacuum cleaner, 12 mm sleeve mounted in spindle, user manual, packaging

The ER-210LX model has been prepared for work in which both power and control of tool management are important. Rotation range 9000 – 22000 rpm /min allows you to adjust the work of the milling machine to the diameter of the cutter and the type of material being processed.

With larger cutters, you can work at lower speeds, and with smaller cutters, use higher speed for cleaner machining. The 70 mm cutter stroke increases the possibilities of working with thicker elements, and the maximum cutter diameter of 60 mm allows you to perform more demanding carpentry tasks.

The depth limiter with scale makes it easy to set the milling depth, and the parallel limiter helps guide the tool evenly relative to the edge of the material. This is important for repetitive work such as grooves, grooves, edges and decorative elements.

The Dnipro-M ER-210LX milling machine is equipped with solutions that improve the convenience of everyday work. Smooth start facilitates controlled starting of the tool, and spindle lock helps with the replacement of bushings and accessories.

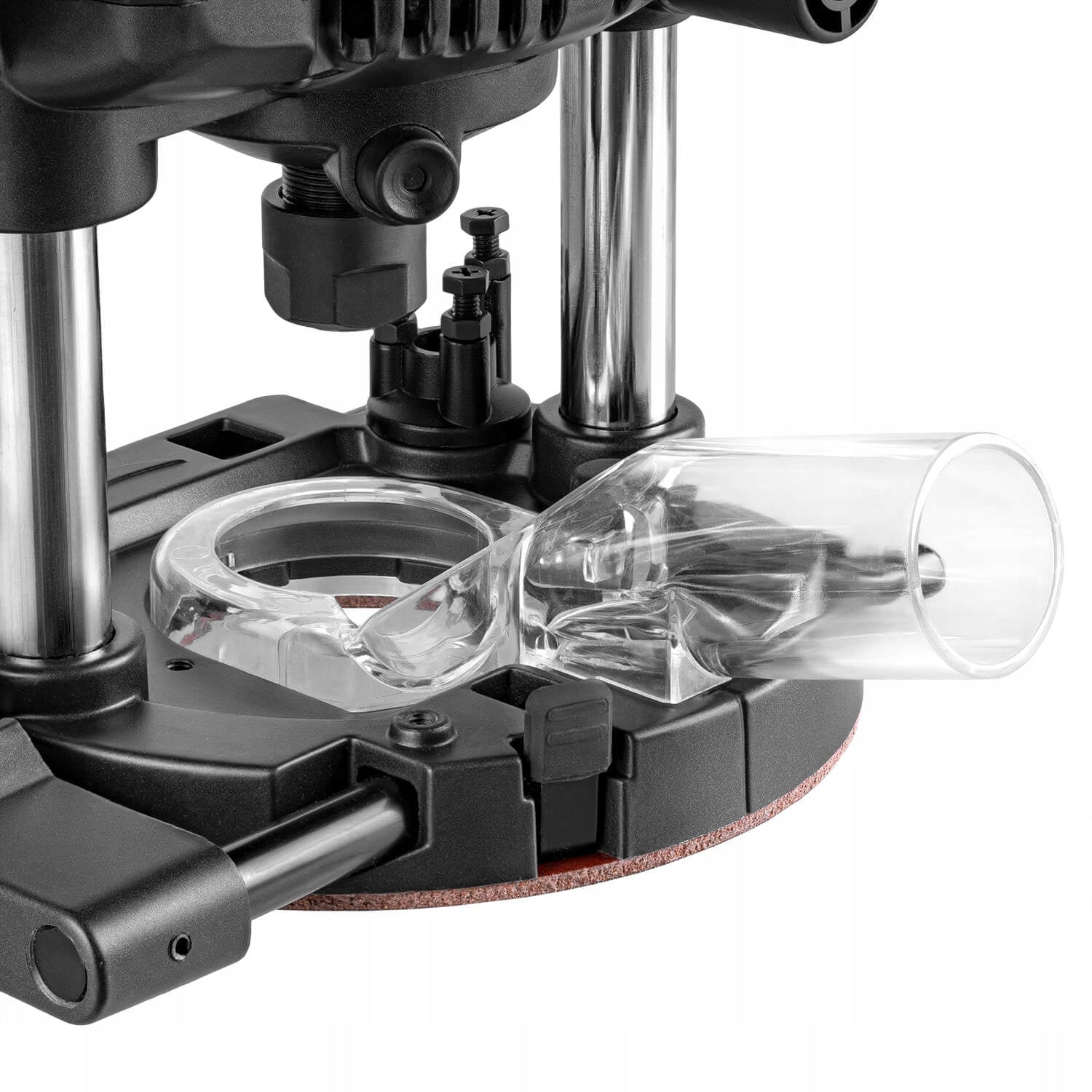

Illumination of the working area improves the visibility of the milling site, which is particularly useful for thorough carpentry work. The protective cover increases the comfort of work, and the adapter for the vacuum cleaner allows you to connect dust extraction and reduce the amount of sawdust on the stand.

The set also includes a copy roller and a copy sleeve, which help with template work and edge processing. This makes the tool suitable not only for simple milling, but also for more precise workshop tasks.

Specifications
